8-15 — FIXING PARTS; WIRING HARNESS (#75415) — 112 parça

53 515 139 53 139 53 53 53 515 53 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

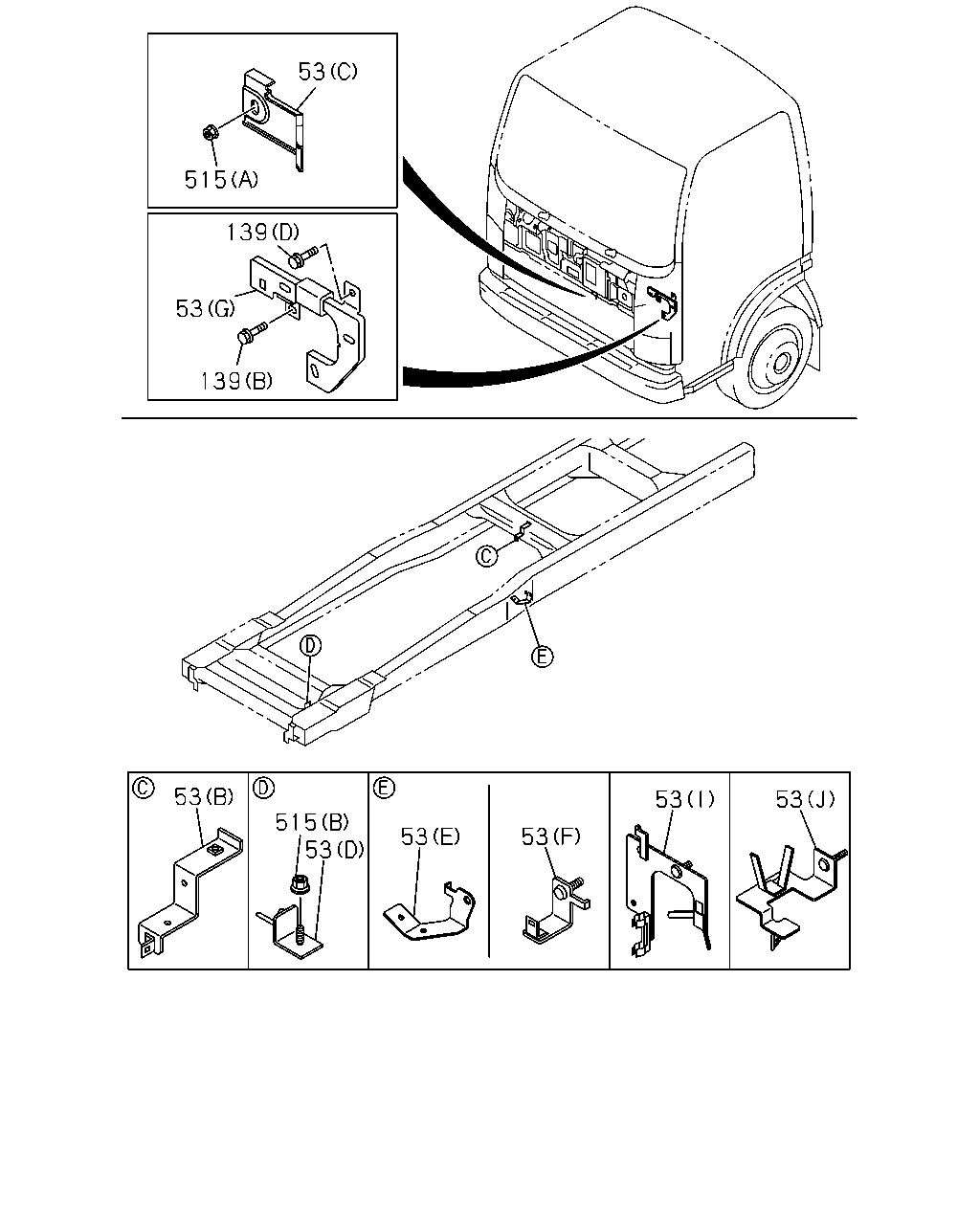

53	02.483 BRACKET; HARNESS (E)	8-98130-669-1	01	1	0810-
53	02.483 BRACKET; HARNESS (J)	8-98132-377-0	01	1	0810-
53	02.483 BRACKET; HARNESS (I)	8-98126-454-2	01	1	0810-
53	02.483 BRACKET; HARNESS (C)	8-98014-410-2	01	1	0810-
53	02.483 BRACKET; HARNESS (D)	8-98032-016-1	01	1	0810-
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	0810-
53	02.483 BRACKET; HARNESS (B)	8-98077-504-0	01	1	0810-
53	02.483 BRACKET; HARNESS (G)	8-98089-765-1	01	1	0810-
53	02.483 BRACKET; HARNESS (F)	8-98114-461-2	01	1	0810-
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (H)	8-98084-699-0	01	1	0810-0810
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39) (H)	8-98084-699-0	01	1	0811-0811
53	02.483 BRACKET; HARNESS (H)	8-98084-699-0	01	1	0812-
139	02.559 BOLT; BRKT 03.604 (D) M6X12 FLANGE	8-97108-669-0	01	1	0810-
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0810-
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	0810-
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 16.090 (C) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0810-0810
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39) 16.090 (C) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0811-0811
139	02.559 BOLT; BRKT 16.090 (C) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0812-1101
139	02.559 BOLT; BRKT 16.090 (C) M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212
139	02.559 BOLT; BRKT 16.090 (C) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	02	1	0810-0909
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0910-
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0910-
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0910-
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0810-
515	02.559 NUT; BRKT 01.062 (D) M8 FLANGE	0-91180-108-0	01	1	0810-0911
515	02.559 NUT; BRKT 01.062 (D) M8 FLANGE	0-91180-108-0	01	1	0810-0911
515	02.559 NUT; BRKT 01.062 (D) M8 FLANGE	0-91180-108-0	02	1	0912-
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	0810-
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0810-0909

516 139 139 139 480 529 480 377 377 386 377 386 386 377 386 24 294 515 577 219 294 515 515 552 515 552 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	02.559 NUT; HARNESS 01.062 M6 FLANGE	0-91180-106-0	01	1	0810-1409
24	02.559 NUT; HARNESS M6 FLANGE STAINLESS	8-98297-112-0	01	1	1410-
139	02.559 BOLT; BRKT 03.604 (D) M6X12 FLANGE	8-97108-669-0	01	1	0810-
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0810-
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	0810-
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 16.090 (C) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0810-0810
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39) 16.090 (C) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0811-0811
139	02.559 BOLT; BRKT 16.090 (C) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0812-1101
139	02.559 BOLT; BRKT 16.090 (C) M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212
139	02.559 BOLT; BRKT 16.090 (C) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-
219	02.559 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	0810-1506
294	02.559 NUT 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0810-0904
294	02.559 NUT 02.343 (A) M6 W/LK WASHER	8-94424-179-0	01	1	0810-
377	02.559 BOLT; CAB EARTH (A) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	0810-1004
377	02.559 BOLT; CAB EARTH 02.343 (D) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1005-
377	02.559 BOLT; CAB EARTH (B) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0810-1004
377	02.559 BOLT; CAB EARTH (A) M6X14 W/PL WASHER	8-98164-836-0	01	1	1005-
377	02.559 BOLT; CAB EARTH 02.343 (C) M8X25 W/LK&PL WASHER	8-97087-203-0	02	1	0810-1004
386	02.559 BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0810-1004
386	02.559 BOLT; GRAND HARNESS 02.343 (C) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1005-
386	02.559 BOLT; GRAND HARNESS 02.343 (B) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0810-1004
386	02.559 BOLT; GRAND HARNESS 02.343 (D) M8X24 W/PL WASHER	8-98141-256-1	01	1	1005-
480	02.483 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	0810-
480	02.483 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	0810-
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	02	1	0810-0909
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0910-
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0910-
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0910-
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0810-
515	02.559 NUT; BRKT 01.062 (D) M8 FLANGE	0-91180-108-0	01	1	0810-0911
515	02.559 NUT; BRKT 01.062 (D) M8 FLANGE	0-91180-108-0	01	1	0810-0911
515	02.559 NUT; BRKT 01.062 (D) M8 FLANGE	0-91180-108-0	02	1	0912-
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	0810-
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0810-0909
516	02.559 BOLT; HARNESS 09.650 M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	0810-
529	02.559 BOLT; RELAY BOX 08.155 M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	0810-
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0810-
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0810-
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	0810-

139 53 53 139 575

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
53	02.483 BRACKET; HARNESS (E)	8-98130-669-1	01	1	0810-
53	02.483 BRACKET; HARNESS (J)	8-98132-377-0	01	1	0810-
53	02.483 BRACKET; HARNESS (I)	8-98126-454-2	01	1	0810-
53	02.483 BRACKET; HARNESS (C)	8-98014-410-2	01	1	0810-
53	02.483 BRACKET; HARNESS (D)	8-98032-016-1	01	1	0810-
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	0810-
53	02.483 BRACKET; HARNESS (B)	8-98077-504-0	01	1	0810-
53	02.483 BRACKET; HARNESS (G)	8-98089-765-1	01	1	0810-
53	02.483 BRACKET; HARNESS (F)	8-98114-461-2	01	1	0810-
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (H)	8-98084-699-0	01	1	0810-0810
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39) (H)	8-98084-699-0	01	1	0811-0811
53	02.483 BRACKET; HARNESS (H)	8-98084-699-0	01	1	0812-
139	02.559 BOLT; BRKT 03.604 (D) M6X12 FLANGE	8-97108-669-0	01	1	0810-
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0810-
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	0810-
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 16.090 (C) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0810-0810
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39) 16.090 (C) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0811-0811
139	02.559 BOLT; BRKT 16.090 (C) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0812-1101
139	02.559 BOLT; BRKT 16.090 (C) M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212
139	02.559 BOLT; BRKT 16.090 (C) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-

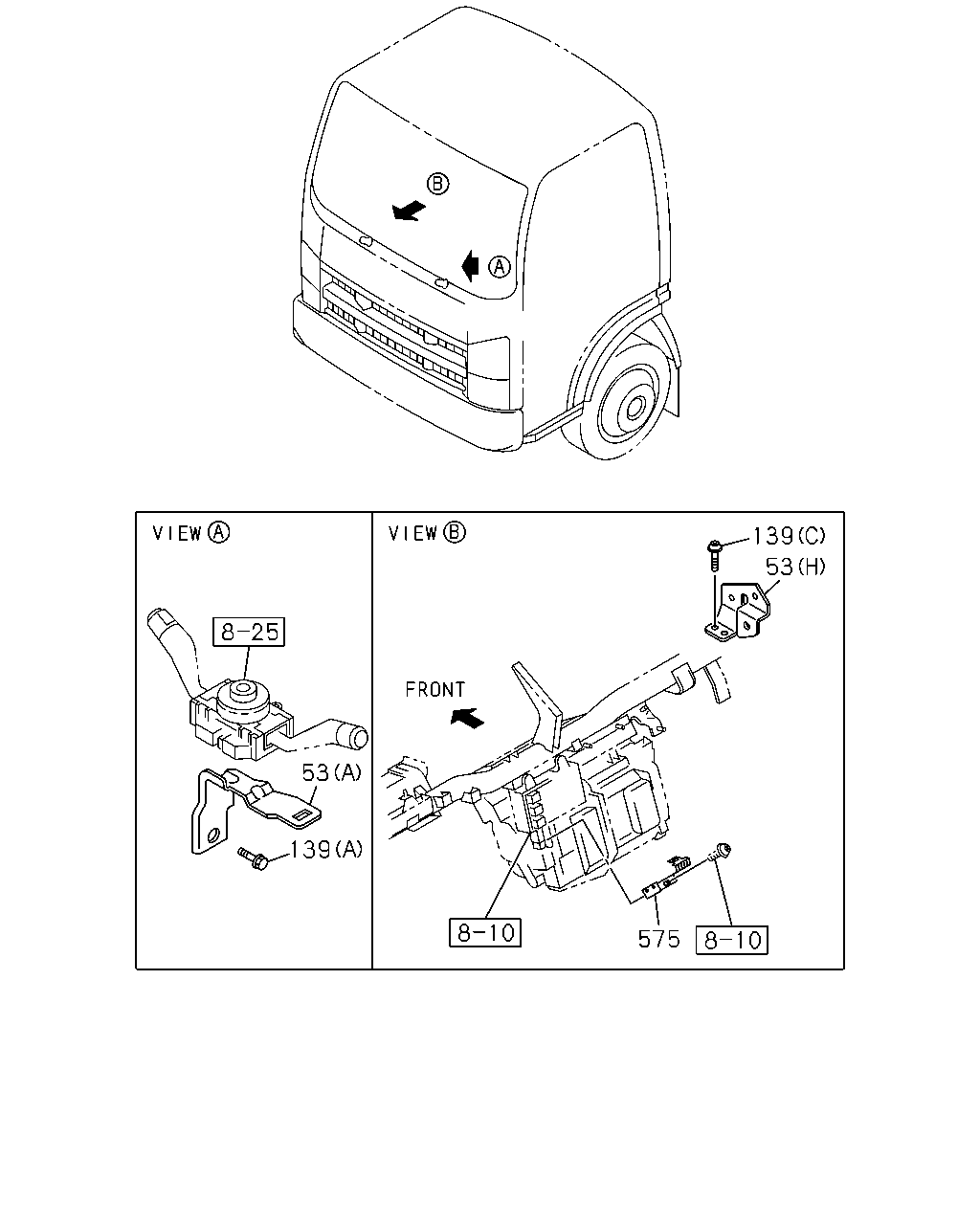

575	02.559 BRACKET; FUSE BOX EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41)	8-98132-932-1	01	1	0810-0810
575	02.559 BRACKET; FUSE BOX EXC. FORGED AIR VENTILATION(C39)	8-98132-932-1	01	1	0811-0811
575	02.559 BRACKET; FUSE BOX	8-98132-932-1	01	1	0812-
575	02.559 BRACKET; FUSE BOX FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41)	8-98054-320-2	01	1	0810-0810
575	02.559 BRACKET; FUSE BOX FORGED AIR VENTILATION(C39)	8-98054-320-2	01	1	0811-0811

488 48 48 483 22 513 16 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	02.559 CLIP; HARNESS 04.930 (A) L=91 ID=8.5	8-94329-956-0	01	1	0810-
16	02.559 CLIP; HARNESS 02.343 (B) ID=10 & 16	8-94413-325-0	01	1	0810-
16	02.559 CLIP; HARNESS 16.578 (C) D8.5X19 PUSH RIVET	8-97857-210-0	01	1	0810-
22	02.559 CLIP; ENG HARNESS L=170.3	1-09987-182-0	01	1	0811-
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) 01.240 (A) ID=14 L=47	5-09700-319-0	07	1	0906-
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W) 01.240 (A) ID=14 L=47	5-09700-319-0	05	1	0810-0810
48	02.559 CLIP; FRAME HARNESS 01.240 (A) ID=14 L=47	5-09700-319-0	05	1	0811-0905
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W) 01.240 (A) ID=14 L=47	5-09700-319-0	05	1	0906-
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) 01.240 (A) ID=14 L=47	5-09700-319-0	07	1	0810-0810
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 9	8-97371-947-0	01	1	0810-
483	02.559 CLIP; ENG HARNESS 03.162 L=140	5-09707-031-1	01	1	0810-
488	02.559 CLIP; CABLE,TRAILER L=250	5-09707-030-1	04	1	0810-
513	02.559 TAPE; SOFT,HARNESS 70X45	8-97304-372-0	01	1	0907-1309
513	02.559 TAPE; SOFT,HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 130X80	8-97304-373-0	01	1	0810-0810
513	02.559 TAPE; SOFT,HARNESS EXC. FORGED AIR VENTILATION(C39) 130X80	8-97304-373-0	01	1	0811-0811
513	02.559 TAPE; SOFT,HARNESS 130X80	8-97304-373-0	01	1	0812-

459 459

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

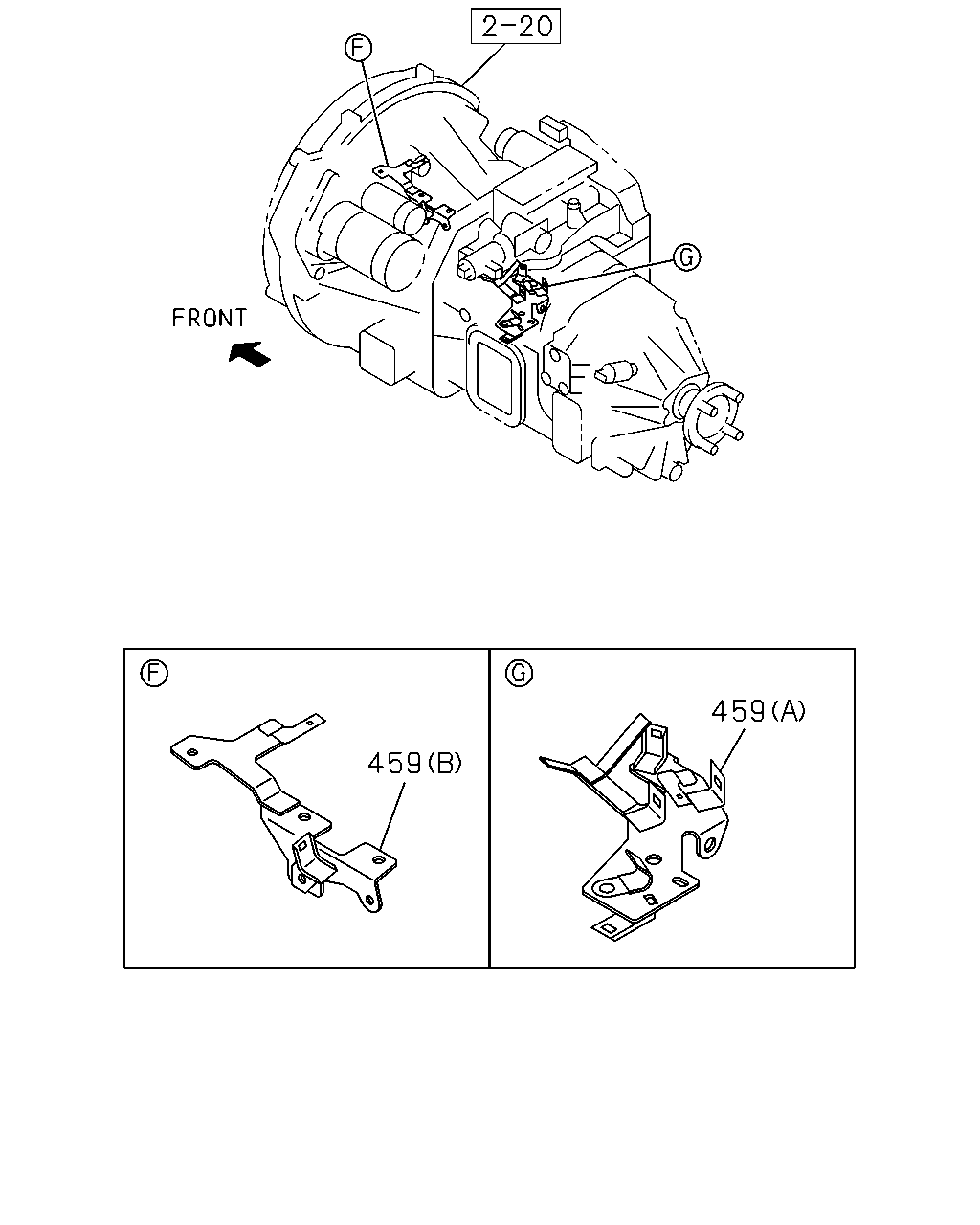

	459	02.483 BRACKET; SUPPORT,HARNESS (B)	8-98123-282-0	01	1	0810-
	459	02.483 BRACKET; SUPPORT,HARNESS (A)	8-98123-286-1	01	1	0810-
