0-31 — THERMOSTAT AND HOUSING (#7541) — 17 parça

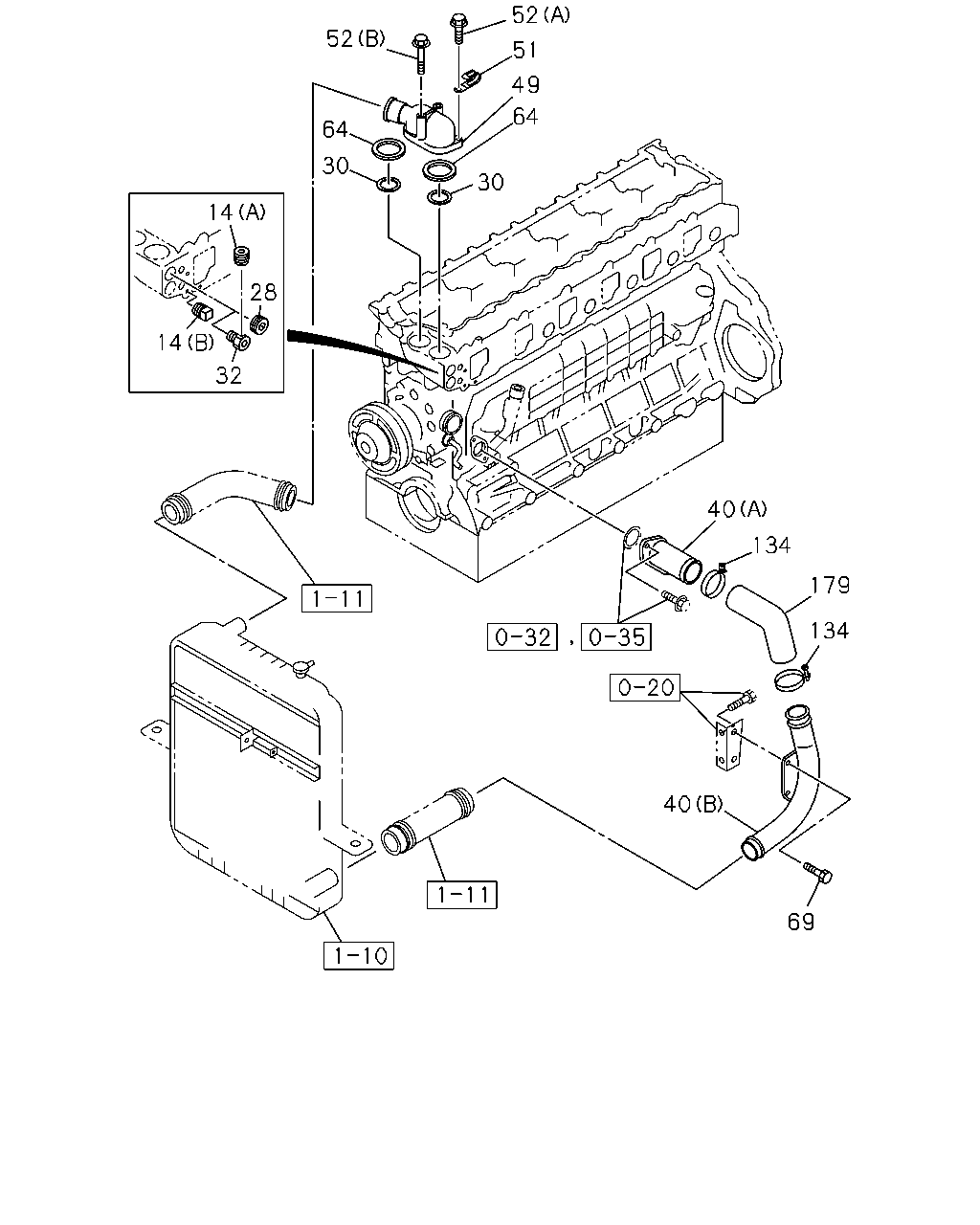

çizim 40907
52 52 51 49 64 64 30 30 14 28 14 32 40 134 179 134 40 69
BalonParca AdiParca NoAdetTipApplied Date A B
14 PLUG; SW
(A) PT1/4 		1-09605-019-0 01 1 0101- ●
14 PLUG; SW
(B) PT3/8 		8-94397-338-0 01 1 0101- ● ●
28 PLUG; HTR
PT3/4 		1-09605-020-0 01 1 0101- ●
30 SPACER 8-94393-517-0 02 1 0101- ● ●
32 CONNECTOR; HTR 8-94395-851-1 01 1 0101- ●
40 DUCT; WATER,SUCTION
(A) 		8-94391-091-1 01 1 0101- ● ●
40 DUCT; WATER,SUCTION
(B) 		8-94394-404-1 01 1 0101- ● ●
49 PIPE; WATER OUTLET 8-94399-499-1 01 1 0101-0105 ● ●
49 PIPE; WATER OUTLET 8-97602-047-0 01 1 0106- ● ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 THA 		8-94225-185-0 01 1 0101- ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28080-880-0 02 1 0101- ● ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0101- ● ●
64 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94370-480-0 02 1 0101-0105 ● ●
64 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97300-793-0 02 1 0106- ● ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28080-820-0 02 1 0101- ● ●
134 CLIP; RUBBER HOSE
ID=63 THA 		1-09704-067-0 02 1 0101- ● ●
179 HOSE; RUBBER,WATER DUCT 8-94394-535-2 01 1 0101- ● ●
