Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#75408) — 191 parça

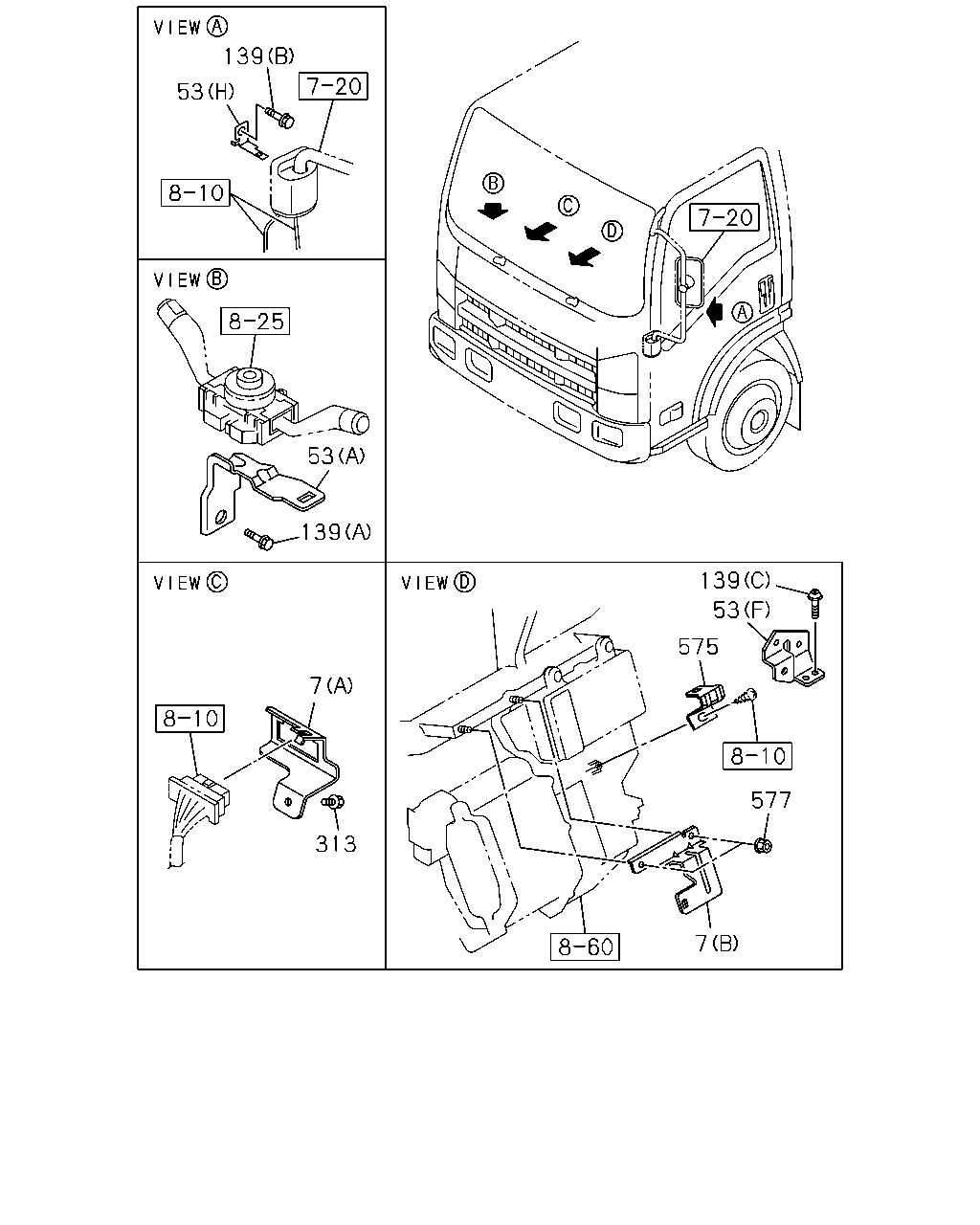

139 53 53 139 139 53 575 7 577 313 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
7	BRACKET; CONNECTOR (B)	8-98029-762-4	01	1	0804-	●	●	●
7	BRACKET; CONNECTOR (A)	8-98043-070-1	01	1	0804-	●	●	●
53	BRACKET; HARNESS (C)	8-98018-900-2	01	1	0804-	●	●	●
53	BRACKET; HARNESS (E)	8-98039-984-2	01	1	0804-	●	●	●
53	BRACKET; HARNESS (A)	8-98052-458-0	01	1	0804-	●	●	●
53	BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D)	8-98033-918-2	01	1	0804-1303	●	●	●
53	BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D)	8-98033-918-2	01	1	1304-1309	●		●
53	BRACKET; HARNESS (D)	8-98033-918-2	01	1	1304-1309		●
53	BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D)	8-98033-918-2	01	1	1310-	●		●
53	BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01> (D)	8-98033-918-2	01	1	1310-		●
53	BRACKET; HARNESS FRAME EQUIPMENT HEAVY DUTY VAR2<F01> (D)	8-98033-918-2	01	1	1310-		●
53	BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98052-900-1	01	1	0804-1303	●	●	●
53	BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98052-900-1	01	1	1304-1309	●		●
53	BRACKET; HARNESS (B)	8-98052-900-1	01	1	1304-1309		●
53	BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98052-900-1	01	1	1310-	●		●
53	BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01> (B)	8-98052-900-1	01	1	1310-		●
53	BRACKET; HARNESS FRAME EQUIPMENT HEAVY DUTY VAR2<F01> (B)	8-98052-900-1	01	1	1310-		●
53	BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98105-778-0	01	1	0804-1303	●	●	●
53	BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98105-778-0	01	1	1304-1309	●		●
53	BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98105-778-0	01	1	1310-	●		●
53	BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME EQUIPMENT HEAVY DUTY VAR2<F01> (B)	8-98105-778-0	01	1	1310-		●
53	BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (G)	8-98107-111-1	01	1	0804-1303	●	●	●
53	BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (G)	8-98107-111-1	01	1	1304-1309	●		●
53	BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (G)	8-98107-111-1	01	1	1310-	●		●
53	BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME EQUIPMENT HEAVY DUTY VAR2<F01> (G)	8-98107-111-1	01	1	1310-		●
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (F)	8-98084-590-0	01	1	0804-	●	●	●
53	BRACKET; HARNESS O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (H) SOU	8-98039-277-1	02	1	0804-0804	●	●	●
53	BRACKET; HARNESS DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (H) SOU	8-98039-277-1	02	1	0804-0805	●	●	●
139	BOLT; BRKT (A) M8X12 FLANGE	0-28050-812-0	01	1	0804-	●	●	●
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0804-1101	●	●	●
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212	●	●	●
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●	●	●
139	BOLT; BRKT O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) M8X16 FLANGE SOU	0-28050-816-0	02	1	0804-0804	●	●	●
139	BOLT; BRKT DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) M8X16 FLANGE SOU	0-28050-816-0	02	1	0804-0805	●	●	●
313	BOLT; BRKT M6X16 FLANGE SOU	0-28450-616-0	01	1	0804-	●	●	●
575	BRACKET; FUSE BOX	8-98042-656-2	01	1	0804-	●	●	●
577	NUT; FUSE BOX M6 FLANGE SOU	0-91180-106-0	02	1	0804-	●	●	●
577	NUT; FUSE BOX M6 FLANGE SOU	0-91180-106-0	02	1	0804-	●	●	●

313 38 139 516 480 481 139 480 481 480 529 377 377 386 377 386 386 386 139 24 515 577 219 294 515 524 552 515 552

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	NUT; HARNESS M6 FLANGE SOU	0-91180-106-0	01	1	0804-1409	●	●	●
24	NUT; HARNESS M6 FLANGE STAINLESS	8-98297-112-0	01	1	1410-	●	●	●
38	BOLT; CLIP,HARNESS M8X12 FLANGE	0-28050-812-0	01	1	0804-	●	●	●
139	BOLT; BRKT (A) M8X12 FLANGE	0-28050-812-0	01	1	0804-	●	●	●
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0804-1101	●	●	●
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212	●	●	●
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●	●	●
139	BOLT; BRKT O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) M8X16 FLANGE SOU	0-28050-816-0	02	1	0804-0804	●	●	●
139	BOLT; BRKT DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) M8X16 FLANGE SOU	0-28050-816-0	02	1	0804-0805	●	●	●
219	NUT M8 FLANGE SOU	0-91180-108-0	02	1	0804-	●	●	●
294	NUT M8 FLANGE SOU	0-91180-108-0	01	1	0804-	●	●	●
313	BOLT; BRKT M6X16 FLANGE SOU	0-28450-616-0	01	1	0804-	●	●	●
377	BOLT; CAB EARTH (A) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	0804-1004	●	●	●
377	BOLT; CAB EARTH (C) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1005-	●	●	●
377	BOLT; CAB EARTH (B) M8X20 W/LK&PL WASHER SOU	8-97086-825-0	03	1	0804-1004	●	●	●
377	BOLT; CAB EARTH (A) M6X14 W/PL WASHER	8-98164-836-0	01	1	1005-	●	●	●
386	BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER SOU	8-97086-825-0	01	1	0804-1004	●	●	●
386	BOLT; GRAND HARNESS (C) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1005-	●	●	●
386	BOLT; GRAND HARNESS (B) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0804-1004	●	●	●
386	BOLT; GRAND HARNESS (D) M8X24 W/PL WASHER	8-98141-256-1	01	1	1005-	●	●	●
480	BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) M8X25 FLANGE SOU	0-28650-825-0	01	1	0804-0804	●	●	●
480	BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) M8X20 FLANGE	0-28650-820-0	01	1	0804-1303	●	●	●
480	BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) M8X20 FLANGE	0-28650-820-0	01	1	1304-1309	●		●
480	BOLT; BRKT (B) M8X20 FLANGE	0-28650-820-0	01	1	1304-1309		●
480	BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) M8X20 FLANGE	0-28650-820-0	01	1	1310-	●		●
480	BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01> (B) M8X20 FLANGE	0-28650-820-0	01	1	1310-		●
480	BOLT; BRKT FRAME EQUIPMENT HEAVY DUTY VAR2<F01> (B) M8X20 FLANGE	0-28650-820-0	01	1	1310-		●
480	BOLT; BRKT (C) M6X25 FLANGE SOU	0-28650-625-0	01	1	0804-	●	●	●
481	BOLT; CABLE HARNESS (A) M8X20 FLANGE	0-28650-820-0	01	1	0804-0903	●	●	●
481	BOLT; CABLE HARNESS (B) M8X10 W/LK WASHER	8-98029-928-0	02	1	0804-	●	●	●
515	NUT; BRKT (A) M6 FLANGE SOU	0-91180-106-0	02	1	0804-	●	●	●
515	NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	0804-	●	●	●
515	NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) M10 FLANGE SOU	0-91180-110-0	01	1	0804-1303	●	●	●
515	NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) M10 FLANGE SOU	0-91180-110-0	01	1	1304-1309	●		●
515	NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) M10 FLANGE SOU	0-91180-110-0	01	1	1310-	●		●
515	NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME EQUIPMENT HEAVY DUTY VAR2<F01> (C) M10 FLANGE SOU	0-91180-110-0	01	1	1310-		●
516	BOLT; HARNESS M8X12 FLANGE	0-28050-812-0	01	1	0804-1111	●	●	●
524	NUT; HARNESS M8 FLANGE SOU	0-91180-108-0	01	1	0904-	●	●	●
529	BOLT; RELAY BOX M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	0804-	●	●	●
552	NUT; BRKT,HARNESS (A) M8 FLANGE SOU	0-91180-108-0	02	1	0804-	●	●	●
552	NUT; BRKT,HARNESS (B) M10 FLANGE SOU	0-91180-110-0	01	1	0804-	●	●	●
577	NUT; FUSE BOX M6 FLANGE SOU	0-91180-106-0	02	1	0804-	●	●	●
577	NUT; FUSE BOX M6 FLANGE SOU	0-91180-106-0	02	1	0804-	●	●	●

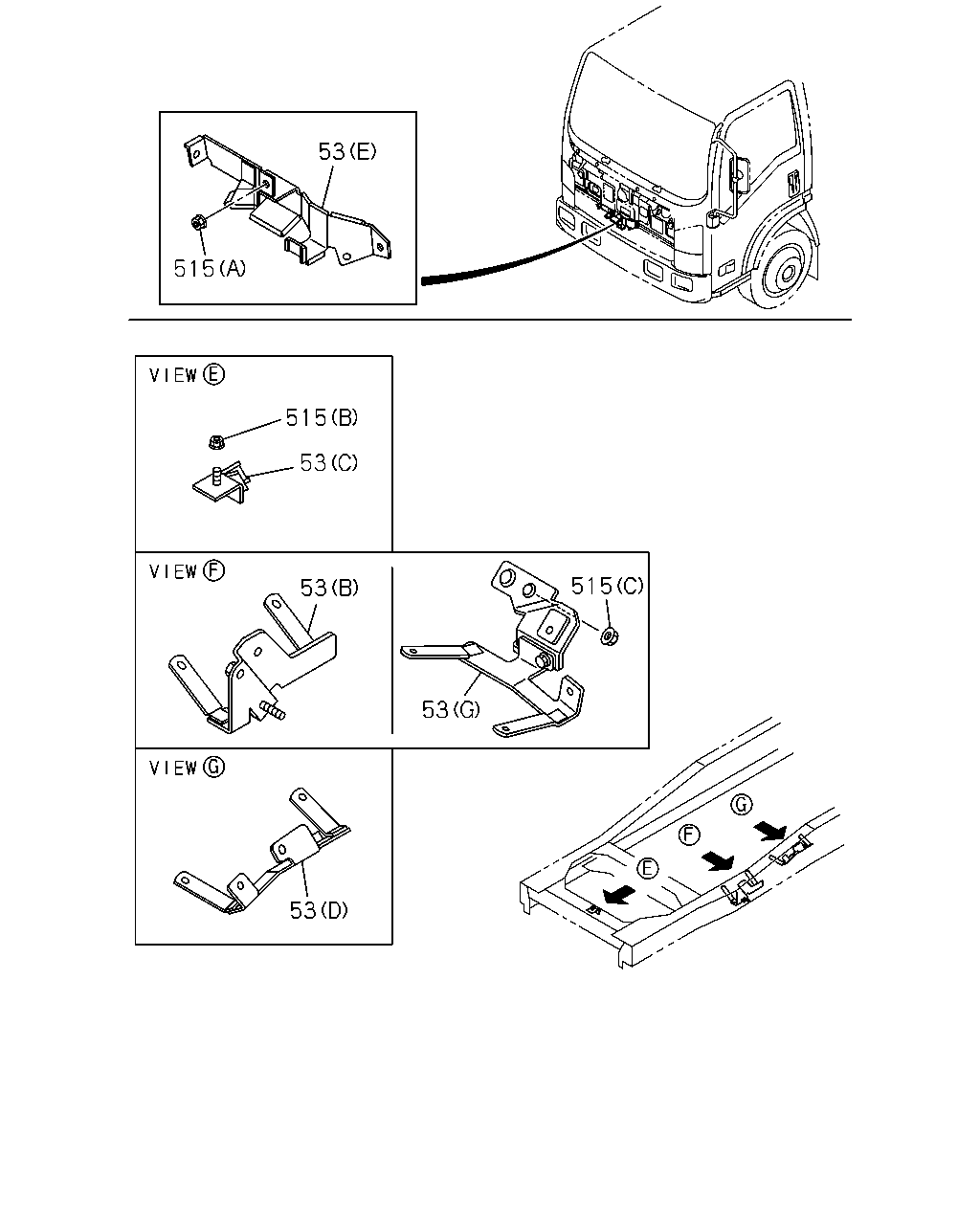

53 515 515 53 515 53 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
53	BRACKET; HARNESS (C)	8-98018-900-2	01	1	0804-	●	●	●
53	BRACKET; HARNESS (E)	8-98039-984-2	01	1	0804-	●	●	●
53	BRACKET; HARNESS (A)	8-98052-458-0	01	1	0804-	●	●	●
53	BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D)	8-98033-918-2	01	1	0804-1303	●	●	●
53	BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D)	8-98033-918-2	01	1	1304-1309	●		●
53	BRACKET; HARNESS (D)	8-98033-918-2	01	1	1304-1309		●
53	BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D)	8-98033-918-2	01	1	1310-	●		●
53	BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01> (D)	8-98033-918-2	01	1	1310-		●
53	BRACKET; HARNESS FRAME EQUIPMENT HEAVY DUTY VAR2<F01> (D)	8-98033-918-2	01	1	1310-		●
53	BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98052-900-1	01	1	0804-1303	●	●	●
53	BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98052-900-1	01	1	1304-1309	●		●
53	BRACKET; HARNESS (B)	8-98052-900-1	01	1	1304-1309		●
53	BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98052-900-1	01	1	1310-	●		●
53	BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01> (B)	8-98052-900-1	01	1	1310-		●
53	BRACKET; HARNESS FRAME EQUIPMENT HEAVY DUTY VAR2<F01> (B)	8-98052-900-1	01	1	1310-		●
53	BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98105-778-0	01	1	0804-1303	●	●	●
53	BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98105-778-0	01	1	1304-1309	●		●
53	BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98105-778-0	01	1	1310-	●		●
53	BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME EQUIPMENT HEAVY DUTY VAR2<F01> (B)	8-98105-778-0	01	1	1310-		●
53	BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (G)	8-98107-111-1	01	1	0804-1303	●	●	●
53	BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (G)	8-98107-111-1	01	1	1304-1309	●		●
53	BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (G)	8-98107-111-1	01	1	1310-	●		●
53	BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME EQUIPMENT HEAVY DUTY VAR2<F01> (G)	8-98107-111-1	01	1	1310-		●
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (F)	8-98084-590-0	01	1	0804-	●	●	●
53	BRACKET; HARNESS O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (H) SOU	8-98039-277-1	02	1	0804-0804	●	●	●
53	BRACKET; HARNESS DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (H) SOU	8-98039-277-1	02	1	0804-0805	●	●	●
515	NUT; BRKT (A) M6 FLANGE SOU	0-91180-106-0	02	1	0804-	●	●	●
515	NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	0804-	●	●	●
515	NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) M10 FLANGE SOU	0-91180-110-0	01	1	0804-1303	●	●	●
515	NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) M10 FLANGE SOU	0-91180-110-0	01	1	1304-1309	●		●
515	NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) M10 FLANGE SOU	0-91180-110-0	01	1	1310-	●		●
515	NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME EQUIPMENT HEAVY DUTY VAR2<F01> (C) M10 FLANGE SOU	0-91180-110-0	01	1	1310-		●

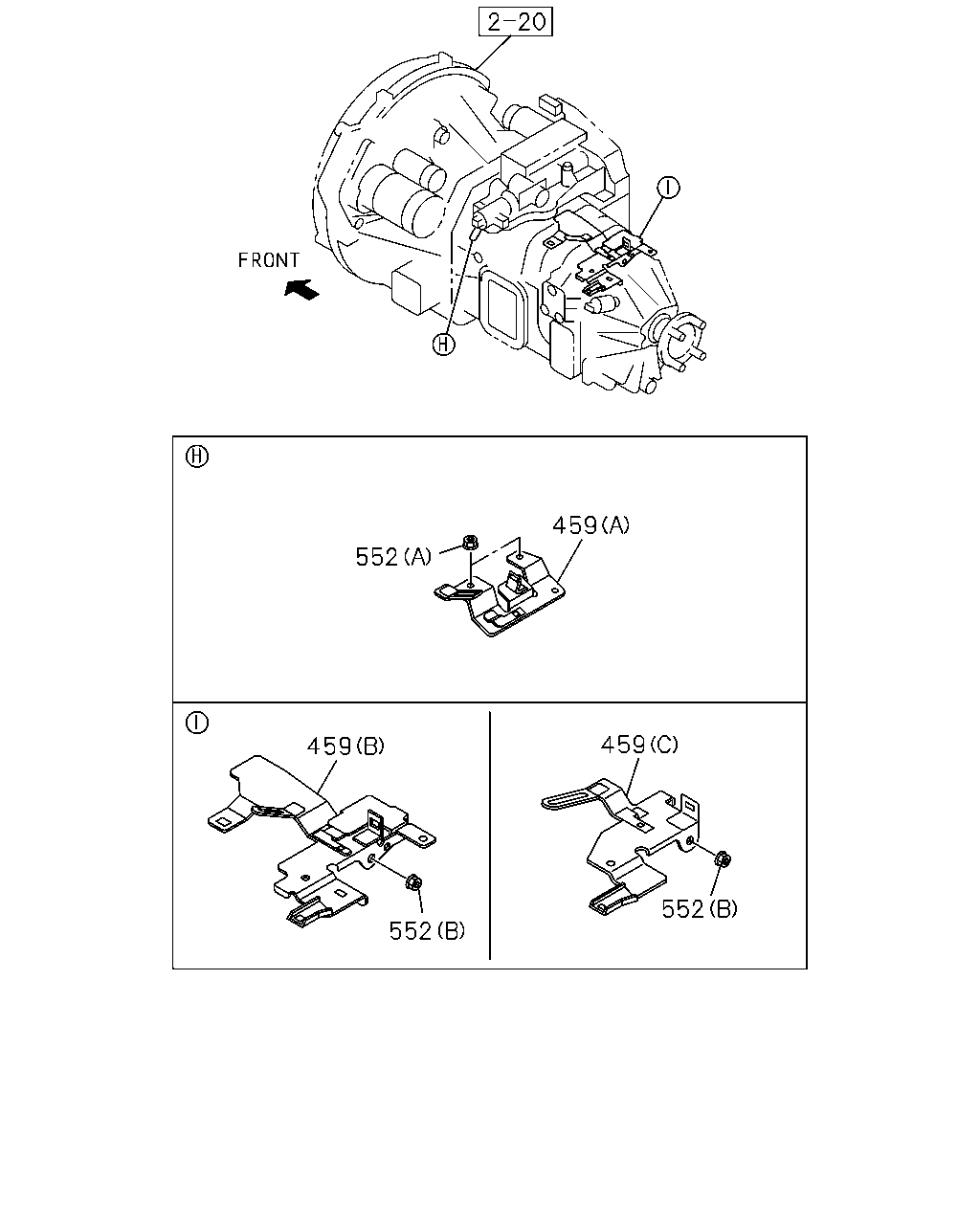

459 552 459 459 552 552

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
459	BRACKET; SUPPORT,HARNESS (A)	8-98020-227-3	01	1	0804-	●	●	●
459	BRACKET; SUPPORT,HARNESS (B)	8-98030-990-2	01	1	0804-1109	●	●	●
459	BRACKET; SUPPORT,HARNESS (C)	8-98196-974-0	01	1	1110-	●	●	●
552	NUT; BRKT,HARNESS (A) M8 FLANGE SOU	0-91180-108-0	02	1	0804-	●	●	●
552	NUT; BRKT,HARNESS (B) M10 FLANGE SOU	0-91180-110-0	01	1	0804-	●	●	●

22 22 617 488 16 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	CLIP; HARNESS (D) ID=10 & 16 SOU	8-94413-325-0	01	1	0804-	●	●	●
16	CLIP; HARNESS (B) ID=6 & 10-13 SOU	8-97069-515-0	02	1	0804-	●	●	●
16	CLIP; HARNESS (A) L=155 SOU	8-97173-307-0	14	1	0804-0904	●	●	●
16	CLIP; HARNESS (A) L=155 SOU	8-97173-307-0	14	1	0905-	●	●	●
16	CLIP; HARNESS (H) L=40.6	8-97229-357-0	02	1	0804-	●	●	●
16	CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (H) L=40.6	8-97229-357-0	02	1	0804-			●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	0804-0904	●	●	●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	0905-	●	●	●
16	CLIP; HARNESS (E) ID=20	8-94241-972-0	01	1	0804-	●	●	●
16	CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) (F) ID=6 & 10 SOU	8-94154-844-0	01	1	0804-	●	●	●
16	CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (G) L=60	8-94449-165-0	02	1	0804-			●
16	CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (I) L=60	8-97063-335-0	02	1	0804-			●
22	CLIP; ENG HARNESS (D) L=119.5	1-09707-197-0	01	1	0804-	●	●	●
22	CLIP; ENG HARNESS (A) L=140 SOU	5-09707-031-1	01	1	0804-	●	●	●
22	CLIP; ENG HARNESS (B) L=100 SOU	5-09707-036-1	01	1	0804-	●	●	●
22	CLIP; ENG HARNESS (E) ID=6 & 8.3	8-94167-742-0	01	1	0804-	●	●	●
22	CLIP; ENG HARNESS (F) ID=13.2 & 14.5	8-94475-649-0	01	1	0804-	●	●	●
22	CLIP; ENG HARNESS (G) ID=12 & 6.8	8-97125-842-0	01	1	0804-	●	●	●
22	CLIP; ENG HARNESS (C) ID=34	8-98069-482-0	01	1	0804-	●	●	●
488	CLIP; CABLE,TRAILER L=250 SOU	5-09707-030-1	01	1	0804-	●	●	●
617	STRAP; BAND L=140 SOU	5-09707-031-1	01	1	1012-1106	●	●	●

16 16 16 22 16 513 507 16 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	CLIP; HARNESS (D) ID=10 & 16 SOU	8-94413-325-0	01	1	0804-	●	●	●
16	CLIP; HARNESS (B) ID=6 & 10-13 SOU	8-97069-515-0	02	1	0804-	●	●	●
16	CLIP; HARNESS (A) L=155 SOU	8-97173-307-0	14	1	0804-0904	●	●	●
16	CLIP; HARNESS (A) L=155 SOU	8-97173-307-0	14	1	0905-	●	●	●
16	CLIP; HARNESS (H) L=40.6	8-97229-357-0	02	1	0804-	●	●	●
16	CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (H) L=40.6	8-97229-357-0	02	1	0804-			●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	0804-0904	●	●	●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	0905-	●	●	●
16	CLIP; HARNESS (E) ID=20	8-94241-972-0	01	1	0804-	●	●	●
16	CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) (F) ID=6 & 10 SOU	8-94154-844-0	01	1	0804-	●	●	●
16	CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (G) L=60	8-94449-165-0	02	1	0804-			●
16	CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (I) L=60	8-97063-335-0	02	1	0804-			●
22	CLIP; ENG HARNESS (D) L=119.5	1-09707-197-0	01	1	0804-	●	●	●
22	CLIP; ENG HARNESS (A) L=140 SOU	5-09707-031-1	01	1	0804-	●	●	●
22	CLIP; ENG HARNESS (B) L=100 SOU	5-09707-036-1	01	1	0804-	●	●	●
22	CLIP; ENG HARNESS (E) ID=6 & 8.3	8-94167-742-0	01	1	0804-	●	●	●
22	CLIP; ENG HARNESS (F) ID=13.2 & 14.5	8-94475-649-0	01	1	0804-	●	●	●
22	CLIP; ENG HARNESS (G) ID=12 & 6.8	8-97125-842-0	01	1	0804-	●	●	●
22	CLIP; ENG HARNESS (C) ID=34	8-98069-482-0	01	1	0804-	●	●	●
48	CLIP; FRAME HARNESS (B) ID=14 L=47 SOU	5-09700-319-0	07	1	0804-	●
48	CLIP; FRAME HARNESS WHEEL BASE 2400MM(24W) (B) ID=14 L=47 SOU	5-09700-319-0	07	1	0804-		●
48	CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) (B) ID=14 L=47 SOU	5-09700-319-0	09	1	0804-		●
48	CLIP; FRAME HARNESS (B) ID=14 L=47 SOU	5-09700-319-0	09	1	0804-			●
48	CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	0804-			●
507	FINISHER L=40	8-94212-660-0	01	1	0804-0902	●	●	●
507	FINISHER L=40	8-94212-660-0	01	1	0903-1301			●
513	TAPE; SOFT,HARNESS 70X45 SOU	8-97304-372-0	01	1	0907-1309	●	●	●
513	TAPE; SOFT,HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 130X80 SOU	8-97304-373-0	01	1	0808-	●	●	●

22 22 48 22 16 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	CLIP; HARNESS (D) ID=10 & 16 SOU	8-94413-325-0	01	1	0804-	●	●	●
16	CLIP; HARNESS (B) ID=6 & 10-13 SOU	8-97069-515-0	02	1	0804-	●	●	●
16	CLIP; HARNESS (A) L=155 SOU	8-97173-307-0	14	1	0804-0904	●	●	●
16	CLIP; HARNESS (A) L=155 SOU	8-97173-307-0	14	1	0905-	●	●	●
16	CLIP; HARNESS (H) L=40.6	8-97229-357-0	02	1	0804-	●	●	●
16	CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (H) L=40.6	8-97229-357-0	02	1	0804-			●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	0804-0904	●	●	●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	0905-	●	●	●
16	CLIP; HARNESS (E) ID=20	8-94241-972-0	01	1	0804-	●	●	●
16	CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) (F) ID=6 & 10 SOU	8-94154-844-0	01	1	0804-	●	●	●
16	CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (G) L=60	8-94449-165-0	02	1	0804-			●
16	CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (I) L=60	8-97063-335-0	02	1	0804-			●
22	CLIP; ENG HARNESS (D) L=119.5	1-09707-197-0	01	1	0804-	●	●	●
22	CLIP; ENG HARNESS (A) L=140 SOU	5-09707-031-1	01	1	0804-	●	●	●
22	CLIP; ENG HARNESS (B) L=100 SOU	5-09707-036-1	01	1	0804-	●	●	●
22	CLIP; ENG HARNESS (E) ID=6 & 8.3	8-94167-742-0	01	1	0804-	●	●	●
22	CLIP; ENG HARNESS (F) ID=13.2 & 14.5	8-94475-649-0	01	1	0804-	●	●	●
22	CLIP; ENG HARNESS (G) ID=12 & 6.8	8-97125-842-0	01	1	0804-	●	●	●
22	CLIP; ENG HARNESS (C) ID=34	8-98069-482-0	01	1	0804-	●	●	●
48	CLIP; FRAME HARNESS (B) ID=14 L=47 SOU	5-09700-319-0	07	1	0804-	●
48	CLIP; FRAME HARNESS WHEEL BASE 2400MM(24W) (B) ID=14 L=47 SOU	5-09700-319-0	07	1	0804-		●
48	CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) (B) ID=14 L=47 SOU	5-09700-319-0	09	1	0804-		●
48	CLIP; FRAME HARNESS (B) ID=14 L=47 SOU	5-09700-319-0	09	1	0804-			●
48	CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	0804-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
