◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51146 - NLR/NMR(SOUTHAFRICA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#75407) — 262 parça

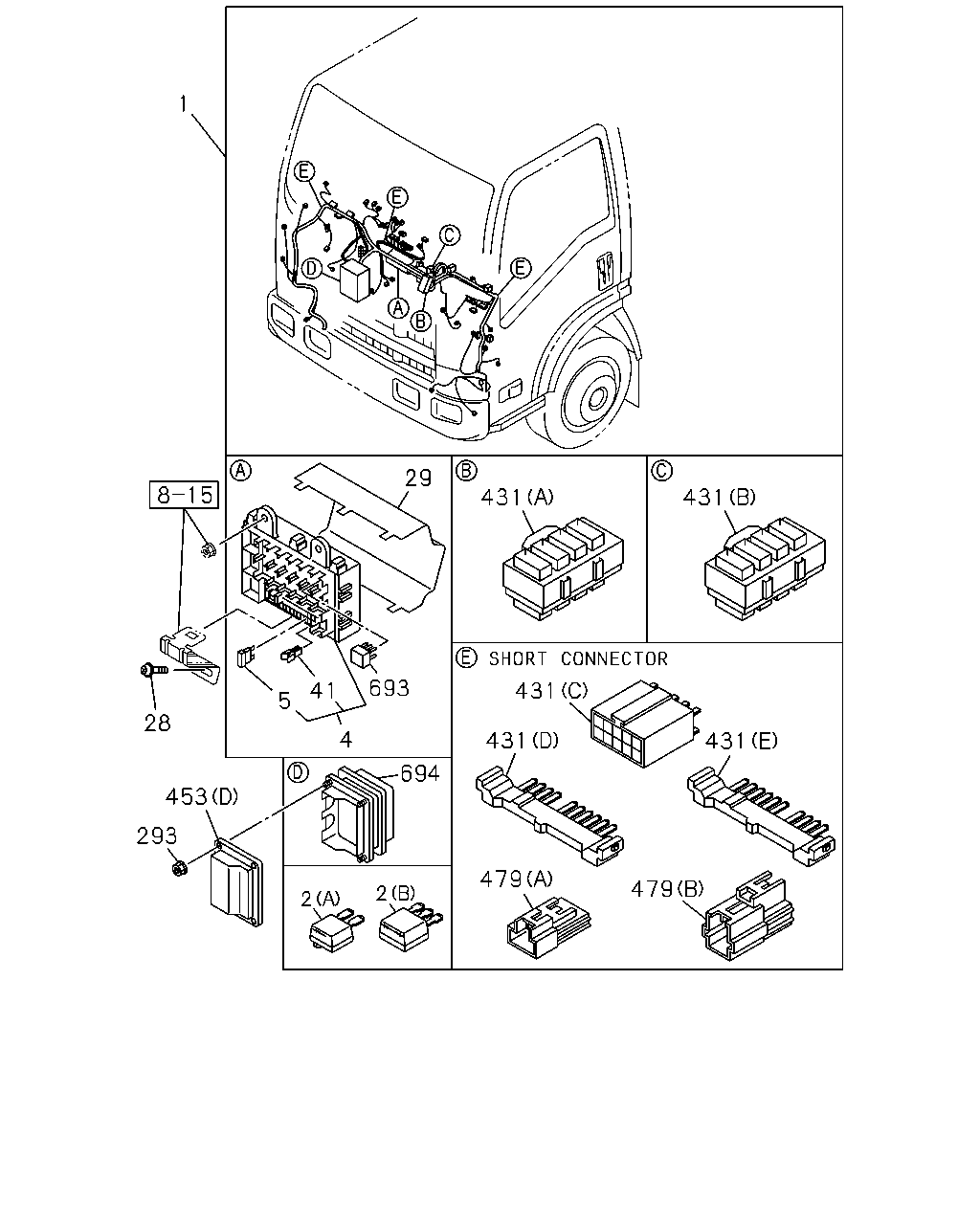

çizim 136013
1 29 431 431 693 41 431 5 28 4 431 431 694 453 293 479 479 2 2
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98087-339-4 01 1 0804-1005 ● ●
1 HARNESS; CAB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98087-337-4 01 1 0804-1005 ● ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> 		8-98087-349-5 01 1 0804-1204 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> 		8-98207-648-0 01 1 1205- ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98087-346-4 01 1 0804-1005 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. AUTO DOOR LOCK<AU4> 		8-98158-583-0 01 1 1006-1006 ● ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98158-583-0 01 1 1006-1006 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98158-583-0 01 1 1006-1204 ● ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98158-583-0 01 1 1006-1204 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98207-643-0 01 1 1205- ● ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98207-643-0 01 1 1205- ●
1 HARNESS; CAB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REARDOOR<A31> 		8-98087-345-4 01 1 0804-1005 ●
1 HARNESS; CAB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,AUTO DOOR LOCK<AU4> 		8-98158-582-0 01 1 1006-1006 ● ●
1 HARNESS; CAB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REARDOOR<A31> 		8-98158-582-0 01 1 1006-1006 ●
1 HARNESS; CAB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98158-582-0 01 1 1006-1204 ● ●
1 HARNESS; CAB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98158-582-0 01 1 1006-1204 ●
1 HARNESS; CAB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98207-642-0 01 1 1205- ● ●
1 HARNESS; CAB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98207-642-0 01 1 1205- ●
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98087-348-5 01 1 0804-1204 ●
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98207-647-0 01 1 1205- ●
2 DIODE; CABLE HARNESS
(A) BLACK 2P-1.5A SOU 		8-94422-639-1 AR 1 0804- ● ● ●
2 DIODE; CABLE HARNESS
(B) BLACK 3P-1.5A SOU 		8-94422-640-1 AR 1 0804- ● ● ●
4 BOX ASM; FUSE,HARNESS 8-98067-619-0 01 1 0804-1005 ● ● ●
4 BOX ASM; FUSE,HARNESS
EXC. AUTO DOOR LOCK<AU4> 		8-98067-619-0 01 1 1006-1006 ● ●
4 BOX ASM; FUSE,HARNESS 8-98067-619-0 01 1 1006-1006 ●
4 BOX ASM; FUSE,HARNESS 8-98067-619-1 01 1 1006- ● ●
4 BOX ASM; FUSE,HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> 		8-98067-619-1 01 1 1006- ●
4 BOX ASM; FUSE,HARNESS
EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98067-619-1 01 1 1006- ●
5 FUSE; FACIA HARNESS
10A RED SOU 		8-98054-257-0 AR 1 0804- ● ● ●
5 FUSE; FACIA HARNESS
15A BLUE SOU 		8-98054-258-0 AR 1 0804- ● ● ●
5 FUSE; FACIA HARNESS
20A YELLOW SOU 		8-98054-259-0 AR 1 0804- ● ● ●
28 SCREW; FUSE BOX
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0804-1101 ● ● ●
28 SCREW; FUSE BOX
M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212 ● ● ●
28 SCREW; FUSE BOX
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ● ● ●
29 COVER; FUSE BOX 8-98056-968-0 01 1 0804-1005 ● ● ●
29 COVER; FUSE BOX
EXC. AUTO DOOR LOCK<AU4> 		8-98056-968-0 01 1 1006-1006 ● ●
29 COVER; FUSE BOX 8-98056-968-0 01 1 1006-1006 ●
29 COVER; FUSE BOX 8-98056-968-0 01 1 1006- ● ●
29 COVER; FUSE BOX
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> 		8-98056-968-0 01 1 1006- ●
29 COVER; FUSE BOX
EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98056-968-0 01 1 1006- ●
41 PULLER; FUSE
SOU 		8-98054-260-0 01 1 0804-1005 ● ● ●
41 PULLER; FUSE
EXC. AUTO DOOR LOCK<AU4> SOU 		8-98054-260-0 01 1 1006-1006 ● ●
41 PULLER; FUSE
SOU 		8-98054-260-0 01 1 1006-1006 ●
41 PULLER; FUSE
SOU 		8-98054-260-0 01 1 1006- ● ●
41 PULLER; FUSE
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> SOU 		8-98054-260-0 01 1 1006- ●
41 PULLER; FUSE
EXC. POWER WINDOW FRT&REAR DOOR<A31> SOU 		8-98054-260-0 01 1 1006- ●
293 NUT
M6 FLANGE SOU 		0-91180-106-0 04 1 0804- ● ● ●
431 CONNECTOR; JOINT
(D) 10P BLUE 		1-82699-598-0 02 1 0804-1005 ● ● ●
431 CONNECTOR; JOINT
EXC. AUTO DOOR LOCK<AU4> (D) 10P BLUE 		1-82699-598-0 01 1 1006-1006 ● ●
431 CONNECTOR; JOINT
(D) 10P BLUE 		1-82699-598-0 01 1 1006-1006 ●
431 CONNECTOR; JOINT
(D) 10P BLUE 		1-82699-598-0 01 1 1006-1204 ● ●
431 CONNECTOR; JOINT
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (D) 10P BLUE 		1-82699-598-0 01 1 1006-1204 ●
431 CONNECTOR; JOINT
EXC. POWER WINDOW FRT&REAR DOOR<A31> (D) 10P BLUE 		1-82699-598-0 01 1 1006-1204 ●
431 CONNECTOR; JOINT
(E) 10P GREEN 		1-82699-599-0 01 1 0804-1005 ● ● ●
431 CONNECTOR; JOINT
EXC. AUTO DOOR LOCK<AU4> (E) 10P GREEN 		1-82699-599-0 01 1 1006-1006 ● ●
431 CONNECTOR; JOINT
(E) 10P GREEN 		1-82699-599-0 01 1 1006-1006 ●
431 CONNECTOR; JOINT
(E) 10P GREEN 		1-82699-599-0 01 1 1006-1204 ● ●
431 CONNECTOR; JOINT
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (E) 10P GREEN 		1-82699-599-0 01 1 1006-1204 ●
431 CONNECTOR; JOINT
EXC. POWER WINDOW FRT&REAR DOOR<A31> (E) 10P GREEN 		1-82699-599-0 01 1 1006-1204 ●
431 CONNECTOR; JOINT
(C) 10P 		8-97077-943-0 02 1 0804-1005 ● ● ●
431 CONNECTOR; JOINT
EXC. AUTO DOOR LOCK<AU4> (C) 10P 		8-97077-943-0 02 1 1006-1006 ● ●
431 CONNECTOR; JOINT
(C) 10P 		8-97077-943-0 02 1 1006-1006 ●
431 CONNECTOR; JOINT
(C) 10P 		8-97077-943-0 02 1 1006-1204 ● ●
431 CONNECTOR; JOINT
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (C) 10P 		8-97077-943-0 02 1 1006-1204 ●
431 CONNECTOR; JOINT
EXC. POWER WINDOW FRT&REAR DOOR<A31> (C) 10P 		8-97077-943-0 02 1 1006-1204 ●
431 CONNECTOR; JOINT
(A) 		8-98046-205-0 01 1 0804-1005 ● ● ●
431 CONNECTOR; JOINT
EXC. AUTO DOOR LOCK<AU4> (A) 		8-98046-205-0 01 1 1006-1006 ● ●
431 CONNECTOR; JOINT
(A) 		8-98046-205-0 01 1 1006-1006 ●
431 CONNECTOR; JOINT
(A) 		8-98046-205-0 01 1 1006- ● ●
431 CONNECTOR; JOINT
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (A) 		8-98046-205-0 01 1 1006- ●
431 CONNECTOR; JOINT
EXC. POWER WINDOW FRT&REAR DOOR<A31> (A) 		8-98046-205-0 01 1 1006- ●
431 CONNECTOR; JOINT
(B) 		8-98046-206-0 01 1 0804-1005 ● ● ●
431 CONNECTOR; JOINT
EXC. AUTO DOOR LOCK<AU4> (B) 		8-98046-206-0 01 1 1006-1006 ● ●
431 CONNECTOR; JOINT
(B) 		8-98046-206-0 01 1 1006-1006 ●
431 CONNECTOR; JOINT
(B) 		8-98046-206-0 01 1 1006- ● ●
431 CONNECTOR; JOINT
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (B) 		8-98046-206-0 01 1 1006- ●
431 CONNECTOR; JOINT
EXC. POWER WINDOW FRT&REAR DOOR<A31> (B) 		8-98046-206-0 01 1 1006- ●
453 PROTECTOR; HARNESS
(A) 		8-94417-716-0 03 1 1410- ●
453 PROTECTOR; HARNESS
(A) 		8-94417-716-0 02 1 0804-1409 ● ● ●
453 PROTECTOR; HARNESS
(A) 		8-94417-716-0 02 1 1410- ● ●
453 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 0804- ● ● ●
453 PROTECTOR; HARNESS
(B) 		8-98031-850-1 01 1 0804- ● ● ●
453 PROTECTOR; HARNESS
(C) 		8-98031-851-2 01 1 0804- ● ● ●
453 PROTECTOR; HARNESS
(D) 		8-98034-039-1 01 1 0804- ● ● ●
479 CAP; CONNECTOR
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98108-678-0 01 1 0804- ● ● ●
479 CAP; CONNECTOR
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98108-679-0 01 1 0804- ● ● ●
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 0804-1005 ● ● ●
693 RELAY; FUSE BOX
EXC. AUTO DOOR LOCK<AU4> 24V 10A PANASONIC 		8-97173-035-1 AR 1 1006-1006 ● ●
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1006-1006 ●
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1006- ● ●
693 RELAY; FUSE BOX
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 AR 1 1006- ●
693 RELAY; FUSE BOX
EXC. POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 AR 1 1006- ●
694 BOX ASM; CONNECTOR 8-98057-772-0 01 1 0804-1005 ● ● ●
694 BOX ASM; CONNECTOR
EXC. AUTO DOOR LOCK<AU4> 		8-98057-772-0 01 1 1006-1006 ● ●
694 BOX ASM; CONNECTOR 8-98057-772-0 01 1 1006-1006 ●
694 BOX ASM; CONNECTOR 8-98057-772-0 01 1 1006- ● ●
694 BOX ASM; CONNECTOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> 		8-98057-772-0 01 1 1006- ●
694 BOX ASM; CONNECTOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98057-772-0 01 1 1006- ●

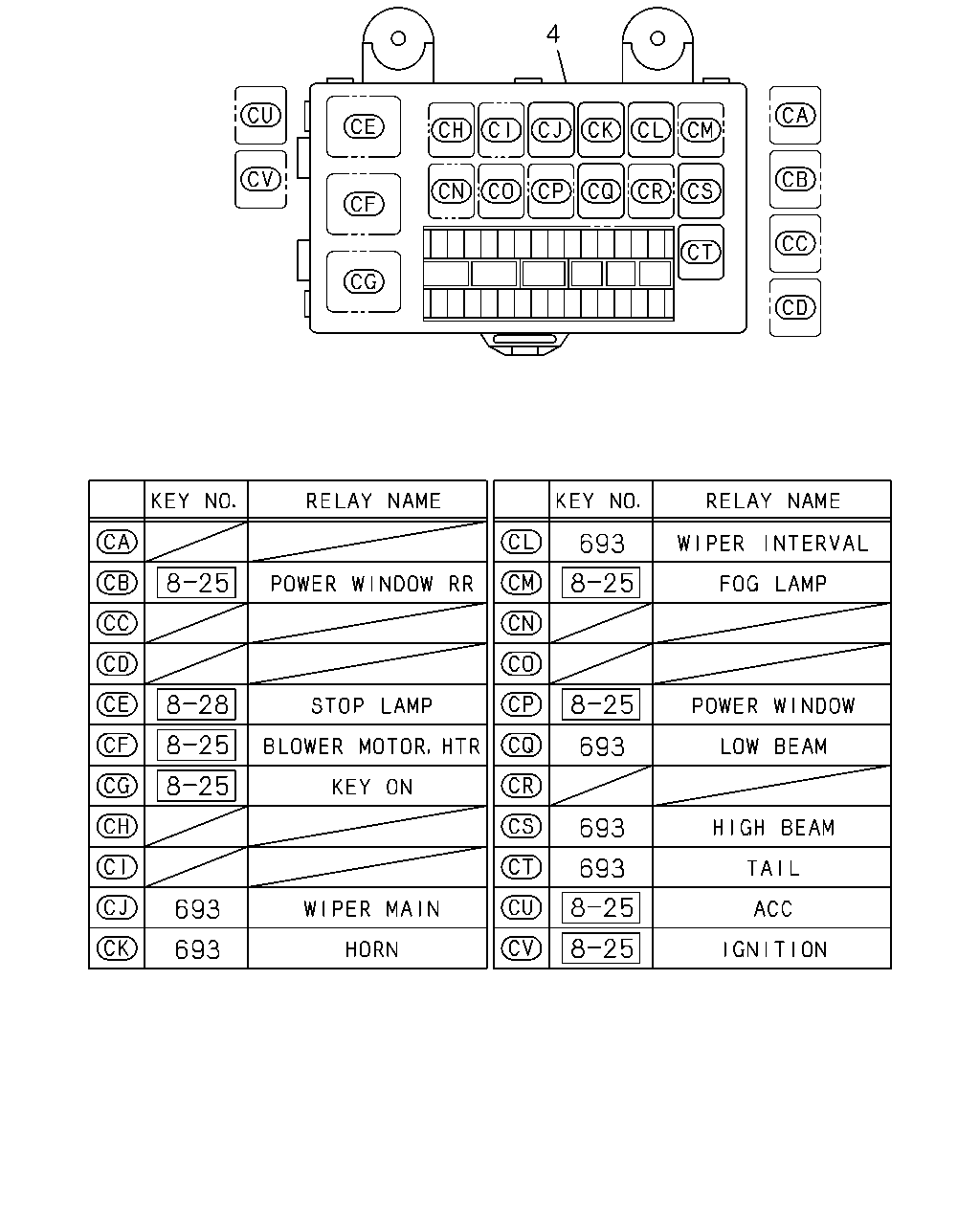

çizim 136208
4 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date A B C
4 BOX ASM; FUSE,HARNESS 8-98067-619-0 01 1 0804-1005 ● ● ●
4 BOX ASM; FUSE,HARNESS
EXC. AUTO DOOR LOCK<AU4> 		8-98067-619-0 01 1 1006-1006 ● ●
4 BOX ASM; FUSE,HARNESS 8-98067-619-0 01 1 1006-1006 ●
4 BOX ASM; FUSE,HARNESS 8-98067-619-1 01 1 1006- ● ●
4 BOX ASM; FUSE,HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> 		8-98067-619-1 01 1 1006- ●
4 BOX ASM; FUSE,HARNESS
EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98067-619-1 01 1 1006- ●
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 0804-1005 ● ● ●
693 RELAY; FUSE BOX
EXC. AUTO DOOR LOCK<AU4> 24V 10A PANASONIC 		8-97173-035-1 AR 1 1006-1006 ● ●
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1006-1006 ●
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1006- ● ●
693 RELAY; FUSE BOX
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 AR 1 1006- ●
693 RELAY; FUSE BOX
EXC. POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 AR 1 1006- ●

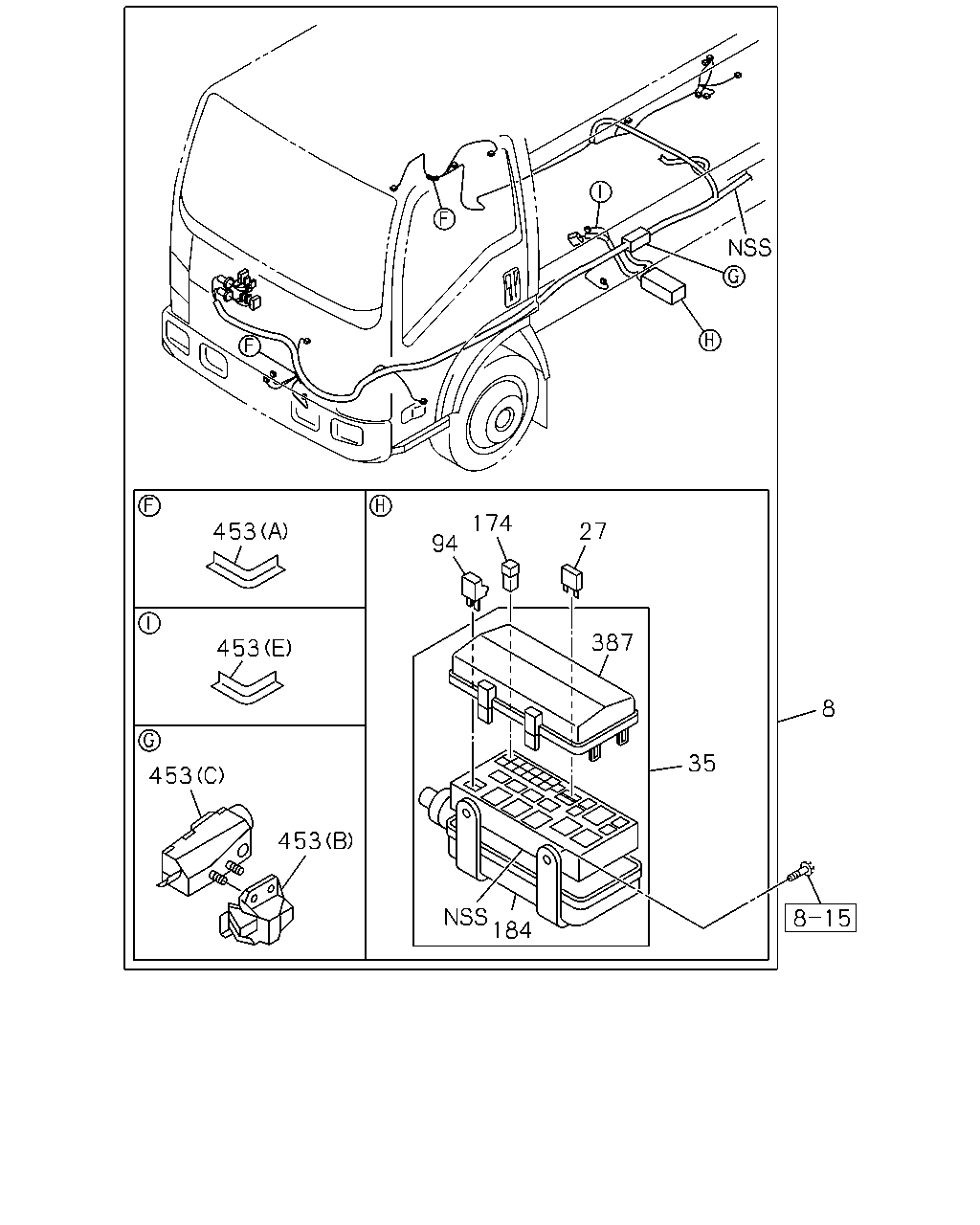

çizim 136587
174 27 453 94 387 453 8 35 453 453 184
BalonParca AdiParca NoAdetTipApplied Date A B C
8 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98071-784-5 01 1 0804-0804 ● ●
8 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98117-809-2 01 1 0805-1303 ● ●
8 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98117-809-2 01 1 1304-1309 ●
8 HARNESS; FRAME,FRT 8-98117-809-2 01 1 1304-1309 ●
8 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98117-809-2 01 1 1310-1409 ● ●
8 HARNESS; FRAME,FRT
FRAME EQUIPMENT HEAVY DUTY VAR2<F01> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98117-809-2 01 1 1310-1409 ●
8 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98293-833-0 01 1 1410- ● ●
8 HARNESS; FRAME,FRT
FRAME EQUIPMENT HEAVY DUTY VAR2<F01> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98293-833-0 01 1 1410- ●
8 HARNESS; FRAME,FRT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98071-782-5 01 1 0804-0804 ● ●
8 HARNESS; FRAME,FRT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98117-807-2 01 1 0805-1303 ● ●
8 HARNESS; FRAME,FRT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98117-807-2 01 1 1304-1309 ●
8 HARNESS; FRAME,FRT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98117-807-2 01 1 1310-1409 ●
8 HARNESS; FRAME,FRT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME EQUIPMENT HEAVY DUTY VAR2<F01> 		8-98117-807-2 01 1 1310-1409 ●
8 HARNESS; FRAME,FRT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98293-831-0 01 1 1410- ●
8 HARNESS; FRAME,FRT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME EQUIPMENT HEAVY DUTY VAR2<F01> 		8-98293-831-0 01 1 1410- ●
8 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98071-785-4 01 1 0804-0804 ●
8 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98117-810-3 01 1 0805-1409 ●
8 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98293-834-0 01 1 1410- ●
8 HARNESS; FRAME,FRT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98071-783-4 01 1 0804-0804 ●
8 HARNESS; FRAME,FRT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98117-808-3 01 1 0805-1409 ●
8 HARNESS; FRAME,FRT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98293-832-0 01 1 1410- ●
27 FUSE UNIT
10A RED SOU 		8-98054-257-0 AR 1 0804- ● ● ●
35 BOX; RELAY & FUSE 8-98030-763-0 01 1 0804- ● ● ●
94 DIODE; FRAME HARNESS
BLACK 2P-1.5A SOU 		8-94422-639-1 01 1 0804- ● ● ●
174 FUSE; SLOW BLOW
30A PINK SOU 		8-98079-191-0 AR 1 0804- ● ● ●
174 FUSE; SLOW BLOW
40A GREEN SOU 		8-98079-192-0 AR 1 0804- ● ● ●
174 FUSE; SLOW BLOW
50A RED SOU 		8-98079-193-0 AR 1 0804- ● ● ●
174 FUSE; SLOW BLOW
60A YELLOW SOU 		8-97219-407-0 AR 1 0804- ● ● ●
184 COVER; RELAY & FUSE BOX 8-98030-766-0 01 1 0804- ● ● ●
387 COVER; RELAY BOX 8-98081-367-0 01 1 0804- ● ● ●
453 PROTECTOR; HARNESS
(A) 		8-94417-716-0 03 1 1410- ●
453 PROTECTOR; HARNESS
(A) 		8-94417-716-0 02 1 0804-1409 ● ● ●
453 PROTECTOR; HARNESS
(A) 		8-94417-716-0 02 1 1410- ● ●
453 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 0804- ● ● ●
453 PROTECTOR; HARNESS
(B) 		8-98031-850-1 01 1 0804- ● ● ●
453 PROTECTOR; HARNESS
(C) 		8-98031-851-2 01 1 0804- ● ● ●
453 PROTECTOR; HARNESS
(D) 		8-98034-039-1 01 1 0804- ● ● ●

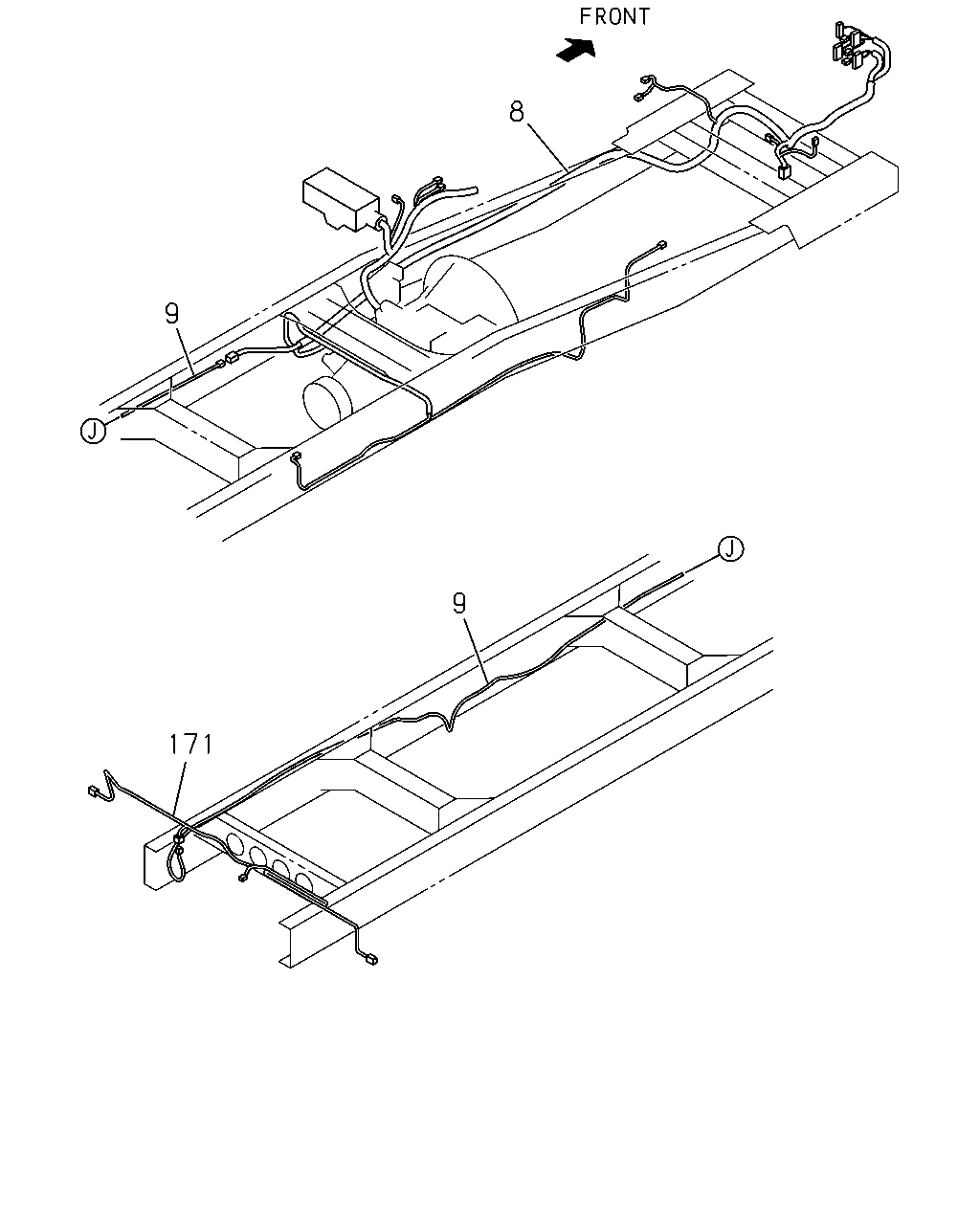

çizim 136643
8 9 9 171
BalonParca AdiParca NoAdetTipApplied Date A B C
8 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98071-784-5 01 1 0804-0804 ● ●
8 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98117-809-2 01 1 0805-1303 ● ●
8 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98117-809-2 01 1 1304-1309 ●
8 HARNESS; FRAME,FRT 8-98117-809-2 01 1 1304-1309 ●
8 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98117-809-2 01 1 1310-1409 ● ●
8 HARNESS; FRAME,FRT
FRAME EQUIPMENT HEAVY DUTY VAR2<F01> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98117-809-2 01 1 1310-1409 ●
8 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98293-833-0 01 1 1410- ● ●
8 HARNESS; FRAME,FRT
FRAME EQUIPMENT HEAVY DUTY VAR2<F01> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98293-833-0 01 1 1410- ●
8 HARNESS; FRAME,FRT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98071-782-5 01 1 0804-0804 ● ●
8 HARNESS; FRAME,FRT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98117-807-2 01 1 0805-1303 ● ●
8 HARNESS; FRAME,FRT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98117-807-2 01 1 1304-1309 ●
8 HARNESS; FRAME,FRT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98117-807-2 01 1 1310-1409 ●
8 HARNESS; FRAME,FRT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME EQUIPMENT HEAVY DUTY VAR2<F01> 		8-98117-807-2 01 1 1310-1409 ●
8 HARNESS; FRAME,FRT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98293-831-0 01 1 1410- ●
8 HARNESS; FRAME,FRT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME EQUIPMENT HEAVY DUTY VAR2<F01> 		8-98293-831-0 01 1 1410- ●
8 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98071-785-4 01 1 0804-0804 ●
8 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98117-810-3 01 1 0805-1409 ●
8 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98293-834-0 01 1 1410- ●
8 HARNESS; FRAME,FRT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98071-783-4 01 1 0804-0804 ●
8 HARNESS; FRAME,FRT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98117-808-3 01 1 0805-1409 ●
8 HARNESS; FRAME,FRT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98293-832-0 01 1 1410- ●
9 HARNESS; FRAME,RR 8-98048-414-2 01 1 0804- ●
9 HARNESS; FRAME,RR
WHEEL BASE 2400MM(24W) 		8-98048-414-2 01 1 0804- ●
9 HARNESS; FRAME,RR
WHEEL BASE 3300MM(33W) 		8-98048-424-1 01 1 0804- ●
9 HARNESS; FRAME,RR 8-98048-424-1 01 1 0804- ●
171 HARNESS; CABLE,TAIL LAMP 8-98070-319-1 01 1 0804-1006 ● ● ●
171 HARNESS; CABLE,TAIL LAMP 8-98156-027-0 01 1 1007- ● ● ●

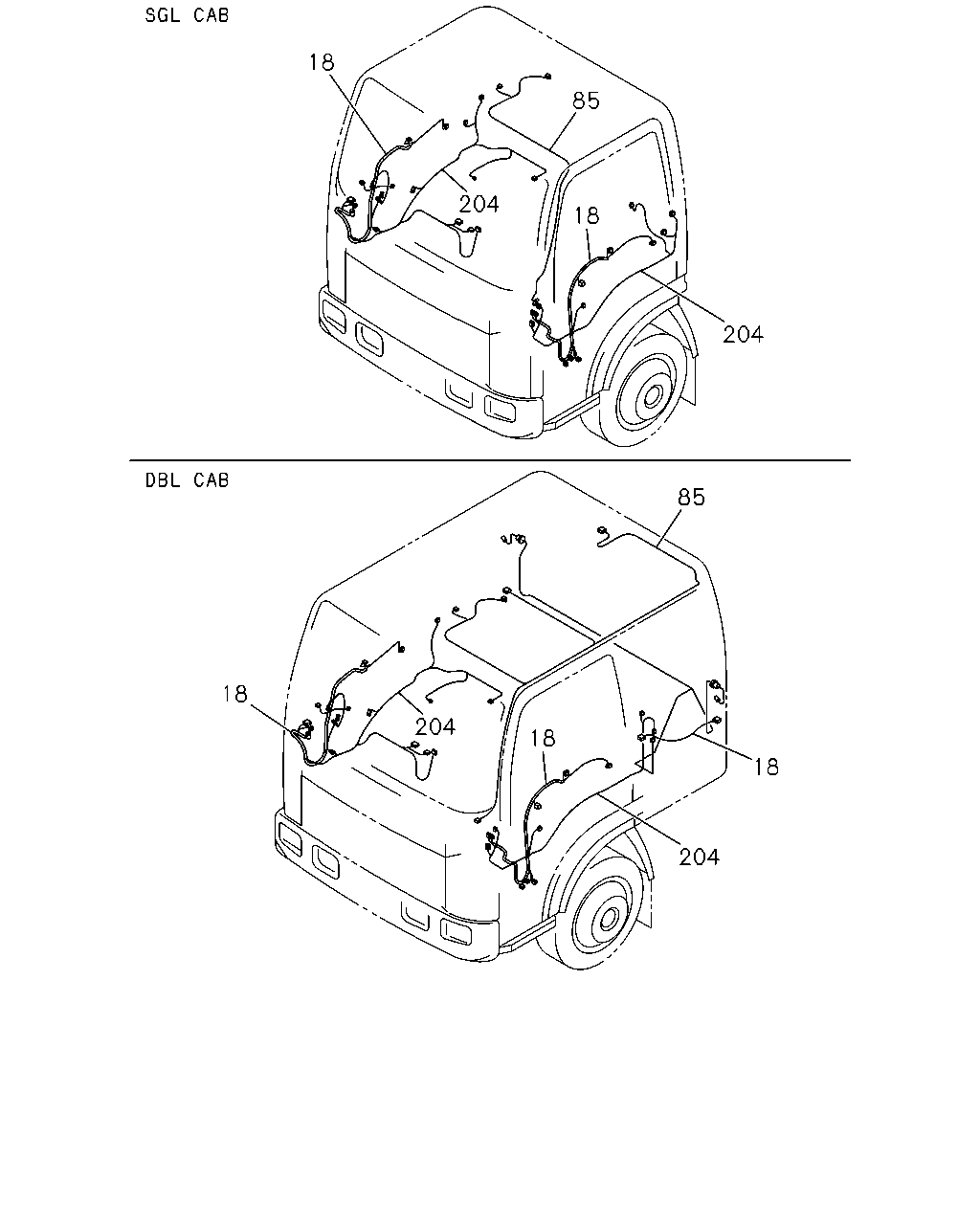

çizim 136766
18 85 204 18 204 85 18 204 18 18 204
BalonParca AdiParca NoAdetTipApplied Date A B C
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT 		8-98071-084-2 01 1 0804-0904 ● ●
18 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31> FRONT 		8-98071-084-2 01 1 0804-0904 ●
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FROMT 		8-98071-084-3 01 1 0905- ● ●
18 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31> FROMT 		8-98071-084-3 01 1 0905- ●
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT 		8-98071-076-2 01 1 0804- ● ●
18 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31> FRONT 		8-98071-076-2 01 1 0804- ●
18 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> FRONT 		8-98071-083-1 01 1 0804-0904 ● ●
18 HARNESS; DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> FRONT 		8-98071-083-1 01 1 0804-0904 ●
18 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> FRONT 		8-98071-083-2 01 1 0905- ● ●
18 HARNESS; DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> FRONT 		8-98071-083-2 01 1 0905- ●
18 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> FRONT 		8-98071-075-2 01 1 0804- ● ●
18 HARNESS; DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> FRONT 		8-98071-075-2 01 1 0804- ●
18 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31> REAR 		8-98056-047-1 02 1 0804-1203 ●
18 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31> REAR 		8-98202-555-0 02 1 1204- ●
85 HARNESS; ROOM LAMP 8-98049-963-3 01 1 0804- ● ●
85 HARNESS; ROOM LAMP 8-98033-823-4 01 1 0804- ●
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER<AK5> 		8-98075-612-3 01 1 0804- ● ●
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98047-157-6 01 1 0804- ● ●
204 HARNESS; CABLE,FLOOR
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98070-787-4 01 1 0804- ● ●
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT&REAR DOOR<A31> 		8-98074-594-3 01 1 0804- ●
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER<AK5> EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98074-593-3 01 1 0804- ●
204 HARNESS; CABLE,FLOOR
EXC. AIR BAG DRIVER & PASSENGER<AK5>,POWER WINDOWFRT&REAR DOOR<A31> 		8-98070-809-3 01 1 0804- ●
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT&REAR DOOR<A31> 		8-98029-726-6 01 1 0804- ●
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98070-793-3 01 1 0804- ●
204 HARNESS; CABLE,FLOOR
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98070-791-3 01 1 0804- ●
204 HARNESS; CABLE,FLOOR
POWER WINDOW FRT&REAR DOOR<A31> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98070-810-3 01 1 0804- ●
204 HARNESS; CABLE,FLOOR
POWER WINDOW FRT&REAR DOOR<A31> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98070-792-3 01 1 0804- ●

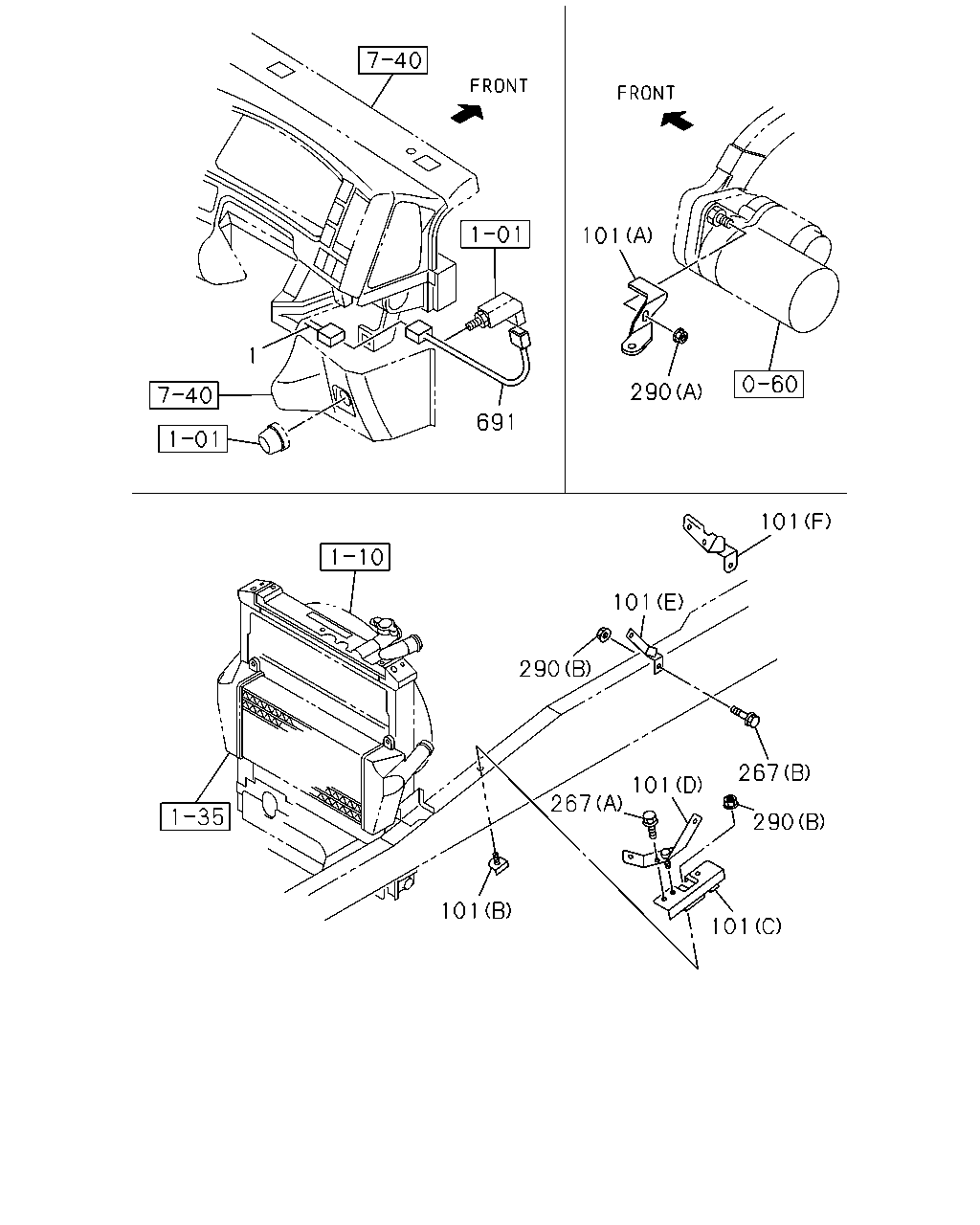

çizim 136822
101 101 267 290 101 267 290 101 101 691 290 101 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98087-339-4 01 1 0804-1005 ● ●
1 HARNESS; CAB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98087-337-4 01 1 0804-1005 ● ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> 		8-98087-349-5 01 1 0804-1204 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> 		8-98207-648-0 01 1 1205- ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98087-346-4 01 1 0804-1005 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. AUTO DOOR LOCK<AU4> 		8-98158-583-0 01 1 1006-1006 ● ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98158-583-0 01 1 1006-1006 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98158-583-0 01 1 1006-1204 ● ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98158-583-0 01 1 1006-1204 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98207-643-0 01 1 1205- ● ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98207-643-0 01 1 1205- ●
1 HARNESS; CAB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REARDOOR<A31> 		8-98087-345-4 01 1 0804-1005 ●
1 HARNESS; CAB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,AUTO DOOR LOCK<AU4> 		8-98158-582-0 01 1 1006-1006 ● ●
1 HARNESS; CAB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REARDOOR<A31> 		8-98158-582-0 01 1 1006-1006 ●
1 HARNESS; CAB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98158-582-0 01 1 1006-1204 ● ●
1 HARNESS; CAB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98158-582-0 01 1 1006-1204 ●
1 HARNESS; CAB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98207-642-0 01 1 1205- ● ●
1 HARNESS; CAB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98207-642-0 01 1 1205- ●
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98087-348-5 01 1 0804-1204 ●
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98207-647-0 01 1 1205- ●
101 BRACKET; HARNESS CONNECTOR
(A) 		8-98030-725-1 01 1 0804- ● ● ●
101 BRACKET; HARNESS CONNECTOR
(C) 		8-98078-070-1 01 1 0804- ● ● ●
101 BRACKET; HARNESS CONNECTOR
(D) 		8-98078-071-1 01 1 0804- ● ● ●
101 BRACKET; HARNESS CONNECTOR
(E) 		8-98079-011-1 01 1 0804-1205 ● ● ●
101 BRACKET; HARNESS CONNECTOR
(F) 		8-98217-757-0 01 1 1206- ● ● ●
101 BRACKET; HARNESS CONNECTOR
(B) 		8-98093-465-1 01 1 0804- ● ● ●
267 BOLT; BRKT
(A) M6X25 FLANGE SOU 		0-28650-625-0 01 1 0804- ● ● ●
267 BOLT; BRKT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) M8X25 FLANGE SOU 		0-28650-825-0 01 1 0804-1303 ● ● ●
267 BOLT; BRKT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) M8X25 FLANGE SOU 		0-28650-825-0 01 1 1304-1309 ● ●
267 BOLT; BRKT
(B) M8X25 FLANGE SOU 		0-28650-825-0 01 1 1304-1309 ●
267 BOLT; BRKT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) M8X25 FLANGE SOU 		0-28650-825-0 01 1 1310- ● ●
267 BOLT; BRKT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01> (B) M8X25 FLANGE SOU 		0-28650-825-0 01 1 1310- ●
267 BOLT; BRKT
FRAME EQUIPMENT HEAVY DUTY VAR2<F01> (B) M8X25 FLANGE SOU 		0-28650-825-0 01 1 1310- ●
290 NUT; BRKT
(B) M8 FLANGE SOU 		0-91180-108-0 02 1 0804- ● ● ●
290 NUT; BRKT
(A) M10 FLANGE SOU 		0-91180-110-0 01 1 0804- ● ● ●
691 HARNESS; IDLE CONT 8-98049-014-2 01 1 0804- ● ● ●

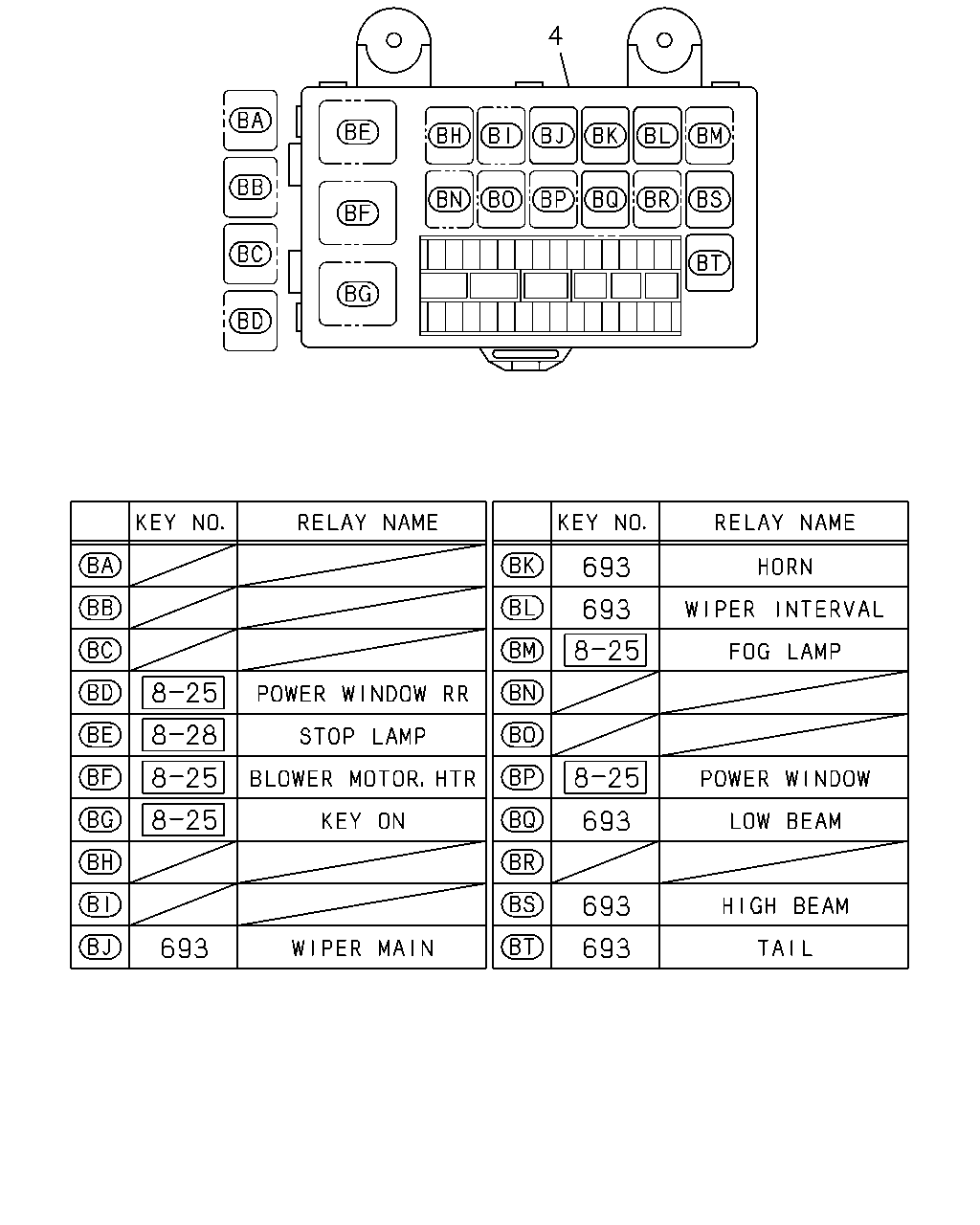

çizim 185542
4 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date A B C
4 BOX ASM; FUSE,HARNESS 8-98067-619-0 01 1 0804-1005 ● ● ●
4 BOX ASM; FUSE,HARNESS
EXC. AUTO DOOR LOCK<AU4> 		8-98067-619-0 01 1 1006-1006 ● ●
4 BOX ASM; FUSE,HARNESS 8-98067-619-0 01 1 1006-1006 ●
4 BOX ASM; FUSE,HARNESS 8-98067-619-1 01 1 1006- ● ●
4 BOX ASM; FUSE,HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> 		8-98067-619-1 01 1 1006- ●
4 BOX ASM; FUSE,HARNESS
EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98067-619-1 01 1 1006- ●
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 0804-1005 ● ● ●
693 RELAY; FUSE BOX
EXC. AUTO DOOR LOCK<AU4> 24V 10A PANASONIC 		8-97173-035-1 AR 1 1006-1006 ● ●
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1006-1006 ●
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1006- ● ●
693 RELAY; FUSE BOX
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 AR 1 1006- ●
693 RELAY; FUSE BOX
EXC. POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 AR 1 1006- ●

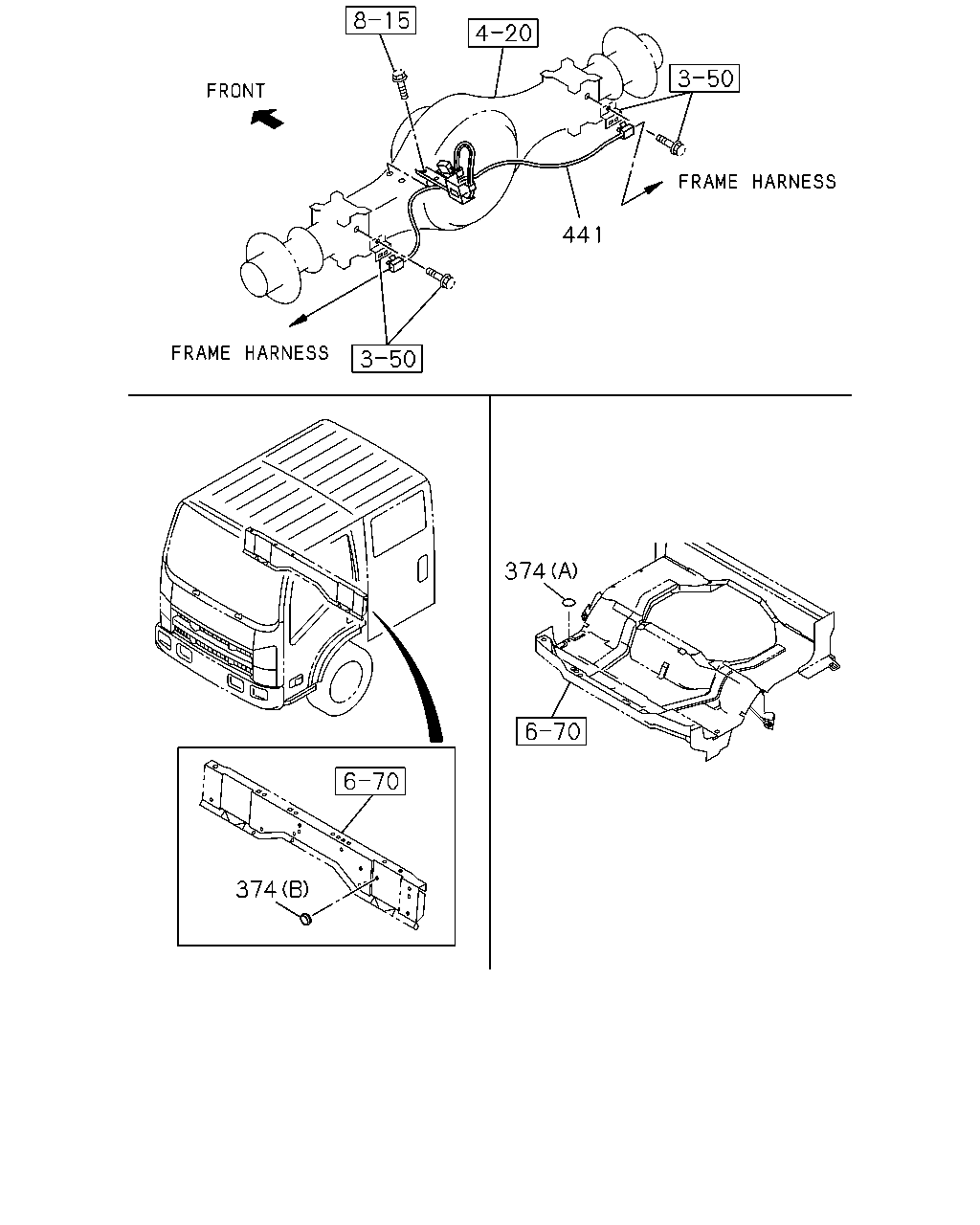

çizim 185545
441 374 374
BalonParca AdiParca NoAdetTipApplied Date A B C
374 PLUG; HARNESS CONNECTOR
(A) OD=32 BLACK 		8-98031-126-0 01 1 0804-0811 ● ●
374 PLUG; HARNESS CONNECTOR
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) OD=32 BLACK 		8-98031-126-0 01 1 0812- ● ●
374 PLUG; HARNESS CONNECTOR
(B) OD=24.5 T=7.5 		8-97224-683-0 01 1 0804- ●
441 HARNESS; CABLE,SPEED SENSOR 8-97308-213-3 01 1 0804- ●
441 HARNESS; CABLE,SPEED SENSOR
REAR WIDE TREAD(V4T) 		8-97308-220-4 01 1 0804- ●
441 HARNESS; CABLE,SPEED SENSOR 8-97308-220-4 01 1 0804- ●

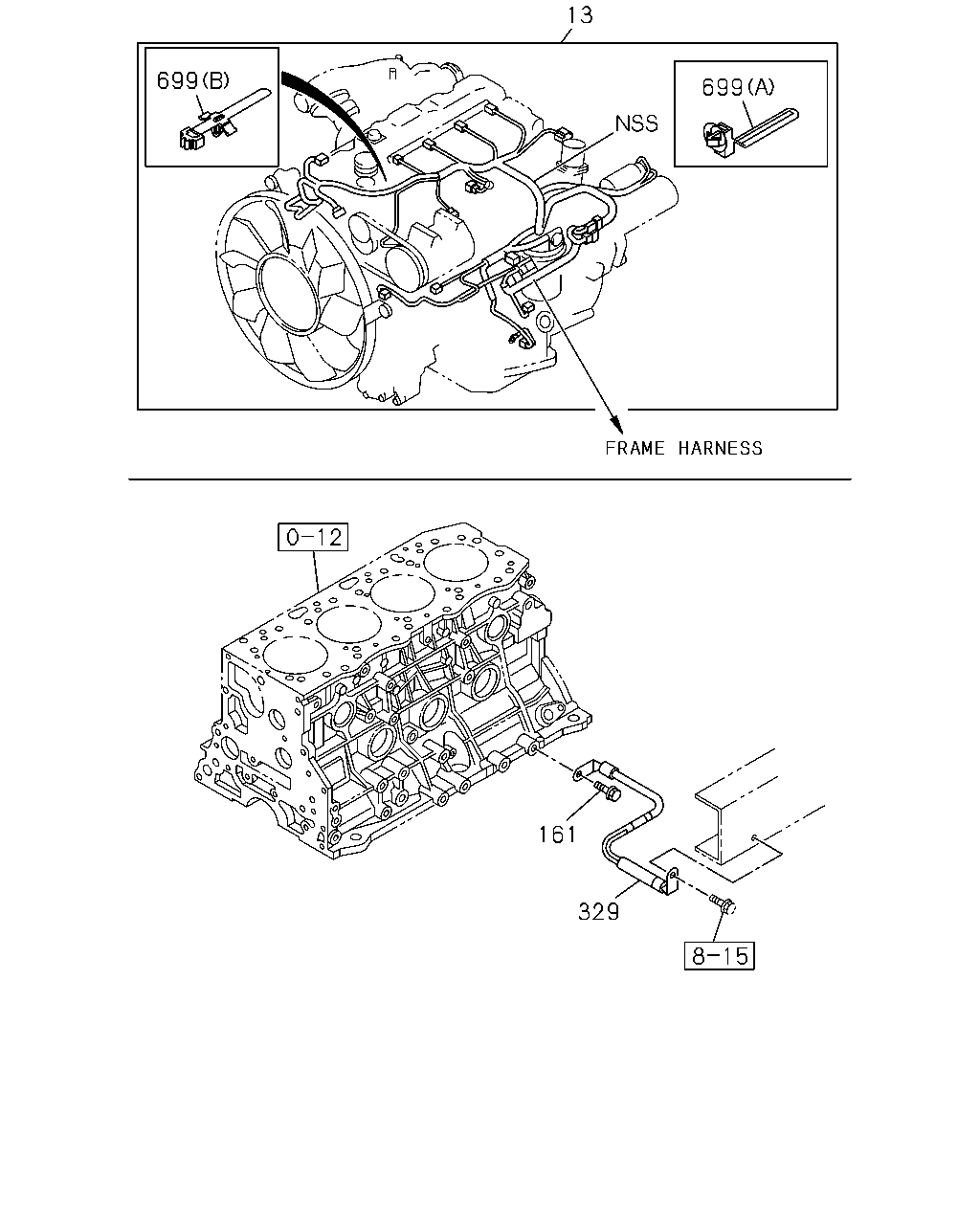

çizim 185547
13 161 329 699 699
BalonParca AdiParca NoAdetTipApplied Date A B C
13 HARNESS; ENG 8-98083-030-5 01 1 0804-1006 ● ● ●
13 HARNESS; ENG 8-98147-731-0 01 1 1007-1111 ● ● ●
13 HARNESS; ENG 8-98172-159-1 01 1 1112- ● ● ●
161 BOLT; GROUND,HARNESS
M10X16 FLANGE 		0-28051-016-0 01 1 0804- ● ● ●
329 CABLE; ENG TO FRAME 8-98039-854-1 01 1 0804- ● ● ●
699 CLIP; ENG HARNESS
(A) L=140 		8-97122-360-0 03 1 0804- ● ● ●
699 CLIP; ENG HARNESS
(B) 		8-98088-438-0 01 1 0804- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
