0-30 — WATER PUMP AND CORROSION RESISTOR (#7540) — 69 parça

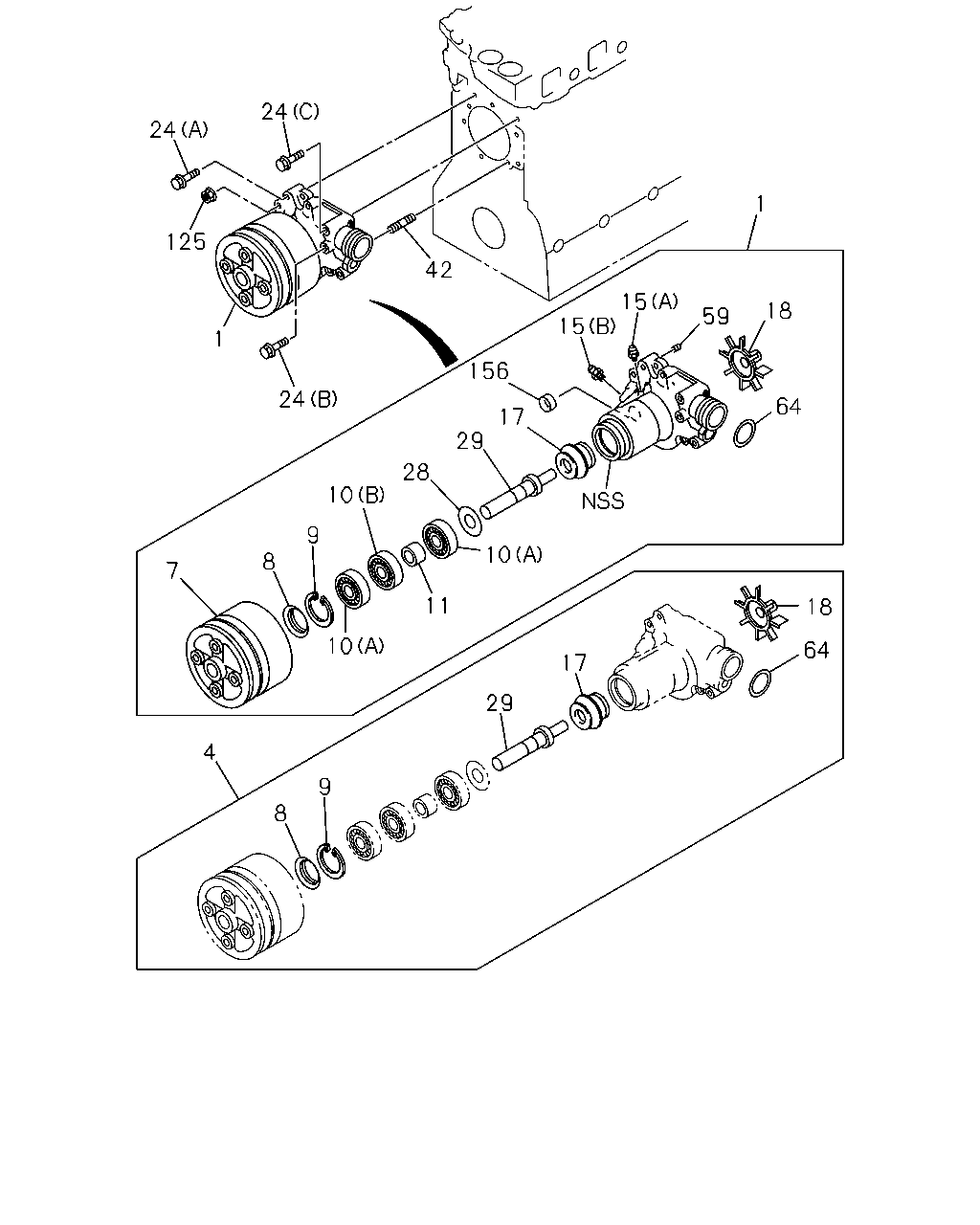

çizim 41872
24 24 1 125 42 15 15 18 59 1 156 24 64 17 29 28 10 9 10 8 7 11 18 10 64 17 29 4 9 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; WATER,W/GASKET 8-94391-060-5 01 1 0101-0301 ●
1 PUMP ASM; WATER,W/GASKET 8-97602-781-0 01 1 0302- ●
1 PUMP ASM; WATER,W/GASKET 8-94390-599-5 01 1 0101-0301 ●
1 PUMP ASM; WATER,W/GASKET 8-97602-773-0 01 1 0302- ●
4 REPAIR KIT; WATER PUMP 1-87812-028-0 01 1 0101- ●
4 REPAIR KIT; WATER PUMP 1-87812-029-0 01 1 0101- ●
7 PULLEY; WATER PUMP
4-GROOVE 		8-94394-927-0 01 1 0101- ●
7 PULLEY; WATER PUMP
2-GROOVE 		8-94394-826-0 01 1 0101- ●
8 THROWER; DUST,WATER PUMP 8-94399-457-0 01 1 0101- ● ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 0101- ● ●
10 BEARING; WATER PUMP
(A) 		8-94391-298-0 02 1 0101- ●
10 BEARING; WATER PUMP
(B) 		8-94391-299-0 01 1 0101- ●
10 BEARING; WATER PUMP 1-09800-011-0 02 1 0101- ●
11 SPACER; BRG,WATER PUMP 1-13634-040-0 01 1 0101- ●
11 SPACER; BRG,WATER PUMP 1-13634-025-0 01 1 0101- ●
15 NIPPLE; GREASE,WATER PUMP
(A) PT1/8 STRAIGHT 		1-09380-002-0 01 1 0101- ● ●
15 NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0101- ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 0101- ● ●
18 IMPELLER; WATER PUMP 8-94397-375-0 01 1 0101- ●
18 IMPELLER; WATER PUMP 8-94392-922-0 01 1 0101- ●
24 BOLT; WATER PUMP
(B) M8X80 FLANGE 		0-28080-880-0 01 1 0101- ● ●
24 BOLT; WATER PUMP
(A) M8X58 FLANGE THA 		8-94130-055-1 03 1 0101- ● ●
24 BOLT; WATER PUMP
(C) M10X85 FLANGE 		8-94397-359-1 01 1 0101- ● ●
28 WASHER; WATER PUMP
ID=25.5 OD=50 		8-94397-097-0 01 1 0101- ● ●
29 SHAFT; WATER PUMP 8-94396-130-1 01 1 0101- ●
29 SHAFT; WATER PUMP 8-94397-374-0 01 1 0101- ●
42 STUD; WATER PUMP
M8X30 L=46 		9-04010-830-0 01 1 0101- ● ●
57 PLUG; HTR,WATER PUMP
M20 		9-99202-320-0 01 1 0303- ● ●
59 DOWEL; WATER PUMP
OD=12 L=9 		1-13119-003-0 02 1 0101- ●
59 DOWEL; WATER PUMP 9-13119-022-0 02 1 0101- ●
64 GASKET; WATER PUMP TO DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7 		1-09623-383-0 01 1 0101- ● ●
69 GASKET; PLUG,HTR
ID=20.5 OD=28.0 		9-09571-420-0 01 1 0303- ● ●
125 NUT; WATER PUMP
M8 FLANGE 		0-91150-108-0 04 1 0101- ● ●
156 CUP; SEALING
OD=25 		1-09600-016-0 01 1 0101- ● ●

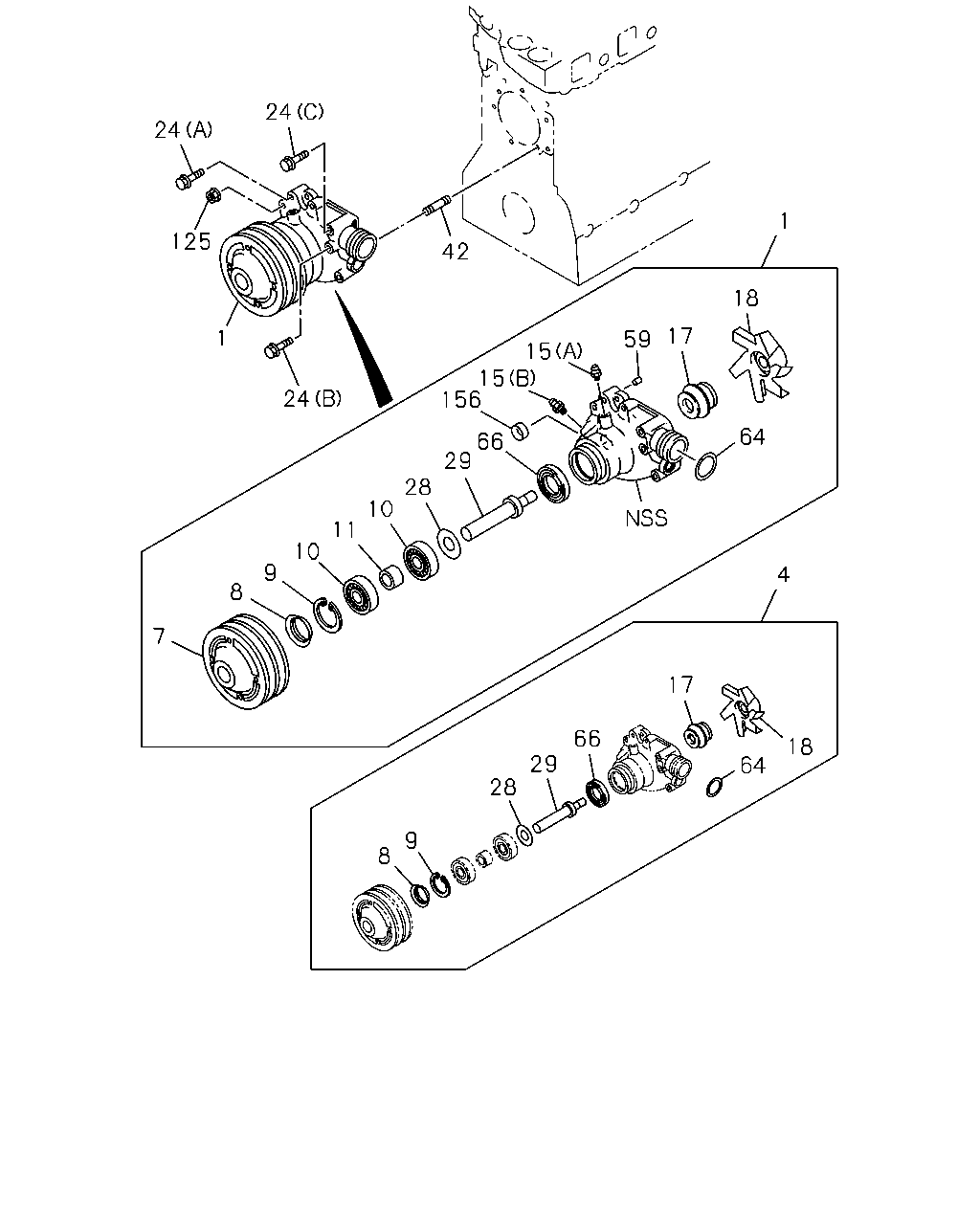

çizim 43993
24 24 1 125 42 18 17 1 59 15 15 156 24 64 66 29 28 10 11 10 9 4 8 7 17 66 18 29 64 28 9 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; WATER,W/GASKET 8-94391-060-5 01 1 0101-0301 ●
1 PUMP ASM; WATER,W/GASKET 8-97602-781-0 01 1 0302- ●
1 PUMP ASM; WATER,W/GASKET 8-94390-599-5 01 1 0101-0301 ●
1 PUMP ASM; WATER,W/GASKET 8-97602-773-0 01 1 0302- ●
4 REPAIR KIT; WATER PUMP 1-87812-028-0 01 1 0101- ●
4 REPAIR KIT; WATER PUMP 1-87812-029-0 01 1 0101- ●
7 PULLEY; WATER PUMP
4-GROOVE 		8-94394-927-0 01 1 0101- ●
7 PULLEY; WATER PUMP
2-GROOVE 		8-94394-826-0 01 1 0101- ●
8 THROWER; DUST,WATER PUMP 8-94399-457-0 01 1 0101- ● ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 0101- ● ●
10 BEARING; WATER PUMP
(A) 		8-94391-298-0 02 1 0101- ●
10 BEARING; WATER PUMP
(B) 		8-94391-299-0 01 1 0101- ●
10 BEARING; WATER PUMP 1-09800-011-0 02 1 0101- ●
11 SPACER; BRG,WATER PUMP 1-13634-040-0 01 1 0101- ●
11 SPACER; BRG,WATER PUMP 1-13634-025-0 01 1 0101- ●
15 NIPPLE; GREASE,WATER PUMP
(A) PT1/8 STRAIGHT 		1-09380-002-0 01 1 0101- ● ●
15 NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0101- ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 0101- ● ●
18 IMPELLER; WATER PUMP 8-94397-375-0 01 1 0101- ●
18 IMPELLER; WATER PUMP 8-94392-922-0 01 1 0101- ●
24 BOLT; WATER PUMP
(B) M8X80 FLANGE 		0-28080-880-0 01 1 0101- ● ●
24 BOLT; WATER PUMP
(A) M8X58 FLANGE THA 		8-94130-055-1 03 1 0101- ● ●
24 BOLT; WATER PUMP
(C) M10X85 FLANGE 		8-94397-359-1 01 1 0101- ● ●
28 WASHER; WATER PUMP
ID=25.5 OD=50 		8-94397-097-0 01 1 0101- ● ●
29 SHAFT; WATER PUMP 8-94396-130-1 01 1 0101- ●
29 SHAFT; WATER PUMP 8-94397-374-0 01 1 0101- ●
42 STUD; WATER PUMP
M8X30 L=46 		9-04010-830-0 01 1 0101- ● ●
57 PLUG; HTR,WATER PUMP
M20 		9-99202-320-0 01 1 0303- ● ●
59 DOWEL; WATER PUMP
OD=12 L=9 		1-13119-003-0 02 1 0101- ●
59 DOWEL; WATER PUMP 9-13119-022-0 02 1 0101- ●
64 GASKET; WATER PUMP TO DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7 		1-09623-383-0 01 1 0101- ● ●
66 SEAL; SECONDARY 1-09625-437-0 01 1 0101- ●
69 GASKET; PLUG,HTR
ID=20.5 OD=28.0 		9-09571-420-0 01 1 0303- ● ●
125 NUT; WATER PUMP
M8 FLANGE 		0-91150-108-0 04 1 0101- ● ●
156 CUP; SEALING
OD=25 		1-09600-016-0 01 1 0101- ● ●
