◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51146 - NLR/NMR(SOUTHAFRICA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#75398) — 166 parça

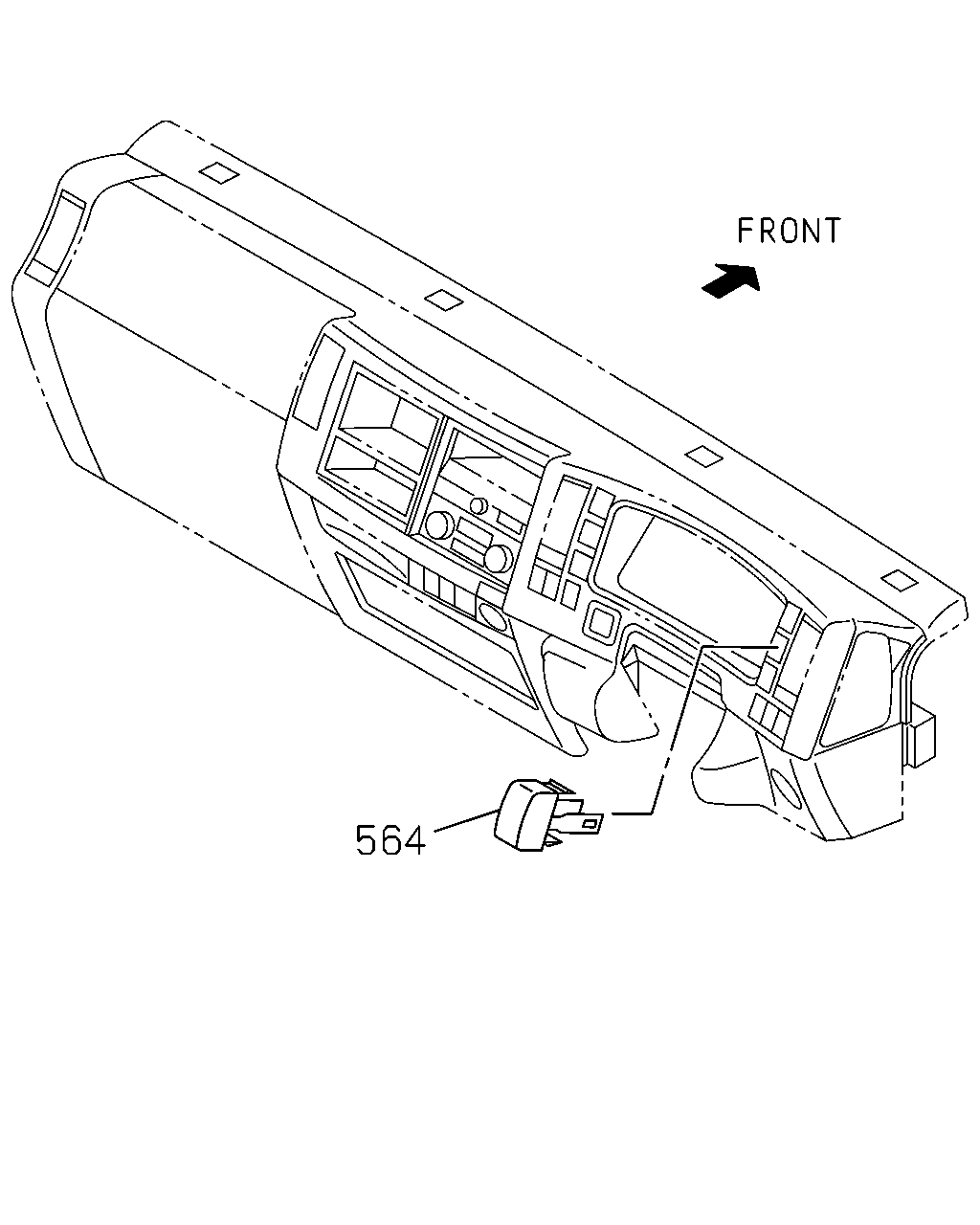

çizim 185538
564
BalonParca AdiParca NoAdetTipApplied Date A B C
564 COVER; SW 8-98025-954-1 03 1 0804- ● ● ●

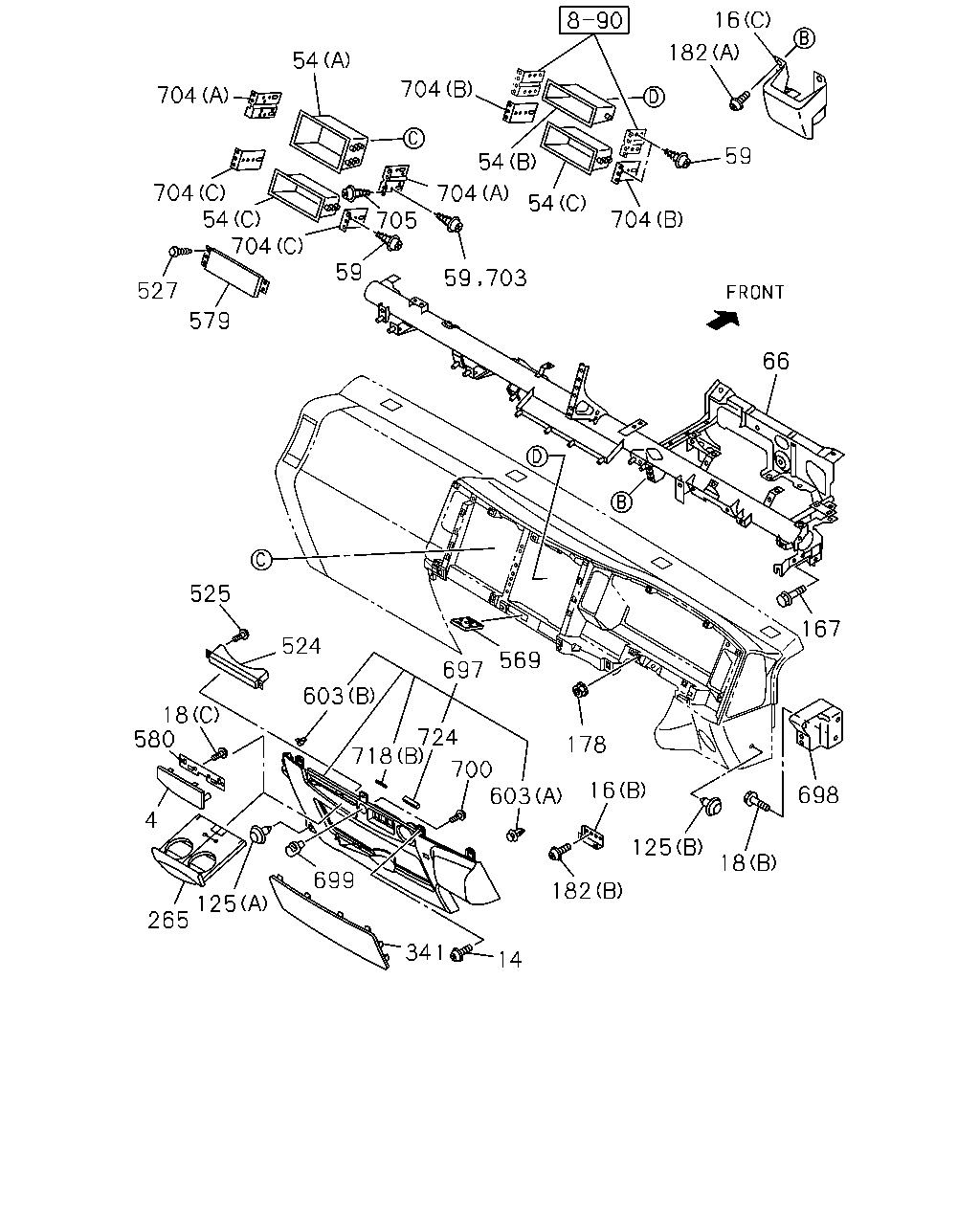

çizim 185541
579 527 704 54 704 704 54 704 54 704 705 59 59 703 54 704 59 182 16 66 167 698 18 125 16 178 603 182 14 341 699 125 265 4 580 18 525 524 603 718 700 724 697 569
BalonParca AdiParca NoAdetTipApplied Date A B C
4 COVER; INST PNL
EXC. CUP HOLDER<7KZ> GRAY 		8-97407-898-1 01 1 0804- ● ● ●
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0804-1101 ● ● ●
14 SCREW; INST PNL
M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 04 1 1102-1212 ● ● ●
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1301- ● ● ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 0804- ● ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97585-532-0 01 1 0804- ● ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97585-612-2 01 1 0804- ● ● ●
18 BOLT; BRKT
(A) T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 0804-1101 ● ● ●
18 BOLT; BRKT
(A) T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 02 1 1102-1212 ● ● ●
18 BOLT; BRKT
(A) T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1301- ● ● ●
18 BOLT; BRKT
(B) M8X16 FLANGE SOU 		0-28050-816-0 04 1 0804- ● ● ●
18 BOLT; BRKT
EXC. CUP HOLDER<7KZ> (C) T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 0804- ● ● ●
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 0804- ● ●
54 POCKET; CENTER CLUSTER
EXC. POWER WINDOW FRT&REAR DOOR<A31> (B) H=58.4 BLACK 		8-97408-864-3 01 1 0804- ●
54 POCKET; CENTER CLUSTER
(A) H=108.4 BLACK 		8-97407-129-3 01 1 0804- ● ● ●
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-2 01 1 0804-0808 ● ● ●
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 0809- ● ● ●
54 POCKET; CENTER CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) H=69.8 BLACK 		8-97408-865-3 01 1 0809- ● ● ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0804-0811 ● ● ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0804-0811 ● ●
59 SCREW; CLUSTER POCKET
EXC. POWER WINDOW FRT&REAR DOOR<A31> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0804-0811 ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0812- ● ● ●
59 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0812- ● ● ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0812- ● ●
59 SCREW; CLUSTER POCKET
EXC. POWER WINDOW FRT&REAR DOOR<A31> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0812- ●
59 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0804-0811 ● ● ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER<AK5> 		8-98089-362-0 01 1 0804-0808 ● ● ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER<AK5> 		8-98124-677-3 01 1 0809-1204 ● ● ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER<AK5> 		8-98199-357-0 01 1 1205-1211 ● ● ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER<AK5> 		8-98199-365-1 01 1 1212- ● ● ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98089-361-0 01 1 0804-0808 ● ● ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98105-263-4 01 1 0809-1204 ● ● ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98199-356-0 01 1 1205-1211 ● ● ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98199-364-1 01 1 1212- ● ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1002- ● ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97418-529-0 02 1 0910-0911 ● ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 04 1 0804-0909 ● ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 0910-0911 ● ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 04 1 0912-1001 ● ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 1002- ● ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 01 1 0804- ● ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 01 1 0804- ● ● ●
167 BOLT; REINF TO INST
M8X23 FLANGE SOU 		8-97264-766-0 04 1 0804- ● ● ●
178 NUT; INST PANEL
M6 FLANGE SOU 		0-91180-106-0 01 1 0804- ● ● ●
182 BOLT; BRKT,INST PANEL
(A) T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 0804-1101 ● ● ●
182 BOLT; BRKT,INST PANEL
(A) T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 03 1 1102-1212 ● ● ●
182 BOLT; BRKT,INST PANEL
(A) T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1301- ● ● ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0804-1101 ● ● ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1212 ● ● ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301- ● ● ●
265 HOLDER; CUP
CUP HOLDER<7KZ> GRAY 		8-97407-897-2 01 1 0804-0909 ● ● ●
265 HOLDER; CUP
CUP HOLDER<7KZ> GRAY 		8-97418-528-0 01 1 0910- ● ● ●
341 LID; FUSE BOX
GRAY 		8-97406-265-3 01 1 0804-1205 ● ● ●
341 LID; FUSE BOX
GRAY 		8-97423-658-0 01 1 1206- ● ● ●
524 STAND ASM; CUP,INST
CUP HOLDER<7KZ> 		8-98054-414-0 01 1 0804- ● ● ●
525 SCREW; CUP STAND
CUP HOLDER<7KZ> M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0804-1101 ● ● ●
525 SCREW; CUP STAND
CUP HOLDER<7KZ> M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 03 1 1102-1212 ● ● ●
525 SCREW; CUP STAND
CUP HOLDER<7KZ> M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1301- ● ● ●
527 CLIP; INST CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) DARK GRAY 		8-97098-326-0 01 1 0804- ● ● ●
569 HOLDER; CARD 8-97410-276-1 01 1 0804- ● ● ●
579 COVER; INST PNL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) BLACK 		8-97408-909-0 01 1 0804-0808 ● ● ●
580 BRACKET; COVER
EXC. CUP HOLDER<7KZ> 		8-98091-546-0 01 1 0804- ● ● ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 0804- ● ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 0804- ● ● ●
697 PANEL; INST CENTER
GRAY 		8-97405-256-8 01 1 0804-1205 ● ● ●
697 PANEL; INST CENTER
GRAY 		8-97423-656-1 01 1 1206- ● ● ●
698 BRACKET; INST BAR SIDE 8-98089-257-1 01 1 0804- ● ● ●
698 BRACKET; INST BAR SIDE 8-98089-256-1 01 1 0804- ● ● ●
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 0804- ● ● ●
700 BOLT; HOOK
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0804-1101 ● ● ●
700 BOLT; HOOK
M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212 ● ● ●
700 BOLT; HOOK
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ● ● ●
703 SCREW; CENTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 0804- ● ● ●
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 0804- ● ● ●
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 0804- ● ● ●
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-98073-822-0 02 1 0804-0808 ● ● ●
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-98107-549-0 02 1 0809- ● ● ●
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 0804-1101 ● ● ●
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 0804-1101 ● ● ●
705 SCREW; BRACKET CENTER POCKET
M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1102-1212 ● ● ●
705 SCREW; BRACKET CENTER POCKET
M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1102-1212 ● ● ●
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1301- ● ● ●
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1301- ● ● ●
705 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 0804-1101 ● ● ●
705 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 01 1 1102-1212 ● ● ●
705 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1301- ● ● ●
718 SEAL; COVER
(B) 5X30 		8-98176-199-0 01 1 1206- ● ● ●
718 SEAL; COVER
(B) 8X80 		8-98200-040-0 01 1 1110- ● ● ●
718 SEAL; COVER
(B) 4X35 		8-98200-041-0 01 1 1110- ● ● ●
718 SEAL; COVER
(A) 30X15 		8-98097-696-0 01 1 0804- ● ● ●
724 INSULATOR; INST PANEL 8-98200-042-0 01 1 1110- ● ● ●

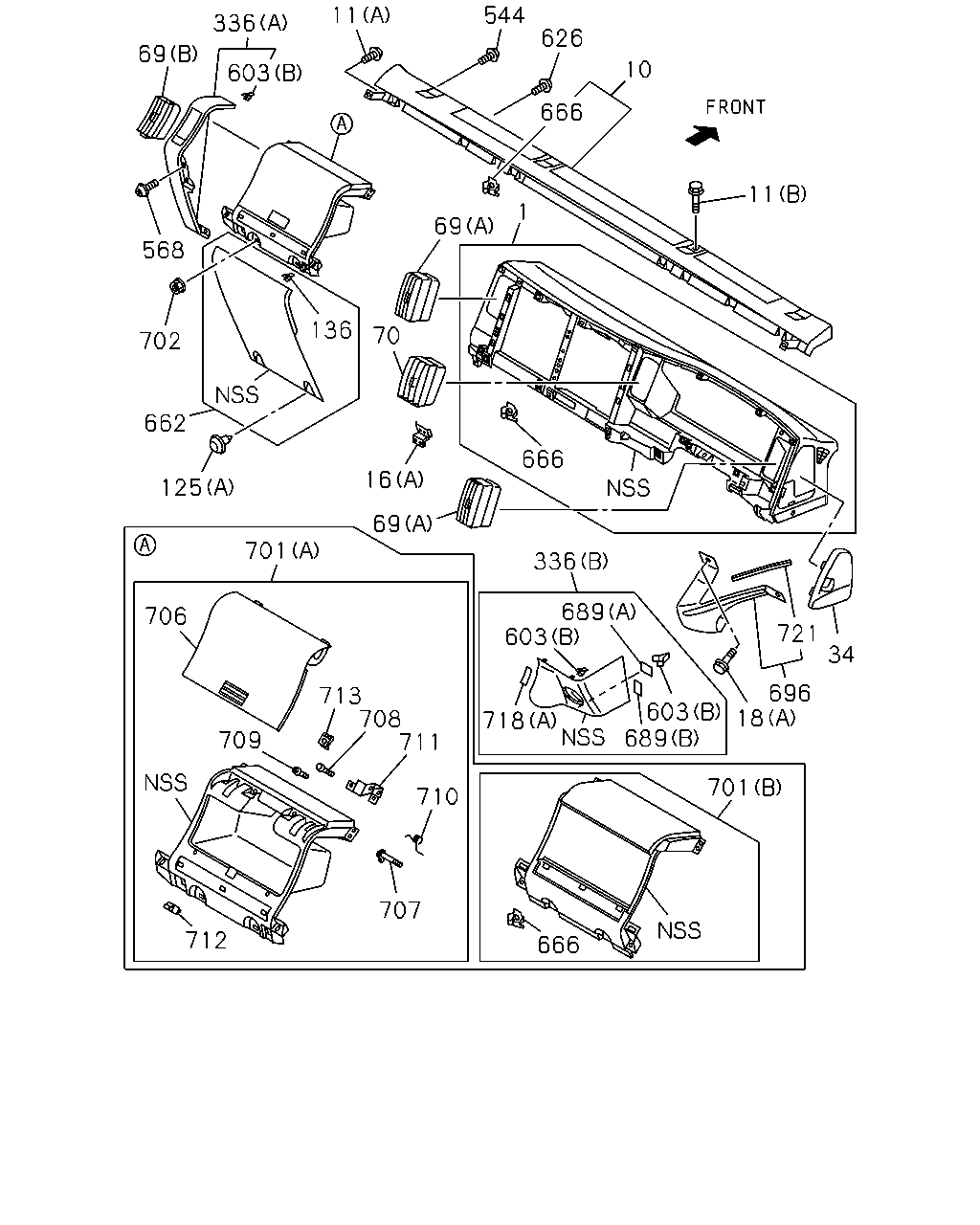

çizim 185543
544 11 336 626 69 10 603 666 11 1 69 568 136 70 702 662 666 16 125 69 701 336 689 603 706 721 34 696 18 713 708 711 603 689 718 709 701 710 707 712 666
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PANEL; INST
GRAY 		8-97405-253-8 01 1 0804- ● ● ●
10 PANEL ASM; GARNISH
GRAY 		8-97406-272-4 01 1 0804-1003 ● ● ●
10 PANEL ASM; GARNISH
GRAY 		8-97419-684-5 01 1 1004- ● ● ●
11 BOLT; INST PNL
(A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 0804-1101 ● ● ●
11 BOLT; INST PNL
(A) M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 08 1 1102-1212 ● ● ●
11 BOLT; INST PNL
(A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1301- ● ● ●
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 0804- ● ● ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 0804- ● ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97585-532-0 01 1 0804- ● ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97585-612-2 01 1 0804- ● ● ●
18 BOLT; BRKT
(A) T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 0804-1101 ● ● ●
18 BOLT; BRKT
(A) T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 02 1 1102-1212 ● ● ●
18 BOLT; BRKT
(A) T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1301- ● ● ●
18 BOLT; BRKT
(B) M8X16 FLANGE SOU 		0-28050-816-0 04 1 0804- ● ● ●
18 BOLT; BRKT
EXC. CUP HOLDER<7KZ> (C) T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 0804- ● ● ●
34 LID; OIL TANK
GRAY 		8-97405-260-1 01 1 0804- ● ● ●
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 0804- ● ● ●
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 0804- ● ● ●
70 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 0804- ● ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1002- ● ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97418-529-0 02 1 0910-0911 ● ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 04 1 0804-0909 ● ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 0910-0911 ● ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 04 1 0912-1001 ● ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 1002- ● ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 01 1 0804- ● ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 01 1 0804- ● ● ●
136 CLIP; INST COVER 8-98021-271-0 05 1 0804- ● ● ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97405-259-4 01 1 0804- ● ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97414-688-1 01 1 0804- ● ● ●
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0804-1101 ● ● ●
544 SCREW; TRAY
M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1212 ● ● ●
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301- ● ● ●
568 BOLT; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0804-1101 ● ● ●
568 BOLT; COVER
M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212 ● ● ●
568 BOLT; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ● ● ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 0804- ● ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 0804- ● ● ●
626 RETAINER
OD=15 BLACK SOU 		8-94279-804-0 02 1 0804- ● ● ●
662 COVER; LWR,INST PANEL
GRAY 		8-97406-260-1 01 1 0804- ● ● ●
666 INSERT; INST PANEL 8-98037-629-0 02 1 0804-0901 ● ● ●
666 INSERT; INST PANEL
AIR BAG DRIVER & PASSENGER<AK5> 		8-98037-629-0 02 1 0804-0901 ● ● ●
666 INSERT; INST PANEL 8-98037-629-0 02 1 0902-1003 ● ● ●
666 INSERT; INST PANEL 8-98037-629-0 15 1 0804- ● ● ●
689 SEAL; INST
(A) 7X31 		8-98061-777-0 01 1 0804- ● ● ●
689 SEAL; INST
(B) 18X170 		8-98061-778-1 01 1 0804- ● ● ●
696 BRACKET; KNEE 8-97589-189-4 01 1 0804-1211 ● ● ●
696 BRACKET; KNEE 8-98199-366-0 01 1 1212- ● ● ●
701 TRAY; INST
AIR BAG DRIVER & PASSENGER<AK5> (B) GRAY 		8-97406-269-1 01 1 0804-0901 ● ● ●
701 TRAY; INST
AIR BAG DRIVER & PASSENGER<AK5> (B) GRAY 		8-97416-907-0 01 1 0902- ● ● ●
701 TRAY; INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) GRAY 		8-97406-268-4 01 1 0804- ● ● ●
702 NUT; TRAY
M6 FLANGE SOU 		0-91180-106-0 02 1 0804- ● ● ●
706 LID; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97409-510-0 01 1 0804- ● ● ●
707 SHAFT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98035-730-1 02 1 0804-1311 ● ● ●
707 SHAFT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-393-0 02 1 1312- ● ● ●
708 STOPPER; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98010-867-1 02 1 0804- ● ● ●
709 SCREW; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> M5X16 TAPPING 		0-71040-516-0 04 1 0804- ● ● ●
710 SPRING; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-987-0 01 1 0804-1311 ● ● ●
710 SPRING; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-399-0 01 1 1312- ● ● ●
710 SPRING; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-986-0 01 1 0804-1311 ● ● ●
710 SPRING; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-398-0 01 1 1312- ● ● ●
711 HOLDER ASM; LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-929-0 01 1 0804-1311 ● ● ●
711 HOLDER ASM; LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-397-0 01 1 1312- ● ● ●
711 HOLDER ASM; LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-928-0 01 1 0804-1311 ● ● ●
711 HOLDER ASM; LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-396-0 01 1 1312- ● ● ●
712 LOCK; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98031-846-0 01 1 0804- ● ● ●
713 NUT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> M5 SOU 		1-09984-196-0 04 1 0804-1311 ● ● ●
713 NUT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> M5 		8-97926-400-0 04 1 1312- ● ● ●
718 SEAL; COVER
(B) 5X30 		8-98176-199-0 01 1 1206- ● ● ●
718 SEAL; COVER
(B) 8X80 		8-98200-040-0 01 1 1110- ● ● ●
718 SEAL; COVER
(B) 4X35 		8-98200-041-0 01 1 1110- ● ● ●
718 SEAL; COVER
(A) 30X15 		8-98097-696-0 01 1 0804- ● ● ●
721 FINISHER; BRKT,KNEE
L=95 		8-97995-992-0 01 1 0804-1211 ● ● ●
721 FINISHER; BRKT,KNEE
L=75 		8-98176-240-0 01 1 1212- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
