◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51146 - NLR/NMR(SOUTHAFRICA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#75395) — 24 parça
çizim 132820
96 2 48 84
BalonParca AdiParca NoAdetTipApplied Date A B C
2 LABEL; FUEL CAUTION
(B) SOU 		8-97203-837-0 01 1 0804- ●
2 LABEL; FUEL CAUTION
CAUTION SPANISH<YN1> (A) 		8-98083-876-0 01 1 0804- ● ● ●
2 LABEL; FUEL CAUTION
EXC. CAUTION SPANISH<YN1> (A) 		8-98036-252-0 01 1 0804- ● ● ●
48 PLATE; CAUTION,PTO
CAUTION SPANISH<YN1> PTO MANUAL CONTROL(6WC) SOU 		8-94313-054-0 01 1 0804- ● ● ●
48 PLATE; CAUTION,PTO
PTO MANUAL CONTROL(6WC) EXC. CAUTION SPANISH<YN1> SOU 		8-94469-277-0 01 1 0804- ● ● ●
84 PLATE; CAUTION,BRAKE FLUID 8-98022-836-1 01 1 0804- ● ● ●
96 PLATE; CAUTION,ENGINE OIL
CAUTION SPANISH<YN1> 		8-98036-112-0 01 1 0804- ● ● ●
96 PLATE; CAUTION,ENGINE OIL
EXC. CAUTION SPANISH<YN1> 		8-98036-111-1 01 1 0804- ● ● ●
çizim 133133
306 4 4 35
BalonParca AdiParca NoAdetTipApplied Date A B C
4 LABEL; ENG MAINTENANCE
CAUTION SPANISH<YN1> (B) 		8-98030-803-1 01 1 0804- ● ● ●
4 LABEL; ENG MAINTENANCE
EXC. CAUTION SPANISH<YN1> (A) 		8-98030-757-0 01 1 0804- ● ● ●
35 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1> 		8-98070-512-0 01 1 0804- ● ●
35 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> 		8-98067-809-0 01 1 0804- ● ●
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 0804- ● ● ●

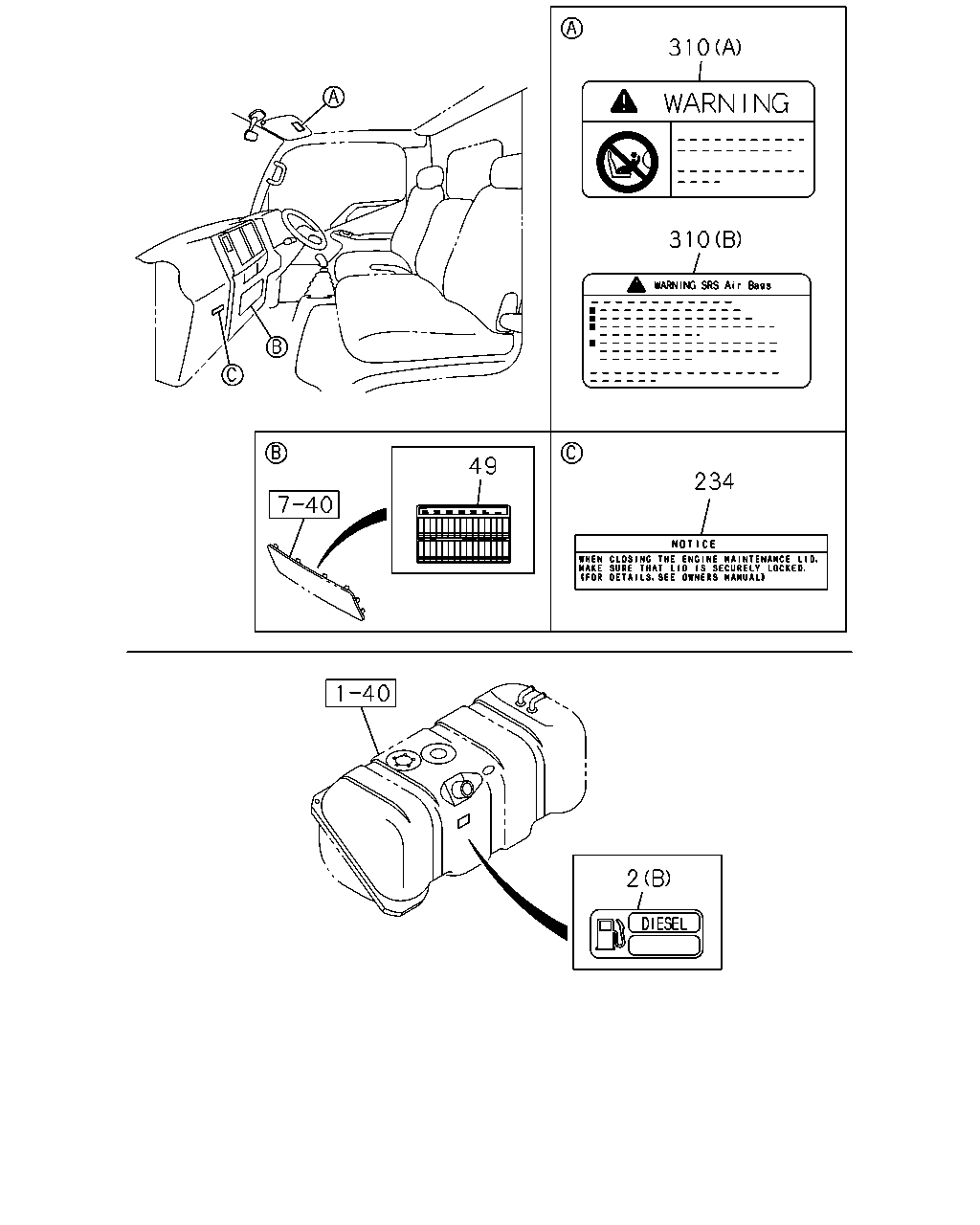

çizim 185535
49 234 310 310 2
BalonParca AdiParca NoAdetTipApplied Date A B C
2 LABEL; FUEL CAUTION
(B) SOU 		8-97203-837-0 01 1 0804- ●
2 LABEL; FUEL CAUTION
CAUTION SPANISH<YN1> (A) 		8-98083-876-0 01 1 0804- ● ● ●
2 LABEL; FUEL CAUTION
EXC. CAUTION SPANISH<YN1> (A) 		8-98036-252-0 01 1 0804- ● ● ●
49 PLATE; CAUTION,FUSE BOX 8-98090-175-0 01 1 0804- ● ● ●
234 PLATE; CAUTION,ENG COVER
CAUTION SPANISH<YN1> INSPECTION ENGINE COVER<8GA> 		8-98071-067-0 01 1 0804- ● ●
234 PLATE; CAUTION,ENG COVER
CAUTION SPANISH<YN1> 		8-98071-067-0 01 1 0804- ●
234 PLATE; CAUTION,ENG COVER
INSPECTION ENGINE COVER<8GA> EXC. CAUTION SPANISH<YN1> 		8-97994-545-0 01 1 0804- ● ●
234 PLATE; CAUTION,ENG COVER
EXC. CAUTION SPANISH<YN1> 		8-97994-545-0 01 1 0804- ●
310 LABEL; WARNING,SRS
AIR BAG DRIVER & PASSENGER<AK5> (A) PASSENGER 		8-98080-839-0 01 1 0804- ● ● ●
310 LABEL; WARNING,SRS
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CAUTION SPANISH<YN1> (B) DRIVER 		8-98224-287-0 01 1 1211- ● ● ●
310 LABEL; WARNING,SRS
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. CAUTION SPANISH<YN1> (B) DRIVER 		8-98139-964-0 01 1 1211- ● ● ●
