◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51146 - NLR/NMR(SOUTHAFRICA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#75387) — 24 parça

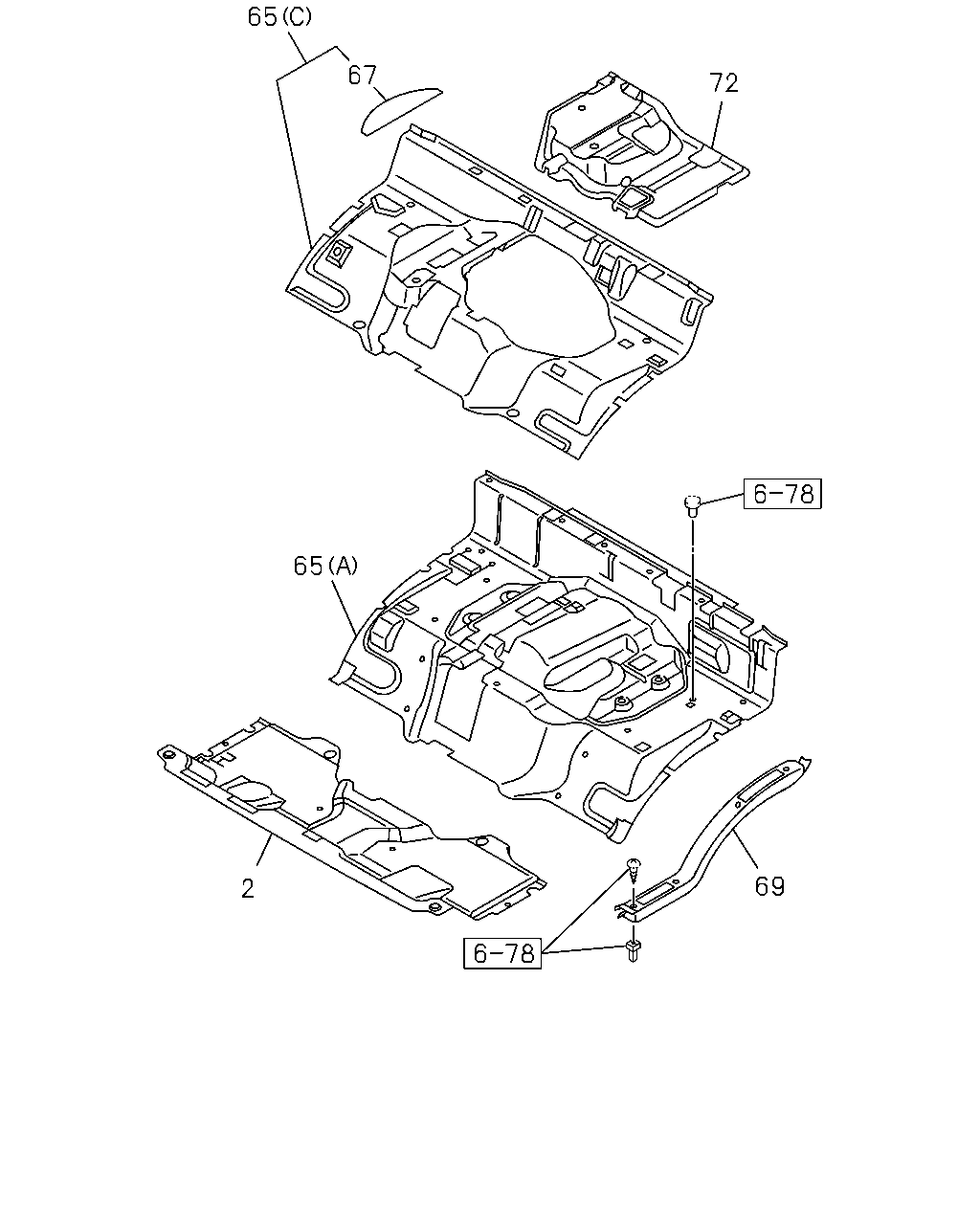

çizim 132076
65 67 72 65 69 2
BalonParca AdiParca NoAdetTipApplied Date A B C
2 MAT; FLOOR
GRAY 		8-97406-154-6 01 1 0804- ● ● ●
65 MAT ASM; SILENCER,CAB FLOOR
INSPECTION ENGINE COVER<8GA> (C) GRAY 		8-97406-229-9 01 1 0804- ● ●
65 MAT ASM; SILENCER,CAB FLOOR
EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY 		8-97406-227-7 01 1 0804- ● ●
65 MAT ASM; SILENCER,CAB FLOOR
(B) GRAY 		8-97406-230-9 01 1 0804- ●
67 LID; COVER
INSPECTION ENGINE COVER<8GA> GRAY 		8-97408-863-0 01 1 0804-0904 ● ●
67 LID; COVER
GRAY 		8-97408-863-0 01 1 0804-0904 ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97405-388-1 01 1 0804- ● ● ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97405-389-1 01 1 0804- ● ● ●
72 MAT; SILENCER,ENG COVER
INSPECTION ENGINE COVER<8GA> GRAY 		8-97406-252-3 01 1 0804- ● ●
72 MAT; SILENCER,ENG COVER
GRAY 		8-97406-252-3 01 1 0804- ●

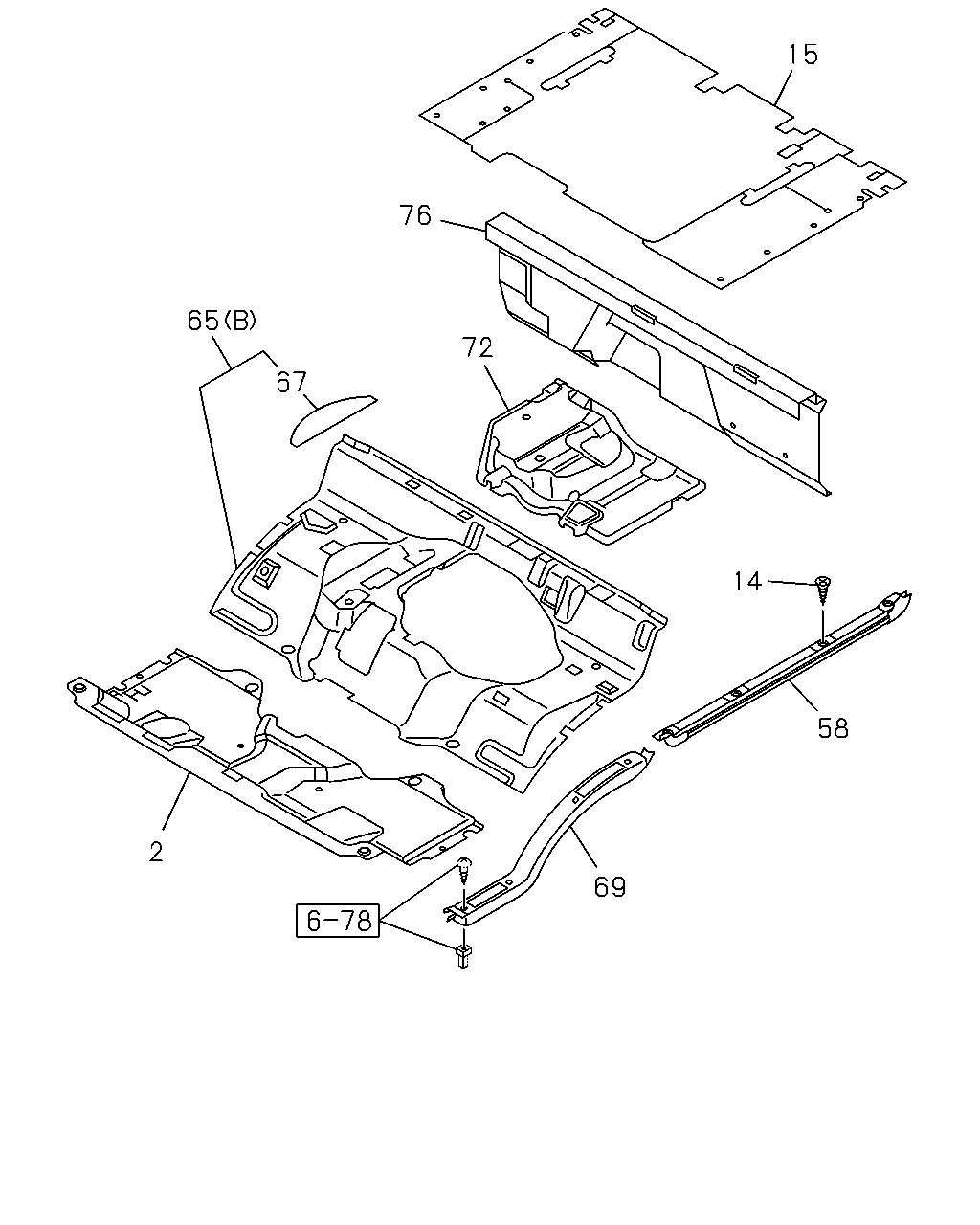

çizim 132508
15 76 65 72 67 14 58 2 69
BalonParca AdiParca NoAdetTipApplied Date A B C
2 MAT; FLOOR
GRAY 		8-97406-154-6 01 1 0804- ● ● ●
14 SCREW; PLATE
T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 08 1 0804- ●
15 MAT; FLOOR REAR
GRAY 		8-97412-598-3 01 1 0804- ●
58 PLATE; GUARD,RR FLOOR MAT
GRAY 		8-97405-981-1 02 1 0804- ●
65 MAT ASM; SILENCER,CAB FLOOR
INSPECTION ENGINE COVER<8GA> (C) GRAY 		8-97406-229-9 01 1 0804- ● ●
65 MAT ASM; SILENCER,CAB FLOOR
EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY 		8-97406-227-7 01 1 0804- ● ●
65 MAT ASM; SILENCER,CAB FLOOR
(B) GRAY 		8-97406-230-9 01 1 0804- ●
67 LID; COVER
INSPECTION ENGINE COVER<8GA> GRAY 		8-97408-863-0 01 1 0804-0904 ● ●
67 LID; COVER
GRAY 		8-97408-863-0 01 1 0804-0904 ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97405-388-1 01 1 0804- ● ● ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97405-389-1 01 1 0804- ● ● ●
72 MAT; SILENCER,ENG COVER
INSPECTION ENGINE COVER<8GA> GRAY 		8-97406-252-3 01 1 0804- ● ●
72 MAT; SILENCER,ENG COVER
GRAY 		8-97406-252-3 01 1 0804- ●
76 MAT; FLOOR,REINF,CAB RR MTG
GRAY 		8-97412-596-2 01 1 0804- ●
