6-70 — FLOOR PANEL (#75386) — 122 parça

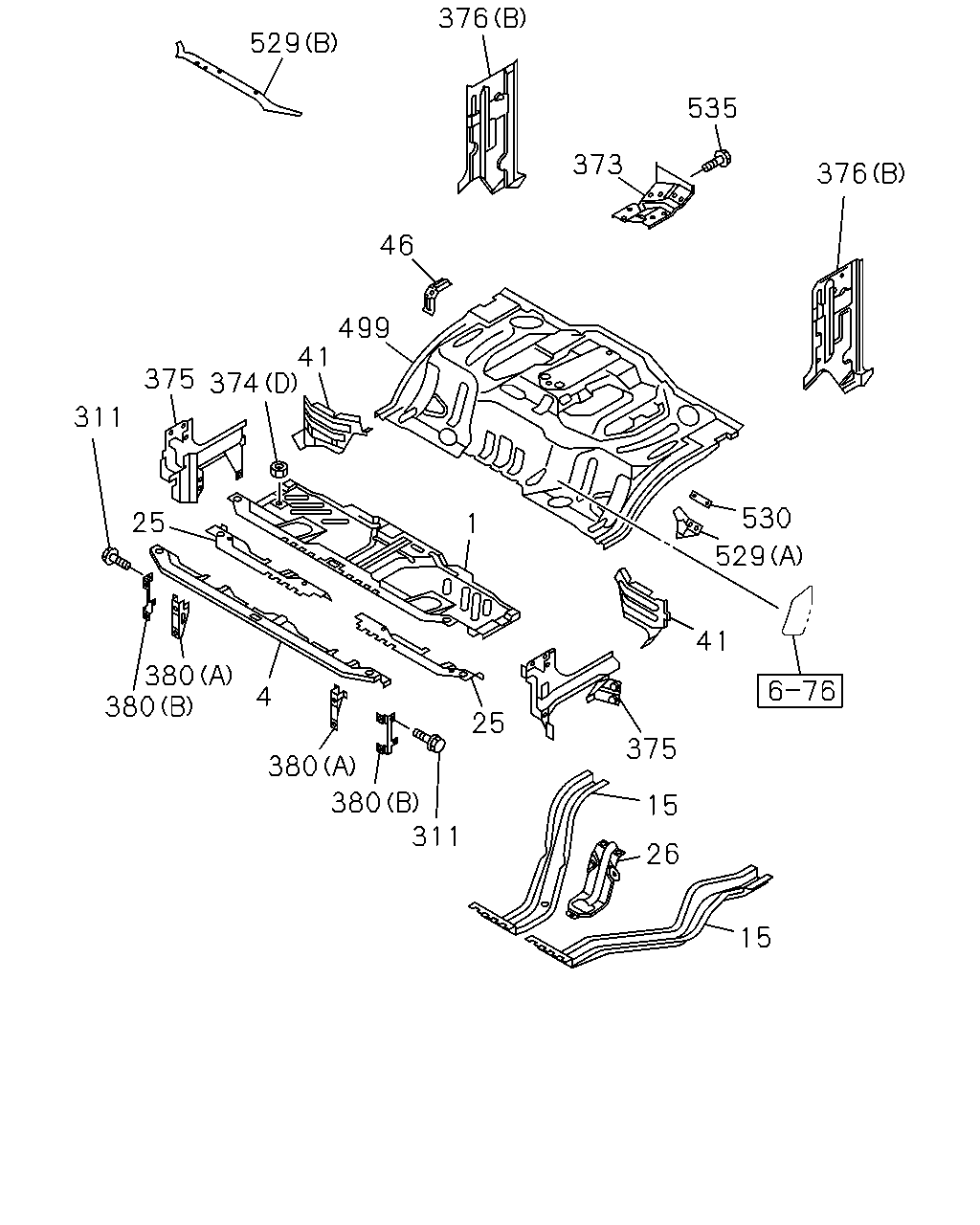

376 529 535 373 376 46 499 41 374 375 311 530 25 1 529 41 380 380 4 25 375 380 380 311 15 26 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PANEL; FLOOR	8-97583-910-5	01	1	0804-	●	●	●
4	FRAME; FLOOR,FRT SOU	8-98059-496-0	01	1	0804-	●	●	●
15	FRAME; UNDER SOU	8-98061-278-1	01	1	0804-	●	●	●
15	FRAME; UNDER SOU	8-98061-277-1	01	1	0804-	●	●	●
25	REINFORCEMENT; FRAME FLOOR,FRT	8-97588-031-1	01	1	0804-	●	●	●
25	REINFORCEMENT; FRAME FLOOR,FRT	8-97588-030-1	01	1	0804-	●	●	●
26	PANEL; GEAR CONT REINF	8-97589-382-1	01	1	0804-	●	●	●
41	SUPPORT; STEP,RR	8-97583-936-2	01	1	0804-	●	●	●
41	SUPPORT; STEP,RR	8-97583-935-2	01	1	0804-	●	●	●
46	BRACKET; FRT SEAT,RR OUTER	8-97583-834-0	01	1	0804-	●	●	●
311	BOLT; BRKT M6X16 SOU	0-52000-616-0	04	1	0804-0804	●	●	●
311	BOLT; BRKT M6X16 FLANGE SOU	0-28650-616-0	04	1	0805-	●	●	●
373	REINFORCEMENT; SEAT BELT EXC. INSPECTION ENGINE COVER<8GA>	8-98014-522-2	01	1	0804-	●	●
373	REINFORCEMENT; SEAT BELT EXC. INSPECTION ENGINE COVER<8GA>	8-98014-521-2	01	1	0804-	●	●
373	REINFORCEMENT; SEAT BELT	8-98015-215-2	01	1	0804-			●
374	NUT; FLOOR INSPECTION ENGINE COVER<8GA> (A) M8	1-09984-111-0	04	1	0804-	●	●
374	NUT; FLOOR (A) M8	1-09984-111-0	04	1	0804-			●
374	NUT; FLOOR EXC. INSPECTION ENGINE COVER<8GA> (A) M8	1-09984-111-0	01	1	0804-	●	●
374	NUT; FLOOR (B) M6	1-09984-110-0	02	1	0804-	●	●	●
374	NUT; FLOOR (D) M8	9-09114-068-0	04	1	0804-	●	●	●
374	NUT; FLOOR (C) M6 POP NUT	8-98013-752-0	01	1	0804-			●
375	CLOSING; PILLAR	8-97583-883-2	01	1	0804-	●	●	●
375	CLOSING; PILLAR	8-97583-882-3	01	1	0804-	●	●	●
376	CLOSING; PILLAR,LWR (A)	8-97583-888-2	01	1	0804-	●	●
376	CLOSING; PILLAR,LWR (A)	8-97584-618-2	01	1	0804-	●	●
376	CLOSING; PILLAR,LWR (B)	8-98024-545-6	01	1	0804-			●
376	CLOSING; PILLAR,LWR (B)	8-98024-544-7	01	1	0804-			●
380	BRACKET; HEAD LAMP (A) SOU	8-97589-385-3	01	1	0804-	●	●	●
380	BRACKET; HEAD LAMP (B)	8-98029-289-0	01	1	0804-	●	●	●
380	BRACKET; HEAD LAMP (A) SOU	8-97589-384-4	01	1	0804-	●	●	●
380	BRACKET; HEAD LAMP (B)	8-98029-288-0	01	1	0804-	●	●	●
499	PANEL; FLOOR,RR INSPECTION ENGINE COVER<8GA>	8-97584-630-1	01	1	0804-	●	●
499	PANEL; FLOOR,RR	8-97584-630-1	01	1	0804-			●
499	PANEL; FLOOR,RR EXC. INSPECTION ENGINE COVER<8GA>	8-97583-912-4	01	1	0804-	●	●
529	RETAINER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> (B)	8-97589-307-1	01	1	0804-	●	●
529	RETAINER; FLOOR PANEL (B)	8-97589-307-1	01	1	0804-			●
529	RETAINER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> (A)	8-98030-358-0	01	1	0804-	●	●
529	RETAINER; FLOOR PANEL (A)	8-98030-358-0	01	1	0804-			●
530	BRACKET; COVER INSPECTION ENGINE COVER<8GA>	8-97589-255-0	01	1	0804-	●	●
530	BRACKET; COVER	8-97589-255-0	01	1	0804-			●
535	BOLT; REINFORCEMENT M8X20 FLANGE	0-28650-820-0	04	1	0804-			●

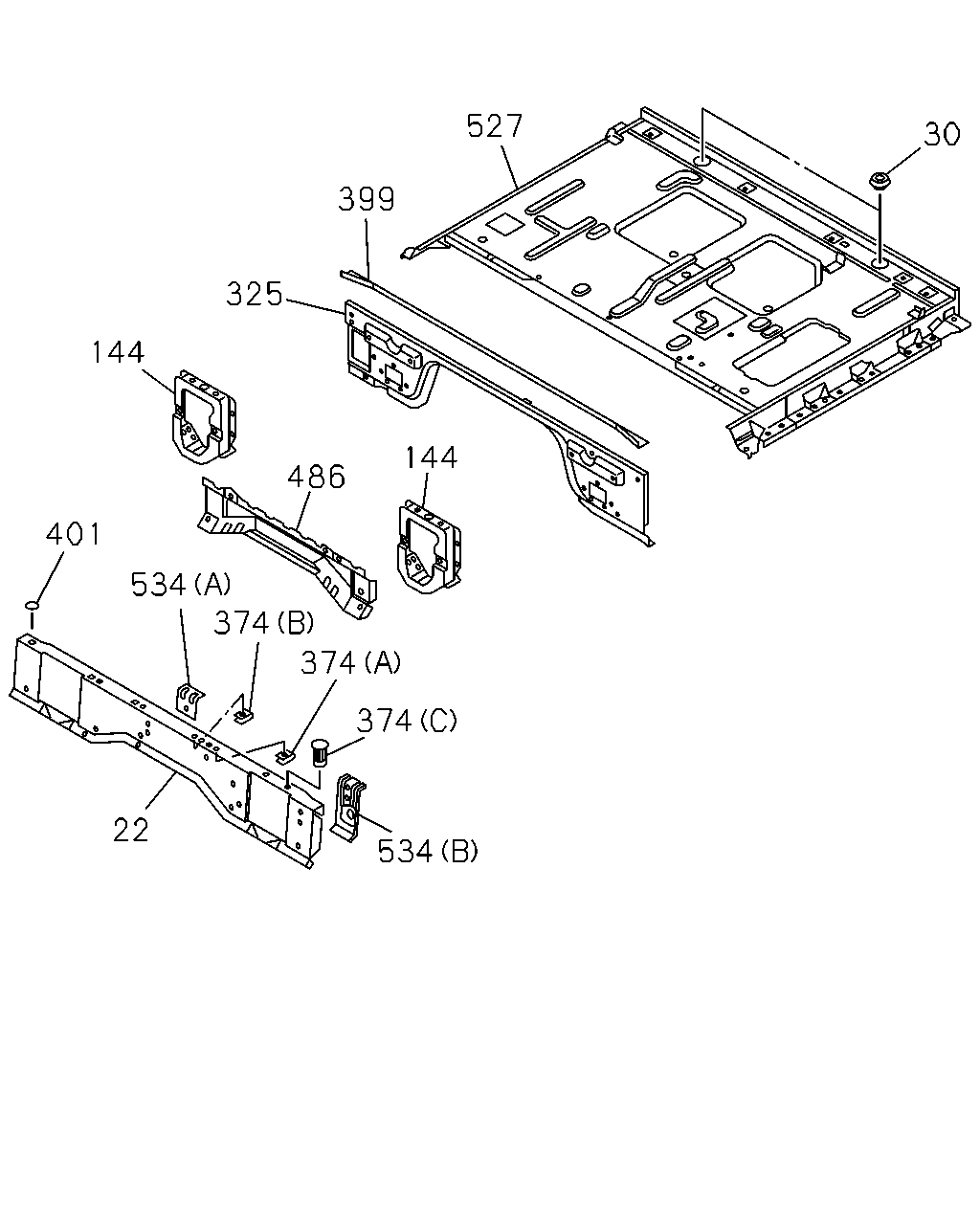

527 30 399 325 144 144 486 401 534 374 374 374 22 534

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
22	FRAME; FLOOR REAR INSPECTION ENGINE COVER<8GA>	8-97589-306-4	01	1	0804-	●	●
22	FRAME; FLOOR REAR	8-97589-306-4	01	1	0804-			●
22	FRAME; FLOOR REAR EXC. INSPECTION ENGINE COVER<8GA>	8-97583-925-3	01	1	0804-	●	●
30	GROMMET; CAB MTG RAIL OD=74	8-94279-731-0	02	1	0804-			●
144	BRACKET; MTG,RR	8-97589-544-3	02	1	0804-	●	●
144	BRACKET; MTG,RR	8-98112-244-2	02	1	0804-			●
325	REINFORCEMENT ASM; RR MTG SOU	8-97588-942-2	01	1	0804-			●
374	NUT; FLOOR INSPECTION ENGINE COVER<8GA> (A) M8	1-09984-111-0	04	1	0804-	●	●
374	NUT; FLOOR (A) M8	1-09984-111-0	04	1	0804-			●
374	NUT; FLOOR EXC. INSPECTION ENGINE COVER<8GA> (A) M8	1-09984-111-0	01	1	0804-	●	●
374	NUT; FLOOR (B) M6	1-09984-110-0	02	1	0804-	●	●	●
374	NUT; FLOOR (D) M8	9-09114-068-0	04	1	0804-	●	●	●
374	NUT; FLOOR (C) M6 POP NUT	8-98013-752-0	01	1	0804-			●
399	PANEL; EXTENSION,RR MTG RAIL SOU	8-97588-952-1	01	1	0804-			●
401	GROMMET; HOLE OD=24.5 T=7.5	8-97224-683-0	01	1	0804-	●	●	●
486	REINFORCEMENT; FRAME FLOOR,REAR INSPECTION ENGINE COVER<8GA>	8-98030-611-2	01	1	0804-	●	●
486	REINFORCEMENT; FRAME FLOOR,REAR	8-98030-611-2	01	1	0804-			●
486	REINFORCEMENT; FRAME FLOOR,REAR EXC. INSPECTION ENGINE COVER<8GA>	8-98030-610-2	01	1	0804-	●	●
527	FLOOR; RR	8-98081-408-4	01	1	0804-			●
534	REINFORCEMENT; SEAT BACK (B)	8-98007-678-2	01	1	0804-	●	●	●
534	REINFORCEMENT; SEAT BACK (A)	8-98019-181-2	01	1	0804-	●	●	●

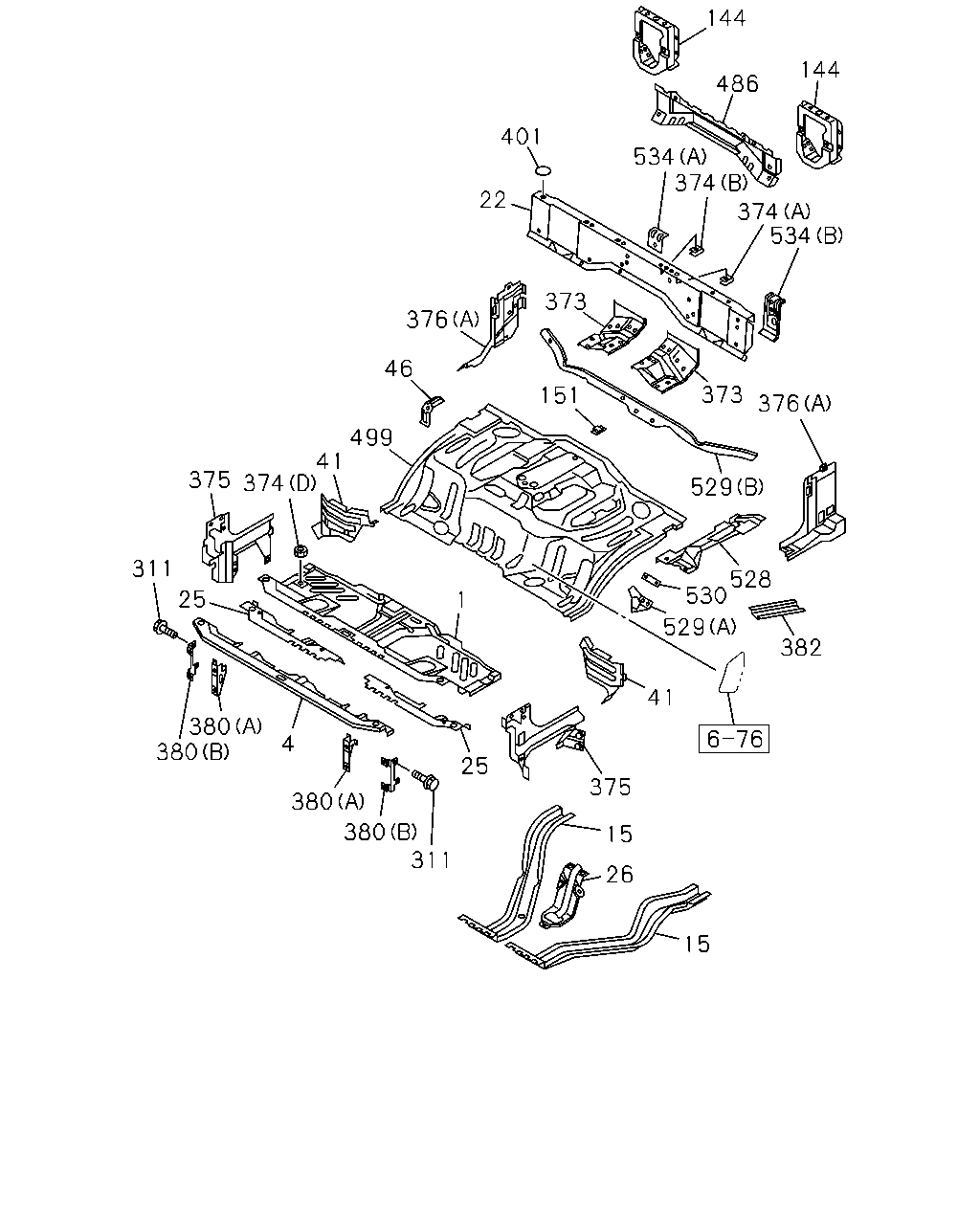

144 144 486 401 534 374 22 374 534 373 376 46 373 151 376 499 41 374 375 529 311 528 530 25 1 529 382 41 380 380 4 25 375 380 380 311 15 26 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PANEL; FLOOR	8-97583-910-5	01	1	0804-	●	●	●
4	FRAME; FLOOR,FRT SOU	8-98059-496-0	01	1	0804-	●	●	●
15	FRAME; UNDER SOU	8-98061-278-1	01	1	0804-	●	●	●
15	FRAME; UNDER SOU	8-98061-277-1	01	1	0804-	●	●	●
22	FRAME; FLOOR REAR INSPECTION ENGINE COVER<8GA>	8-97589-306-4	01	1	0804-	●	●
22	FRAME; FLOOR REAR	8-97589-306-4	01	1	0804-			●
22	FRAME; FLOOR REAR EXC. INSPECTION ENGINE COVER<8GA>	8-97583-925-3	01	1	0804-	●	●
25	REINFORCEMENT; FRAME FLOOR,FRT	8-97588-031-1	01	1	0804-	●	●	●
25	REINFORCEMENT; FRAME FLOOR,FRT	8-97588-030-1	01	1	0804-	●	●	●
26	PANEL; GEAR CONT REINF	8-97589-382-1	01	1	0804-	●	●	●
41	SUPPORT; STEP,RR	8-97583-936-2	01	1	0804-	●	●	●
41	SUPPORT; STEP,RR	8-97583-935-2	01	1	0804-	●	●	●
46	BRACKET; FRT SEAT,RR OUTER	8-97583-834-0	01	1	0804-	●	●	●
144	BRACKET; MTG,RR	8-97589-544-3	02	1	0804-	●	●
144	BRACKET; MTG,RR	8-98112-244-2	02	1	0804-			●
151	BRACKET; SEAT CUSHION STOPPER EXC. INSPECTION ENGINE COVER<8GA>	8-97583-833-0	01	1	0804-	●	●
311	BOLT; BRKT M6X16 SOU	0-52000-616-0	04	1	0804-0804	●	●	●
311	BOLT; BRKT M6X16 FLANGE SOU	0-28650-616-0	04	1	0805-	●	●	●
373	REINFORCEMENT; SEAT BELT EXC. INSPECTION ENGINE COVER<8GA>	8-98014-522-2	01	1	0804-	●	●
373	REINFORCEMENT; SEAT BELT EXC. INSPECTION ENGINE COVER<8GA>	8-98014-521-2	01	1	0804-	●	●
373	REINFORCEMENT; SEAT BELT	8-98015-215-2	01	1	0804-			●
374	NUT; FLOOR INSPECTION ENGINE COVER<8GA> (A) M8	1-09984-111-0	04	1	0804-	●	●
374	NUT; FLOOR (A) M8	1-09984-111-0	04	1	0804-			●
374	NUT; FLOOR EXC. INSPECTION ENGINE COVER<8GA> (A) M8	1-09984-111-0	01	1	0804-	●	●
374	NUT; FLOOR (B) M6	1-09984-110-0	02	1	0804-	●	●	●
374	NUT; FLOOR (D) M8	9-09114-068-0	04	1	0804-	●	●	●
374	NUT; FLOOR (C) M6 POP NUT	8-98013-752-0	01	1	0804-			●
375	CLOSING; PILLAR	8-97583-883-2	01	1	0804-	●	●	●
375	CLOSING; PILLAR	8-97583-882-3	01	1	0804-	●	●	●
376	CLOSING; PILLAR,LWR (A)	8-97583-888-2	01	1	0804-	●	●
376	CLOSING; PILLAR,LWR (A)	8-97584-618-2	01	1	0804-	●	●
376	CLOSING; PILLAR,LWR (B)	8-98024-545-6	01	1	0804-			●
376	CLOSING; PILLAR,LWR (B)	8-98024-544-7	01	1	0804-			●
380	BRACKET; HEAD LAMP (A) SOU	8-97589-385-3	01	1	0804-	●	●	●
380	BRACKET; HEAD LAMP (B)	8-98029-289-0	01	1	0804-	●	●	●
380	BRACKET; HEAD LAMP (A) SOU	8-97589-384-4	01	1	0804-	●	●	●
380	BRACKET; HEAD LAMP (B)	8-98029-288-0	01	1	0804-	●	●	●
382	STIFFENER; RR FLOOR EXC. INSPECTION ENGINE COVER<8GA>	8-98041-232-0	01	1	0804-	●	●
401	GROMMET; HOLE OD=24.5 T=7.5	8-97224-683-0	01	1	0804-	●	●	●
486	REINFORCEMENT; FRAME FLOOR,REAR INSPECTION ENGINE COVER<8GA>	8-98030-611-2	01	1	0804-	●	●
486	REINFORCEMENT; FRAME FLOOR,REAR	8-98030-611-2	01	1	0804-			●
486	REINFORCEMENT; FRAME FLOOR,REAR EXC. INSPECTION ENGINE COVER<8GA>	8-98030-610-2	01	1	0804-	●	●
499	PANEL; FLOOR,RR INSPECTION ENGINE COVER<8GA>	8-97584-630-1	01	1	0804-	●	●
499	PANEL; FLOOR,RR	8-97584-630-1	01	1	0804-			●
499	PANEL; FLOOR,RR EXC. INSPECTION ENGINE COVER<8GA>	8-97583-912-4	01	1	0804-	●	●
528	REINFORCEMENT; PARKING BRAKE EXC. INSPECTION ENGINE COVER<8GA>	8-97583-829-4	01	1	0804-	●	●
529	RETAINER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> (B)	8-97589-307-1	01	1	0804-	●	●
529	RETAINER; FLOOR PANEL (B)	8-97589-307-1	01	1	0804-			●
529	RETAINER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> (A)	8-98030-358-0	01	1	0804-	●	●
529	RETAINER; FLOOR PANEL (A)	8-98030-358-0	01	1	0804-			●
530	BRACKET; COVER INSPECTION ENGINE COVER<8GA>	8-97589-255-0	01	1	0804-	●	●
530	BRACKET; COVER	8-97589-255-0	01	1	0804-			●
534	REINFORCEMENT; SEAT BACK (B)	8-98007-678-2	01	1	0804-	●	●	●
534	REINFORCEMENT; SEAT BACK (A)	8-98019-181-2	01	1	0804-	●	●	●

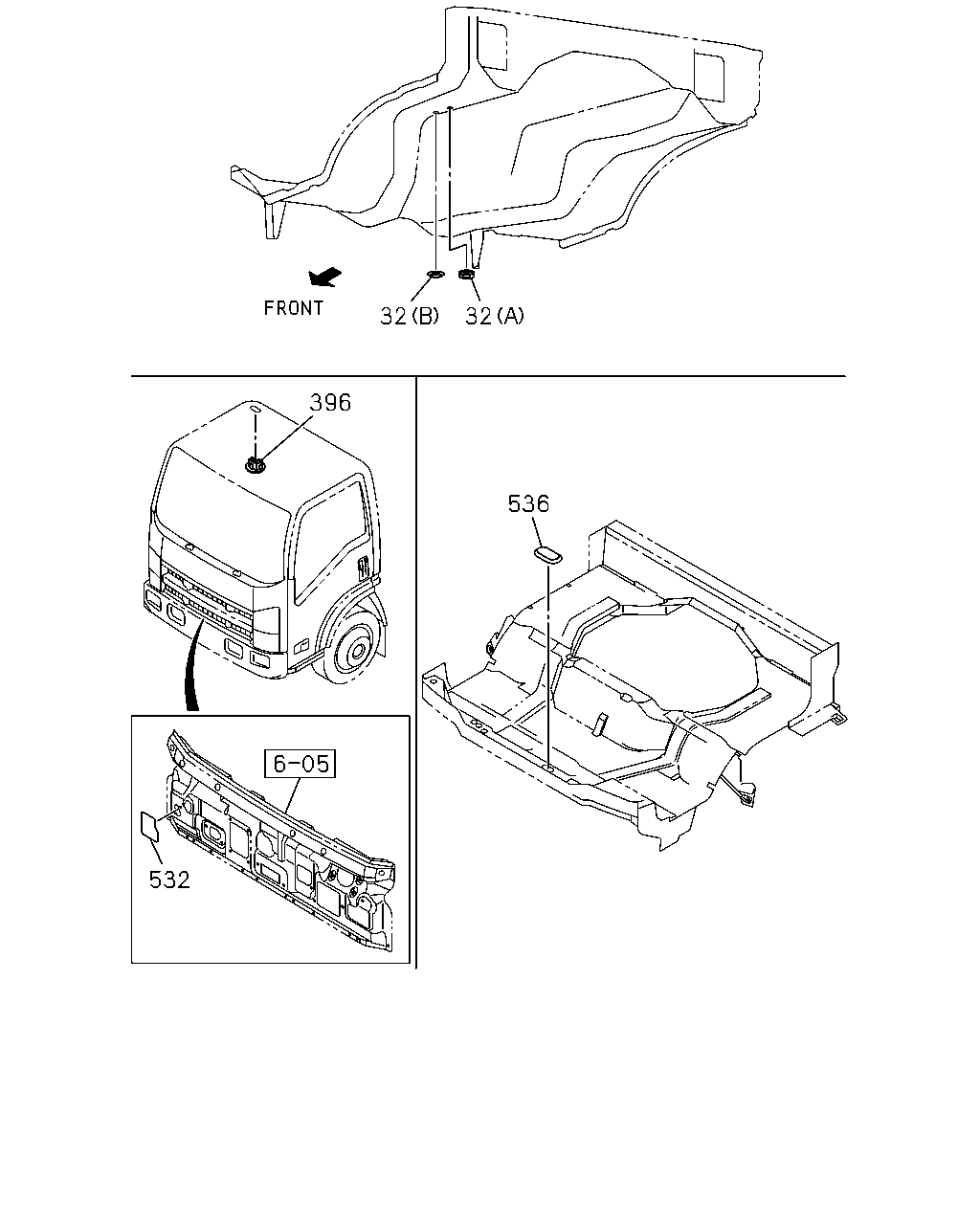

32 32 396 536 532

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
32	GROMMET; FLOOR PANEL,LOCATION HOLE (A) OD=16.2	8-94492-493-0	02	1	0804-0908	●	●	●
32	GROMMET; FLOOR PANEL,LOCATION HOLE (A) OD=15.0 SOU	8-94279-040-0	02	1	0909-	●	●	●
32	GROMMET; FLOOR PANEL,LOCATION HOLE (B) OD=12.1	8-97898-423-0	02	1	0804-	●	●	●
396	GROMMET; LOCATION HOLE	8-98054-990-0	02	1	0804-	●	●
532	SEAL; CABLE EXC. PTO MANUAL CONTROL(6WC)	8-98042-432-1	01	1	0804-	●	●	●
536	PLUG; CABLE,PTO	8-98029-219-1	01	1	0804-	●	●	●
