◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51146 - NLR/NMR(SOUTHAFRICA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-60 - ROOF PANEL ▶
6-60 — ROOF PANEL (#75384) — 30 parça

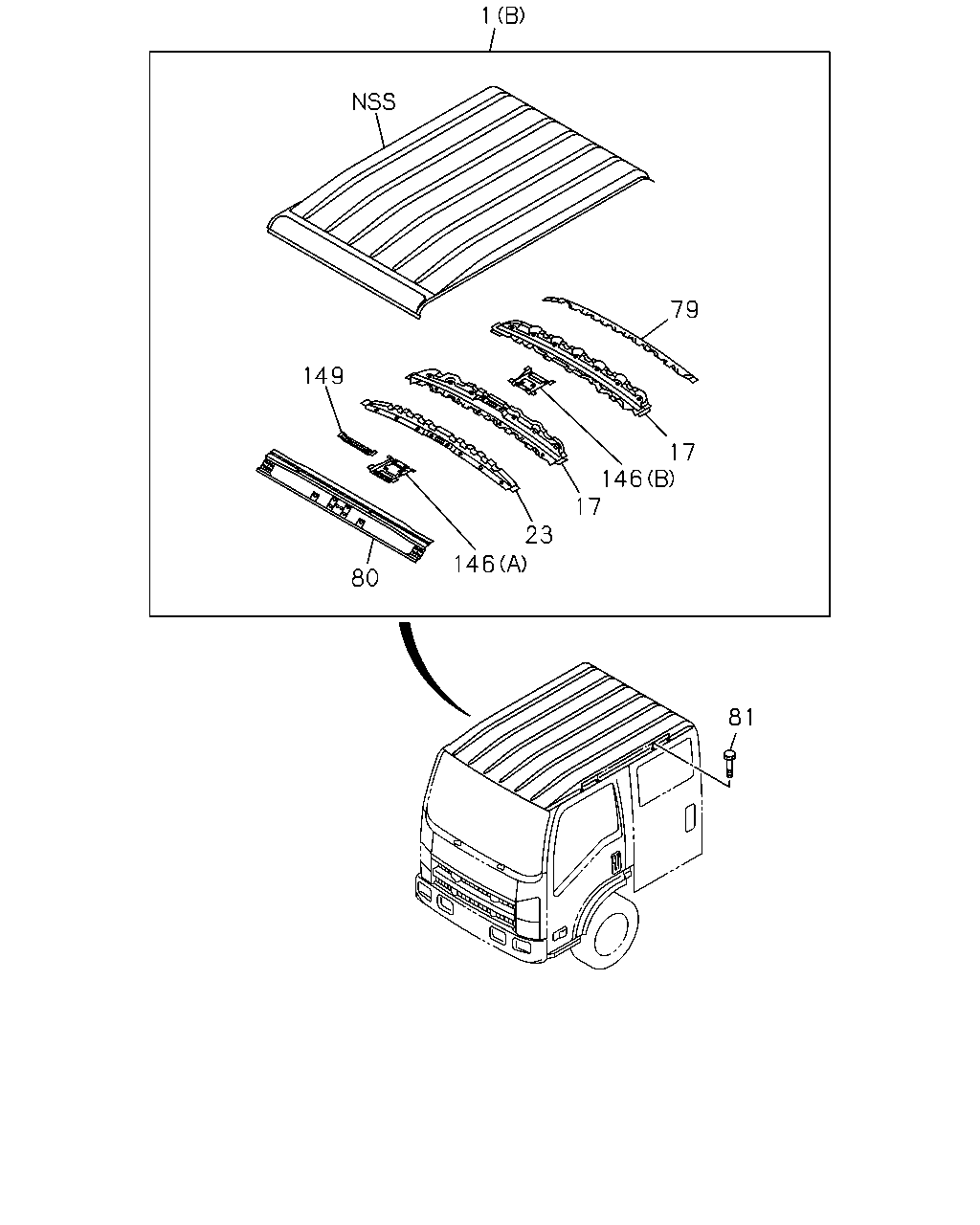

çizim 131269
1 79 149 17 146 17 23 146 80 81
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PANEL; ROOF
(A) SOU 		8-97584-169-6 01 1 0804-1503 ● ●
1 PANEL; ROOF
(A) SOU 		8-98287-343-0 01 1 1504- ● ●
1 PANEL; ROOF
(B) 		8-97587-638-6 01 1 0804-1503 ●
1 PANEL; ROOF
(B) 		8-98287-017-0 01 1 1504- ●
17 REINFORCEMENT; ROOF PNL CENTER 8-97587-639-2 02 1 0804- ●
23 REINFORCEMENT; ROOF PANEL,FRT 8-97584-197-0 01 1 0804-1503 ● ●
23 REINFORCEMENT; ROOF PANEL,FRT 8-98287-358-0 01 1 1504- ● ●
23 REINFORCEMENT; ROOF PANEL,FRT 8-98009-723-1 01 1 0804- ●
79 REINFORCEMENT; ROOF PANEL,RR 8-98054-646-1 01 1 0804- ●
80 PANEL; HEADER,ROOF
SOU 		8-97584-189-4 01 1 0804-1503 ● ● ●
80 PANEL; HEADER,ROOF 8-98287-352-0 01 1 1504- ● ● ●
81 BOLT; ROOF
M8X15.5 HEXALOBULAR 		8-98028-744-0 08 1 0804-0910 ● ● ●
81 BOLT; ROOF
M8X15.5 HEXALOBULAR 		8-98141-874-0 08 1 0911- ● ● ●
146 REINFORCEMENT; ROOM LAMP
(A) 		8-98009-289-4 01 1 0804- ● ● ●
146 REINFORCEMENT; ROOM LAMP
(B) 		8-98075-827-0 01 1 0804- ●
149 SUPPORT; REINFORCEMENT 8-98009-110-0 01 1 0804- ●

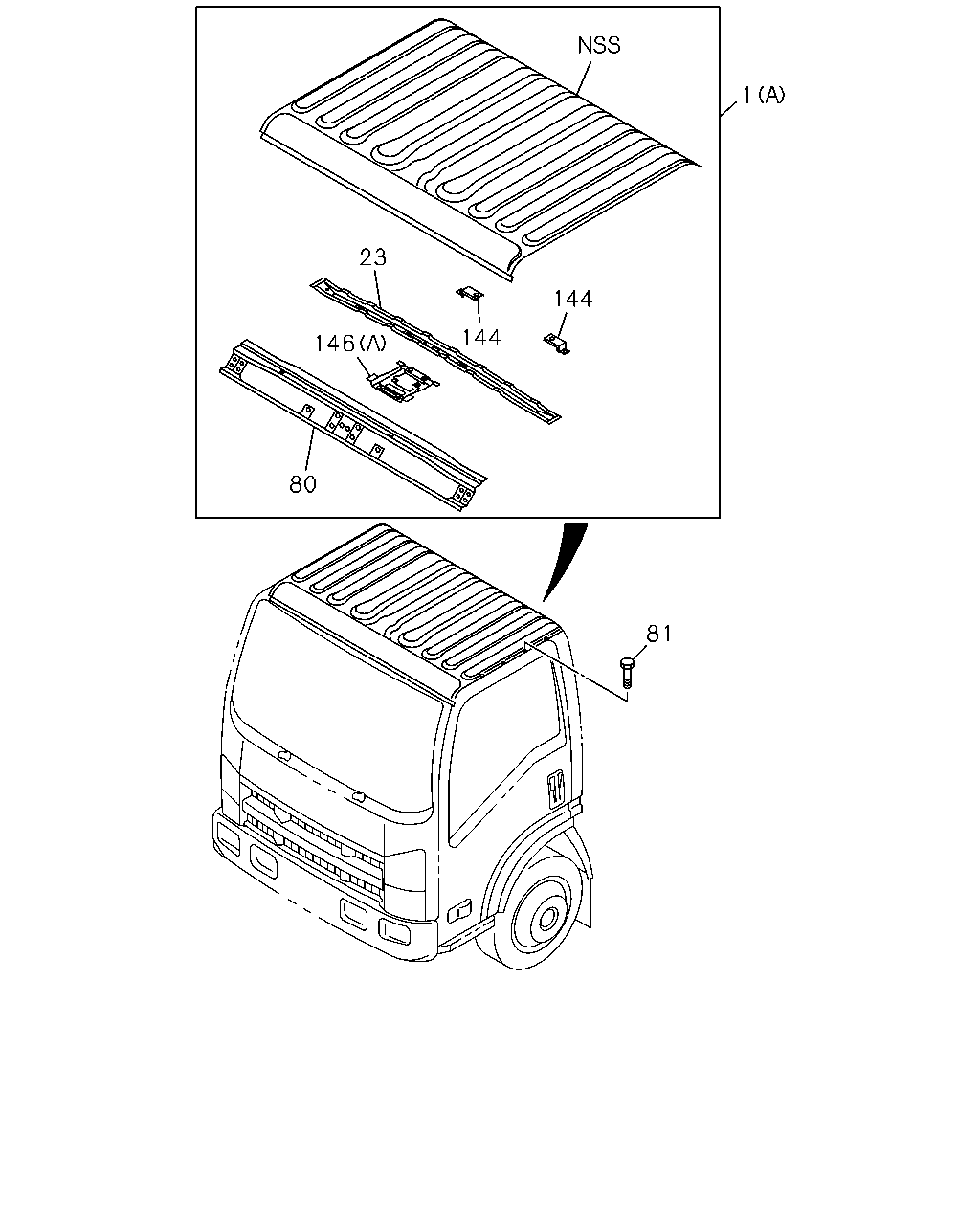

çizim 131496
1 23 144 144 146 80 81
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PANEL; ROOF
(A) SOU 		8-97584-169-6 01 1 0804-1503 ● ●
1 PANEL; ROOF
(A) SOU 		8-98287-343-0 01 1 1504- ● ●
1 PANEL; ROOF
(B) 		8-97587-638-6 01 1 0804-1503 ●
1 PANEL; ROOF
(B) 		8-98287-017-0 01 1 1504- ●
23 REINFORCEMENT; ROOF PANEL,FRT 8-97584-197-0 01 1 0804-1503 ● ●
23 REINFORCEMENT; ROOF PANEL,FRT 8-98287-358-0 01 1 1504- ● ●
23 REINFORCEMENT; ROOF PANEL,FRT 8-98009-723-1 01 1 0804- ●
80 PANEL; HEADER,ROOF
SOU 		8-97584-189-4 01 1 0804-1503 ● ● ●
80 PANEL; HEADER,ROOF 8-98287-352-0 01 1 1504- ● ● ●
81 BOLT; ROOF
M8X15.5 HEXALOBULAR 		8-98028-744-0 08 1 0804-0910 ● ● ●
81 BOLT; ROOF
M8X15.5 HEXALOBULAR 		8-98141-874-0 08 1 0911- ● ● ●
144 BRACKET; ROOF 8-98013-931-1 02 1 0804- ● ●
146 REINFORCEMENT; ROOM LAMP
(A) 		8-98009-289-4 01 1 0804- ● ● ●
146 REINFORCEMENT; ROOM LAMP
(B) 		8-98075-827-0 01 1 0804- ●
