Isuzu WW
▶
TRUCKS
▶
NLR
▶
51146 - NLR/NMR(SOUTHAFRICA)
▶
5 - Frame, Cab Mounting
▶
5-20 - BATTERY CARRIER
▶
5-20 — BATTERY CARRIER
(#75367) — 33 parça
Tümü
A - NMR5SE
B - NMR5WN
C - NMR5SN
◀

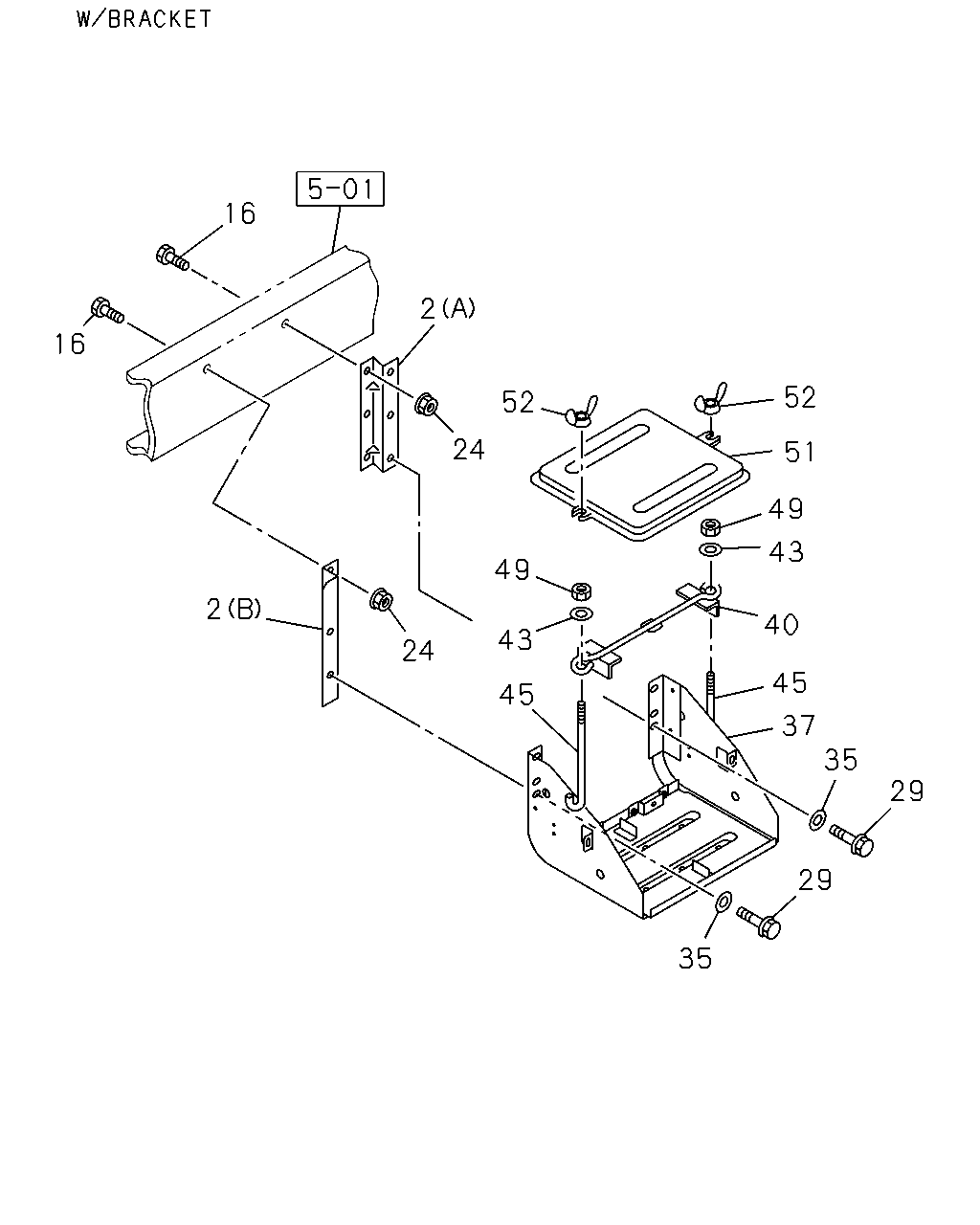

[520A] NO.1 (22 parça)

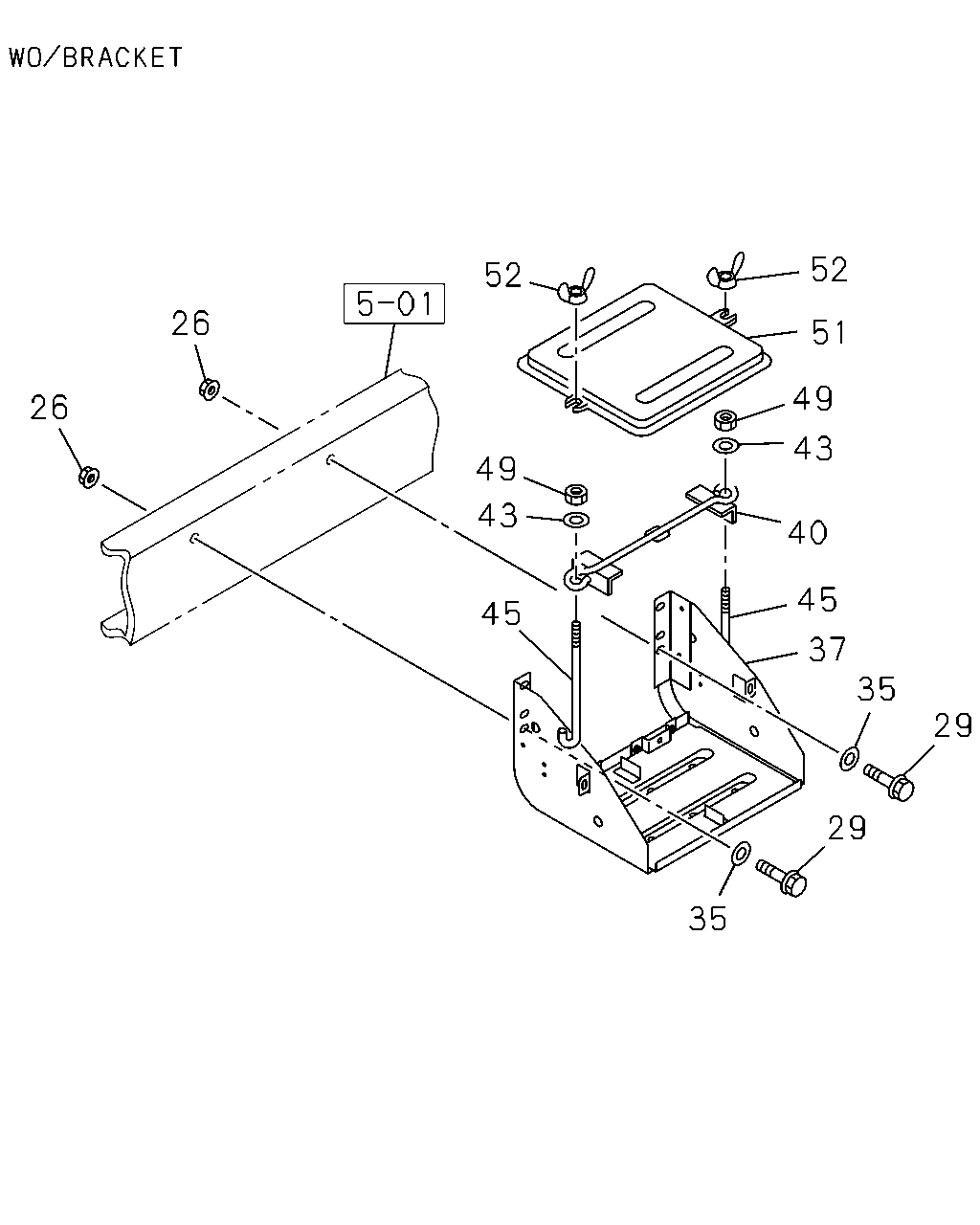

[520A] NO.2 (11 parça)
▶
16
2
16
52
52
24
51
49
43
49
2
40
43
24
45
45
37
35
29
2
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
2
BRACKET; BATTERY
(A)
8-97384-069-1
01
1
0804-
●
●
2
BRACKET; BATTERY
WHEEL BASE 2400MM(24W) (A)
8-97384-069-1
01
1
0804-
●
2
BRACKET; BATTERY
(B)
8-97384-070-1
01
1
0804-
●
●
2
BRACKET; BATTERY
WHEEL BASE 2400MM(24W) (B)
8-97384-070-1
01
1
0804-
●
16
BOLT; BRKT TO FRAME
M10X35 FLANGE
0-28661-035-0
04
1
0804-0912
●
●
16
BOLT; BRKT TO FRAME
WHEEL BASE 2400MM(24W) M10X35 FLANGE
0-28661-035-0
04
1
0804-0912
●
16
BOLT; BRKT TO FRAME
M10X35 FLANGE SOU
0-28651-035-0
04
1
1001-
●
●
16
BOLT; BRKT TO FRAME
WHEEL BASE 2400MM(24W) M10X35 FLANGE SOU
0-28651-035-0
04
1
1001-
●
24
NUT; BRKT TO FRAME
M10 FLANGE SOU
0-91180-210-0
01
1
0804-0912
●
●
24
NUT; BRKT TO FRAME
WHEEL BASE 2400MM(24W) M10 FLANGE SOU
0-91180-210-0
01
1
0804-0912
●
24
NUT; BRKT TO FRAME
M10 FLANGE SOU
0-91180-110-0
01
1
1001-
●
●
24
NUT; BRKT TO FRAME
WHEEL BASE 2400MM(24W) M10 FLANGE SOU
0-91180-110-0
01
1
1001-
●
29
BOLT; BRKT TO FRAME
M10X35 FLANGE
0-28661-035-0
04
1
0804-
●
●
●
35
WASHER; PL,BATTERY CARRIER
ID=10.5 OD=22 T=1.6
0-91610-610-0
04
1
0804-
●
●
●
37
BRACKET; BATTERY
BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ>
8-97384-068-2
01
1
0804-
●
●
●
37
BRACKET; BATTERY
BATTERY 80D26L<TM1>
8-97384-067-2
01
1
0804-
●
●
●
40
CLAMP; BATTERY
5-53615-004-1
01
1
0804-
●
●
●
43
WASHER; PL,CLAMP
ID=8.4 OD=22
0-91614-708-0
02
1
0804-
●
●
●
45
ROD; TENSION,BATTERY
SOU
9-53616-615-0
02
1
0804-
●
●
●
49
NUT; ROD,BATTERY
M8 FLANGE SOU
0-91180-108-0
02
1
0804-
●
●
●
51
COVER; BATTERY
8-97120-747-0
01
1
0804-
●
●
●
52
NUT; WING,COVER FIX
M8 WING NUT
0-91118-408-0
02
1
0804-
●
●
●
52
52
26
51
49
26
43
49
43
40
45
45
37
35
29
29
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
26
NUT; BRKT
WHEEL BASE 3300MM(33W) M10 FLANGE SOU
0-91180-210-0
04
1
0804-
●
29
BOLT; BRKT TO FRAME
M10X35 FLANGE
0-28661-035-0
04
1
0804-
●
●
●
35
WASHER; PL,BATTERY CARRIER
ID=10.5 OD=22 T=1.6
0-91610-610-0
04
1
0804-
●
●
●
37
BRACKET; BATTERY
BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ>
8-97384-068-2
01
1
0804-
●
●
●
37
BRACKET; BATTERY
BATTERY 80D26L<TM1>
8-97384-067-2
01
1
0804-
●
●
●
40
CLAMP; BATTERY
5-53615-004-1
01
1
0804-
●
●
●
43
WASHER; PL,CLAMP
ID=8.4 OD=22
0-91614-708-0
02
1
0804-
●
●
●
45
ROD; TENSION,BATTERY
SOU
9-53616-615-0
02
1
0804-
●
●
●
49
NUT; ROD,BATTERY
M8 FLANGE SOU
0-91180-108-0
02
1
0804-
●
●
●
51
COVER; BATTERY
8-97120-747-0
01
1
0804-
●
●
●
52
NUT; WING,COVER FIX
M8 WING NUT
0-91118-408-0
02
1
0804-
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
