5-10 — CAB MOUNTING; FRAME SIDE (#75365) — 61 parça

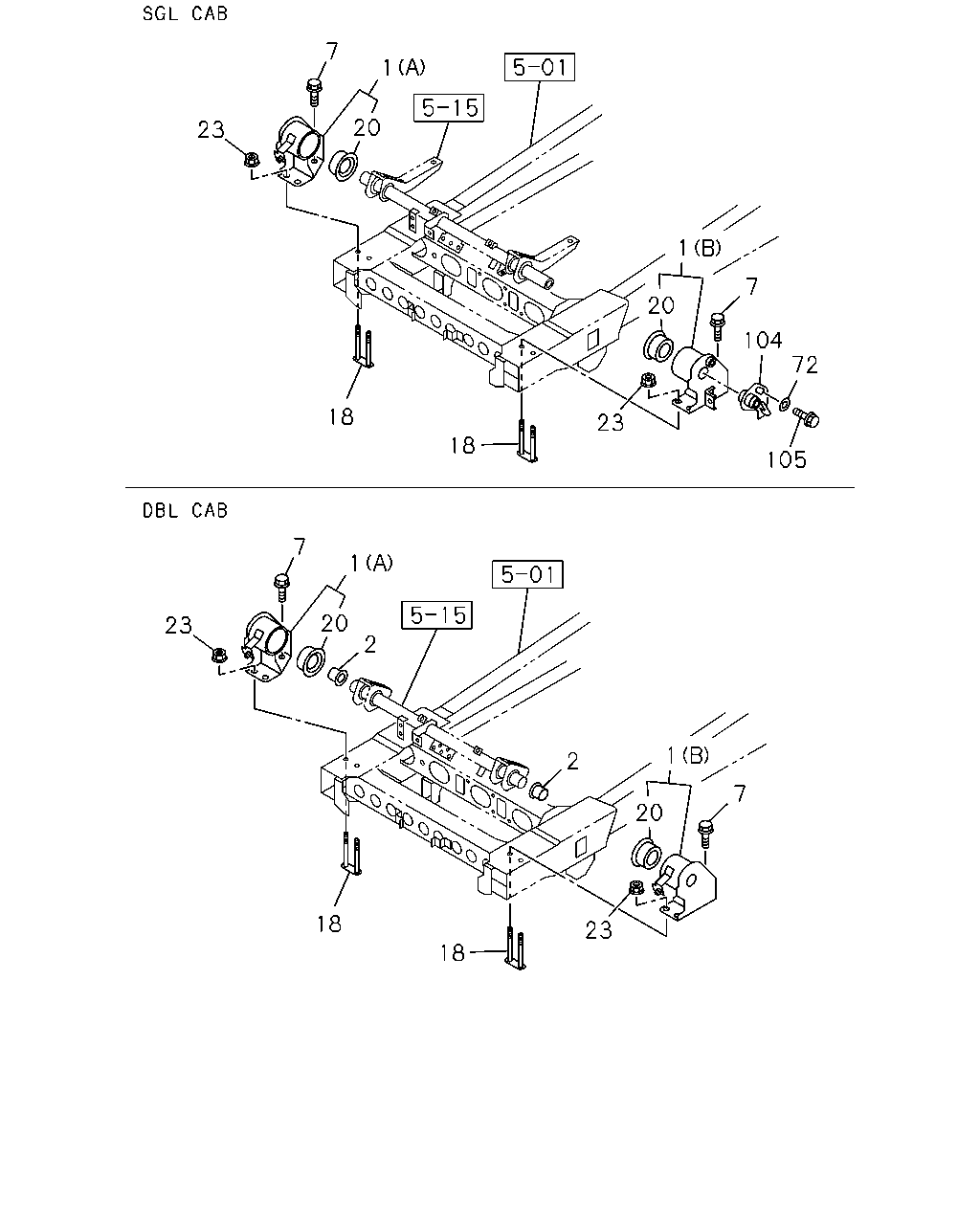

7 1 20 23 1 7 20 104 72 18 23 18 105 7 1 20 23 2 1 2 7 20 18 23 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BRACKET; CAB MTG (B)	8-98021-410-3	01	1	0804-	●	●
1	BRACKET; CAB MTG (A)	8-98021-407-4	01	1	0804-	●	●	●
1	BRACKET; CAB MTG (B)	8-98021-408-3	01	1	0804-			●
2	BUSHING; TORSION BAR EXC. MANUAL TILT CAB<RWZ>	8-97061-514-0	02	1	0804-	●	●
2	BUSHING; TORSION BAR	8-97061-514-0	02	1	0804-			●
7	BOLT; BRKT,CAB TILT M14X40 FLANGE	0-28661-440-0	02	1	0804-	●	●	●
18	PLATE; MTG BRKT FIX	8-98029-285-1	02	1	0804-	●	●	●
20	RUBBER; MTG,CAB BRKT	8-98007-037-1	01	1	0804-	●	●	●
20	RUBBER; MTG,CAB BRKT	8-98007-037-1	01	1	0804-			●
23	NUT; MTG BRKT M14	8-98039-989-0	04	1	0804-	●	●	●
72	WASHER; PL,BRKT TO FRAME MANUAL TILT CAB<RWZ> ID=15 OD=36	0-91614-714-0	01	1	0804-	●	●
104	BRACKET; CAB FRAME,CAB FRT MTG MANUAL TILT CAB<RWZ>	8-97383-788-1	01	1	0804-	●	●
105	BOLT; BRKT TO CAB FRAME MANUAL TILT CAB<RWZ> M14X35 FLANGE	0-28661-435-0	01	1	0804-	●	●

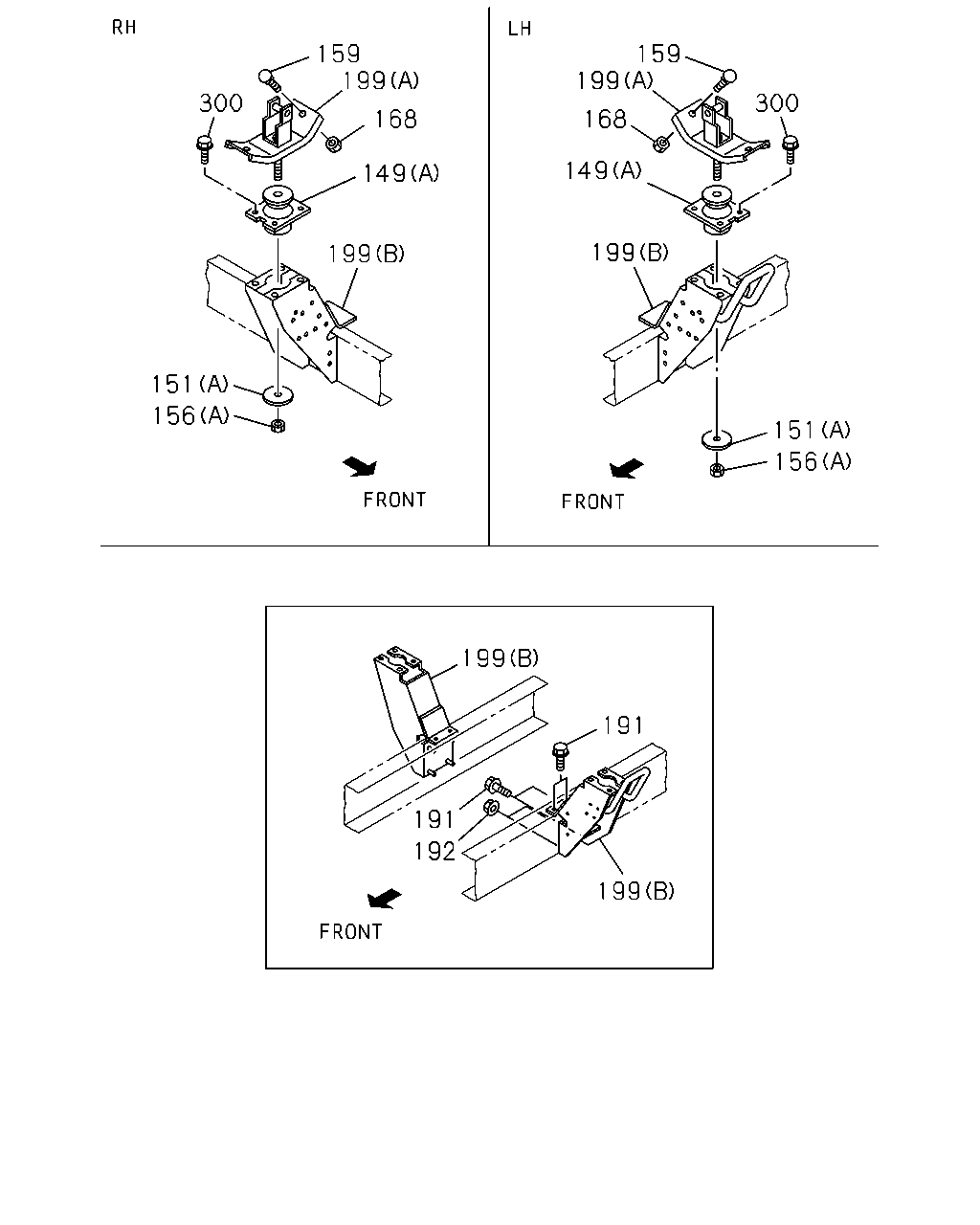

159 199 159 199 300 300 168 168 149 149 199 199 151 156 151 156 199 191 191 192 199

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
149	RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A)	8-98021-561-1	02	1	0804-	●	●
149	RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (C)	8-98038-868-0	02	1	0804-	●	●
149	RUBBER; MTG,CAB,UPR RR (C)	8-98038-868-0	02	1	0804-			●
149	RUBBER; MTG,CAB,UPR RR (D) H=26.5	5-53459-041-0	02	1	0804-			●
149	RUBBER; MTG,CAB,UPR RR (B) H=30.6	8-94128-501-0	02	1	0804-			●
151	WASHER; CAB MTG,RR UPR MANUAL TILT CAB<RWZ> (A) ID=17 OD=62	8-97359-042-1	02	1	0804-	●	●
151	WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> (B) ID=16.5 OD=58	8-97359-040-1	02	1	0804-	●	●
151	WASHER; CAB MTG,RR UPR (B) ID=16.5 OD=58	8-97359-040-1	02	1	0804-			●
151	WASHER; CAB MTG,RR UPR (C) OD=33 ID=10.2 T=3.2	8-98004-321-0	02	1	0804-			●
151	WASHER; CAB MTG,RR UPR (D) ID=14 OD=60	8-98004-322-0	02	1	0804-			●
156	NUT; CAB MTG RR MANUAL TILT CAB<RWZ> (A) M16 SOU	0-91111-516-0	02	1	0804-	●	●
156	NUT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> (B) M14 FLANGE	0-91180-114-0	02	1	0804-	●	●
156	NUT; CAB MTG RR (B) M14 FLANGE	0-91180-114-0	02	1	0804-			●
156	NUT; CAB MTG RR (C) M10 SOU	0-91110-510-0	04	1	0804-			●
159	RUBBER; CUSHION,CAB MTG MANUAL TILT CAB<RWZ>	8-97113-340-0	04	1	0804-	●	●
168	NUT; CUSHION RUBBER,BODY MTG MANUAL TILT CAB<RWZ> M8 FLANGE SOU	0-91180-108-0	04	1	0804-	●	●
191	BOLT; BRKT FIX M12X35 FLANGE SOU	0-28651-235-0	08	1	0804-	●	●	●
192	NUT; BRKT FIX M12 FLANGE	0-91180-112-0	04	1	0804-	●	●	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (A)	8-98036-883-0	02	1	0804-	●	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (B)	8-98001-444-2	01	1	0804-	●	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (B)	8-98001-443-4	01	1	0804-	●	●
199	BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (C)	8-98001-443-4	02	1	0804-	●	●
199	BRACKET; CAB RR MTG (C)	8-98001-443-4	02	1	0804-			●
300	BOLT; MTG RUBBER M10X20 FLANGE	0-28651-020-0	08	1	0804-	●	●	●

150 156 157 151 149 300 149 149 151 151 156 156 199 199 192 191

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
149	RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A)	8-98021-561-1	02	1	0804-	●	●
149	RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (C)	8-98038-868-0	02	1	0804-	●	●
149	RUBBER; MTG,CAB,UPR RR (C)	8-98038-868-0	02	1	0804-			●
149	RUBBER; MTG,CAB,UPR RR (D) H=26.5	5-53459-041-0	02	1	0804-			●
149	RUBBER; MTG,CAB,UPR RR (B) H=30.6	8-94128-501-0	02	1	0804-			●
150	BOLT; CAB MTG RR M10X105	8-98004-320-0	02	1	0804-			●
151	WASHER; CAB MTG,RR UPR MANUAL TILT CAB<RWZ> (A) ID=17 OD=62	8-97359-042-1	02	1	0804-	●	●
151	WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> (B) ID=16.5 OD=58	8-97359-040-1	02	1	0804-	●	●
151	WASHER; CAB MTG,RR UPR (B) ID=16.5 OD=58	8-97359-040-1	02	1	0804-			●
151	WASHER; CAB MTG,RR UPR (C) OD=33 ID=10.2 T=3.2	8-98004-321-0	02	1	0804-			●
151	WASHER; CAB MTG,RR UPR (D) ID=14 OD=60	8-98004-322-0	02	1	0804-			●
156	NUT; CAB MTG RR MANUAL TILT CAB<RWZ> (A) M16 SOU	0-91111-516-0	02	1	0804-	●	●
156	NUT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> (B) M14 FLANGE	0-91180-114-0	02	1	0804-	●	●
156	NUT; CAB MTG RR (B) M14 FLANGE	0-91180-114-0	02	1	0804-			●
156	NUT; CAB MTG RR (C) M10 SOU	0-91110-510-0	04	1	0804-			●
157	RUBBER; MTG,CAB,TOP RR	9-53459-603-0	02	1	0804-			●
191	BOLT; BRKT FIX M12X35 FLANGE SOU	0-28651-235-0	08	1	0804-	●	●	●
192	NUT; BRKT FIX M12 FLANGE	0-91180-112-0	04	1	0804-	●	●	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (A)	8-98036-883-0	02	1	0804-	●	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (B)	8-98001-444-2	01	1	0804-	●	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (B)	8-98001-443-4	01	1	0804-	●	●
199	BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (C)	8-98001-443-4	02	1	0804-	●	●
199	BRACKET; CAB RR MTG (C)	8-98001-443-4	02	1	0804-			●
300	BOLT; MTG RUBBER M10X20 FLANGE	0-28651-020-0	08	1	0804-	●	●	●
