Sayfa 5-01 - Isuzu EPC

5-01 — FRAME AND OTHER PARTS (#75364) — 187 parça

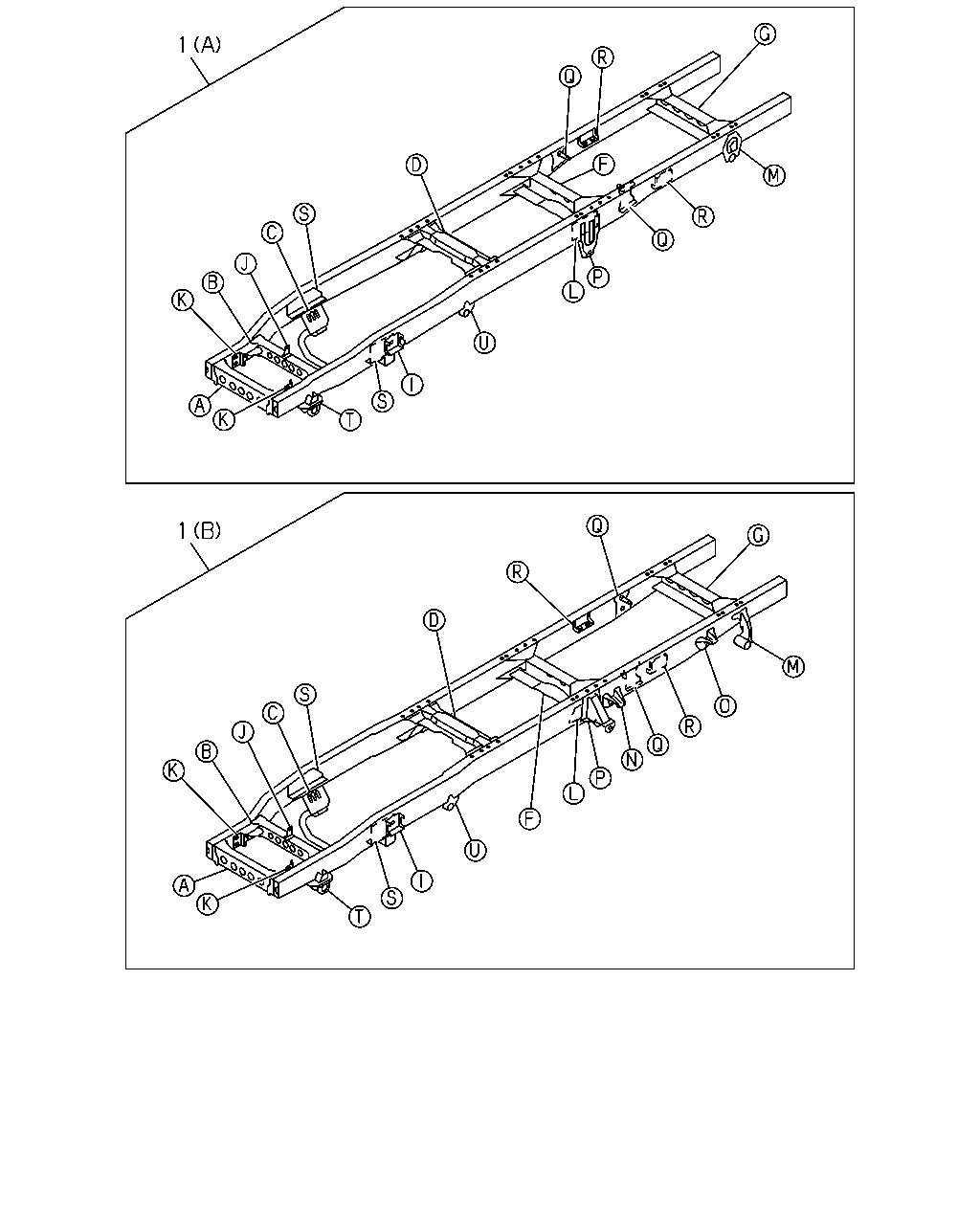

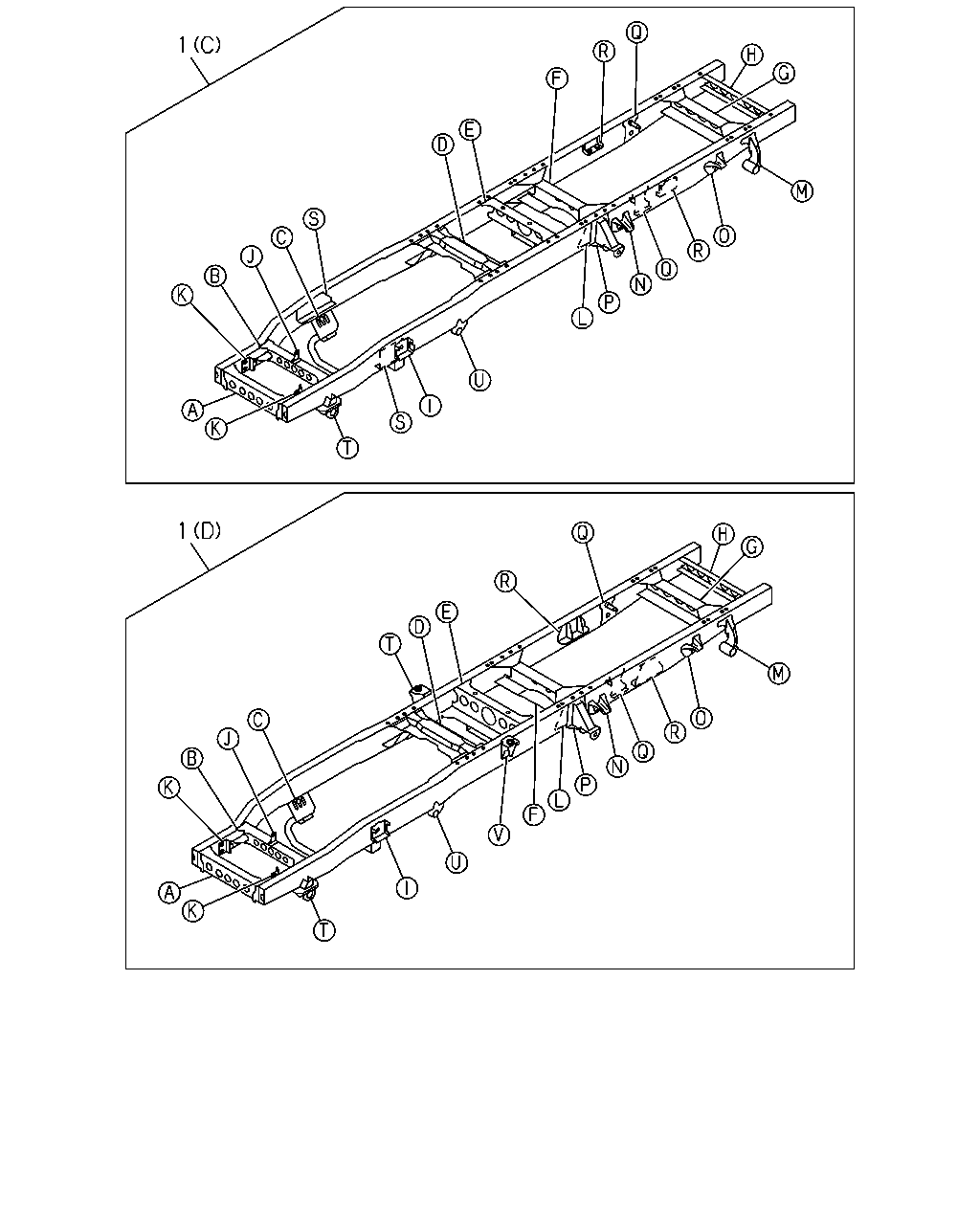

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	FRAME ASM WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRON T STABILIZER SHAFT<F59> (B) SOU	8-98023-308-4	01	1	1310-	●
1	FRAME ASM WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRON T STABILIZER SHAFT<F59> (C) SOU	8-98023-265-4	01	1	1310-	●
1	FRAME ASM AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRONT STABILIZER SHAFT<F59> (A)	8-98140-389-1	01	1	0902-		●
1	FRAME ASM FRONT STABILIZER SHAFT<F59> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) SOU	8-98140-388-0	01	1	0902-		●
1	FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRONT STABILIZER SHAFT<F59> REAR WIDE TREAD(V4T) (B) SOU	8-98140-391-1	01	1	0902-1303	●
1	FRAME ASM WHEEL BASE 2400MM(24W) FRONT STABILIZER SHAFT<F59> REAR WIDE TREAD(V4T) (B) SOU	8-98140-391-1	01	1	1304-1309	●
1	FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRONT STABILIZER SHAFT<F59> REAR WIDE TREAD(V4T) (B) SOU	8-98140-391-1	01	1	1310-	●
1	FRAME ASM WHEEL BASE 2400MM(24W) FRAME EQUIPMENT HEAVY DUTY VAR2<F01> FRONT STABILIZER SHAFT<F59> REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) SOU	8-98140-391-1	01	1	1310-	●
1	FRAME ASM WHEEL BASE 2400MM(24W) FRONT STABILIZER SHAFT<F59> REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) SOU	8-98140-390-0	01	1	0902-1303	●
1	FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRONT STABILIZER SHAFT<F59> (C) SOU	8-98140-393-1	01	1	0902-1303	●
1	FRAME ASM WHEEL BASE 3300MM(33W) FRONT STABILIZER SHAFT<F59> (C) SOU	8-98140-393-1	01	1	1304-1309	●
1	FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRONT STABILIZER SHAFT<F59> (C) SOU	8-98140-393-1	01	1	1310-	●
1	FRAME ASM WHEEL BASE 3300MM(33W) FRAME EQUIPMENT HEAVY DUTY VAR2<F01> FRONT STABILIZER SHAFT<F59> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) SOU	8-98140-393-1	01	1	1310-	●
1	FRAME ASM WHEEL BASE 3300MM(33W) FRONT STABILIZER SHAFT<F59> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) SOU	8-98140-392-0	01	1	0902-1303	●
1	FRAME ASM AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRONT STABILIZER SHAFT<F59> (D)	8-98140-395-1	01	1	0902-			●
1	FRAME ASM FRONT STABILIZER SHAFT<F59> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D) SOU	8-98140-394-0	01	1	0902-			●
1	FRAME ASM AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98023-307-2	01	1	0804-0901		●
1	FRAME ASM AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRONT STABILIZER SHAFT<F59> (A)	8-98023-307-3	01	1	0902-		●
1	FRAME ASM EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) SOU	8-98023-306-3	01	1	0804-0901		●
1	FRAME ASM EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59> (A) SOU	8-98023-306-3	01	1	0902-		●
1	FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) (B)	8-98023-295-3	01	1	0804-0901	●
1	FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) EXC. FRONT STABILIZER SHAFT<F59> (B)	8-98023-295-4	01	1	0902-1303	●
1	FRAME ASM WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. FRONT STABILIZER SHAFT<F59> (B)	8-98023-295-4	01	1	1304-1309	●
1	FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) EXC. FRONT STABILIZER SHAFT<F59> (B)	8-98023-295-4	01	1	1310-	●
1	FRAME ASM WHEEL BASE 2400MM(24W) FRAME EQUIPMENT HEAVY DUTY VAR2<F01> REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59> (B)	8-98023-295-4	01	1	1310-	●
1	FRAME ASM WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) SOU	8-98023-308-3	01	1	0804-0901	●
1	FRAME ASM WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59> (B) SOU	8-98023-308-4	01	1	0902-1303	●
1	FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C)	8-98023-266-1	01	1	0804-0901	●
1	FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRONT STABILIZER SHAFT<F59> (C)	8-98023-266-2	01	1	0902-1303	●
1	FRAME ASM WHEEL BASE 3300MM(33W) EXC. FRONT STABILIZER SHAFT<F59> (C)	8-98023-266-2	01	1	1304-1309	●
1	FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRONT STABILIZER SHAFT<F59> (C)	8-98023-266-2	01	1	1310-	●
1	FRAME ASM WHEEL BASE 3300MM(33W) FRAME EQUIPMENT HEAVY DUTY VAR2<F01> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59> (C)	8-98023-266-2	01	1	1310-	●
1	FRAME ASM WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) SOU	8-98023-265-3	01	1	0804-0901	●
1	FRAME ASM WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59> (C) SOU	8-98023-265-4	01	1	0902-1303	●
1	FRAME ASM AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D)	8-98023-268-2	01	1	0804-0901			●
1	FRAME ASM AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRONT STABILIZER SHAFT<F59> (D)	8-98023-268-3	01	1	0902-			●
1	FRAME ASM EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D) SOU	8-98023-267-3	01	1	0804-0901			●
1	FRAME ASM EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59> (D) SOU	8-98023-267-3	01	1	0902-			●

533 173 533 173 173 105 105 215 215 215 215 446 103 103 147 147 101 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
101	BRACKET; RR SPR,FRT (A)	8-98028-305-0	01	1	0804-		●
101	BRACKET; RR SPR,FRT (A)	8-98028-306-0	01	1	0804-		●
101	BRACKET; RR SPR,FRT (B) SOU	8-97034-156-1	02	1	0804-	●		●
103	STOPPER; SUB SPR (B) SOU	8-97223-748-0	02	1	0804-	●		●
103	STOPPER; SUB SPR (A) SOU	8-97223-750-0	02	1	0804-	●		●
105	BRACKET; RR SPR,RR (A) SOU	8-97166-684-2	02	1	0804-		●
105	BRACKET; RR SPR,RR (B) SOU	8-98032-488-0	01	1	0804-	●		●
105	BRACKET; RR SPR,RR (B) SOU	8-98032-489-0	01	1	0804-	●		●
147	RUBBER; SUB SPRING SOU	8-97254-387-0	04	1	0804-	●		●
173	STIFFENER; RR SPRING (A) SOU	8-97386-634-0	02	1	0804-		●
173	STIFFENER; RR SPRING (B) SOU	8-98012-947-3	02	1	0804-	●		●
173	STIFFENER; RR SPRING (C) SOU	8-98012-948-2	02	1	0804-	●		●
215	BUSHING; BRKT,RR SPRING SOU	8-97184-699-1	04	1	0804-	●	●	●
446	STIFFENER; SPRING STOPPER WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRON T STABILIZER SHAFT<F59>	8-98060-184-1	01	1	1310-	●
446	STIFFENER; SPRING STOPPER WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98060-184-0	01	1	0804-1303	●
533	STIFFENER; REINFORCEMENT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SOU	8-98006-680-1	02	1	0804-1303	●	●	●
533	STIFFENER; REINFORCEMENT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SOU	8-98006-680-1	02	1	1304-1309		●	●
533	STIFFENER; REINFORCEMENT SOU	8-98006-680-1	02	1	1304-1309	●
533	STIFFENER; REINFORCEMENT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SOU	8-98006-680-1	02	1	1310-	●	●	●
533	STIFFENER; REINFORCEMENT FRAME EQUIPMENT HEAVY DUTY VAR2<F01> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SOU	8-98006-680-1	02	1	1310-	●

376 376 376 376 376 376 376 376 376 376 376 376 376 376 376 40 60 176 118 62 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
40	BOLT; BRKT TO FRAME AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M8X20 FLANGE	0-28050-820-0	02	1	0804-1303	●	●	●
40	BOLT; BRKT TO FRAME AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M8X20 FLANGE	0-28050-820-0	02	1	1304-1309		●	●
40	BOLT; BRKT TO FRAME M8X20 FLANGE	0-28050-820-0	02	1	1304-1309	●
40	BOLT; BRKT TO FRAME AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M8X20 FLANGE	0-28050-820-0	02	1	1310-	●	●	●
40	BOLT; BRKT TO FRAME FRAME EQUIPMENT HEAVY DUTY VAR2<F01> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M8X20 FLANGE	0-28050-820-0	02	1	1310-	●
60	BOLT; MBR M10X30	0-20851-030-0	04	1	0804-	●	●	●
62	NUT; MBR M10 FLANGE SOU	0-91180-210-0	04	1	0804-	●	●	●
67	NUT; C/MBR M10 FLANGE SOU	0-91180-210-0	04	1	0804-	●	●	●
118	NUT; STOPPER M8 LOCK NUT SOU	0-91370-008-0	02	1	0804-	●		●
176	BOLT; C/MBR,ENG MTG WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M10X30 FLANGE	0-28051-030-0	16	1	0804-0901	●
176	BOLT; C/MBR,ENG MTG WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59> M10X30 FLANGE	0-28051-030-0	16	1	0902-0906	●
176	BOLT; C/MBR,ENG MTG M10X30 FLANGE	0-28051-030-0	08	1	0804-0901		●	●
176	BOLT; C/MBR,ENG MTG WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) M10X30 FLANGE	0-28051-030-0	08	1	0804-0901	●
176	BOLT; C/MBR,ENG MTG WHEEL BASE 3300MM(33W) M10X30 FLANGE	0-28051-030-0	08	1	0804-0901	●
176	BOLT; C/MBR,ENG MTG M10X30 FLANGE	0-28051-030-0	08	1	0902-0906		●	●
176	BOLT; C/MBR,ENG MTG WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) EXC. FRONT STABILIZER SHAFT<F59> M10X30 FLANGE	0-28051-030-0	08	1	0902-0906	●
176	BOLT; C/MBR,ENG MTG WHEEL BASE 2400MM(24W) FRONT STABILIZER SHAFT<F59> REAR WIDE TREAD(V4T) M10X30 FLANGE	0-28051-030-0	08	1	0902-0906	●
176	BOLT; C/MBR,ENG MTG WHEEL BASE 3300MM(33W) M10X30 FLANGE	0-28051-030-0	08	1	0902-0906	●
176	BOLT; C/MBR,ENG MTG M10X30 FLANGE	0-28051-030-0	08	1	0907-	●	●	●
376	RIVET; FRAME (A) D8X22 TAPER END	9-06750-822-0	AR	1	0804-	●	●	●
376	RIVET; FRAME (B) D8X26 TAPER END	9-06750-826-0	AR	1	0804-	●	●	●
376	RIVET; FRAME (C) D10X22 TAPER END	9-06751-022-0	AR	1	0804-	●	●	●
376	RIVET; FRAME (D) D10X24 TAPER END	9-06751-024-0	AR	1	0804-	●	●	●
376	RIVET; FRAME (E) D10X26 TAPER END	9-06751-026-0	AR	1	0804-	●	●	●
376	RIVET; FRAME (F) D10X28 TAPER END	9-06751-028-0	AR	1	0804-	●	●	●
376	RIVET; FRAME (G) D10X30 TAPER END	9-06751-030-0	AR	1	0804-	●	●	●
376	RIVET; FRAME (H) D10X32 TAPER END	9-06751-032-0	AR	1	0804-	●	●	●
376	RIVET; FRAME (I) M10X34 TAPER END	9-06751-034-0	AR	1	0804-	●	●	●
376	RIVET; FRAME (J) D10X36 TAPER END	9-06751-036-0	AR	1	0804-	●	●	●
376	RIVET; FRAME (K) D11X26 TAPER END	9-06751-126-0	AR	1	0804-	●	●	●
376	RIVET; FRAME (L) D12X30 TAPER END	9-06751-230-0	AR	1	0804-	●	●	●
376	RIVET; FRAME (M) D12X32 TAPER END	9-06751-232-0	AR	1	0804-	●	●	●
376	RIVET; FRAME (N) D12X34 TAPER END	9-06751-234-0	AR	1	0804-	●	●	●
376	RIVET; FRAME (O) D12X36 TAPER END	9-06751-236-0	AR	1	0804-	●	●	●

148 2 148 20 534 534 42 34 344 188

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	MEMBER; CROSS,1ST	8-97384-741-5	01	1	0804-	●	●	●
20	MEMBER; CROSS,2ND AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98038-419-2	01	1	0804-1303	●	●	●
20	MEMBER; CROSS,2ND AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98038-419-2	01	1	1304-1309		●	●
20	MEMBER; CROSS,2ND	8-98038-419-2	01	1	1304-1309	●
20	MEMBER; CROSS,2ND AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98038-419-2	01	1	1310-	●	●	●
20	MEMBER; CROSS,2ND FRAME EQUIPMENT HEAVY DUTY VAR2<F01> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98038-419-2	01	1	1310-	●
20	MEMBER; CROSS,2ND EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98088-281-1	01	1	0804-1303	●	●	●
20	MEMBER; CROSS,2ND EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98088-281-1	01	1	1304-1309		●	●
20	MEMBER; CROSS,2ND EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98088-281-1	01	1	1310-		●	●
20	MEMBER; CROSS,2ND EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME EQUIPMENT HEAVY DUTY VAR2<F01>	8-98088-281-1	01	1	1310-	●
34	MEMBER; CROSS,3RD AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SOU	8-97384-743-1	01	1	0804-1303	●	●	●
34	MEMBER; CROSS,3RD AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SOU	8-97384-743-1	01	1	1304-1309		●	●
34	MEMBER; CROSS,3RD SOU	8-97384-743-1	01	1	1304-1309	●
34	MEMBER; CROSS,3RD AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SOU	8-97384-743-1	01	1	1310-	●	●	●
34	MEMBER; CROSS,3RD FRAME EQUIPMENT HEAVY DUTY VAR2<F01> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SOU	8-97384-743-1	01	1	1310-	●
34	MEMBER; CROSS,3RD EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SOU	8-98081-959-0	01	1	0804-1303	●	●	●
34	MEMBER; CROSS,3RD EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SOU	8-98081-959-0	01	1	1304-1309		●	●
34	MEMBER; CROSS,3RD EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SOU	8-98081-959-0	01	1	1310-		●	●
34	MEMBER; CROSS,3RD EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME EQUIPMENT HEAVY DUTY VAR2<F01> SOU	8-98081-959-0	01	1	1310-	●
42	MEMBER; CROSS,ENG MTG	8-98006-224-1	01	1	0804-	●	●	●
148	SPACER; C/MBR EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SOU	8-98081-958-0	04	1	0804-1303	●	●	●
148	SPACER; C/MBR EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SOU	8-98081-958-0	04	1	1304-1309		●	●
148	SPACER; C/MBR EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SOU	8-98081-958-0	04	1	1310-		●	●
148	SPACER; C/MBR EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME EQUIPMENT HEAVY DUTY VAR2<F01> SOU	8-98081-958-0	04	1	1310-	●
188	BRACKET; SUPPORT,CTR BRG WHEEL BASE 3300MM(33W)	8-97083-157-1	01	1	0804-	●
188	BRACKET; SUPPORT,CTR BRG	8-97083-157-1	01	1	0804-			●
344	MEMBER; CROSS,4TH WHEEL BASE 3300MM(33W)	8-98005-959-1	01	1	0804-	●
344	MEMBER; CROSS,4TH	8-98005-959-1	01	1	0804-			●
534	BRACKET; BACK BAR SOU	8-98061-414-0	01	1	0804-	●	●	●
534	BRACKET; BACK BAR SOU	8-98061-413-0	01	1	0804-	●	●	●

198 75 198 75 345 139 130 165 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
51	BRACKET; ENG SUPPORT,OUTER	8-98038-962-3	02	1	0804-	●	●	●
75	GUSSET; 5TH C/MBR SOU	8-98011-863-0	04	1	0804-	●	●	●
130	MEMBER; CROSS,END WHEEL BASE 3300MM(33W) SOU	8-98041-239-1	01	1	0804-	●
130	MEMBER; CROSS,END SOU	8-98041-239-1	01	1	0804-			●
139	MEMBER; CROSS,6TH SOU	8-97384-745-0	01	1	0804-	●	●	●
165	BRACKET; RAD STAY SOU	8-98000-886-0	01	1	0804-	●	●	●
198	GUSSET; 6TH C/MBR RH-LOWER & LH-UPPER SOU	8-94258-068-1	02	1	0804-	●	●	●
198	GUSSET; 6TH C/MBR RH-UPPER & LH-LOWER SOU	8-94258-069-1	02	1	0804-	●	●	●
345	MEMBER; CROSS,5TH SOU	8-97384-744-2	01	1	0804-		●
345	MEMBER; CROSS,5TH SOU	8-98011-861-2	01	1	0804-	●		●

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	FRAME ASM WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRON T STABILIZER SHAFT<F59> (B) SOU	8-98023-308-4	01	1	1310-	●
1	FRAME ASM WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRON T STABILIZER SHAFT<F59> (C) SOU	8-98023-265-4	01	1	1310-	●
1	FRAME ASM AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRONT STABILIZER SHAFT<F59> (A)	8-98140-389-1	01	1	0902-		●
1	FRAME ASM FRONT STABILIZER SHAFT<F59> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) SOU	8-98140-388-0	01	1	0902-		●
1	FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRONT STABILIZER SHAFT<F59> REAR WIDE TREAD(V4T) (B) SOU	8-98140-391-1	01	1	0902-1303	●
1	FRAME ASM WHEEL BASE 2400MM(24W) FRONT STABILIZER SHAFT<F59> REAR WIDE TREAD(V4T) (B) SOU	8-98140-391-1	01	1	1304-1309	●
1	FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRONT STABILIZER SHAFT<F59> REAR WIDE TREAD(V4T) (B) SOU	8-98140-391-1	01	1	1310-	●
1	FRAME ASM WHEEL BASE 2400MM(24W) FRAME EQUIPMENT HEAVY DUTY VAR2<F01> FRONT STABILIZER SHAFT<F59> REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) SOU	8-98140-391-1	01	1	1310-	●
1	FRAME ASM WHEEL BASE 2400MM(24W) FRONT STABILIZER SHAFT<F59> REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) SOU	8-98140-390-0	01	1	0902-1303	●
1	FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRONT STABILIZER SHAFT<F59> (C) SOU	8-98140-393-1	01	1	0902-1303	●
1	FRAME ASM WHEEL BASE 3300MM(33W) FRONT STABILIZER SHAFT<F59> (C) SOU	8-98140-393-1	01	1	1304-1309	●
1	FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRONT STABILIZER SHAFT<F59> (C) SOU	8-98140-393-1	01	1	1310-	●
1	FRAME ASM WHEEL BASE 3300MM(33W) FRAME EQUIPMENT HEAVY DUTY VAR2<F01> FRONT STABILIZER SHAFT<F59> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) SOU	8-98140-393-1	01	1	1310-	●
1	FRAME ASM WHEEL BASE 3300MM(33W) FRONT STABILIZER SHAFT<F59> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) SOU	8-98140-392-0	01	1	0902-1303	●
1	FRAME ASM AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRONT STABILIZER SHAFT<F59> (D)	8-98140-395-1	01	1	0902-			●
1	FRAME ASM FRONT STABILIZER SHAFT<F59> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D) SOU	8-98140-394-0	01	1	0902-			●
1	FRAME ASM AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98023-307-2	01	1	0804-0901		●
1	FRAME ASM AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRONT STABILIZER SHAFT<F59> (A)	8-98023-307-3	01	1	0902-		●
1	FRAME ASM EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) SOU	8-98023-306-3	01	1	0804-0901		●
1	FRAME ASM EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59> (A) SOU	8-98023-306-3	01	1	0902-		●
1	FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) (B)	8-98023-295-3	01	1	0804-0901	●
1	FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) EXC. FRONT STABILIZER SHAFT<F59> (B)	8-98023-295-4	01	1	0902-1303	●
1	FRAME ASM WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. FRONT STABILIZER SHAFT<F59> (B)	8-98023-295-4	01	1	1304-1309	●
1	FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) EXC. FRONT STABILIZER SHAFT<F59> (B)	8-98023-295-4	01	1	1310-	●
1	FRAME ASM WHEEL BASE 2400MM(24W) FRAME EQUIPMENT HEAVY DUTY VAR2<F01> REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59> (B)	8-98023-295-4	01	1	1310-	●
1	FRAME ASM WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) SOU	8-98023-308-3	01	1	0804-0901	●
1	FRAME ASM WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59> (B) SOU	8-98023-308-4	01	1	0902-1303	●
1	FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C)	8-98023-266-1	01	1	0804-0901	●
1	FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRONT STABILIZER SHAFT<F59> (C)	8-98023-266-2	01	1	0902-1303	●
1	FRAME ASM WHEEL BASE 3300MM(33W) EXC. FRONT STABILIZER SHAFT<F59> (C)	8-98023-266-2	01	1	1304-1309	●
1	FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRONT STABILIZER SHAFT<F59> (C)	8-98023-266-2	01	1	1310-	●
1	FRAME ASM WHEEL BASE 3300MM(33W) FRAME EQUIPMENT HEAVY DUTY VAR2<F01> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59> (C)	8-98023-266-2	01	1	1310-	●
1	FRAME ASM WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) SOU	8-98023-265-3	01	1	0804-0901	●
1	FRAME ASM WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59> (C) SOU	8-98023-265-4	01	1	0902-1303	●
1	FRAME ASM AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D)	8-98023-268-2	01	1	0804-0901			●
1	FRAME ASM AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRONT STABILIZER SHAFT<F59> (D)	8-98023-268-3	01	1	0902-			●
1	FRAME ASM EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D) SOU	8-98023-267-3	01	1	0804-0901			●
1	FRAME ASM EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59> (D) SOU	8-98023-267-3	01	1	0902-			●

140 140 140 217 356 356 43 24 39 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	BRACKET; FRT SPR,FRT	8-98029-126-0	01	1	0804-	●	●	●
24	BRACKET; FRT SPR,FRT	8-98029-127-0	01	1	0804-	●	●	●
39	BRACKET; FRT SPR,RR SOU	8-94258-091-0	02	1	0804-	●	●	●
43	BRACKET; CAB MTG,RR	8-98035-852-1	01	1	0804-			●
43	BRACKET; CAB MTG,RR	8-98035-851-1	01	1	0804-			●
140	BRACKET; S/ABS,RR (A)	8-98006-178-0	01	1	0804-		●
140	BRACKET; S/ABS,RR (B) SOU	8-98006-176-0	01	1	0804-	●	●	●
140	BRACKET; S/ABS,RR (C)	8-98006-180-0	01	1	0804-	●		●
217	BRACKET; HELPER RUBBER,RR SPRING SOU	8-97202-417-0	02	1	0804-	●	●	●
356	BRACKET; ENG SUPPORT,INNER EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) SOU	8-98062-610-1	01	1	0804-1303	●	●	●
356	BRACKET; ENG SUPPORT,INNER EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) SOU	8-98062-610-1	01	1	1304-1309		●	●
356	BRACKET; ENG SUPPORT,INNER EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) SOU	8-98062-610-1	01	1	1310-		●	●
356	BRACKET; ENG SUPPORT,INNER EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME EQUIPMENT HEAVY DUTY VAR2<F01> (A) SOU	8-98062-610-1	01	1	1310-	●
356	BRACKET; ENG SUPPORT,INNER EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) SOU	8-98062-611-1	01	1	0804-1303	●	●	●
356	BRACKET; ENG SUPPORT,INNER EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) SOU	8-98062-611-1	01	1	1304-1309		●	●
356	BRACKET; ENG SUPPORT,INNER EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) SOU	8-98062-611-1	01	1	1310-		●	●
356	BRACKET; ENG SUPPORT,INNER EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME EQUIPMENT HEAVY DUTY VAR2<F01> (B) SOU	8-98062-611-1	01	1	1310-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
