Isuzu WW
▶
TRUCKS
▶
NLR
▶
51146 - NLR/NMR(SOUTHAFRICA)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-80 - ROAD WHEEL
▶
4-80 — ROAD WHEEL
(#75363) — 22 parça
Tümü
A - NMR5SE
B - NMR5SN
C - NMR5WN
◀

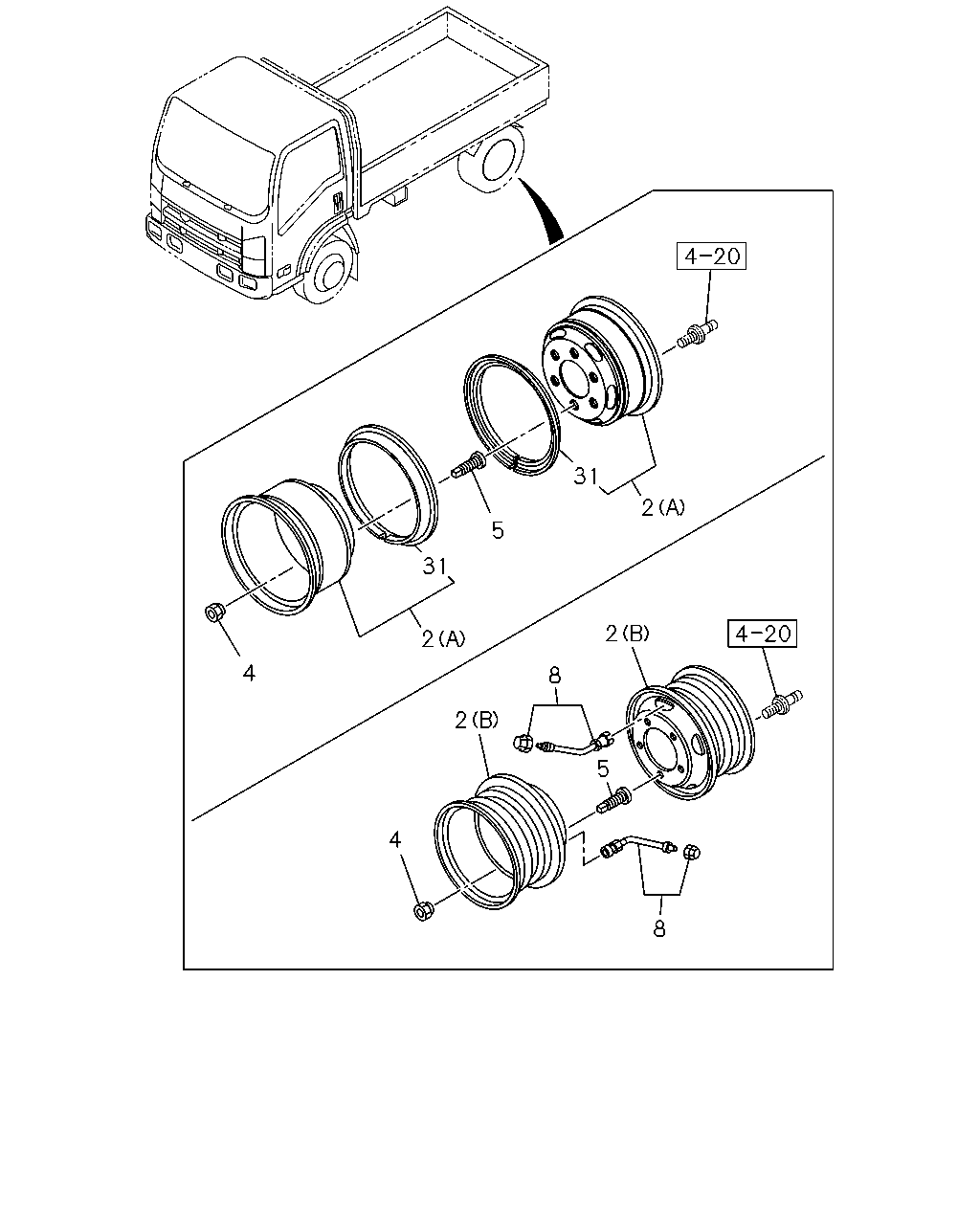

[480A] FRONT AND SPARE (10 parça)

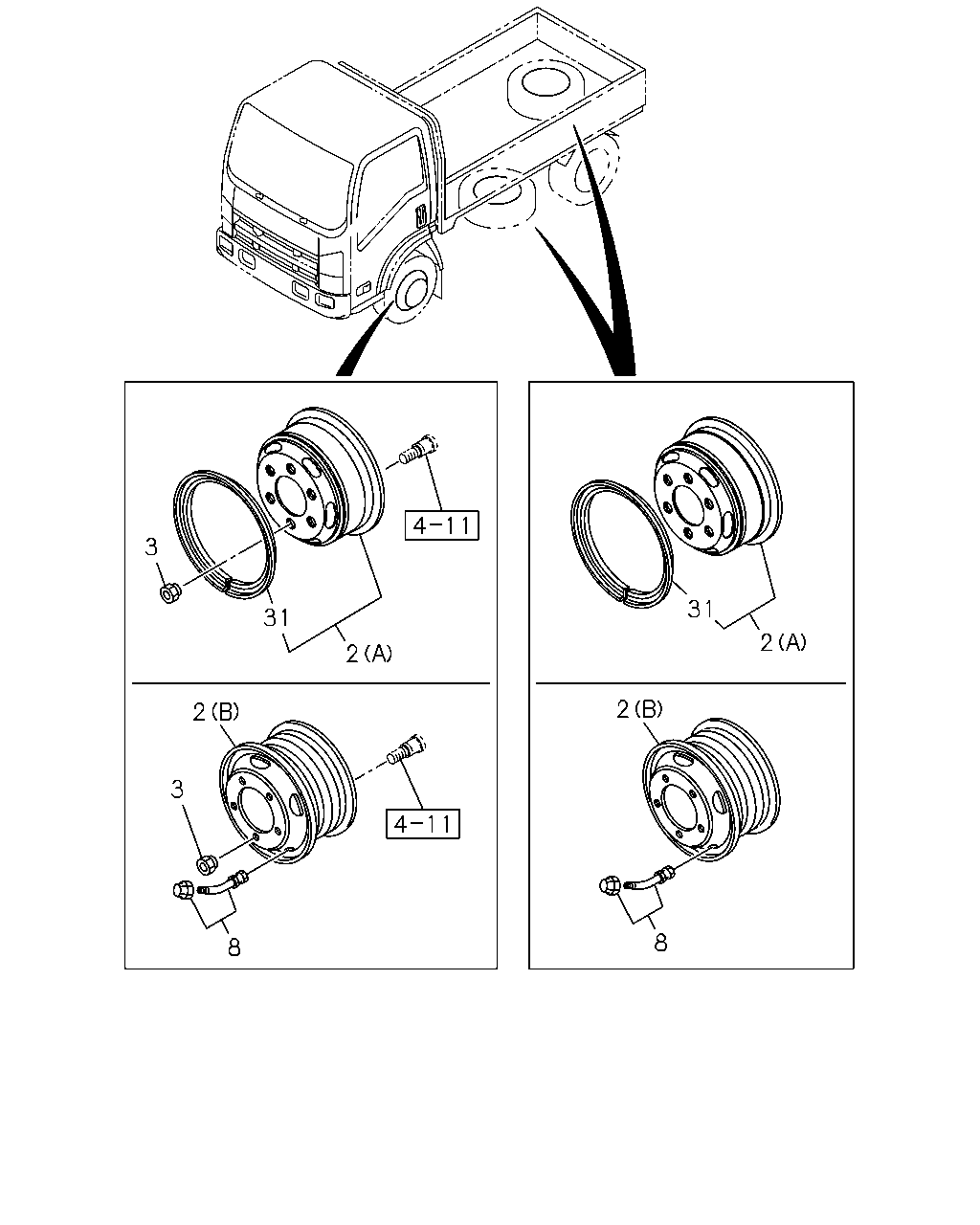

[480A] REAR (12 parça)
▶
8
2
31
2
31
2
2
3
8
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
2
WHEEL; DISC
(B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER
8-97233-664-0
01
1
0804-
●
2
WHEEL; DISC
(B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER
8-97233-664-0
06
1
0804-
●
2
WHEEL; DISC
(A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE SOU
8-94378-330-1
01
1
0804-
●
●
2
WHEEL; DISC
(A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE SOU
8-94378-330-1
06
1
0804-
●
●
3
NUT; WHEEL,FRT AXLE
M18 LH THREAD
8-98007-908-0
05
1
0804-
●
●
●
3
NUT; WHEEL,FRT AXLE
M18 RH THREAD
8-98007-907-0
05
1
0804-
●
●
●
8
VALVE; TIRE
SPARE SOU
8-98221-106-0
01
1
0804-
●
8
VALVE; TIRE
FRONT,REAR SOU
8-98221-106-0
06
1
0804-
●
31
RING; SIDE,DISC WHEEL
SPARE 16X5.50F STAMP, BLACK SOU
8-94135-601-0
01
1
0804-
●
●
31
RING; SIDE,DISC WHEEL
FRONT,REAR 16X5.50F STAMP, BLACK SOU
8-94135-601-0
06
1
0804-
●
●
2
31
5
31
2
4
4
2
8
5
2
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
2
WHEEL; DISC
(B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER
8-97233-664-0
01
1
0804-
●
2
WHEEL; DISC
(B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER
8-97233-664-0
06
1
0804-
●
2
WHEEL; DISC
(A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE SOU
8-94378-330-1
01
1
0804-
●
●
2
WHEEL; DISC
(A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE SOU
8-94378-330-1
06
1
0804-
●
●
4
NUT; WHEEL,RR AXLE
M27 LH THREAD
8-98007-825-0
05
1
0804-
●
●
●
4
NUT; WHEEL,RR AXLE
M27 RH THREAD
8-98007-824-0
05
1
0804-
●
●
●
5
NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 LH THREAD
8-98007-811-0
05
1
0804-
●
●
●
5
NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 RH THREAD
8-98007-810-0
05
1
0804-
●
●
●
8
VALVE; TIRE
SPARE SOU
8-98221-106-0
01
1
0804-
●
8
VALVE; TIRE
FRONT,REAR SOU
8-98221-106-0
06
1
0804-
●
31
RING; SIDE,DISC WHEEL
SPARE 16X5.50F STAMP, BLACK SOU
8-94135-601-0
01
1
0804-
●
●
31
RING; SIDE,DISC WHEEL
FRONT,REAR 16X5.50F STAMP, BLACK SOU
8-94135-601-0
06
1
0804-
●
●
