Isuzu WW
▶
TRUCKS
▶
NLR
▶
51146 - NLR/NMR(SOUTHAFRICA)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-65A - REAR LEAF SPRING
▶

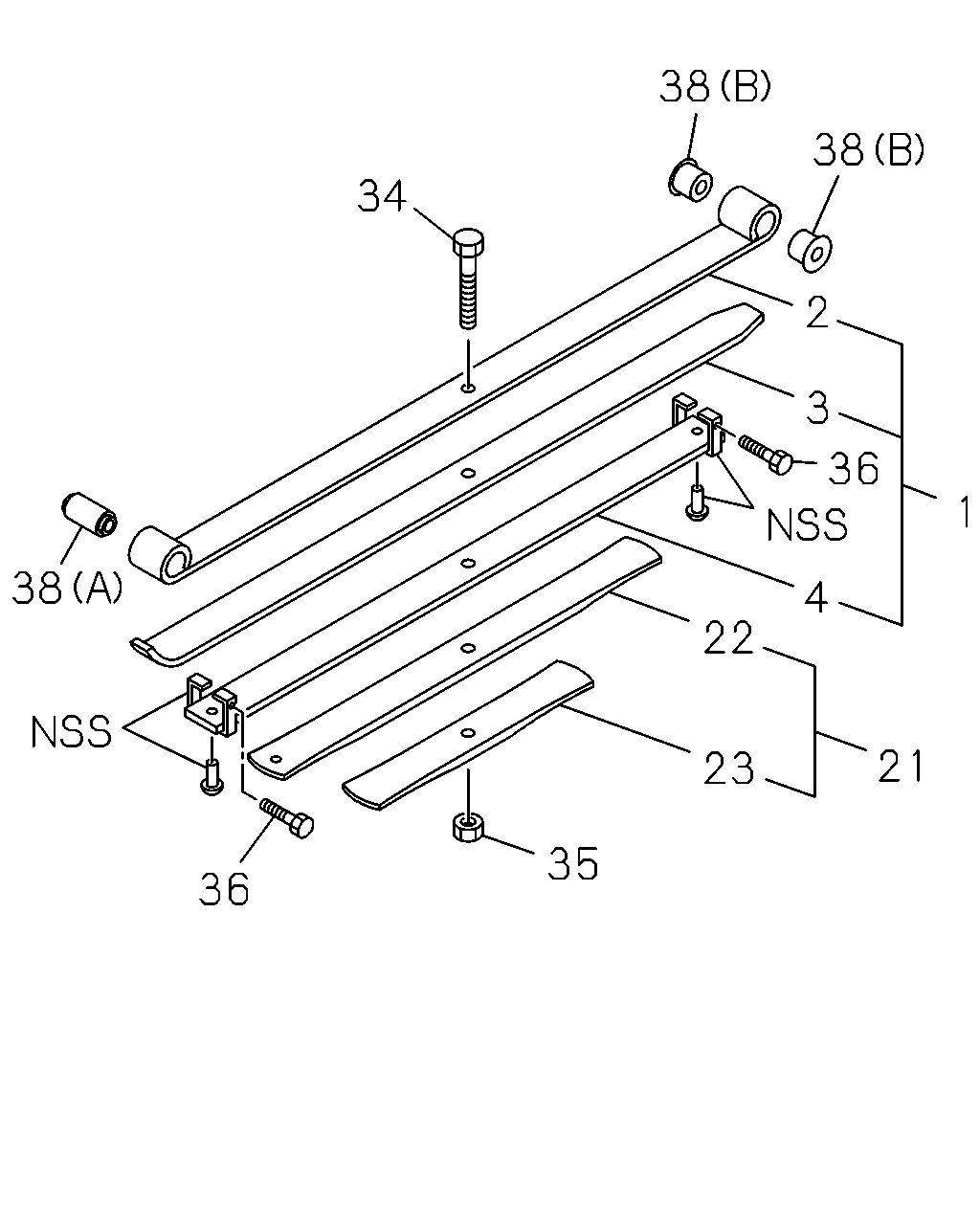

4-65A — REAR LEAF SPRING
(#75361) — 13 parça
38
38
34
2
3
36
1
38
4
22
21
23
35
36
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SPRING ASM; LEAF,RR MAIN
ASM PART: A = 8-98048-271-0
8-98055-510-0
01
1
-
2
SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 8-98048-271-0
8-98055-511-0
01
1
-
3
SPRING; LEAF,NO 2,RR MAIN
ASM PART: A = 8-98048-271-0
8-98055-512-0
01
1
-
4
SPRING; LEAF,NO 3,RR MAIN
ASM PART: A = 8-98048-271-0
8-98055-513-0
01
1
-
21
SPRING ASM; LEAF,RR SUB
ASM PART: A = 8-98048-271-0
8-98055-514-0
01
1
-
22
SPRING; LEAF,NO 1,RR SUB
ASM PART: A = 8-98048-271-0
8-98055-515-0
01
1
-
23
SPRING; LEAF,NO 2,RR SUB
ASM PART: A = 8-98048-271-0
8-98055-516-0
01
1
-
34
BOLT; CENTER,LEAF SPR,RR MAIN
L=85 ASM PART: A = 8-98048-271-0
8-98037-590-0
01
1
-
35
NUT; CENTER BOLT,LEAF SPR,RR
M12 ASM PART: A = 8-98048-271-0
9-99110-512-0
01
1
-
36
BOLT; CLIP,LEAF SPR,RR
M8X91 ASM PART: A = 8-98048-271-0
8-98040-331-0
02
1
-
38
BUSHING; LEAF SPR,RR
(A), BEST VALUE PARTS ASM PART: A = 8-98048-271-0
5-87610-163-0
01
1
-
38
BUSHING; LEAF SPR,RR
(A), OD=42 L=81 ASM PART: A = 8-98048-271-0
8-97074-826-0
01
1
-
38
BUSHING; LEAF SPR,RR
(B), OD=40 L=41 ASM PART: A = 8-98048-271-0
8-97374-410-0
02
1
-
