0-22 — ENGINE MOUNTING (#7536) — 25 parça

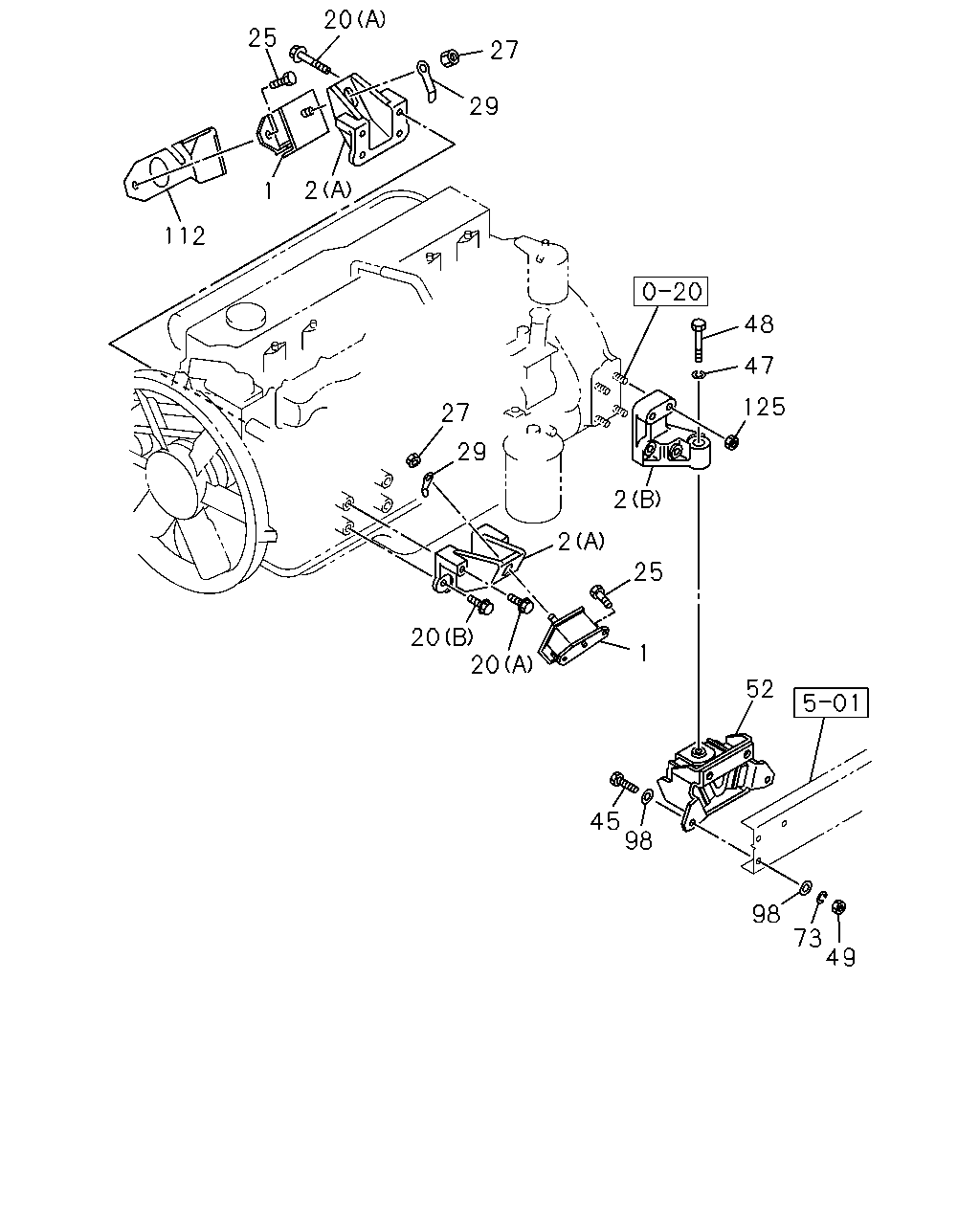

çizim 42659
20 25 27 29 2 1 112 48 47 125 27 29 2 2 25 20 20 1 52 45 98 98 73 49
BalonParca AdiParca NoAdetTipApplied Date A B
1 RUBBER; ENG FOOT,FRT
WHEEL BASE 5200MM<52W>,WHEEL BASE 5400MM<54W>, WHEEL BASE 5800MM<58W> 		1-53215-187-0 02 1 0101- ● ●
1 RUBBER; ENG FOOT,FRT
WHEEL BASE 6300MM<63W> 		1-53215-173-0 02 1 0101- ● ●
2 FOOT; ENG
(B) RR 		8-94392-813-0 01 1 0101- ●
2 FOOT; ENG
(A) FRT 6HE1 RH/LH, 6HH1 RH 		8-94394-663-1 01 1 0101-0207 ● ●
2 FOOT; ENG
(A) FRT 6HE1 RH/LH, 6HH1 RH 		8-94394-663-1 01 1 0101-0207 ●
2 FOOT; ENG
(A) FRT 		8-94393-491-1 02 1 0208- ● ●
2 FOOT; ENG
(B) RR 		8-94390-113-0 01 1 0101- ● ●
2 FOOT; ENG
(A) FRT LH 		8-94392-234-0 01 1 0101-0207 ●
2 FOOT; ENG
(B) RR 		8-94390-112-0 01 1 0101- ●
20 BOLT; ENG FOOT
(A) M10X70 		8-94370-054-0 04 1 0101-0207 ● ●
20 BOLT; ENG FOOT
(A),(B) M10X20 FLANGE 		8-94395-721-0 08 1 0208- ● ●
20 BOLT; ENG FOOT
(B) M10X25 		8-94397-026-0 04 1 0101-0207 ● ●
25 BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE 		0-28681-235-0 04 1 0101- ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE 		0-91150-212-0 02 1 0101- ● ●
29 PLATE; LK,CUSHION RUBBER,FRT 1-53229-052-1 02 1 0101- ● ●
45 BOLT; CUSHION RUBBER TO FRAME
M14X50 		9-92061-450-0 08 1 0101- ● ●
46 WASHER; PL,CUSHION TO ENG,RR
ID=23 		9-09164-522-0 02 1 0101- ● ●
48 BOLT; CUSHION RUBBER TO ENG
M22X75 		1-09020-087-2 02 1 0101- ● ●
49 NUT; CUSHION RUBBER TO FRAME
M14 		9-99110-514-0 08 1 0101- ● ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-316-0 02 1 0101- ● ●
73 WASHER; LK,CUSHION RUBBER TO FRAME
ID=14.2 		9-09150-614-0 08 1 0101-0202 ● ●
73 WASHER; LK,CUSHION RUBBER TO FRAME
ID=14.2 		9-09150-814-0 08 1 0203- ● ●
98 WASHER; PL,CUSHION RUBBER TO FRAME,RR
ID=15 THA 		9-09651-069-0 16 1 0101- ● ●
112 PROTECTOR; HEAT
THA 		1-53219-629-4 01 1 0101- ● ●
125 NUT; ENG FOOT
M12 FLANGE 		8-94394-704-0 08 1 0101- ● ●
