◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51146 - NLR/NMR(SOUTHAFRICA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶
4-60 — REAR SUSPENSION (#75359) — 33 parça
çizim 124959
502 5 6 1 502 4 4 502 1 6 5
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 5-LEAF 		8-98048-271-0 02 1 0804- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. REAR WIDE TREAD(V4T) 10-LEAF 		8-98022-373-0 02 1 0804- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 10-LEAF 		8-98022-373-0 02 1 0804- ●
4 U-BOLT; RR SPR
L=235 		8-97262-039-0 04 1 0804- ●
4 U-BOLT; RR SPR
REAR WIDE TREAD(V4T) L=265 		8-94127-923-3 04 1 0804- ●
4 U-BOLT; RR SPR
L=265 		8-94127-923-3 04 1 0804- ●
5 NUT; U-BOLT,RR SPR
M16 		8-97360-121-0 08 1 0804- ● ● ●
6 WASHER; PL,U-BOLT
ID=16.4 		8-97360-118-0 08 1 0804- ● ● ●
502 CLAMP; RR LEAF SPR
(C) L=176 T=8 		8-97136-907-0 02 1 0804- ●
502 CLAMP; RR LEAF SPR
(B) 		8-94113-326-2 01 1 0804- ●
502 CLAMP; RR LEAF SPR
(B) 		8-94113-325-2 01 1 0804- ●
502 CLAMP; RR LEAF SPR
REAR WIDE TREAD(V4T) (A) L=130 T=4.5 		8-94119-069-2 02 1 0804- ●
502 CLAMP; RR LEAF SPR
(A) L=130 T=4.5 		8-94119-069-2 02 1 0804- ●

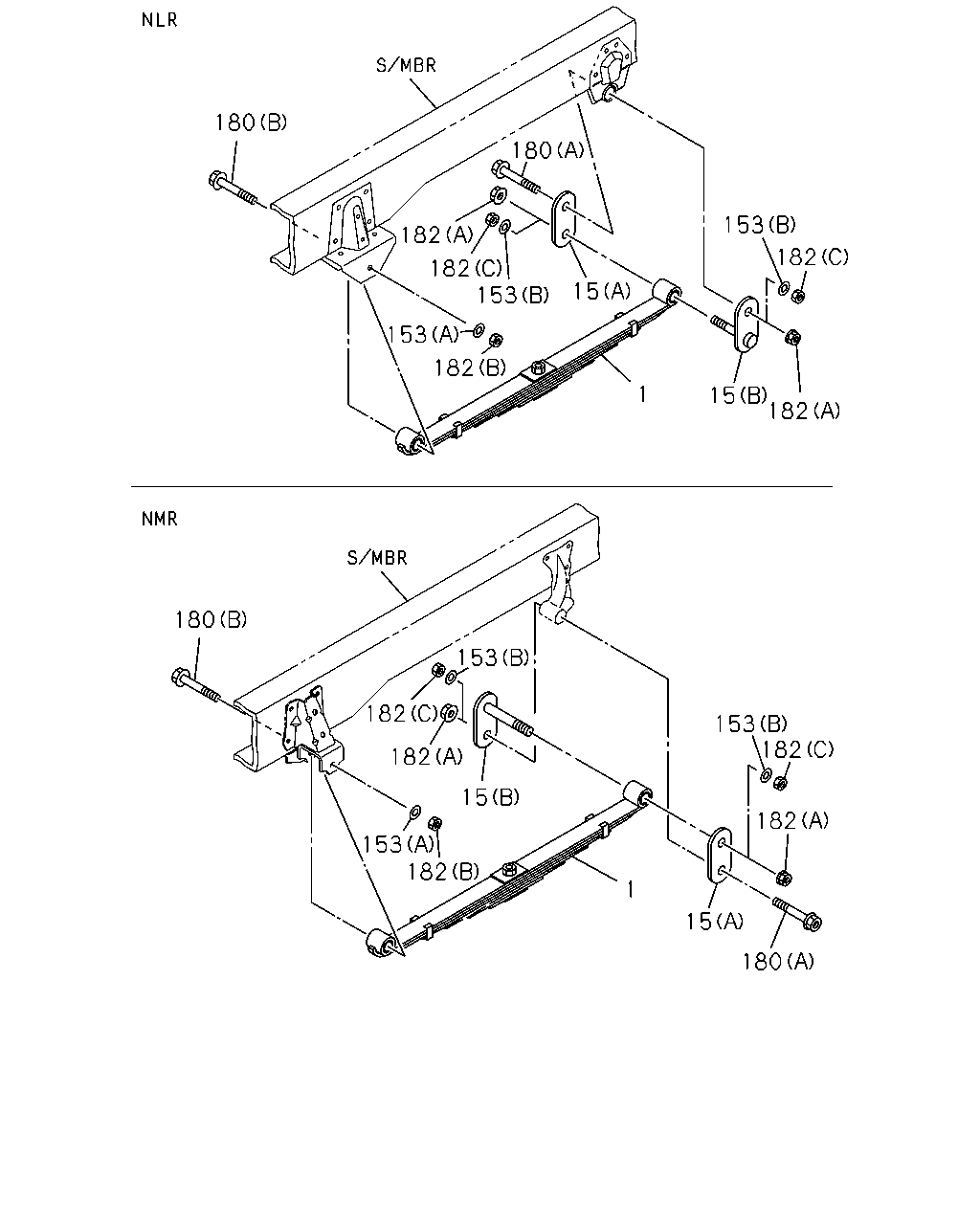

çizim 125017
180 180 153 182 182 182 153 15 153 182 1 15 182 180 153 182 153 182 182 15 182 153 182 1 15 180
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 5-LEAF 		8-98048-271-0 02 1 0804- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. REAR WIDE TREAD(V4T) 10-LEAF 		8-98022-373-0 02 1 0804- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 10-LEAF 		8-98022-373-0 02 1 0804- ●
15 SHACKLE; RR SPR
(A) 		8-94118-511-3 02 1 0804- ● ● ●
15 SHACKLE; RR SPR
(B) 		8-97360-011-0 02 1 0804- ● ● ●
153 WASHER; PL,SPRING PIN
(A) ID=19 		8-97360-119-0 02 1 0804- ● ● ●
153 WASHER; PL,SPRING PIN
KD PREPARATORY PACK<6HF> (B) ID=16.5 		8-98011-489-0 04 1 0804- ● ● ●
180 PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) M16X122 		8-98011-487-0 02 1 0804- ● ● ●
180 PIN; RR SPR
KD PREPARATORY PACK<6HF> (A) M18X130 		8-98011-488-0 02 1 0804- ● ● ●
180 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M16X122 FLANGE 		8-97360-110-0 02 1 0804- ● ● ●
180 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M18X130 FLANGE 		8-97360-112-0 02 1 0804- ● ● ●
182 NUT; PIN,RR SPR
(B) M18 		0-91110-518-0 02 1 0804- ● ● ●
182 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> (C) M16 SOU 		0-91110-516-0 04 1 0804- ● ● ●
182 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16 FLANGE 		8-97360-125-0 04 1 0804- ● ● ●

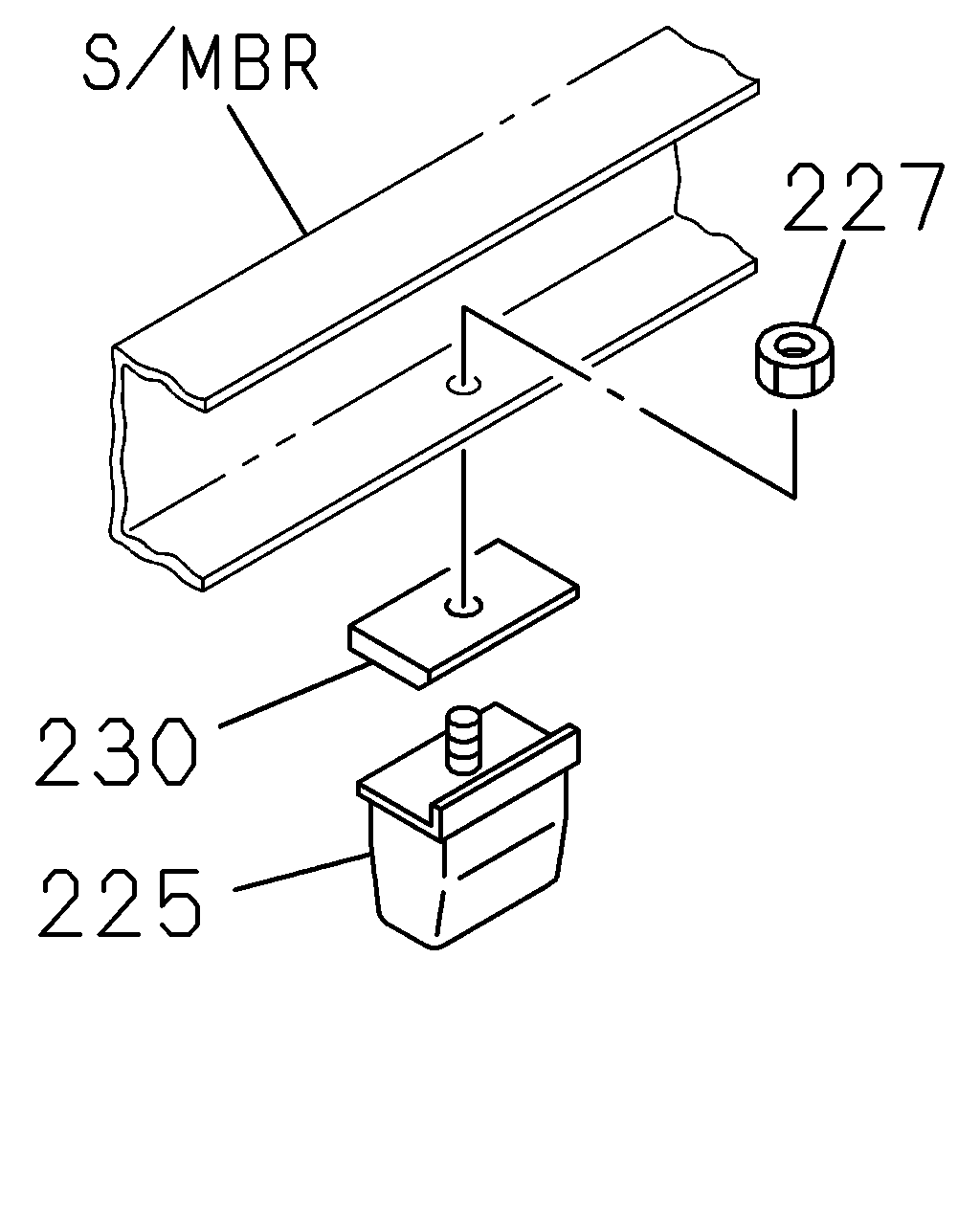

çizim 185515
227 230 225
BalonParca AdiParca NoAdetTipApplied Date A B C
225 RUBBER; CUSHION,RR SPR 8-98021-554-0 02 1 0804-1509 ● ●
225 RUBBER; CUSHION,RR SPR
REAR WIDE TREAD(V4T) 		8-98021-554-0 02 1 0804-1509 ●
225 RUBBER; CUSHION,RR SPR 8-98021-554-0 02 1 1510- ● ● ●
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91180-112-0 02 1 0804- ● ● ●
230 SPACER; CUSHION RUBBER
REAR WIDE TREAD(V4T) 		8-97136-852-0 02 1 0804- ●
230 SPACER; CUSHION RUBBER 8-97136-852-0 02 1 0804- ●
