◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51146 - NLR/NMR(SOUTHAFRICA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶

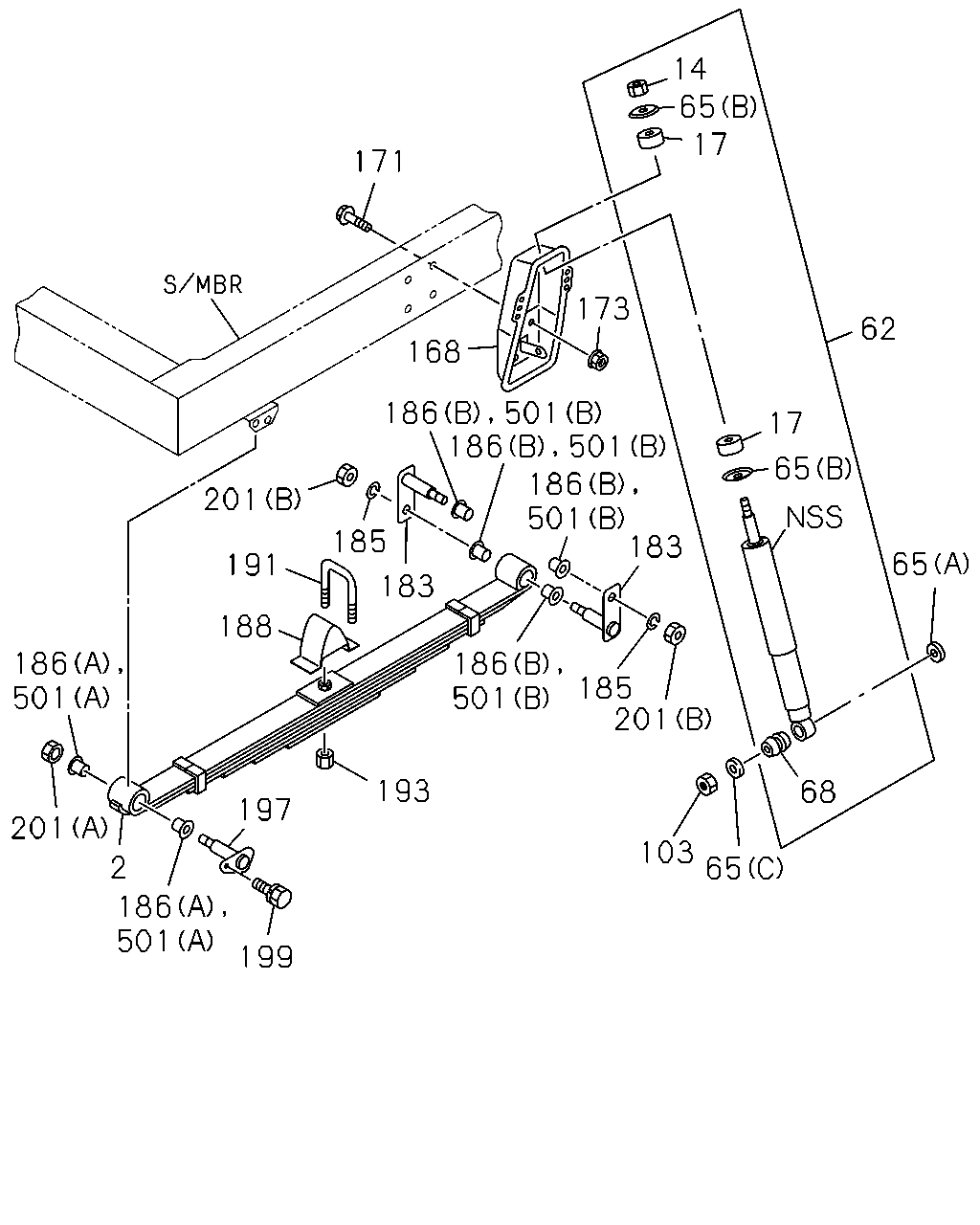

4-50 — FRONT SUSPENSION (#75357) — 35 parça
çizim 185514
14 65 17 171 173 62 168 186 501 183 17 65 201 185 65 191 183 188 186 501 186 501 185 201 193 68 197 201 103 65 2 186 501 199 186 501 186 501
BalonParca AdiParca NoAdetTipApplied Date A B C
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF 		8-98079-885-0 01 1 0804- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF 		8-98079-887-0 01 1 0804- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF 		8-98001-533-0 01 1 0804- ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF 		8-98079-881-0 01 1 0804- ● ●
14 NUT; S/ABS,UPR
M10 SOU 		8-94317-772-0 02 1 0804- ● ● ●
17 BUSHING; RUBBER,S/ABS
TOKICO SOU 		9-51631-603-0 04 1 0804- ● ● ●
62 ABSORBER ASM; SHOCK,FRT 8-98085-708-1 02 1 0804- ● ● ●
65 WASHER; S/ABS
(A) ID=17 OD=32 		9-09164-616-0 02 1 0804-1011 ● ● ●
65 WASHER; S/ABS
(A) ID=17 OD=32 		0-91614-616-0 02 1 1012- ● ● ●
65 WASHER; S/ABS
(B) ID=10.5 OD=38 SOU 		9-51631-062-0 04 1 0804- ● ● ●
65 WASHER; S/ABS
(C) ID=12.5 		9-51679-022-0 02 1 0804- ● ● ●
68 BUSHING; S/ABS
TOKICO SOU 		8-94224-694-0 02 1 0804- ● ● ●
103 NUT; S/ABS TO LWR LINK
M12 		0-91111-512-0 02 1 0804- ● ● ●
168 BRACKET; S/ABS,FRT SUSP 8-98002-083-0 01 1 0804- ● ● ●
168 BRACKET; S/ABS,FRT SUSP 8-98039-598-0 01 1 0804- ● ● ●
171 BOLT; S/ABS BRKT
M10X30 FLANGE SOU 		0-28651-030-0 08 1 0804- ● ● ●
173 NUT; S/ABS
M10 FLANGE SOU 		0-91180-210-0 08 1 0804-1006 ● ● ●
173 NUT; S/ABS
M10 FLANGE SOU 		0-91180-110-0 08 1 1007- ● ● ●
183 SHACKLE; FRT SUSP 8-98034-341-0 04 1 0804- ● ● ●
185 WASHER; LK,PIN
ID=16.5 		8-98011-489-0 04 1 0804- ● ● ●
186 BUSHING; SHACKLE
(B) 		8-97081-531-0 08 1 0804-1010 ● ● ●
186 BUSHING; SHACKLE
(A) 		8-97259-495-0 04 1 0804-1010 ● ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 8-98033-515-0 02 1 0804- ● ● ●
191 U-BOLT; FRT SPR
FRONT STABILIZER SHAFT<F59> REAR L=105 		8-97304-074-1 02 1 0902- ● ● ●
191 U-BOLT; FRT SPR
FRONT STABILIZER SHAFT<F59> FRONT L=115 		8-97304-075-1 02 1 0902- ● ● ●
191 U-BOLT; FRT SPR
L=105 		8-97304-074-1 04 1 0804-0901 ● ● ●
191 U-BOLT; FRT SPR
EXC. FRONT STABILIZER SHAFT<F59> L=105 		8-97304-074-1 04 1 0902- ● ● ●
193 NUT; U BOLT
M14 FLANGE 		8-97360-124-0 08 1 0804- ● ● ●
197 PIN; FRT SPR,FRT 8-97261-861-0 02 1 0804-1010 ● ● ●
197 PIN; FRT SPR,FRT 8-94117-900-1 02 1 1011- ● ● ●
199 BOLT
M10X25 FLANGE SOU 		0-28651-025-0 02 1 0804- ● ● ●
201 NUT; PIN LK
(B) M16 SOU 		0-91110-516-0 04 1 0804- ● ● ●
201 NUT; PIN LK
(A) M16 FLANGE 		8-97360-125-0 02 1 0804- ● ● ●
501 BUSHING; LEAF SPR,FRT
(A) 		8-97081-531-0 04 1 1011- ● ● ●
501 BUSHING; LEAF SPR,FRT
(B) 		8-97081-531-0 08 1 1011- ● ● ●
