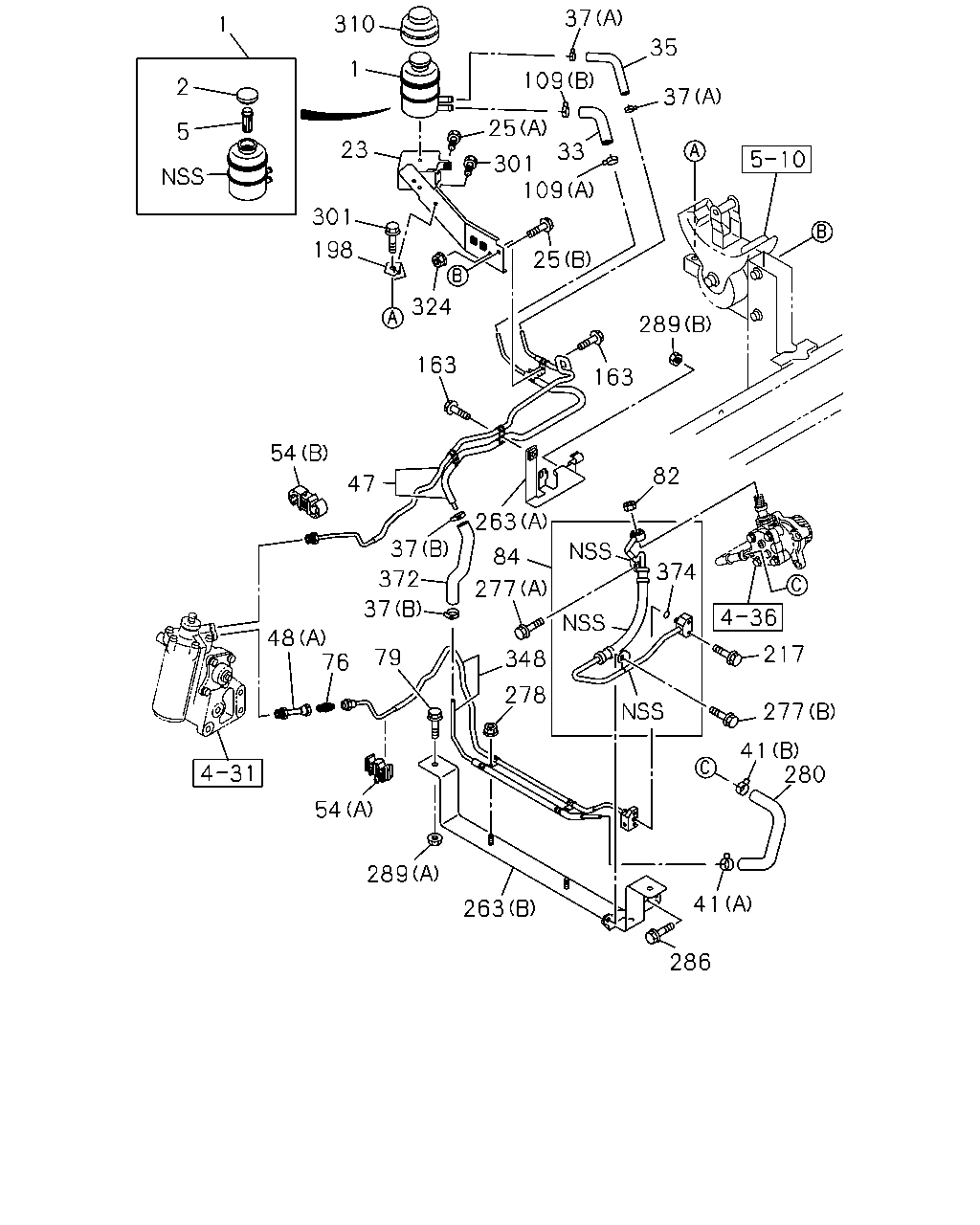

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#75353) — 120 parça

310 1 2 5 1 23 301 198 324 163 47 54 48 76 79 37 372 37 263 84 277 348 278 289 54 263 286 41 41 280 37 35 37 109 25 301 33 109 25 289 163 82 374 217 277

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK ASM; OIL,P/S	8-97107-987-0	01	1	0804-	●	●	●
2	CAP; OIL TANK,P/S	8-94146-153-2	01	1	0804-	●	●	●
5	STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	0804-	●	●	●
23	BRACKET; OIL TANK,P/S	8-98053-625-2	01	1	0804-	●	●
23	BRACKET; OIL TANK,P/S	8-98001-427-3	01	1	0804-			●
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE SOU	0-28650-825-0	02	1	0804-	●	●
25	BOLT; OIL TANK BRKT (A) M6X20 FLANGE	0-28450-620-0	01	1	0804-	●	●	●
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE SOU	0-28650-825-0	03	1	0804-			●
33	HOSE; RUBBER,POWER STRG	8-98054-267-0	01	1	0804-	●	●
33	HOSE; RUBBER,POWER STRG	8-97389-811-0	01	1	0804-			●
35	HOSE; RETURN,P/S TANK	8-98054-264-0	01	1	0804-1011	●	●
35	HOSE; RETURN,P/S TANK	8-98054-265-0	01	1	0804-1011			●
35	HOSE; RETURN,P/S TANK	8-98054-265-0	01	1	1012-	●	●	●
37	CLIP; HOSE,P/S (A) ID=16 SOU	8-94238-568-0	02	1	0804-0911	●	●	●
37	CLIP; HOSE,P/S (A) ID=16	8-98008-098-0	02	1	0912-	●	●	●
37	CLIP; HOSE,P/S (B) ID=21	8-94242-034-0	02	1	0804-0911	●	●	●
37	CLIP; HOSE,P/S (B) ID=21	8-98150-355-0	02	1	0912-	●	●	●
41	CLIP; HOSE,P/S (B) ID=21	8-94242-034-0	01	1	0804-0911	●	●	●
41	CLIP; HOSE,P/S (B) ID=21	8-98150-355-0	01	1	0912-	●	●	●
41	CLIP; HOSE,P/S (A) ID=21.7	8-97203-074-0	01	1	0804-	●	●	●
47	PIPE; RETURN	8-98054-227-0	01	1	0804-1011	●	●
47	PIPE; RETURN	8-98173-325-0	01	1	1012-	●	●
47	PIPE; RETURN	8-98054-228-0	01	1	0804-			●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (A)	8-98041-027-0	01	1	0804-	●	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (B)	8-98250-105-0	01	1	1401-	●	●	●
54	CLIP; OIL PIPE (B) ID=12 & 12	1-09709-280-1	01	1	0804-0804	●	●	●
54	CLIP; OIL PIPE (B) ID=12 & 12	1-09709-280-1	01	1	0804-0804	●	●
54	CLIP; OIL PIPE (B) ID=12 & 12	1-09709-280-1	01	1	0805-	●	●	●
54	CLIP; OIL PIPE (A) ID=10X2 H=37.5	8-97018-546-0	01	1	0804-	●	●	●
76	UNION; OIL PIPE M16 L=42	0-92123-010-0	01	1	0804-	●	●	●
79	BOLT; BRKT M12X30 FLANGE SOU	0-28651-230-0	02	1	0804-	●	●	●
82	NUT; FLEX HOSE,P/S M12 SELF LOCK	8-97028-390-1	01	1	0804-	●	●	●
84	HOSE; FLEX,P/S	8-98032-376-4	01	1	0804-1312	●	●	●
84	HOSE; FLEX,P/S	8-98250-111-0	01	1	1401-	●	●	●
109	CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	01	1	0804-0911	●	●	●
109	CLIP; RUBBER HOSE (A) ID=21	8-98150-355-0	01	1	0912-	●	●	●
109	CLIP; RUBBER HOSE (B) ID=22 SOU	8-94382-401-0	01	1	0804-1003	●	●	●
109	CLIP; RUBBER HOSE (B) ID=22	8-97359-141-0	01	1	1004-	●	●	●
163	BOLT; OIL PIPE M8X25 FLANGE SOU	0-28650-825-0	02	1	0804-	●	●	●
198	STAY; OIL TANK,POWER STEERING	8-98011-885-1	01	1	0804-	●	●
217	BOLT; FLEX HOSE,P/S M6X35 FLANGE	0-28650-635-0	02	1	0804-	●	●	●
263	BRACKET; P/S PIPE (A)	8-98008-078-0	01	1	0804-	●	●	●
263	BRACKET; P/S PIPE (B)	8-98032-325-2	01	1	0804-1312	●	●	●
263	BRACKET; P/S PIPE (C)	8-98250-108-0	01	1	1401-	●	●	●
277	BOLT; HOSE CLIP (A) M8X12 FLANGE	0-28050-812-0	01	1	0804-	●	●	●
277	BOLT; HOSE CLIP (B) M8X20 FLANGE	0-28050-820-0	01	1	0804-1002	●	●	●
277	BOLT; HOSE CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	1003-1312	●	●	●
278	NUT; HOSE CLIP M8 FLANGE SOU	0-91180-108-0	02	1	0804-	●	●	●
280	HOSE; P/S OIL PUMP,INL	8-98041-245-2	01	1	0804-	●	●	●
286	BOLT; CLIP,P/S HOSE M8X30 FLANGE	0-28650-830-0	01	1	0804-	●	●	●
289	NUT; BRKT,POWER STRG (B) M8 FLANGE SOU	0-91180-108-0	01	1	0804-	●	●	●
289	NUT; BRKT,POWER STRG (A) M12 FLANGE	0-91180-112-0	01	1	0804-	●	●	●
301	BOLT; STAY,OIL TANK M8X25 FLANGE SOU	0-28650-825-0	02	1	0804-	●	●
310	COVER; OIL TANK	8-97103-394-0	01	1	0804-	●	●
324	NUT; OIL PIPE M8 FLANGE SOU	0-91180-108-0	01	1	0804-	●	●	●
348	PIPE; OIL,P/S PRESS	8-98085-486-1	01	1	0804-1312	●	●	●
348	PIPE; OIL,P/S PRESS	8-98250-107-0	01	1	1401-	●	●	●
372	HOSE; RUBBER	8-98054-269-0	01	1	0804-1312	●	●	●
372	HOSE; RUBBER L=180 SERVICED BY L=300	0-09814-300-0	01	1	1401-	●	●	●
374	GASKET; HOSE,P/S	8-98139-036-0	01	1	0804-	●	●	●

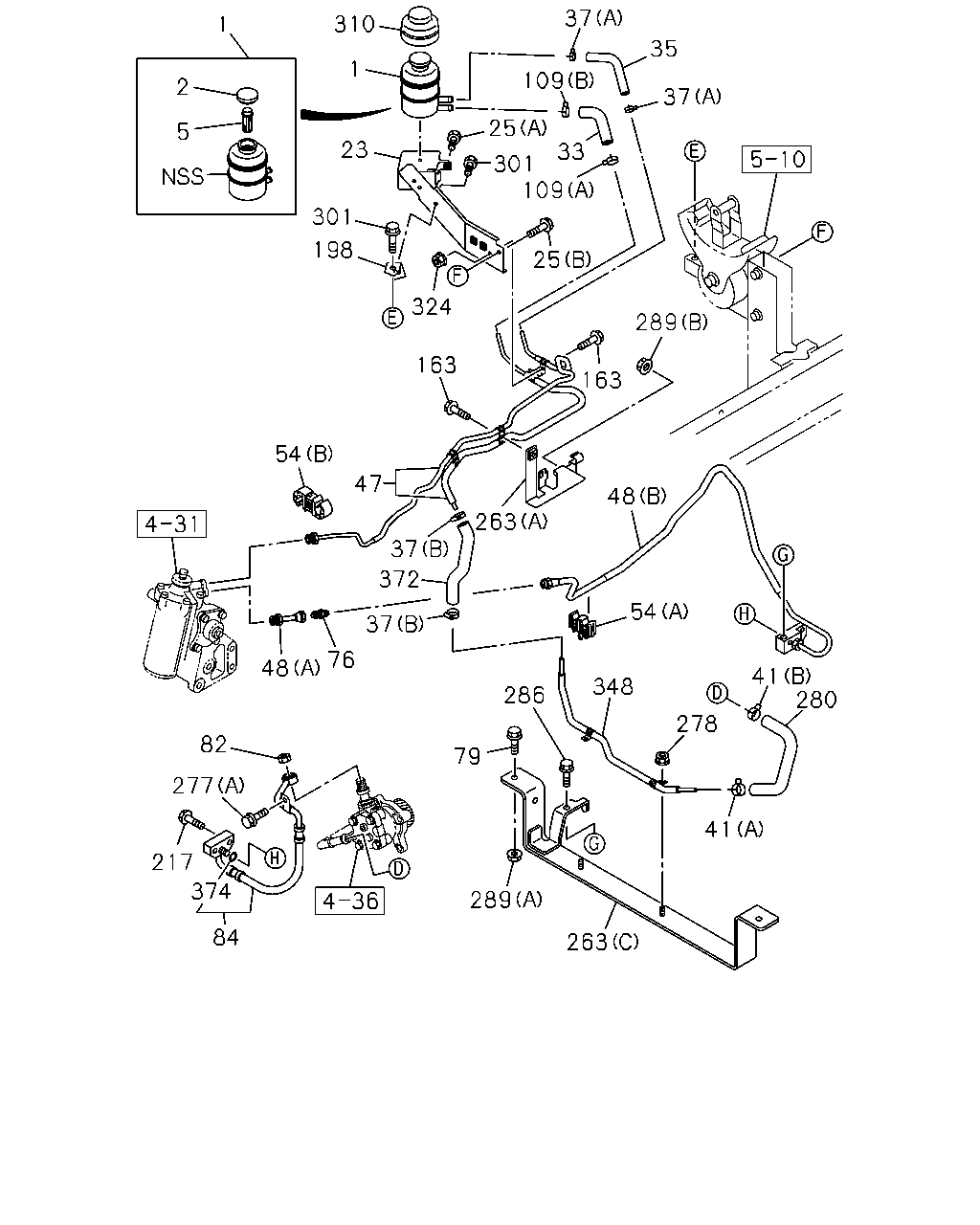

1 2 5 310 37 109 35 37 25 1 23 301 324 198 301 33 109 25 163 163 289 54 37 47 263 48 372 37 48 54 41 280 278 41 79 286 289 263 348 84 374 217 277 82 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK ASM; OIL,P/S	8-97107-987-0	01	1	0804-	●	●	●
2	CAP; OIL TANK,P/S	8-94146-153-2	01	1	0804-	●	●	●
5	STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	0804-	●	●	●
23	BRACKET; OIL TANK,P/S	8-98053-625-2	01	1	0804-	●	●
23	BRACKET; OIL TANK,P/S	8-98001-427-3	01	1	0804-			●
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE SOU	0-28650-825-0	02	1	0804-	●	●
25	BOLT; OIL TANK BRKT (A) M6X20 FLANGE	0-28450-620-0	01	1	0804-	●	●	●
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE SOU	0-28650-825-0	03	1	0804-			●
33	HOSE; RUBBER,POWER STRG	8-98054-267-0	01	1	0804-	●	●
33	HOSE; RUBBER,POWER STRG	8-97389-811-0	01	1	0804-			●
35	HOSE; RETURN,P/S TANK	8-98054-264-0	01	1	0804-1011	●	●
35	HOSE; RETURN,P/S TANK	8-98054-265-0	01	1	0804-1011			●
35	HOSE; RETURN,P/S TANK	8-98054-265-0	01	1	1012-	●	●	●
37	CLIP; HOSE,P/S (A) ID=16 SOU	8-94238-568-0	02	1	0804-0911	●	●	●
37	CLIP; HOSE,P/S (A) ID=16	8-98008-098-0	02	1	0912-	●	●	●
37	CLIP; HOSE,P/S (B) ID=21	8-94242-034-0	02	1	0804-0911	●	●	●
37	CLIP; HOSE,P/S (B) ID=21	8-98150-355-0	02	1	0912-	●	●	●
41	CLIP; HOSE,P/S (B) ID=21	8-94242-034-0	01	1	0804-0911	●	●	●
41	CLIP; HOSE,P/S (B) ID=21	8-98150-355-0	01	1	0912-	●	●	●
41	CLIP; HOSE,P/S (A) ID=21.7	8-97203-074-0	01	1	0804-	●	●	●
47	PIPE; RETURN	8-98054-227-0	01	1	0804-1011	●	●
47	PIPE; RETURN	8-98173-325-0	01	1	1012-	●	●
47	PIPE; RETURN	8-98054-228-0	01	1	0804-			●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (A)	8-98041-027-0	01	1	0804-	●	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (B)	8-98250-105-0	01	1	1401-	●	●	●
54	CLIP; OIL PIPE (B) ID=12 & 12	1-09709-280-1	01	1	0804-0804	●	●	●
54	CLIP; OIL PIPE (B) ID=12 & 12	1-09709-280-1	01	1	0804-0804	●	●
54	CLIP; OIL PIPE (B) ID=12 & 12	1-09709-280-1	01	1	0805-	●	●	●
54	CLIP; OIL PIPE (A) ID=10X2 H=37.5	8-97018-546-0	01	1	0804-	●	●	●
76	UNION; OIL PIPE M16 L=42	0-92123-010-0	01	1	0804-	●	●	●
79	BOLT; BRKT M12X30 FLANGE SOU	0-28651-230-0	02	1	0804-	●	●	●
82	NUT; FLEX HOSE,P/S M12 SELF LOCK	8-97028-390-1	01	1	0804-	●	●	●
84	HOSE; FLEX,P/S	8-98032-376-4	01	1	0804-1312	●	●	●
84	HOSE; FLEX,P/S	8-98250-111-0	01	1	1401-	●	●	●
109	CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	01	1	0804-0911	●	●	●
109	CLIP; RUBBER HOSE (A) ID=21	8-98150-355-0	01	1	0912-	●	●	●
109	CLIP; RUBBER HOSE (B) ID=22 SOU	8-94382-401-0	01	1	0804-1003	●	●	●
109	CLIP; RUBBER HOSE (B) ID=22	8-97359-141-0	01	1	1004-	●	●	●
163	BOLT; OIL PIPE M8X25 FLANGE SOU	0-28650-825-0	02	1	0804-	●	●	●
198	STAY; OIL TANK,POWER STEERING	8-98011-885-1	01	1	0804-	●	●
217	BOLT; FLEX HOSE,P/S M6X35 FLANGE	0-28650-635-0	02	1	0804-	●	●	●
263	BRACKET; P/S PIPE (A)	8-98008-078-0	01	1	0804-	●	●	●
263	BRACKET; P/S PIPE (B)	8-98032-325-2	01	1	0804-1312	●	●	●
263	BRACKET; P/S PIPE (C)	8-98250-108-0	01	1	1401-	●	●	●
277	BOLT; HOSE CLIP (A) M8X12 FLANGE	0-28050-812-0	01	1	0804-	●	●	●
277	BOLT; HOSE CLIP (B) M8X20 FLANGE	0-28050-820-0	01	1	0804-1002	●	●	●
277	BOLT; HOSE CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	1003-1312	●	●	●
278	NUT; HOSE CLIP M8 FLANGE SOU	0-91180-108-0	02	1	0804-	●	●	●
280	HOSE; P/S OIL PUMP,INL	8-98041-245-2	01	1	0804-	●	●	●
286	BOLT; CLIP,P/S HOSE M8X30 FLANGE	0-28650-830-0	01	1	0804-	●	●	●
289	NUT; BRKT,POWER STRG (B) M8 FLANGE SOU	0-91180-108-0	01	1	0804-	●	●	●
289	NUT; BRKT,POWER STRG (A) M12 FLANGE	0-91180-112-0	01	1	0804-	●	●	●
301	BOLT; STAY,OIL TANK M8X25 FLANGE SOU	0-28650-825-0	02	1	0804-	●	●
310	COVER; OIL TANK	8-97103-394-0	01	1	0804-	●	●
324	NUT; OIL PIPE M8 FLANGE SOU	0-91180-108-0	01	1	0804-	●	●	●
348	PIPE; OIL,P/S PRESS	8-98085-486-1	01	1	0804-1312	●	●	●
348	PIPE; OIL,P/S PRESS	8-98250-107-0	01	1	1401-	●	●	●
372	HOSE; RUBBER	8-98054-269-0	01	1	0804-1312	●	●	●
372	HOSE; RUBBER L=180 SERVICED BY L=300	0-09814-300-0	01	1	1401-	●	●	●
374	GASKET; HOSE,P/S	8-98139-036-0	01	1	0804-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
