0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#7535) — 99 parça

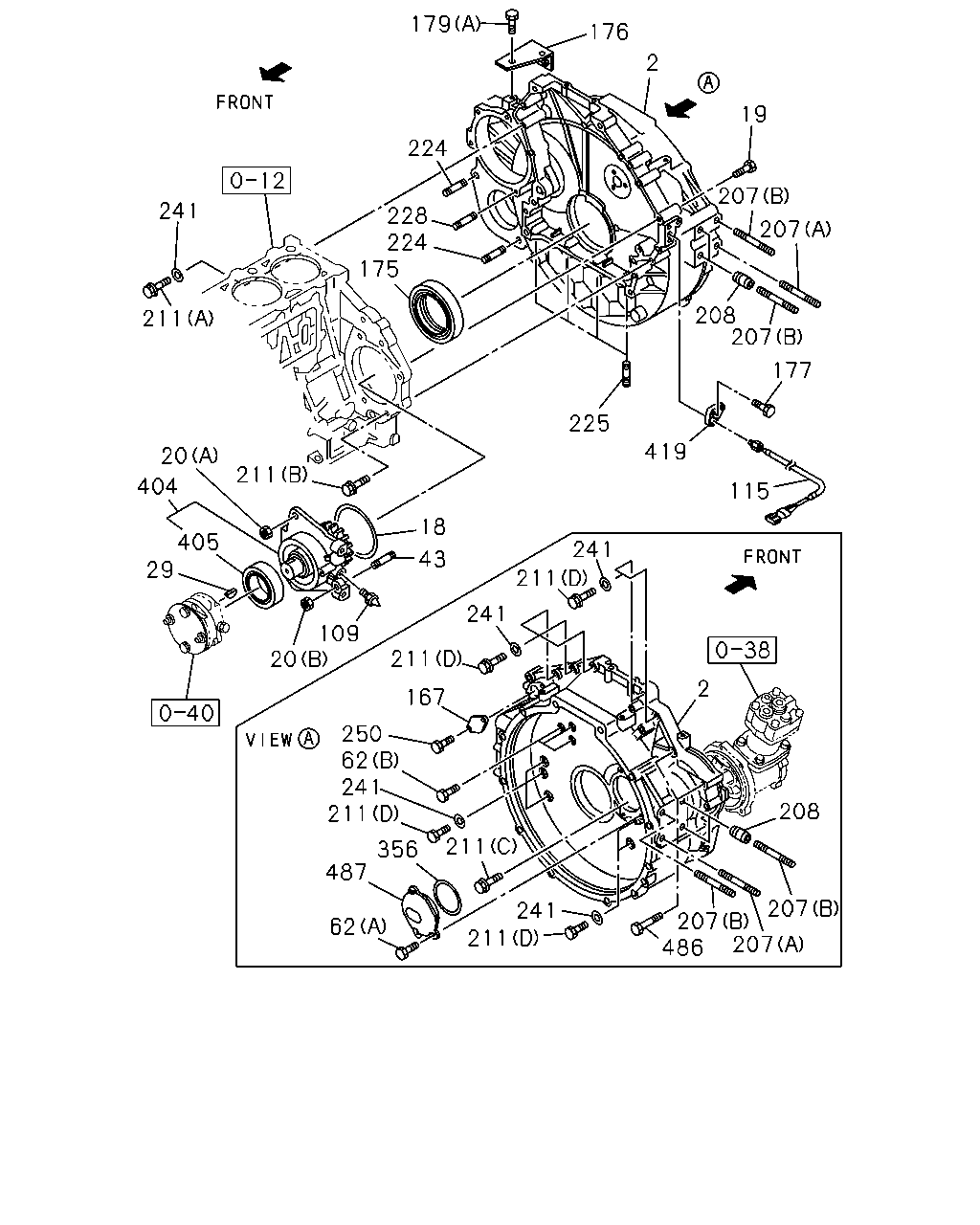

çizim 7423
179 176 2 19 224 207 207 241 228 224 175 211 208 207 177 211 225 419 20 404 115 18 43 405 29 241 211 109 20 241 211 2 167 207 486 207 250 62 241 211 208 211 356 487 241 211 207 62
BalonParca AdiParca NoAdetTipApplied Date A B
2 HOUSING; FLYWHEEL 8-97601-767-0 01 1 0101- ●
2 HOUSING; FLYWHEEL 8-94391-638-4 01 1 0101- ●
18 GASKET; BRG CASE,DRIVE SHAFT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6 		1-09623-464-0 01 1 0101- ●
19 BOLT; BRG CASE
M12X100 FLANGE 		0-28181-200-0 01 1 0101- ●
20 NUT; BRG CASE
(A) M10 FLANGE 		0-91150-110-0 02 1 0101- ●
20 NUT; BRG CASE
(B) M12 FLANGE 		0-91150-212-0 01 1 0101- ●
29 KEY; COUPLING 9-08055-516-0 01 1 0101- ● ●
43 STUD; BRG COVER
M12X67 L=82 		1-09302-112-0 01 1 0101- ●
62 BOLT; COVER
(A) M8X14 FLANGE 		0-28080-814-0 03 1 0101- ●
62 BOLT; COVER
(B) M8X20 FLANGE 		0-28080-820-0 03 1 0101- ● ●
109 POINTER; TIMING
L=21 		9-11327-602-0 01 1 0101- ●
115 SENSOR; REVOLUTION,ENG SPD 1-81510-549-3 01 1 0101- ● ●
167 COVER; OIL 1-11219-163-0 01 1 0101- ● ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94370-637-0 01 1 0101-0112 ● ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97602-379-0 01 1 0201- ● ●
176 BRACKET; HARNESS 1-82699-828-1 01 1 0101- ●
176 BRACKET; HARNESS 1-82699-412-1 01 1 0101- ●
177 BOLT; SENSOR
M8X25 FLANGE 		0-28680-825-0 02 1 0101- ● ●
179 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 01 1 0101- ● ●
179 BOLT; BRKT
(B) M8X20 FLANGE 		0-28080-820-0 02 1 0101- ● ●
207 STUD; ENG FOOT
(A) M12X24 L=104 		8-94390-111-0 02 1 0101- ● ●
207 STUD; ENG FOOT
(B) M12X10 L=55 		9-94321-255-0 06 1 0101- ● ●
208 DOWEL; ENG FOOT 9-43269-009-1 04 1 0101- ● ●
211 BOLT; HSG
(C) M14X27 FLANGE 		8-94393-995-0 01 1 0101- ●
211 BOLT; HSG
(D) M12X70 		9-01666-270-0 11 1 0101- ●
211 BOLT; HSG
(A) M12X60 		0-16806-260-0 01 1 0101- ● ●
211 BOLT; HSG
(B) M10X50 FLANGE 		0-28181-050-0 01 1 0101- ● ●
211 BOLT; HSG
(G) M14X70 FLANGE W/PL WASHER 		8-94396-095-0 02 1 0101- ●
211 BOLT; HSG
(F) M12X128 		8-94399-252-0 02 1 0101- ●
211 BOLT; HSG
(E) M12X65 		9-01666-265-0 01 1 0101- ●
211 BOLT; HSG
(D) M12X70 		9-01666-270-0 09 1 0101- ●
224 STUD; STARTER
M14X35 L=56 		9-04411-435-0 02 1 0101- ● ●
225 STUD; OIL PAN
M8X28 L=38 		8-94396-512-0 04 1 0101- ● ●
228 STUD; AIR CMPR
M12X35 L=53 		9-94411-235-0 01 1 0101- ●
228 STUD; AIR CMPR
M12X77 L=95 		9-09831-161-0 01 1 0101- ●
241 WASHER; PL,HSG
ID=12.5 OD=22 		8-94393-140-1 12 1 0101- ●
241 WASHER; PL,HSG
ID=12.5 OD=22 		8-94393-140-1 13 1 0101- ●
250 BOLT; COVER,OIL
M8X18 FLANGE 		0-28080-818-0 02 1 0101- ● ●
356 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=110 		8-94394-186-0 01 1 0101- ●
404 CASE ASM; BRG,INJ PUMP 8-94391-643-0 01 1 0101- ●
405 SEAL; OIL,BRG CASE 1-09625-576-0 01 1 0101- ●
419 BRACKET; SENSOR 8-94394-773-1 01 1 0101- ● ●
486 BOLT; AIR CMPR
M12X70 FLANGE 		0-28181-270-0 02 1 0101- ●
486 BOLT; AIR CMPR
M12X15 		0-28186-215-0 01 1 0101- ●
487 COVER; HOLE 8-94394-513-1 01 1 0101- ●

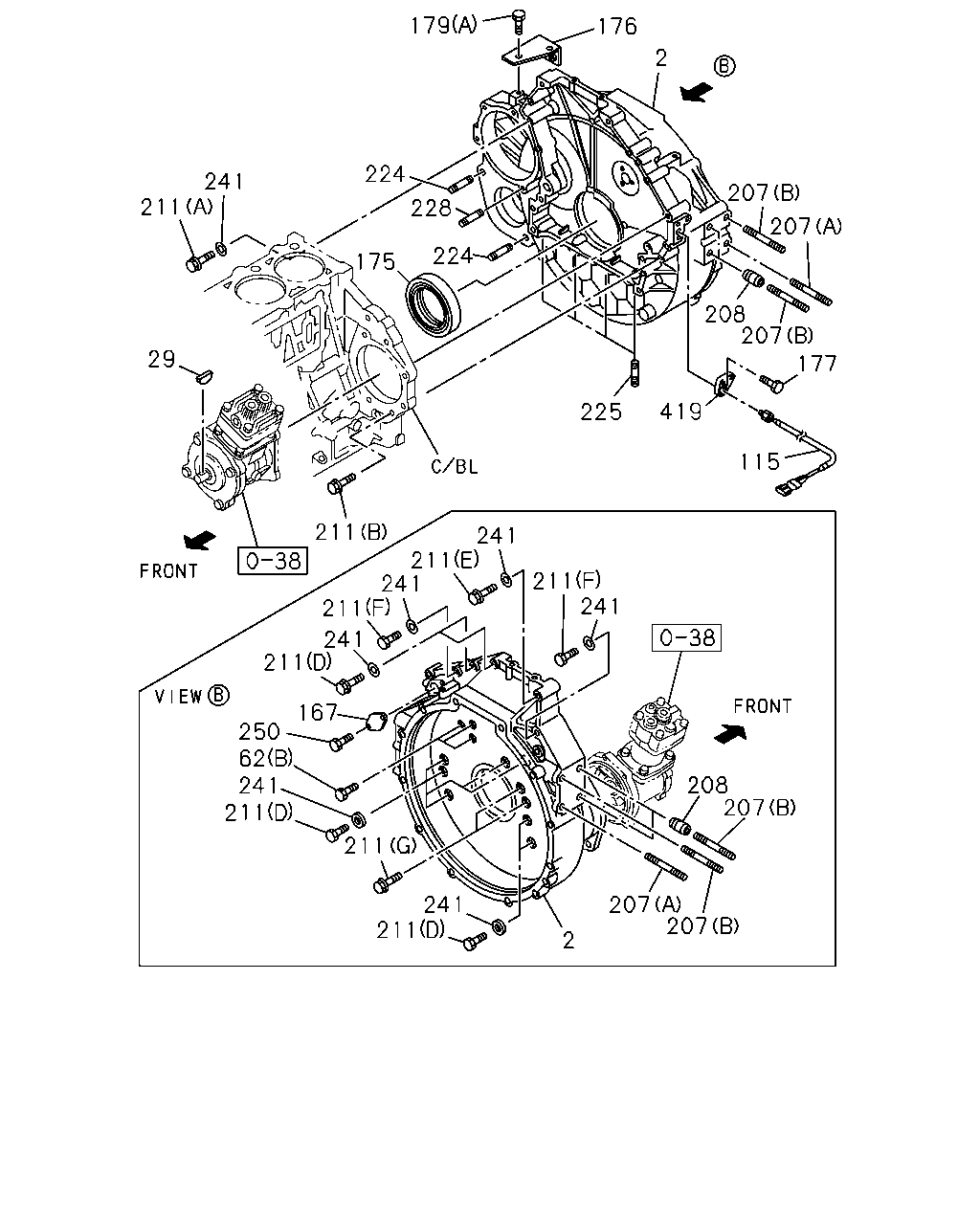

çizim 8923
179 176 2 224 228 241 211 207 207 224 175 208 207 177 29 419 225 115 211 241 211 241 211 241 211 211 241 167 250 62 241 211 208 207 211 241 211 207 207 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 HOUSING; FLYWHEEL 8-97601-767-0 01 1 0101- ●
2 HOUSING; FLYWHEEL 8-94391-638-4 01 1 0101- ●
29 KEY; COUPLING 9-08055-516-0 01 1 0101- ● ●
62 BOLT; COVER
(A) M8X14 FLANGE 		0-28080-814-0 03 1 0101- ●
62 BOLT; COVER
(B) M8X20 FLANGE 		0-28080-820-0 03 1 0101- ● ●
115 SENSOR; REVOLUTION,ENG SPD 1-81510-549-3 01 1 0101- ● ●
167 COVER; OIL 1-11219-163-0 01 1 0101- ● ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94370-637-0 01 1 0101-0112 ● ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97602-379-0 01 1 0201- ● ●
176 BRACKET; HARNESS 1-82699-828-1 01 1 0101- ●
176 BRACKET; HARNESS 1-82699-412-1 01 1 0101- ●
177 BOLT; SENSOR
M8X25 FLANGE 		0-28680-825-0 02 1 0101- ● ●
179 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 01 1 0101- ● ●
179 BOLT; BRKT
(B) M8X20 FLANGE 		0-28080-820-0 02 1 0101- ● ●
207 STUD; ENG FOOT
(A) M12X24 L=104 		8-94390-111-0 02 1 0101- ● ●
207 STUD; ENG FOOT
(B) M12X10 L=55 		9-94321-255-0 06 1 0101- ● ●
208 DOWEL; ENG FOOT 9-43269-009-1 04 1 0101- ● ●
211 BOLT; HSG
(C) M14X27 FLANGE 		8-94393-995-0 01 1 0101- ●
211 BOLT; HSG
(D) M12X70 		9-01666-270-0 11 1 0101- ●
211 BOLT; HSG
(A) M12X60 		0-16806-260-0 01 1 0101- ● ●
211 BOLT; HSG
(B) M10X50 FLANGE 		0-28181-050-0 01 1 0101- ● ●
211 BOLT; HSG
(G) M14X70 FLANGE W/PL WASHER 		8-94396-095-0 02 1 0101- ●
211 BOLT; HSG
(F) M12X128 		8-94399-252-0 02 1 0101- ●
211 BOLT; HSG
(E) M12X65 		9-01666-265-0 01 1 0101- ●
211 BOLT; HSG
(D) M12X70 		9-01666-270-0 09 1 0101- ●
224 STUD; STARTER
M14X35 L=56 		9-04411-435-0 02 1 0101- ● ●
225 STUD; OIL PAN
M8X28 L=38 		8-94396-512-0 04 1 0101- ● ●
228 STUD; AIR CMPR
M12X35 L=53 		9-94411-235-0 01 1 0101- ●
228 STUD; AIR CMPR
M12X77 L=95 		9-09831-161-0 01 1 0101- ●
241 WASHER; PL,HSG
ID=12.5 OD=22 		8-94393-140-1 12 1 0101- ●
241 WASHER; PL,HSG
ID=12.5 OD=22 		8-94393-140-1 13 1 0101- ●
250 BOLT; COVER,OIL
M8X18 FLANGE 		0-28080-818-0 02 1 0101- ● ●
419 BRACKET; SENSOR 8-94394-773-1 01 1 0101- ● ●

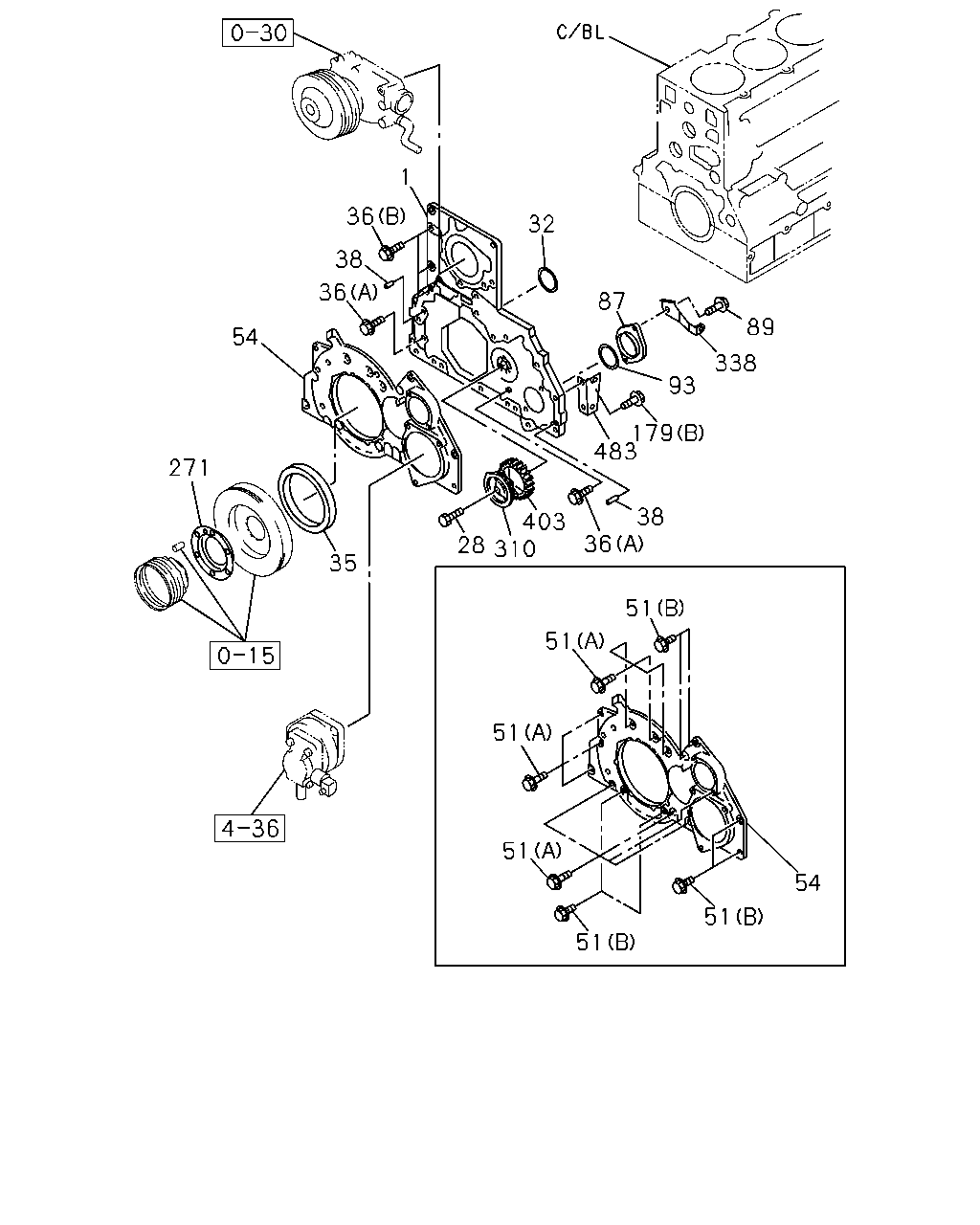

çizim 43740
1 36 32 38 36 87 89 54 338 93 179 483 271 38 36 403 28 310 35 51 51 51 51 54 51 51
BalonParca AdiParca NoAdetTipApplied Date A B
1 CASE; TIMING GEAR 8-94396-434-6 01 1 0101- ● ●
28 BOLT; DRIVE GEAR
M8X28 		8-94399-256-0 03 1 0101- ● ●
32 GASKET; GEAR CASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.1 		8-97028-748-1 01 1 0101- ● ●
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137 		8-94396-199-1 01 1 0101-0112 ● ●
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137 		8-97602-378-0 01 1 0201- ● ●
36 BOLT; GEAR CASE
(A) M8X28 FLANGE 		0-28080-828-0 02 1 0101- ● ●
36 BOLT; GEAR CASE
(B) M8X32 FLANGE 		0-28080-832-0 04 1 0101- ● ●
38 PIN; GEAR CASE COVER
L=22 		8-94483-674-0 02 1 0101- ● ●
51 BOLT; GEAR CASE COVER
(A) M8X40 FLANGE 		0-28080-840-0 11 1 0101- ● ●
51 BOLT; GEAR CASE COVER
(B) M8X20 FLANGE 		0-28680-820-0 06 1 0101- ● ●
54 COVER; GEAR CASE 8-94393-304-1 01 1 0101- ● ●
87 COVER; TACHOMETER DRIVE 8-94396-370-0 01 1 0101- ● ●
89 BOLT; ELBOW
M8X18 FLANGE 		0-28080-818-0 02 1 0101- ● ●
93 GASKET; ELBOW
ALSO INCLUDED IN GASKET SET(ENGINE). OD=54.7 		1-09623-180-0 01 1 0101- ● ●
179 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 01 1 0101- ● ●
179 BOLT; BRKT
(B) M8X20 FLANGE 		0-28080-820-0 02 1 0101- ● ●
271 COVER; DUST 8-94395-287-1 01 1 0101- ● ●
310 SHAFT; IDLE GEAR 8-94394-806-0 01 1 0101- ● ●
338 BRACKET; CLIP,HARNESS 1-82699-889-0 01 1 0101- ● ●
403 GEAR; IDLE,FRONT
Z=33 		8-94395-943-1 01 1 0101- ● ●
483 BRACKET; WATER DUCT 8-94394-405-1 01 1 0101- ● ●
