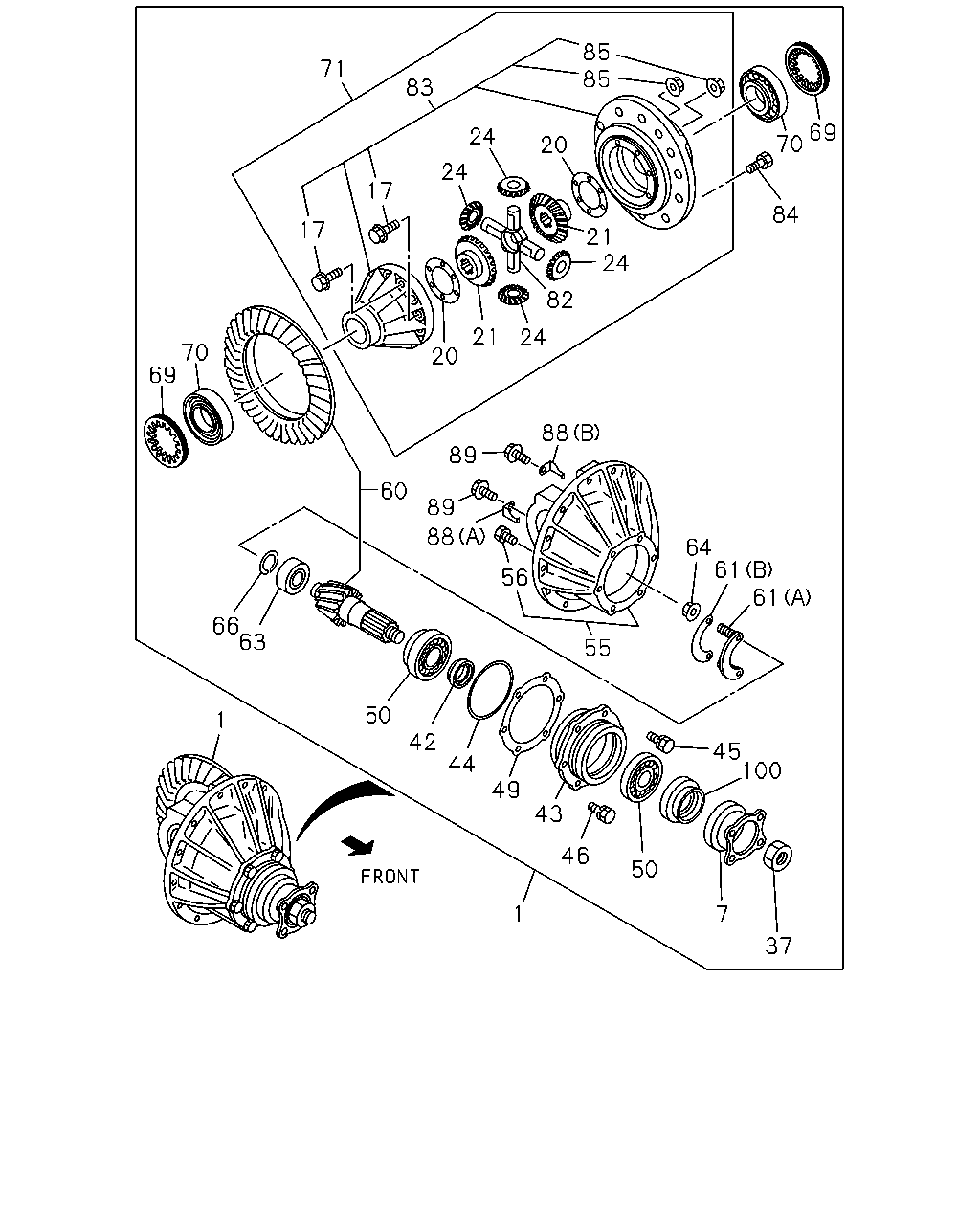

4-25 — REAR FINAL DRIVE (#75349) — 52 parça

85 85 71 83 69 70 24 20 24 17 84 17 21 24 82 21 24 70 69 20 88 89 60 89 88 64 61 61 56 66 63 55 50 1 42 45 100 44 49 43 46 50 1 7 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DRIVE ASM; FINAL,RR 41/10	8-98015-135-0	01	1	0804-	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/7(GV1) 39/7	8-98015-141-0	01	1	0804-		●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/8(RU1) 41/8	8-98015-139-0	01	1	0804-		●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/8(R40) 43/8	8-98015-140-0	01	1	0804-		●	●
7	FLANGE; FINAL	8-94477-723-4	01	1	0804-	●	●	●
17	BOLT; DIFF CAGE SETTING M10X75 FLANGE	8-97232-161-0	12	1	0804-	●	●	●
20	WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	0804-	●	●	●
21	GEAR; SIDE,DIFF Z=20	8-97362-599-1	02	1	0804-	●	●	●
24	GEAR; PINION,DIFF Z=10	8-98015-202-0	04	1	0804-	●	●	●
37	NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	0804-	●	●	●
42	COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	0804-	●	●	●
43	CAGE; FINAL PINION	8-94400-890-0	01	1	0804-	●	●	●
44	GASKET; PINION CAGE	9-09720-505-0	01	1	0804-	●	●	●
45	BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50051-238-0	05	1	0804-0909	●	●	●
45	BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50551-238-0	05	1	0910-1311	●	●	●
45	BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	8-98221-264-0	05	1	1312-	●	●	●
46	BOLT M14X35 W/LK WASHER	0-50051-435-0	01	1	0804-0909	●	●	●
46	BOLT M14X35 W/LK WASHER	0-50551-435-0	01	1	0910-	●	●	●
49	SHIM; FINAL PINION CAGE ID=132 T=0.10	8-94401-335-0	AR	1	0804-	●	●	●
49	SHIM; FINAL PINION CAGE ID=132 T=0.12	8-94401-336-0	AR	1	0804-	●	●	●
49	SHIM; FINAL PINION CAGE ID=132 T=0.14	8-94401-337-0	AR	1	0804-	●	●	●
49	SHIM; FINAL PINION CAGE ID=132 T=0.16	8-94401-338-0	AR	1	0804-	●	●	●
49	SHIM; FINAL PINION CAGE ID=132 T=0.18	8-94401-339-0	AR	1	0804-	●	●	●
49	SHIM; FINAL PINION CAGE ID=132 T=0.20	8-94401-340-0	AR	1	0804-	●	●	●
50	BEARING; FINAL PINION JTEKT	5-09812-062-1	02	1	0804-	●	●	●
50	BEARING; FINAL PINION NSK	5-09812-063-0	02	1	0804-	●	●	●
55	CARRIER; DIFF	8-97307-760-0	01	1	0804-	●	●	●
56	BOLT; BRG CAP M14X80	8-94365-377-3	04	1	0804-	●	●	●
60	GEAR SET; FINAL DRIVE,RR 41/10	8-97319-153-0	01	1	0804-1311	●
60	GEAR SET; FINAL DRIVE,RR 41/10	8-98092-055-0	01	1	1312-	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 39/7(GV1) 39/7	8-97319-160-0	01	1	0804-		●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/8(RU1) 41/8	8-97319-158-0	01	1	0804-		●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/8(R40) 43/8	8-97319-159-0	01	1	0804-		●	●
61	RETAINER; PILOT BRG,PINION (A) W/STUD	5-41227-001-0	01	1	0804-	●	●	●
61	RETAINER; PILOT BRG,PINION (B)	9-41227-601-0	01	1	0804-	●	●	●
63	BEARING; PINION PILOT NSK	5-09810-008-1	01	1	0804-	●	●	●
63	BEARING; PINION PILOT JTEKT	8-97107-548-0	01	1	0804-	●	●	●
64	NUT; RET M6 FLANGE SOU	0-91180-106-0	02	1	0804-	●	●	●
66	RING; SNAP,PILOT BRG	9-09752-002-0	01	1	0804-	●	●	●
69	NUT; ADJ,DIFF CAGE M110 H=10	5-41121-001-0	02	1	0804-	●	●	●
70	BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	0804-	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	8-98015-181-1	01	1	0804-	●
71	CAGE ASM; DIFF,FINAL DRIVE	8-98015-182-1	01	1	0804-		●	●
82	SPIDER; DIFF PINION	5-41521-008-0	01	1	0804-	●	●	●
83	CAGE ASM; DIFF	8-97319-398-1	01	1	0804-	●
83	CAGE ASM; DIFF	8-97319-396-1	01	1	0804-		●	●
84	BOLT; FINAL DRIVE GEAR M14X25	8-97318-938-1	12	1	0804-	●	●	●
85	NUT; DIFF CAGE SETTING M10 FLANGE SOU	0-91180-210-0	12	1	0804-	●	●	●
88	PLATE; LK,ADJ NUT (A)	8-97027-281-0	AR	1	0804-	●	●	●
88	PLATE; LK,ADJ NUT (B)	8-97027-282-0	AR	1	0804-	●	●	●
89	BOLT; LK PLATE M8X16 FLANGE SOU	0-28050-816-0	02	1	0804-	●	●	●
100	SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	0804-	●	●	●
