◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51146 - NLR/NMR(SOUTHAFRICA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-20 - REAR AXLE CASE AND SHAFT ▶
4-20 — REAR AXLE CASE AND SHAFT (#75348) — 38 parça

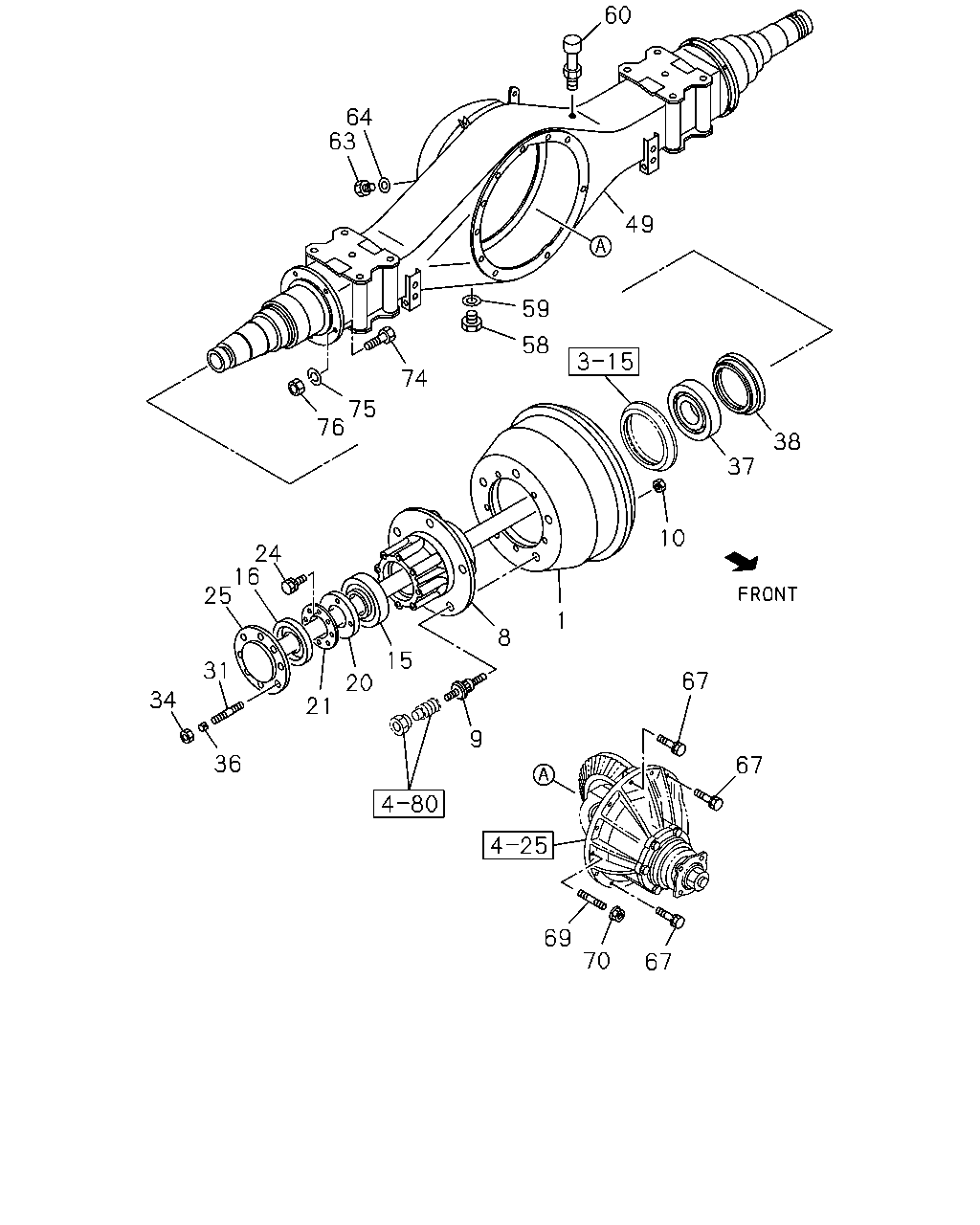

çizim 123020
60 64 63 49 59 58 74 75 76 38 37 10 24 16 25 1 8 15 31 67 20 34 21 9 36 67 69 70 67
BalonParca AdiParca NoAdetTipApplied Date A B C
1 DRUM; BRK,RR 8-97034-770-3 02 1 0804-1310 ● ● ●
1 DRUM; BRK,RR 8-98248-900-0 02 1 1311- ● ● ●
8 HUB; RR AXLE 8-97034-406-4 02 1 0804- ● ● ●
9 PIN; WHEEL,RR AXLE
M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-2 05 1 0804- ● ● ●
9 PIN; WHEEL,RR AXLE
M18X29,M20X43.5 RH THREAD 		8-94383-436-2 05 1 0804- ● ● ●
10 NUT; WHEEL PIN,RR AXLE
M20 		0-91110-520-0 10 1 0804- ● ● ●
15 BEARING; HUB OUTER,RR AXLE
NSK 		9-00093-082-0 02 1 0804- ● ● ●
15 BEARING; HUB OUTER,RR AXLE
BEST VALUE PARTS 		5-87610-140-0 02 1 0804- ● ● ●
16 SEAL; OIL,RR HUB,OUTER
TKK 		8-94336-315-2 02 1 0804-1207 ● ● ●
16 SEAL; OIL,RR HUB,OUTER
NOK 		8-98202-911-0 02 1 1208- ● ● ●
16 SEAL; OIL,RR HUB,OUTER
NOK 		8-94367-961-1 02 1 0804-1106 ● ● ●
20 NUT; BRG,RR HUB
M52 		8-97137-092-0 02 1 0804-1303 ● ● ●
20 NUT; BRG,RR HUB
M52 		8-98236-850-0 02 1 1304- ● ● ●
21 WASHER; LK,BRG NUT
ID=52 		9-09853-214-0 02 1 0804- ● ● ●
24 BOLT; LK WASHER
M6X10 FLANGE SOU 		0-28050-610-0 04 1 0804- ● ● ●
25 SHAFT; AXLE,RR 8-97032-495-0 02 1 0804- ●
25 SHAFT; AXLE,RR 8-97032-496-0 02 1 0804- ● ●
31 STUD; AXLE SHAFT TO HUB
M10X30 L=49 		8-97359-803-0 16 1 0804- ● ● ●
34 NUT; AXLE SHAFT
M10 FLANGE SOU 		0-91180-210-0 16 1 0804- ● ● ●
36 WASHER; SPECIAL,AXLE SHAFT
ID=10.5 		8-97360-004-0 16 1 0804- ● ● ●
37 BEARING; HUB INNER,RR AXLE
NSK 		9-00093-081-0 02 1 0804- ● ● ●
37 BEARING; HUB INNER,RR AXLE
BEST VALUE PARTS 		5-87610-142-0 02 1 0804- ● ● ●
38 SEAL; OIL,RR HUB,INNER
TKK 		8-94336-314-1 02 1 0804- ● ● ●
38 SEAL; OIL,RR HUB,INNER
NOK 		8-94367-959-0 02 1 0804- ● ● ●
49 CASE; RR AXLE 8-97251-367-2 01 1 0804- ●
49 CASE; RR AXLE 8-97251-368-3 01 1 0804- ● ●
58 PLUG; DRAIN,AXLE CASE
M16X12.5 SOU 		8-97307-060-0 01 1 0804- ● ● ●
59 GASKET; DRAIN PLUG
ID=16.2 OD=24 		9-09571-416-0 01 1 0804- ● ● ●
60 BREATHER; RR AXLE CASE
L=29 SOU 		8-98006-960-0 01 1 0804- ● ● ●
63 PLUG; OIL FILLER,AXLE CASE
M20X10.5 		8-98009-333-0 01 1 0804- ● ● ●
64 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30 SOU 		8-94462-734-0 01 1 0804- ● ● ●
67 BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER 		0-50061-040-0 11 1 0804-0909 ● ● ●
67 BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER 		0-50561-040-0 11 1 0910- ● ● ●
69 STUD; AXLE CASE
M10X40.5 L=52.5 		8-97359-802-0 02 1 0804- ● ● ●
70 NUT; CARRIER
M10 FLANGE SOU 		0-91180-210-0 02 1 0804- ● ● ●
74 BOLT; RR BRK ASM SETTING
M12X32 		8-97359-819-0 12 1 0804- ● ● ●
75 WASHER; LK,RR BRK ASM SETTING
ID=12.2 		0-91510-812-0 12 1 0804- ● ● ●
76 NUT; RR BRK ASM SETTING
M12 SOU 		0-91110-512-0 12 1 0804- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
