◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51146 - NLR/NMR(SOUTHAFRICA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-11 - FRONT HUB AND DRUM OR ROTOR ▶
4-11 — FRONT HUB AND DRUM OR ROTOR (#75347) — 50 parça

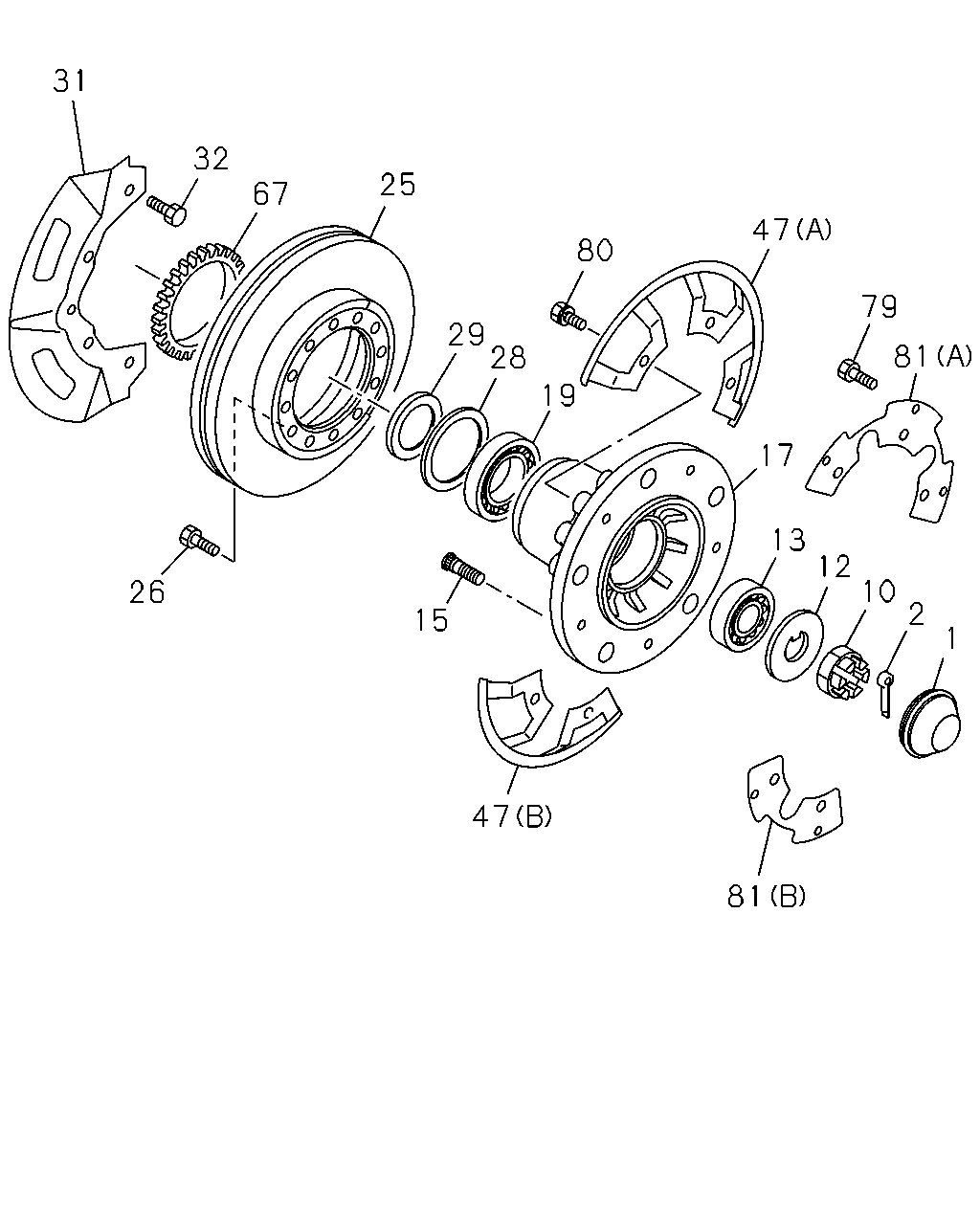

çizim 122408
31 32 25 67 47 80 79 29 28 81 19 17 13 12 10 2 26 15 1 47 81
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CAP; HUB,FRT AXLE 8-97360-101-0 02 1 0804-1407 ● ● ●
1 CAP; HUB,FRT AXLE 8-98276-604-0 02 1 1408- ● ● ●
2 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		0-81125-040-0 02 1 0804- ● ● ●
10 NUT; FRT HUB BRG 8-94247-357-1 02 1 0804- ● ● ●
12 WASHER; LK,FRT HUB BRG 8-94247-356-1 02 1 0804-1502 ● ● ●
12 WASHER; LK,FRT HUB BRG 8-98282-435-0 02 1 1503- ● ● ●
13 BEARING; HUB OUTER,FRT AXLE
NSK 		9-00093-172-0 02 1 0804- ● ● ●
13 BEARING; HUB OUTER,FRT AXLE
BEST VALUE PARTS 		5-87610-134-0 02 1 0804- ● ● ●
15 PIN; WHEEL,FRT AXLE
M18X46 LH THREAD 		8-98028-533-1 05 1 0804- ● ● ●
15 PIN; WHEEL,FRT AXLE
M18X46 RH THREAD 		8-98028-532-1 05 1 0804- ● ● ●
17 HUB; FRT AXLE 8-97035-160-0 02 1 0804- ● ● ●
19 BEARING; HUB INNER,FRT AXLE
JTEKT 		8-94248-088-2 02 1 0804-1009 ● ● ●
19 BEARING; HUB INNER,FRT AXLE
JTEKT 		8-98171-254-0 02 1 1010- ● ● ●
19 BEARING; HUB INNER,FRT AXLE
NSK 		9-00093-149-0 02 1 0804-1009 ● ● ●
19 BEARING; HUB INNER,FRT AXLE
BEST VALUE PARTS 		1-87610-134-0 02 1 1010- ● ● ●
25 ROTOR; DISC BRK,FRT 8-97387-229-0 02 1 0804- ● ● ●
26 BOLT; BRK,DISC TO HUB 8-94474-923-0 24 1 0804- ● ● ●
28 SEAL; OIL,FRT HUB 8-94248-117-1 02 1 0804- ● ● ●
29 DISTANCE PIECE; HUB BRKT
NTN 		8-97234-513-0 02 1 0804- ● ● ●
31 COVER; DUST,FRT BRAKE 8-98037-377-0 02 1 0804- ● ● ●
32 BOLT; DUST COVER TO KNUCKLE
M8X12 FLANGE 		0-28050-812-0 08 1 0804- ● ● ●
47 HOLDER; TIRE VALVE,FRT HUB
(A) 		8-97228-399-0 02 1 0804- ● ●
47 HOLDER; TIRE VALVE,FRT HUB
(B) 		8-97228-400-0 02 1 0804- ● ●
67 ROTOR; SENSOR 8-97387-159-0 02 1 0804- ● ● ●
79 BOLT; BRKT
M8X12 FLANGE 		0-28050-812-0 10 1 0804- ● ●
80 BOLT; VALVE HOLDER
M10X16 FLANGE 		0-28051-016-0 10 1 0804- ● ●
81 BRACKET; VALVE HOLDER
(A) 		8-97214-248-0 02 1 0804- ● ●
81 BRACKET; VALVE HOLDER
(B) 		8-97214-249-0 02 1 0804- ● ●

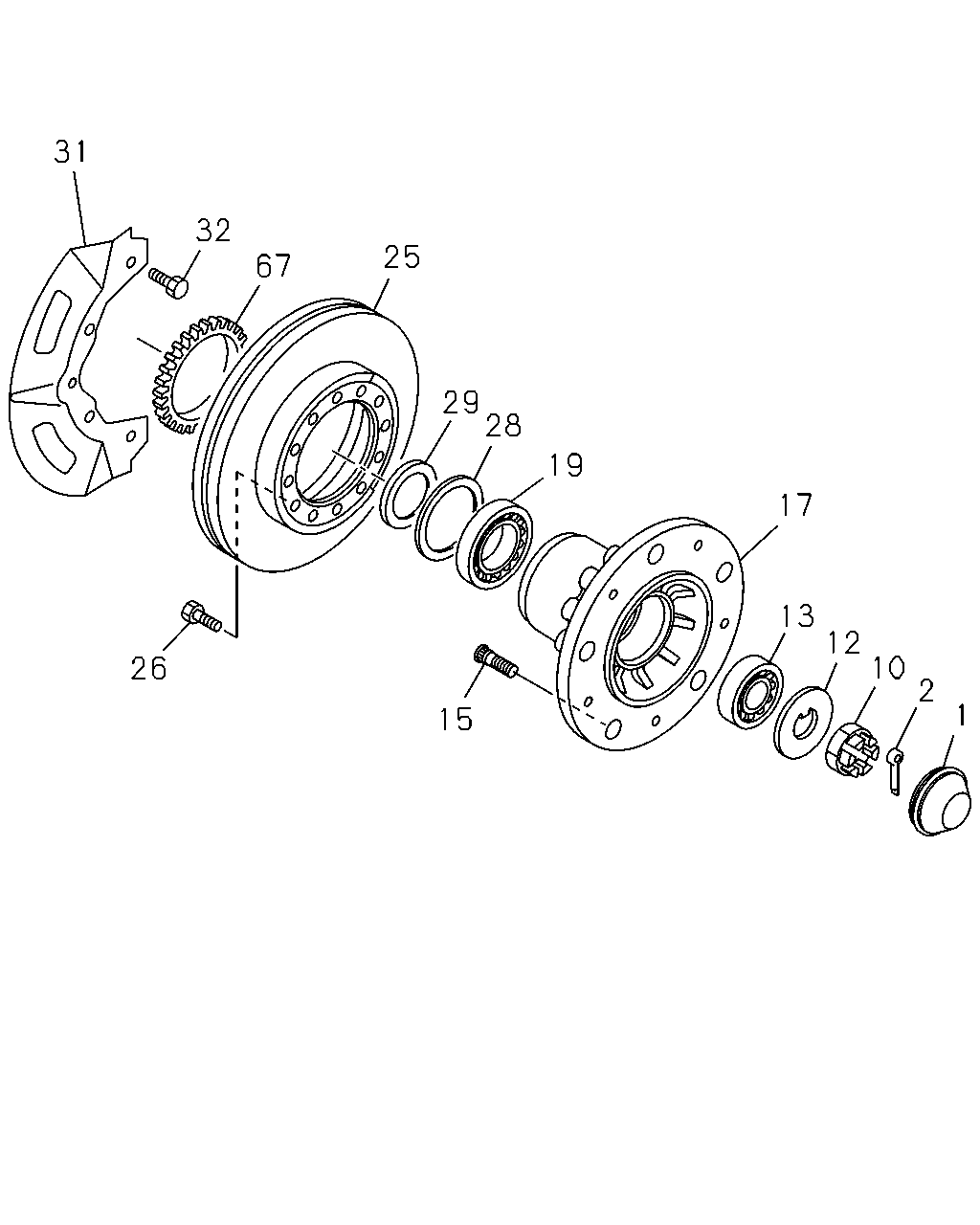

çizim 185508
31 32 25 67 29 28 19 17 13 12 10 2 26 1 15
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CAP; HUB,FRT AXLE 8-97360-101-0 02 1 0804-1407 ● ● ●
1 CAP; HUB,FRT AXLE 8-98276-604-0 02 1 1408- ● ● ●
2 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		0-81125-040-0 02 1 0804- ● ● ●
10 NUT; FRT HUB BRG 8-94247-357-1 02 1 0804- ● ● ●
12 WASHER; LK,FRT HUB BRG 8-94247-356-1 02 1 0804-1502 ● ● ●
12 WASHER; LK,FRT HUB BRG 8-98282-435-0 02 1 1503- ● ● ●
13 BEARING; HUB OUTER,FRT AXLE
NSK 		9-00093-172-0 02 1 0804- ● ● ●
13 BEARING; HUB OUTER,FRT AXLE
BEST VALUE PARTS 		5-87610-134-0 02 1 0804- ● ● ●
15 PIN; WHEEL,FRT AXLE
M18X46 LH THREAD 		8-98028-533-1 05 1 0804- ● ● ●
15 PIN; WHEEL,FRT AXLE
M18X46 RH THREAD 		8-98028-532-1 05 1 0804- ● ● ●
17 HUB; FRT AXLE 8-97035-160-0 02 1 0804- ● ● ●
19 BEARING; HUB INNER,FRT AXLE
JTEKT 		8-94248-088-2 02 1 0804-1009 ● ● ●
19 BEARING; HUB INNER,FRT AXLE
JTEKT 		8-98171-254-0 02 1 1010- ● ● ●
19 BEARING; HUB INNER,FRT AXLE
NSK 		9-00093-149-0 02 1 0804-1009 ● ● ●
19 BEARING; HUB INNER,FRT AXLE
BEST VALUE PARTS 		1-87610-134-0 02 1 1010- ● ● ●
25 ROTOR; DISC BRK,FRT 8-97387-229-0 02 1 0804- ● ● ●
26 BOLT; BRK,DISC TO HUB 8-94474-923-0 24 1 0804- ● ● ●
28 SEAL; OIL,FRT HUB 8-94248-117-1 02 1 0804- ● ● ●
29 DISTANCE PIECE; HUB BRKT
NTN 		8-97234-513-0 02 1 0804- ● ● ●
31 COVER; DUST,FRT BRAKE 8-98037-377-0 02 1 0804- ● ● ●
32 BOLT; DUST COVER TO KNUCKLE
M8X12 FLANGE 		0-28050-812-0 08 1 0804- ● ● ●
67 ROTOR; SENSOR 8-97387-159-0 02 1 0804- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
