Sayfa 3-60 - Isuzu EPC

3-60 — BRAKE PIPING; VACUUM (#75344) — 333 parça

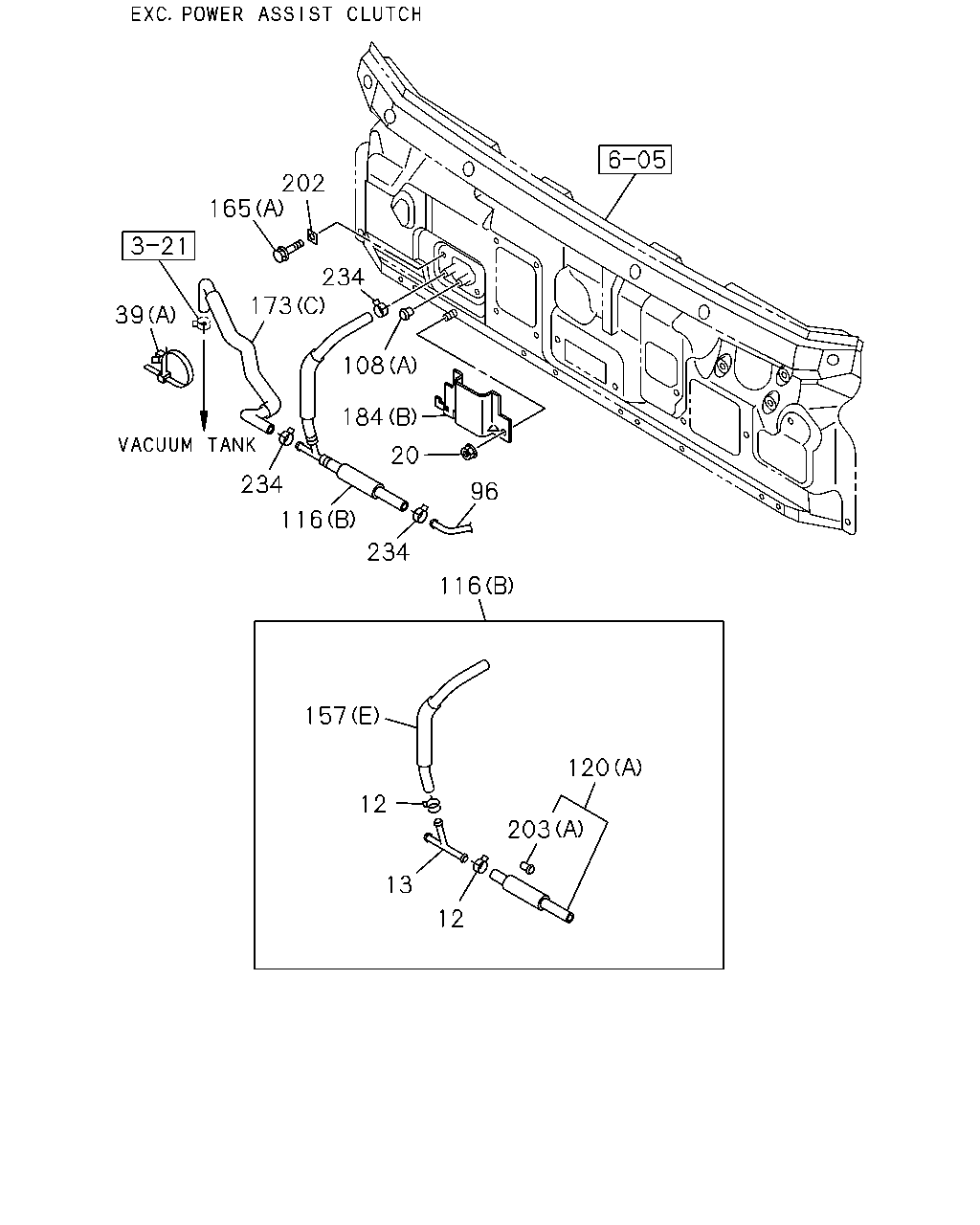

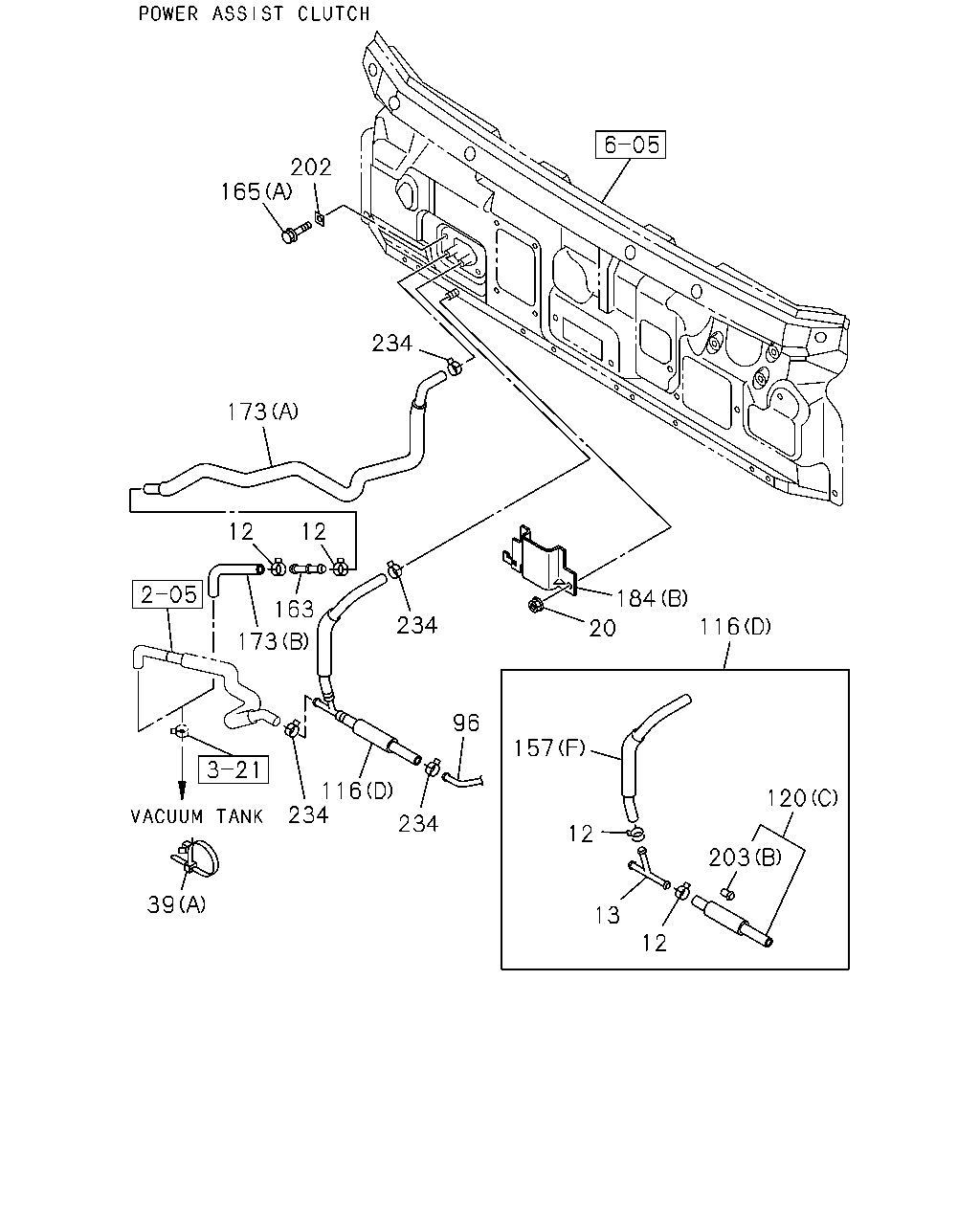

157 157 157 12 157 12 12 13 12 12 13 12 203 120 116 39 116 39 39 39 165 184 165 184 165 184 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) ID=15.5	8-98008-097-0	16	1	0804-	●	●	●
12	CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) ID=15.5	8-98008-097-0	02	1	0804-	●	●	●
13	JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T)	8-98035-106-0	03	1	0804-	●	●	●
13	JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98035-106-0	01	1	0804-	●	●	●
39	CLIP; HOSE,VAC (C) ID=16	8-98008-098-0	02	1	0912-	●	●	●
39	CLIP; HOSE,VAC (A) L=170.3	1-09987-182-0	01	1	0804-	●	●	●
39	CLIP; HOSE,VAC (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911	●	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911	●	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	02	1	0912-	●	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	04	1	0804-	●	●	●
116	HOSE; VAC,M/VAC (E) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	0804-	●	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	0804-	●	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	0804-	●	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	0804-	●	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	0804-	●	●	●
120	HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (C)	8-97389-695-2	01	1	0804-	●	●	●
120	HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98027-352-3	01	1	0804-	●	●	●
120	HOSE; VAC,M/VAC,W/CHECK VALVE EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97389-696-2	01	1	0804-	●	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) (F)	8-98017-168-3	01	1	0804-	●	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) (D)	8-98027-350-3	01	1	0804-	●	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98027-351-3	01	1	0804-	●	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98027-353-3	01	1	0804-	●	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) (A)	8-98027-354-2	01	1	0804-	●	●	●
157	HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98022-868-3	01	1	0804-	●	●	●
165	BOLT; BRKT (B) M6X16 FLANGE SOU	0-28650-616-0	01	1	0804-1001	●	●	●
165	BOLT; BRKT EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE SOU	0-28650-616-0	01	1	1002-	●	●	●
165	BOLT; BRKT (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	0804-	●	●	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-548-0	01	1	1312-	●	●	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98155-345-0	01	1	1002-1103	●	●	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-467-1	01	1	1104-	●	●	●
184	BRACKET; UNION FIX (A)	8-97389-686-1	01	1	0804-1001	●	●	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (A)	8-97389-686-1	01	1	1002-1103	●	●	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (A)	8-98183-462-1	01	1	1104-1311	●	●	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-535-0	01	1	1312-	●	●	●
184	BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (B)	8-98017-628-1	01	1	0804-	●	●	●
203	VALVE; CHECK (A) SOU	8-94386-540-0	01	1	0804-	●	●	●
203	VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B) SOU	8-94104-021-0	01	1	0804-	●	●	●

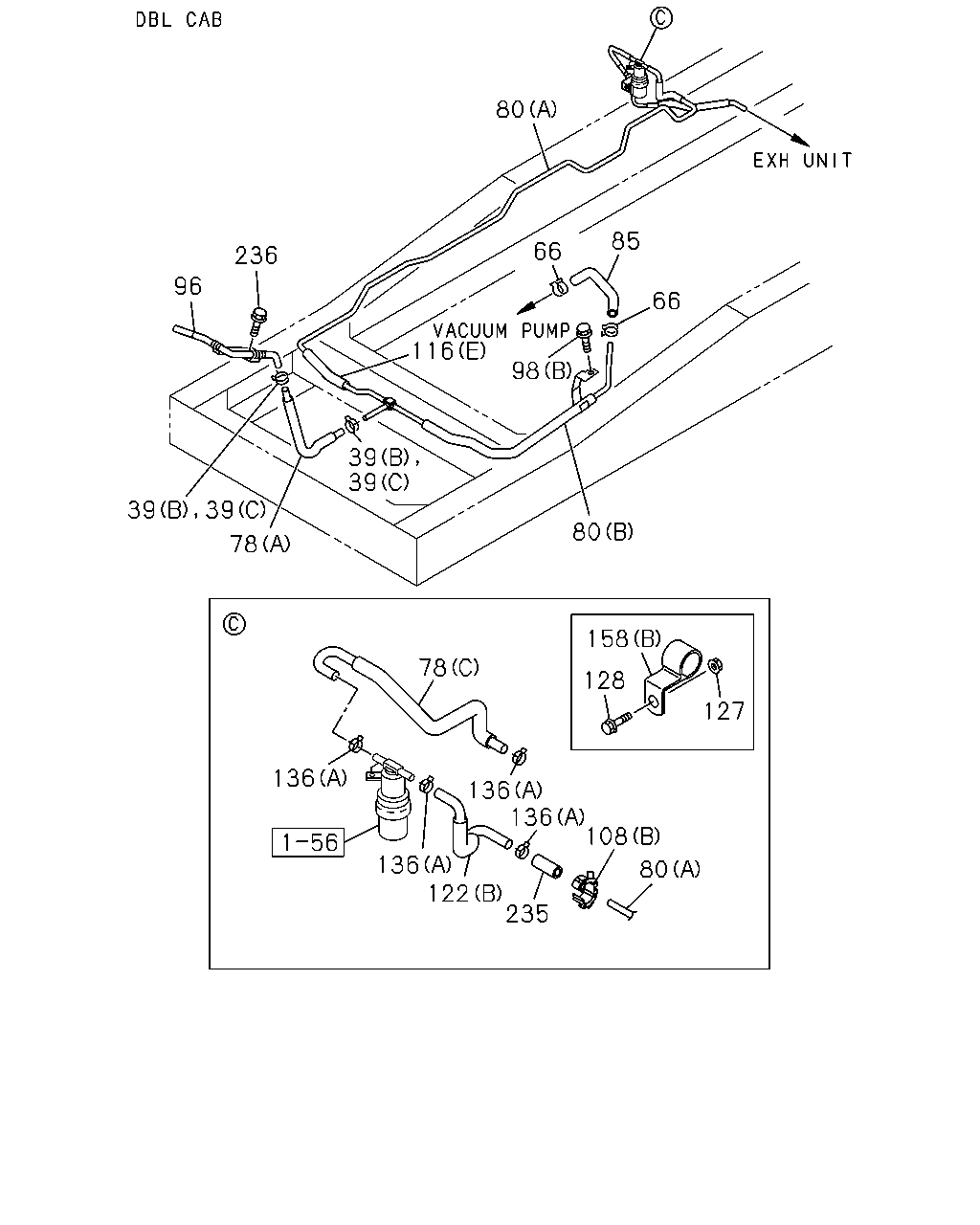

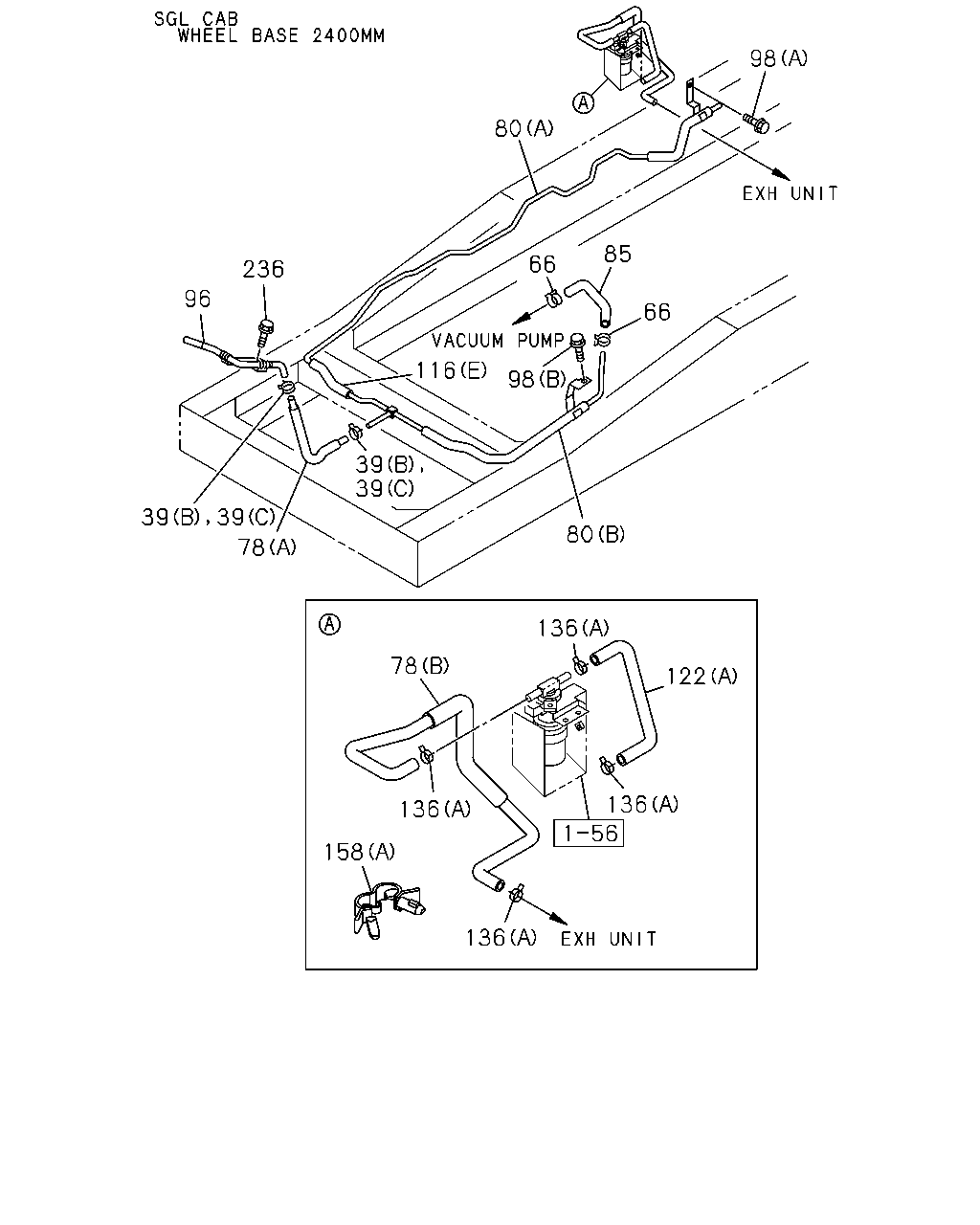

98 80 85 66 236 96 66 116 98 39 39 80 78 136 78 122 136 136 158 136 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
39	CLIP; HOSE,VAC (C) ID=16	8-98008-098-0	02	1	0912-	●	●	●
39	CLIP; HOSE,VAC (A) L=170.3	1-09987-182-0	01	1	0804-	●	●	●
39	CLIP; HOSE,VAC (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911	●	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911	●	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	02	1	0912-	●	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	04	1	0804-	●	●	●
66	CLIP; VAC HOSE,M/VAC ID=16 SOU	8-94238-568-0	02	1	0804-0911	●	●	●
66	CLIP; VAC HOSE,M/VAC ID=16	8-98008-098-0	02	1	0912-	●	●	●
78	HOSE; VAC,PIPE TO PIPE (B)	8-98098-174-0	01	1	0804-	●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 2400MM(24W) (B)	8-98098-174-0	01	1	0804-		●
78	HOSE; VAC,PIPE TO PIPE (A)	8-97389-745-1	01	1	0804-	●	●	●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) (D)	8-98042-690-1	01	1	0804-1104		●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) (E)	8-98189-223-0	01	1	1105-		●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) (E)	8-98042-691-2	01	1	0804-1104		●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) (D)	8-98189-224-0	01	1	1105-		●
78	HOSE; VAC,PIPE TO PIPE (C)	8-98068-245-0	01	1	0804-1008			●
78	HOSE; VAC,PIPE TO PIPE (C)	8-98171-283-0	01	1	1009-			●
80	PIPE; VAC,ENG SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98056-002-2	01	1	0804-1303	●	●
80	PIPE; VAC,ENG SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98056-002-2	01	1	1304-1309	●
80	PIPE; VAC,ENG SIDE (A)	8-98056-002-2	01	1	1304-1309		●
80	PIPE; VAC,ENG SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98056-002-2	01	1	1310-	●	●
80	PIPE; VAC,ENG SIDE FRAME EQUIPMENT HEAVY DUTY VAR2<F01> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98056-002-2	01	1	1310-		●
80	PIPE; VAC,ENG SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98065-063-2	01	1	0804-1303	●	●
80	PIPE; VAC,ENG SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98065-063-2	01	1	1304-1309	●
80	PIPE; VAC,ENG SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98065-063-2	01	1	1310-	●
80	PIPE; VAC,ENG SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME EQUIPMENT HEAVY DUTY VAR2<F01> (A)	8-98065-063-2	01	1	1310-		●
80	PIPE; VAC,ENG SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98075-014-0	01	1	0804-	●	●	●
80	PIPE; VAC,ENG SIDE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98064-345-2	01	1	0804-	●	●	●
80	PIPE; VAC,ENG SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98071-771-0	01	1	0804-			●
80	PIPE; VAC,ENG SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98066-971-0	01	1	0804-			●
85	HOSE; VAC,ENG SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98075-176-0	01	1	0804-	●	●	●
85	HOSE; VAC,ENG SIDE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98092-071-0	01	1	0804-0810	●	●	●
85	HOSE; VAC,ENG SIDE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98135-573-0	01	1	0811-	●	●	●
96	PIPE; VAC,M/VAC TO VAC PUMP	8-98039-736-1	01	1	0804-	●	●	●
98	BOLT; VAC PIPE FIX (A) M10X30 FLANGE SOU	0-28651-030-0	01	1	0804-	●	●
98	BOLT; VAC PIPE FIX EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) M8X20 FLANGE	0-28650-820-0	01	1	0804-	●	●	●
116	HOSE; VAC,M/VAC (E) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	0804-	●	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	0804-	●	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	0804-	●	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	0804-	●	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	0804-	●	●	●
122	HOSE; AIR,MAG VLV TO AIR PIPE (A)	8-98076-068-1	01	1	0804-	●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2400MM(24W) (A)	8-98076-068-1	01	1	0804-		●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) (D)	8-98042-689-2	01	1	0804-1104		●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) (C)	8-98189-222-0	01	1	1105-		●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) (C)	8-98089-657-0	01	1	0804-1104		●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) (D)	8-98189-226-0	01	1	1105-		●
122	HOSE; AIR,MAG VLV TO AIR PIPE (B)	8-98064-717-1	01	1	0804-			●
136	CLIP; VAC HOSE (A) ID=16 SOU	8-94238-568-0	04	1	0804-0911	●	●	●
136	CLIP; VAC HOSE (A) ID=16	8-98008-098-0	04	1	0912-	●	●	●
136	CLIP; VAC HOSE WHEEL BASE 3300MM(33W) (B) L=140 SOU	5-09707-031-1	01	1	0804-		●
136	CLIP; VAC HOSE WHEEL BASE 3300MM(33W) (A) ID=16 SOU	8-94238-568-0	02	1	0804-0911		●
136	CLIP; VAC HOSE WHEEL BASE 3300MM(33W) (A) ID=16	8-98008-098-0	02	1	0912-		●
158	CLIP; HOSE (A) ID=18-24 L=14.5	1-09709-298-0	01	1	0804-	●
158	CLIP; HOSE WHEEL BASE 2400MM(24W) (A) ID=18-24 L=14.5	1-09709-298-0	01	1	0804-		●
158	CLIP; HOSE (B) ID=28 H=45 L=30	1-09700-707-0	01	1	0804-			●
236	BOLT; PIPE M6X12 FLANGE SOU	0-28050-612-0	01	1	0804-	●	●	●

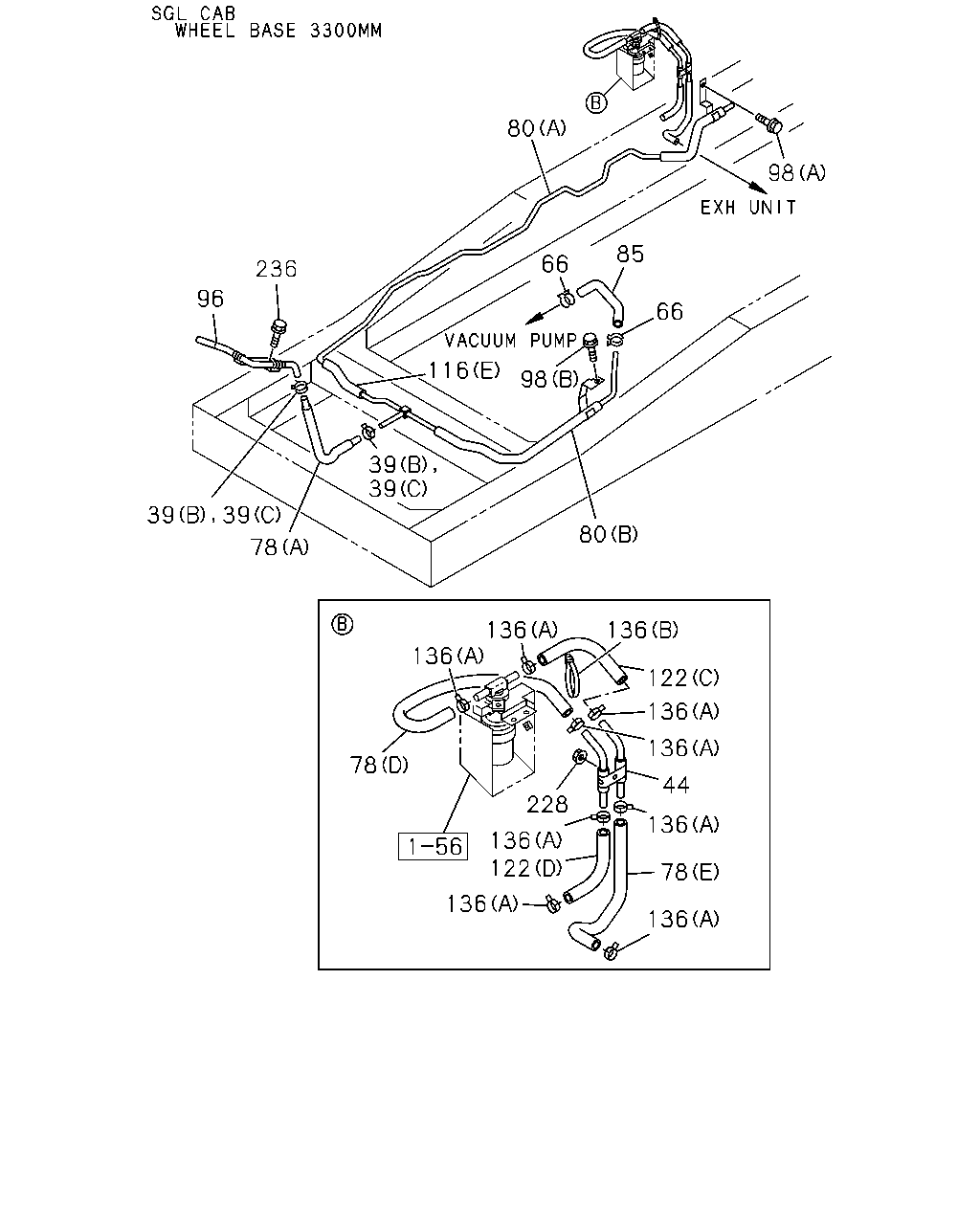

80 98 85 66 236 96 66 116 98 39 39 80 78 136 136 136 122 136 136 78 44 228 136 136 122 78 136 136 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
39	CLIP; HOSE,VAC (C) ID=16	8-98008-098-0	02	1	0912-	●	●	●
39	CLIP; HOSE,VAC (A) L=170.3	1-09987-182-0	01	1	0804-	●	●	●
39	CLIP; HOSE,VAC (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911	●	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911	●	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	02	1	0912-	●	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	04	1	0804-	●	●	●
44	PIPE; VAC,MAG VLV WHEEL BASE 3300MM(33W)	8-98042-654-0	01	1	0804-		●
66	CLIP; VAC HOSE,M/VAC ID=16 SOU	8-94238-568-0	02	1	0804-0911	●	●	●
66	CLIP; VAC HOSE,M/VAC ID=16	8-98008-098-0	02	1	0912-	●	●	●
78	HOSE; VAC,PIPE TO PIPE (B)	8-98098-174-0	01	1	0804-	●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 2400MM(24W) (B)	8-98098-174-0	01	1	0804-		●
78	HOSE; VAC,PIPE TO PIPE (A)	8-97389-745-1	01	1	0804-	●	●	●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) (D)	8-98042-690-1	01	1	0804-1104		●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) (E)	8-98189-223-0	01	1	1105-		●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) (E)	8-98042-691-2	01	1	0804-1104		●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) (D)	8-98189-224-0	01	1	1105-		●
78	HOSE; VAC,PIPE TO PIPE (C)	8-98068-245-0	01	1	0804-1008			●
78	HOSE; VAC,PIPE TO PIPE (C)	8-98171-283-0	01	1	1009-			●
80	PIPE; VAC,ENG SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98056-002-2	01	1	0804-1303	●	●
80	PIPE; VAC,ENG SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98056-002-2	01	1	1304-1309	●
80	PIPE; VAC,ENG SIDE (A)	8-98056-002-2	01	1	1304-1309		●
80	PIPE; VAC,ENG SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98056-002-2	01	1	1310-	●	●
80	PIPE; VAC,ENG SIDE FRAME EQUIPMENT HEAVY DUTY VAR2<F01> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98056-002-2	01	1	1310-		●
80	PIPE; VAC,ENG SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98065-063-2	01	1	0804-1303	●	●
80	PIPE; VAC,ENG SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98065-063-2	01	1	1304-1309	●
80	PIPE; VAC,ENG SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98065-063-2	01	1	1310-	●
80	PIPE; VAC,ENG SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME EQUIPMENT HEAVY DUTY VAR2<F01> (A)	8-98065-063-2	01	1	1310-		●
80	PIPE; VAC,ENG SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98075-014-0	01	1	0804-	●	●	●
80	PIPE; VAC,ENG SIDE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98064-345-2	01	1	0804-	●	●	●
80	PIPE; VAC,ENG SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98071-771-0	01	1	0804-			●
80	PIPE; VAC,ENG SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98066-971-0	01	1	0804-			●
85	HOSE; VAC,ENG SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98075-176-0	01	1	0804-	●	●	●
85	HOSE; VAC,ENG SIDE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98092-071-0	01	1	0804-0810	●	●	●
85	HOSE; VAC,ENG SIDE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98135-573-0	01	1	0811-	●	●	●
96	PIPE; VAC,M/VAC TO VAC PUMP	8-98039-736-1	01	1	0804-	●	●	●
98	BOLT; VAC PIPE FIX (A) M10X30 FLANGE SOU	0-28651-030-0	01	1	0804-	●	●
98	BOLT; VAC PIPE FIX EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) M8X20 FLANGE	0-28650-820-0	01	1	0804-	●	●	●
116	HOSE; VAC,M/VAC (E) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	0804-	●	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	0804-	●	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	0804-	●	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	0804-	●	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	0804-	●	●	●
122	HOSE; AIR,MAG VLV TO AIR PIPE (A)	8-98076-068-1	01	1	0804-	●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2400MM(24W) (A)	8-98076-068-1	01	1	0804-		●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) (D)	8-98042-689-2	01	1	0804-1104		●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) (C)	8-98189-222-0	01	1	1105-		●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) (C)	8-98089-657-0	01	1	0804-1104		●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) (D)	8-98189-226-0	01	1	1105-		●
122	HOSE; AIR,MAG VLV TO AIR PIPE (B)	8-98064-717-1	01	1	0804-			●
136	CLIP; VAC HOSE (A) ID=16 SOU	8-94238-568-0	04	1	0804-0911	●	●	●
136	CLIP; VAC HOSE (A) ID=16	8-98008-098-0	04	1	0912-	●	●	●
136	CLIP; VAC HOSE WHEEL BASE 3300MM(33W) (B) L=140 SOU	5-09707-031-1	01	1	0804-		●
136	CLIP; VAC HOSE WHEEL BASE 3300MM(33W) (A) ID=16 SOU	8-94238-568-0	02	1	0804-0911		●
136	CLIP; VAC HOSE WHEEL BASE 3300MM(33W) (A) ID=16	8-98008-098-0	02	1	0912-		●
228	NUT; PIPE WHEEL BASE 3300MM(33W) M6 FLANGE SOU	0-91180-106-0	01	1	0804-		●
236	BOLT; PIPE M6X12 FLANGE SOU	0-28050-612-0	01	1	0804-	●	●	●

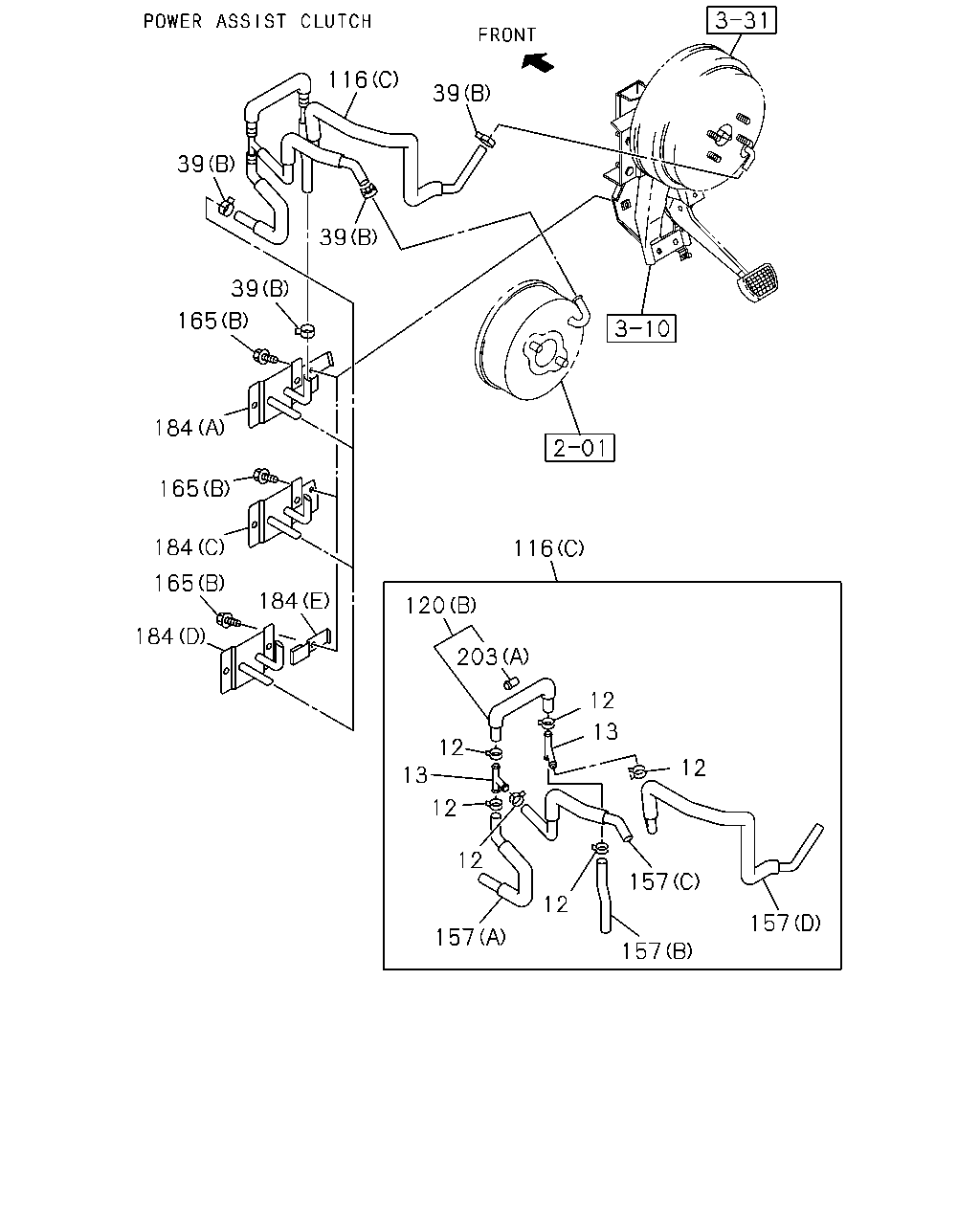

39 116 39 165 165 184 184 165 184 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
39	CLIP; HOSE,VAC (C) ID=16	8-98008-098-0	02	1	0912-	●	●	●
39	CLIP; HOSE,VAC (A) L=170.3	1-09987-182-0	01	1	0804-	●	●	●
39	CLIP; HOSE,VAC (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911	●	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911	●	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	02	1	0912-	●	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	04	1	0804-	●	●	●
116	HOSE; VAC,M/VAC (E) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	0804-	●	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	0804-	●	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	0804-	●	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	0804-	●	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	0804-	●	●	●
165	BOLT; BRKT (B) M6X16 FLANGE SOU	0-28650-616-0	01	1	0804-1001	●	●	●
165	BOLT; BRKT EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE SOU	0-28650-616-0	01	1	1002-	●	●	●
165	BOLT; BRKT (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	0804-	●	●	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-548-0	01	1	1312-	●	●	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98155-345-0	01	1	1002-1103	●	●	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-467-1	01	1	1104-	●	●	●
184	BRACKET; UNION FIX (A)	8-97389-686-1	01	1	0804-1001	●	●	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (A)	8-97389-686-1	01	1	1002-1103	●	●	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (A)	8-98183-462-1	01	1	1104-1311	●	●	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-535-0	01	1	1312-	●	●	●
184	BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (B)	8-98017-628-1	01	1	0804-	●	●	●

202 165 234 173 12 12 184 163 234 116 20 173 96 157 116 234 120 234 12 203 39 13 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) ID=15.5	8-98008-097-0	16	1	0804-	●	●	●
12	CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) ID=15.5	8-98008-097-0	02	1	0804-	●	●	●
13	JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T)	8-98035-106-0	03	1	0804-	●	●	●
13	JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98035-106-0	01	1	0804-	●	●	●
20	NUT; BRKT EXC. PTO MANUAL CONTROL(6WC) M6 FLANGE SOU	0-91180-106-0	01	1	0804-	●	●	●
39	CLIP; HOSE,VAC (C) ID=16	8-98008-098-0	02	1	0912-	●	●	●
39	CLIP; HOSE,VAC (A) L=170.3	1-09987-182-0	01	1	0804-	●	●	●
39	CLIP; HOSE,VAC (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911	●	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911	●	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	02	1	0912-	●	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	04	1	0804-	●	●	●
96	PIPE; VAC,M/VAC TO VAC PUMP	8-98039-736-1	01	1	0804-	●	●	●
116	HOSE; VAC,M/VAC (E) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	0804-	●	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	0804-	●	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	0804-	●	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	0804-	●	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	0804-	●	●	●
120	HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (C)	8-97389-695-2	01	1	0804-	●	●	●
120	HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98027-352-3	01	1	0804-	●	●	●
120	HOSE; VAC,M/VAC,W/CHECK VALVE EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97389-696-2	01	1	0804-	●	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) (F)	8-98017-168-3	01	1	0804-	●	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) (D)	8-98027-350-3	01	1	0804-	●	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98027-351-3	01	1	0804-	●	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98027-353-3	01	1	0804-	●	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) (A)	8-98027-354-2	01	1	0804-	●	●	●
157	HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98022-868-3	01	1	0804-	●	●	●
163	JOINT; VAC HOSE POWER ASSIST CLUTCH(S2T)	8-97353-668-0	01	1	0804-	●	●	●
165	BOLT; BRKT (B) M6X16 FLANGE SOU	0-28650-616-0	01	1	0804-1001	●	●	●
165	BOLT; BRKT EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE SOU	0-28650-616-0	01	1	1002-	●	●	●
165	BOLT; BRKT (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	0804-	●	●	●
173	HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (A)	8-98055-936-1	01	1	0804-1012	●	●	●
173	HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98121-941-0	01	1	1101-	●	●	●
173	HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98055-937-1	01	1	0804-1012	●	●	●
173	HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (A)	8-98121-940-0	01	1	1101-	●	●	●
173	HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98022-870-1	01	1	0804-1012	●	●	●
173	HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98107-558-0	01	1	1101-	●	●	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-548-0	01	1	1312-	●	●	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98155-345-0	01	1	1002-1103	●	●	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-467-1	01	1	1104-	●	●	●
184	BRACKET; UNION FIX (A)	8-97389-686-1	01	1	0804-1001	●	●	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (A)	8-97389-686-1	01	1	1002-1103	●	●	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (A)	8-98183-462-1	01	1	1104-1311	●	●	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-535-0	01	1	1312-	●	●	●
184	BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (B)	8-98017-628-1	01	1	0804-	●	●	●
202	SEAL SOU	8-97856-616-0	02	1	0804-	●	●	●
203	VALVE; CHECK (A) SOU	8-94386-540-0	01	1	0804-	●	●	●
203	VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B) SOU	8-94104-021-0	01	1	0804-	●	●	●
234	CLAMP; PIPE POWER ASSIST CLUTCH(S2T) ID=16 SOU	8-94238-568-0	04	1	0804-	●	●	●
234	CLAMP; PIPE EXC. POWER ASSIST CLUTCH(S2T) ID=16 SOU	8-94238-568-0	03	1	0804-	●	●	●

202 165 234 173 39 108 184 20 234 96 116 234 116 157 120 12 203 13 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) ID=15.5	8-98008-097-0	16	1	0804-	●	●	●
12	CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) ID=15.5	8-98008-097-0	02	1	0804-	●	●	●
13	JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T)	8-98035-106-0	03	1	0804-	●	●	●
13	JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98035-106-0	01	1	0804-	●	●	●
20	NUT; BRKT EXC. PTO MANUAL CONTROL(6WC) M6 FLANGE SOU	0-91180-106-0	01	1	0804-	●	●	●
39	CLIP; HOSE,VAC (C) ID=16	8-98008-098-0	02	1	0912-	●	●	●
39	CLIP; HOSE,VAC (A) L=170.3	1-09987-182-0	01	1	0804-	●	●	●
39	CLIP; HOSE,VAC (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911	●	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911	●	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	02	1	0912-	●	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	04	1	0804-	●	●	●
96	PIPE; VAC,M/VAC TO VAC PUMP	8-98039-736-1	01	1	0804-	●	●	●
108	GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T) (A) SOU	9-09956-353-0	01	1	0804-	●	●	●
108	GROMMET; PIPE (B) ID=17	8-94128-319-2	01	1	0804-			●
116	HOSE; VAC,M/VAC (E) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	0804-	●	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	0804-	●	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	0804-	●	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	0804-	●	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	0804-	●	●	●
120	HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (C)	8-97389-695-2	01	1	0804-	●	●	●
120	HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98027-352-3	01	1	0804-	●	●	●
120	HOSE; VAC,M/VAC,W/CHECK VALVE EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97389-696-2	01	1	0804-	●	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) (F)	8-98017-168-3	01	1	0804-	●	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) (D)	8-98027-350-3	01	1	0804-	●	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98027-351-3	01	1	0804-	●	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98027-353-3	01	1	0804-	●	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) (A)	8-98027-354-2	01	1	0804-	●	●	●
157	HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98022-868-3	01	1	0804-	●	●	●
165	BOLT; BRKT (B) M6X16 FLANGE SOU	0-28650-616-0	01	1	0804-1001	●	●	●
165	BOLT; BRKT EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE SOU	0-28650-616-0	01	1	1002-	●	●	●
165	BOLT; BRKT (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	0804-	●	●	●
173	HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (A)	8-98055-936-1	01	1	0804-1012	●	●	●
173	HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98121-941-0	01	1	1101-	●	●	●
173	HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98055-937-1	01	1	0804-1012	●	●	●
173	HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (A)	8-98121-940-0	01	1	1101-	●	●	●
173	HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98022-870-1	01	1	0804-1012	●	●	●
173	HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98107-558-0	01	1	1101-	●	●	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-548-0	01	1	1312-	●	●	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98155-345-0	01	1	1002-1103	●	●	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-467-1	01	1	1104-	●	●	●
184	BRACKET; UNION FIX (A)	8-97389-686-1	01	1	0804-1001	●	●	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (A)	8-97389-686-1	01	1	1002-1103	●	●	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (A)	8-98183-462-1	01	1	1104-1311	●	●	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-535-0	01	1	1312-	●	●	●
184	BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (B)	8-98017-628-1	01	1	0804-	●	●	●
202	SEAL SOU	8-97856-616-0	02	1	0804-	●	●	●
203	VALVE; CHECK (A) SOU	8-94386-540-0	01	1	0804-	●	●	●
203	VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B) SOU	8-94104-021-0	01	1	0804-	●	●	●
234	CLAMP; PIPE POWER ASSIST CLUTCH(S2T) ID=16 SOU	8-94238-568-0	04	1	0804-	●	●	●
234	CLAMP; PIPE EXC. POWER ASSIST CLUTCH(S2T) ID=16 SOU	8-94238-568-0	03	1	0804-	●	●	●

80 85 66 236 96 66 116 98 39 39 80 78 158 78 128 127 136 136 136 108 136 122 235 80 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
39	CLIP; HOSE,VAC (C) ID=16	8-98008-098-0	02	1	0912-	●	●	●
39	CLIP; HOSE,VAC (A) L=170.3	1-09987-182-0	01	1	0804-	●	●	●
39	CLIP; HOSE,VAC (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911	●	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911	●	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	02	1	0912-	●	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	04	1	0804-	●	●	●
66	CLIP; VAC HOSE,M/VAC ID=16 SOU	8-94238-568-0	02	1	0804-0911	●	●	●
66	CLIP; VAC HOSE,M/VAC ID=16	8-98008-098-0	02	1	0912-	●	●	●
78	HOSE; VAC,PIPE TO PIPE (B)	8-98098-174-0	01	1	0804-	●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 2400MM(24W) (B)	8-98098-174-0	01	1	0804-		●
78	HOSE; VAC,PIPE TO PIPE (A)	8-97389-745-1	01	1	0804-	●	●	●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) (D)	8-98042-690-1	01	1	0804-1104		●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) (E)	8-98189-223-0	01	1	1105-		●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) (E)	8-98042-691-2	01	1	0804-1104		●
78	HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) (D)	8-98189-224-0	01	1	1105-		●
78	HOSE; VAC,PIPE TO PIPE (C)	8-98068-245-0	01	1	0804-1008			●
78	HOSE; VAC,PIPE TO PIPE (C)	8-98171-283-0	01	1	1009-			●
80	PIPE; VAC,ENG SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98056-002-2	01	1	0804-1303	●	●
80	PIPE; VAC,ENG SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98056-002-2	01	1	1304-1309	●
80	PIPE; VAC,ENG SIDE (A)	8-98056-002-2	01	1	1304-1309		●
80	PIPE; VAC,ENG SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98056-002-2	01	1	1310-	●	●
80	PIPE; VAC,ENG SIDE FRAME EQUIPMENT HEAVY DUTY VAR2<F01> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98056-002-2	01	1	1310-		●
80	PIPE; VAC,ENG SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98065-063-2	01	1	0804-1303	●	●
80	PIPE; VAC,ENG SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98065-063-2	01	1	1304-1309	●
80	PIPE; VAC,ENG SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98065-063-2	01	1	1310-	●
80	PIPE; VAC,ENG SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME EQUIPMENT HEAVY DUTY VAR2<F01> (A)	8-98065-063-2	01	1	1310-		●
80	PIPE; VAC,ENG SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98075-014-0	01	1	0804-	●	●	●
80	PIPE; VAC,ENG SIDE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98064-345-2	01	1	0804-	●	●	●
80	PIPE; VAC,ENG SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98071-771-0	01	1	0804-			●
80	PIPE; VAC,ENG SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98066-971-0	01	1	0804-			●
85	HOSE; VAC,ENG SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98075-176-0	01	1	0804-	●	●	●
85	HOSE; VAC,ENG SIDE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98092-071-0	01	1	0804-0810	●	●	●
85	HOSE; VAC,ENG SIDE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98135-573-0	01	1	0811-	●	●	●
96	PIPE; VAC,M/VAC TO VAC PUMP	8-98039-736-1	01	1	0804-	●	●	●
98	BOLT; VAC PIPE FIX (A) M10X30 FLANGE SOU	0-28651-030-0	01	1	0804-	●	●
98	BOLT; VAC PIPE FIX EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) M8X20 FLANGE	0-28650-820-0	01	1	0804-	●	●	●
108	GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T) (A) SOU	9-09956-353-0	01	1	0804-	●	●	●
108	GROMMET; PIPE (B) ID=17	8-94128-319-2	01	1	0804-			●
116	HOSE; VAC,M/VAC (E) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	0804-	●	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	0804-	●	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	0804-	●	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	0804-	●	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	0804-	●	●	●
122	HOSE; AIR,MAG VLV TO AIR PIPE (A)	8-98076-068-1	01	1	0804-	●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2400MM(24W) (A)	8-98076-068-1	01	1	0804-		●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) (D)	8-98042-689-2	01	1	0804-1104		●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) (C)	8-98189-222-0	01	1	1105-		●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) (C)	8-98089-657-0	01	1	0804-1104		●
122	HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) (D)	8-98189-226-0	01	1	1105-		●
122	HOSE; AIR,MAG VLV TO AIR PIPE (B)	8-98064-717-1	01	1	0804-			●
127	BOLT; CLIP M8X25 FLANGE SOU	0-28650-825-0	01	1	0804-			●
128	NUT; CLIP M8 FLANGE SOU	0-91180-108-0	01	1	0804-			●
136	CLIP; VAC HOSE (A) ID=16 SOU	8-94238-568-0	04	1	0804-0911	●	●	●
136	CLIP; VAC HOSE (A) ID=16	8-98008-098-0	04	1	0912-	●	●	●
136	CLIP; VAC HOSE WHEEL BASE 3300MM(33W) (B) L=140 SOU	5-09707-031-1	01	1	0804-		●
136	CLIP; VAC HOSE WHEEL BASE 3300MM(33W) (A) ID=16 SOU	8-94238-568-0	02	1	0804-0911		●
136	CLIP; VAC HOSE WHEEL BASE 3300MM(33W) (A) ID=16	8-98008-098-0	02	1	0912-		●
158	CLIP; HOSE (A) ID=18-24 L=14.5	1-09709-298-0	01	1	0804-	●
158	CLIP; HOSE WHEEL BASE 2400MM(24W) (A) ID=18-24 L=14.5	1-09709-298-0	01	1	0804-		●
158	CLIP; HOSE (B) ID=28 H=45 L=30	1-09700-707-0	01	1	0804-			●
235	RUBBER; SUPPORT,PIPE OD=16.5 L=50	8-97214-235-0	01	1	0804-			●
236	BOLT; PIPE M6X12 FLANGE SOU	0-28050-612-0	01	1	0804-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
