◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51146 - NLR/NMR(SOUTHAFRICA) ▶ 3 - Brakes, Brake System ▶ 3-58 - FIXING PARTS; OIL PIPING ▶
3-58 — FIXING PARTS; OIL PIPING (#75343) — 81 parça
çizim 121398
19 67 68 4
BalonParca AdiParca NoAdetTipApplied Date A B C
4 BOLT; BRKT
M8X25 FLANGE SOU 		0-28650-825-0 02 1 0804- ● ● ●
4 BOLT; BRKT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M8X25 FLANGE SOU 		0-28650-825-0 01 1 0804-1303 ● ● ●
4 BOLT; BRKT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M8X25 FLANGE SOU 		0-28650-825-0 01 1 0804-1303 ● ● ●
4 BOLT; BRKT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M8X25 FLANGE SOU 		0-28650-825-0 01 1 1304-1309 ● ●
4 BOLT; BRKT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M8X25 FLANGE SOU 		0-28650-825-0 01 1 1304-1309 ● ●
4 BOLT; BRKT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M8X25 FLANGE SOU 		0-28650-825-0 01 1 1310- ● ●
4 BOLT; BRKT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M8X25 FLANGE SOU 		0-28650-825-0 01 1 1310- ● ●
4 BOLT; BRKT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME EQUIPMENT HEAVY DUTY VAR2<F01> M8X25 FLANGE SOU 		0-28650-825-0 01 1 1310- ●
4 BOLT; BRKT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME EQUIPMENT HEAVY DUTY VAR2<F01> M8X25 FLANGE SOU 		0-28650-825-0 01 1 1310- ●
19 BRACKET; OIL PIPE 8-98009-117-2 01 1 0804-1006 ● ● ●
19 BRACKET; OIL PIPE 8-98162-759-0 01 1 1007- ● ● ●
67 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 01 1 0804- ● ● ●
67 NUT; BRKT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M8 FLANGE SOU 		0-91180-108-0 02 1 0804-1303 ● ● ●
67 NUT; BRKT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M8 FLANGE SOU 		0-91180-108-0 02 1 1304-1309 ● ●
67 NUT; BRKT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M8 FLANGE SOU 		0-91180-108-0 02 1 1310- ● ●
67 NUT; BRKT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME EQUIPMENT HEAVY DUTY VAR2<F01> M8 FLANGE SOU 		0-91180-108-0 02 1 1310- ●
68 BRACKET; CLIP
(A) 		8-98039-558-2 01 1 0804- ● ● ●
68 BRACKET; CLIP
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-98060-870-2 01 1 0804-1303 ● ● ●
68 BRACKET; CLIP
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-98060-870-2 01 1 1304-1309 ● ●
68 BRACKET; CLIP
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-98060-870-2 01 1 1310- ● ●
68 BRACKET; CLIP
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME EQUIPMENT HEAVY DUTY VAR2<F01> (B) 		8-98060-870-2 01 1 1310- ●
68 BRACKET; CLIP
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) 		8-98090-213-1 01 1 0804-1009 ● ● ●
68 BRACKET; CLIP
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D) 		8-98178-046-0 01 1 1010-1303 ● ● ●
68 BRACKET; CLIP
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D) 		8-98178-046-0 01 1 1304-1309 ● ●
68 BRACKET; CLIP
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D) 		8-98178-046-0 01 1 1310- ● ●
68 BRACKET; CLIP
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME EQUIPMENT HEAVY DUTY VAR2<F01> (D) 		8-98178-046-0 01 1 1310- ●

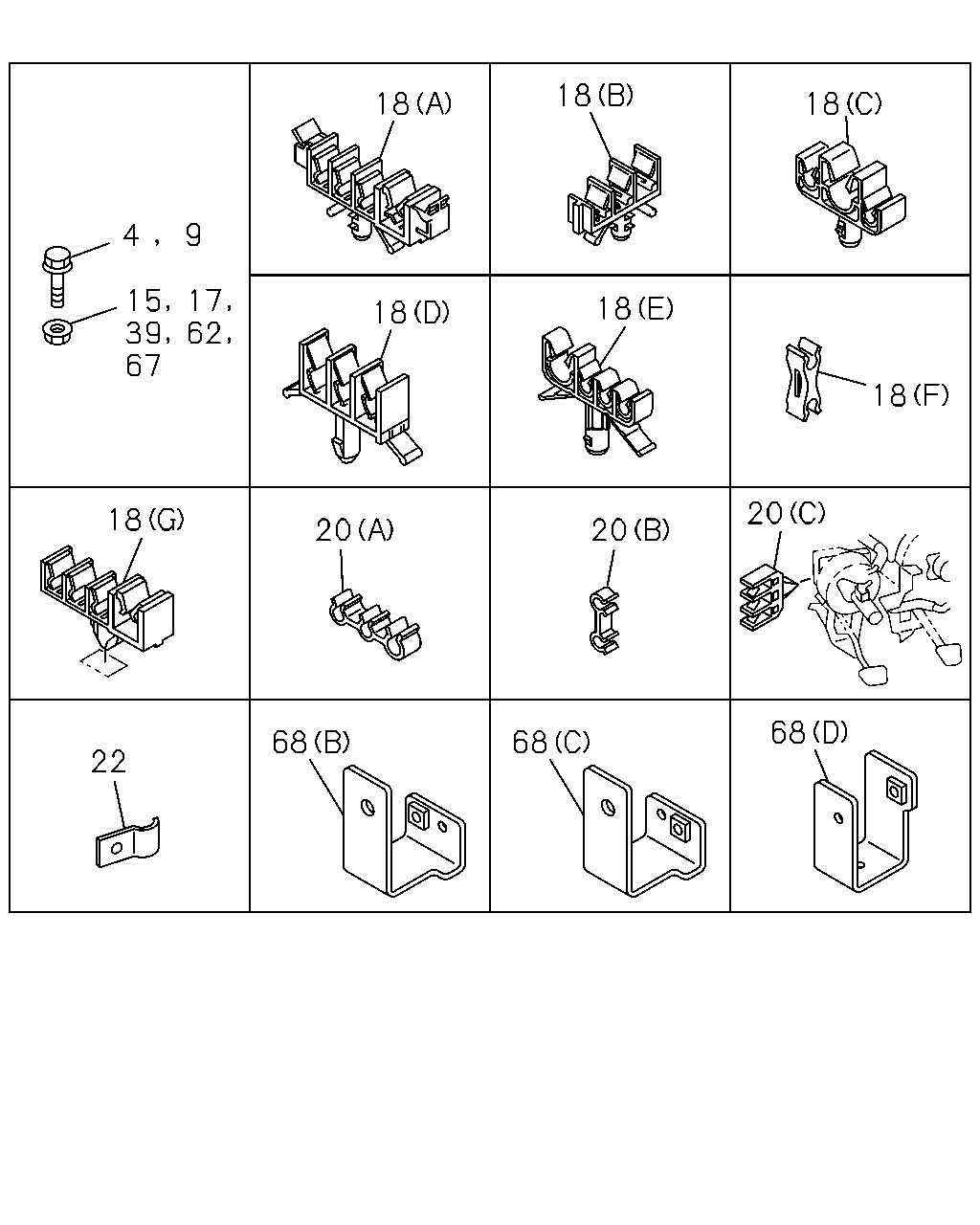

çizim 121438
18 18 18 9 4 15 39 67 17 62 18 18 18 20 18 20 20 68 68 68 22
BalonParca AdiParca NoAdetTipApplied Date A B C
4 BOLT; BRKT
M8X25 FLANGE SOU 		0-28650-825-0 02 1 0804- ● ● ●
4 BOLT; BRKT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M8X25 FLANGE SOU 		0-28650-825-0 01 1 0804-1303 ● ● ●
4 BOLT; BRKT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M8X25 FLANGE SOU 		0-28650-825-0 01 1 0804-1303 ● ● ●
4 BOLT; BRKT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M8X25 FLANGE SOU 		0-28650-825-0 01 1 1304-1309 ● ●
4 BOLT; BRKT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M8X25 FLANGE SOU 		0-28650-825-0 01 1 1304-1309 ● ●
4 BOLT; BRKT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M8X25 FLANGE SOU 		0-28650-825-0 01 1 1310- ● ●
4 BOLT; BRKT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M8X25 FLANGE SOU 		0-28650-825-0 01 1 1310- ● ●
4 BOLT; BRKT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME EQUIPMENT HEAVY DUTY VAR2<F01> M8X25 FLANGE SOU 		0-28650-825-0 01 1 1310- ●
4 BOLT; BRKT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME EQUIPMENT HEAVY DUTY VAR2<F01> M8X25 FLANGE SOU 		0-28650-825-0 01 1 1310- ●
9 BOLT; BRKT
M10X25 FLANGE SOU 		0-28651-025-0 01 1 0804- ● ● ●
9 BOLT; BRKT
M10X25 FLANGE SOU 		0-28651-025-0 01 1 0804- ● ● ●
15 NUT; CLIP,OIL PIPE
M6 FLANGE SOU 		0-91180-106-0 02 1 0804- ● ● ●
17 NUT; BRKT TO FRAME
M8 FLANGE SOU 		0-91180-108-0 02 1 0804- ● ● ●
18 CLIP; BRK PIPE
(G) ID=10 & 4.76X3 		8-97168-819-0 07 1 0804- ● ● ●
18 CLIP; BRK PIPE
(E) ID=10 & 4.76X3 		8-97168-820-0 01 1 0804- ● ● ●
18 CLIP; BRK PIPE
(E) ID=10 & 4.76X3 		8-97168-820-0 01 1 0804- ● ● ●
18 CLIP; BRK PIPE
(E) ID=10 & 4.76X3 		8-97168-820-0 01 1 0804- ● ● ●
18 CLIP; BRK PIPE
(B) ID=10 & 6.4 & 4.8 		8-97064-484-1 02 1 0804- ● ● ●
18 CLIP; BRK PIPE
(C) ID=12 & 6.35 & 4.76 		8-97305-169-1 01 1 0804- ● ● ●
18 CLIP; BRK PIPE
(C) ID=12 & 6.35 & 4.76 		8-97305-169-1 05 1 0804-1005 ● ● ●
18 CLIP; BRK PIPE
(C) ID=12 & 6.35 & 4.76 		8-97305-169-1 04 1 1006- ● ● ●
18 CLIP; BRK PIPE
(D) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 0804- ● ● ●
18 CLIP; BRK PIPE
(F) ID=4.6X2 SOU 		8-94241-454-0 01 1 0804- ● ● ●
18 CLIP; BRK PIPE
(B) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 0804- ● ● ●
18 CLIP; BRK PIPE
(A) ID=10 & 4.76X3 		8-97326-158-1 02 1 0804- ● ● ●
18 CLIP; BRK PIPE
(A) ID=10 & 4.76X3 		8-97326-158-1 02 1 0804- ● ● ●
18 CLIP; BRK PIPE
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (G) ID=10 & 4.76X3 		8-97168-819-0 01 1 0804-1303 ● ● ●
18 CLIP; BRK PIPE
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (G) ID=10 & 4.76X3 		8-97168-819-0 01 1 1304-1309 ● ●
18 CLIP; BRK PIPE
(G) ID=10 & 4.76X3 		8-97168-819-0 01 1 1304-1309 ●
18 CLIP; BRK PIPE
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (G) ID=10 & 4.76X3 		8-97168-819-0 01 1 1310- ● ● ●
18 CLIP; BRK PIPE
FRAME EQUIPMENT HEAVY DUTY VAR2<F01> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (G) ID=10 & 4.76X3 		8-97168-819-0 01 1 1310- ●
18 CLIP; BRK PIPE
WHEEL BASE 3300MM(33W) (A) ID=10 & 4.76X3 		8-97326-158-1 03 1 0804- ●
18 CLIP; BRK PIPE
(A) ID=10 & 4.76X3 		8-97326-158-1 03 1 0804- ●
20 CLIP; BRK PIPE
(A) ID=6.4 & 4.8X2 SOU 		8-94146-043-0 01 1 0804- ● ● ●
20 CLIP; BRK PIPE
(C) ID=6.35 & 4.76X2 SOU 		8-94250-923-2 01 1 0804- ● ● ●
20 CLIP; BRK PIPE
(B) 		8-94338-104-0 01 1 0804- ● ● ●
22 CLIP; PIPE TO FRAME
B=14 L=16 		9-09916-996-0 02 1 0804- ● ● ●
39 NUT; BRKT FIX
M10 FLANGE SOU 		0-91180-110-0 01 1 0804- ● ● ●
39 NUT; BRKT FIX
M10 FLANGE SOU 		0-91180-110-0 01 1 0804- ● ● ●
62 NUT
M10 FLANGE SOU 		0-91180-110-0 01 1 0804- ● ●
67 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 01 1 0804- ● ● ●
67 NUT; BRKT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M8 FLANGE SOU 		0-91180-108-0 02 1 0804-1303 ● ● ●
67 NUT; BRKT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M8 FLANGE SOU 		0-91180-108-0 02 1 1304-1309 ● ●
67 NUT; BRKT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M8 FLANGE SOU 		0-91180-108-0 02 1 1310- ● ●
67 NUT; BRKT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME EQUIPMENT HEAVY DUTY VAR2<F01> M8 FLANGE SOU 		0-91180-108-0 02 1 1310- ●
68 BRACKET; CLIP
(A) 		8-98039-558-2 01 1 0804- ● ● ●
68 BRACKET; CLIP
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-98060-870-2 01 1 0804-1303 ● ● ●
68 BRACKET; CLIP
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-98060-870-2 01 1 1304-1309 ● ●
68 BRACKET; CLIP
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-98060-870-2 01 1 1310- ● ●
68 BRACKET; CLIP
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME EQUIPMENT HEAVY DUTY VAR2<F01> (B) 		8-98060-870-2 01 1 1310- ●
68 BRACKET; CLIP
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) 		8-98090-213-1 01 1 0804-1009 ● ● ●
68 BRACKET; CLIP
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D) 		8-98178-046-0 01 1 1010-1303 ● ● ●
68 BRACKET; CLIP
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D) 		8-98178-046-0 01 1 1304-1309 ● ●
68 BRACKET; CLIP
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D) 		8-98178-046-0 01 1 1310- ● ●
68 BRACKET; CLIP
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME EQUIPMENT HEAVY DUTY VAR2<F01> (D) 		8-98178-046-0 01 1 1310- ●
