◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51146 - NLR/NMR(SOUTHAFRICA) ▶ 3 - Brakes, Brake System ▶ 3-55 - BRAKE PIPING; OIL,REAR ▶
3-55 — BRAKE PIPING; OIL,REAR (#75342) — 17 parça

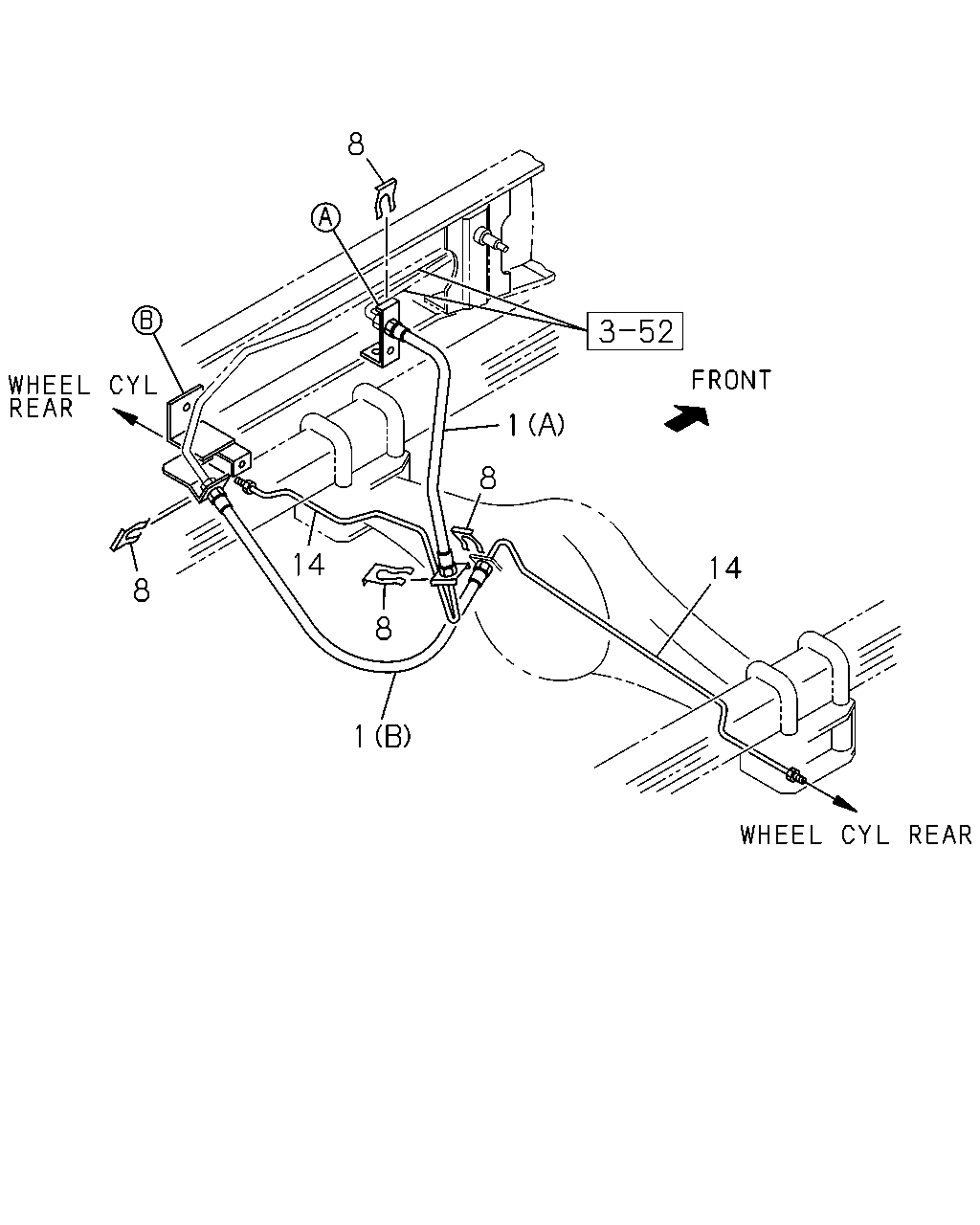

çizim 119728
8 1 8 14 14 8 8 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HOSE; FLEX,RR BRK
(A) L=370 		8-97035-574-0 01 1 0804- ● ● ●
1 HOSE; FLEX,RR BRK
(B) L=430 		8-97077-458-0 01 1 0804- ● ● ●
8 CLIP; RR BRK 8-97360-054-0 04 1 0804- ● ● ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98034-193-0 01 1 0804- ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98034-196-0 01 1 0804- ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR WIDE TREAD(V4T) 		8-98021-871-0 01 1 0804- ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98021-871-0 01 1 0804- ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR WIDE TREAD(V4T) 		8-98021-879-0 01 1 0804- ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98021-879-0 01 1 0804- ●
çizim 185555
3 3 3 3 25
BalonParca AdiParca NoAdetTipApplied Date A B C
3 BRACKET; FLEX HOSE,RR BRK
(A) 		8-97205-198-0 01 1 0804- ● ● ●
3 BRACKET; FLEX HOSE,RR BRK
(B) 		8-97046-936-0 01 1 0804-0903 ● ● ●
3 BRACKET; FLEX HOSE,RR BRK
(C) 		8-98117-511-0 01 1 0904-0911 ● ● ●
3 BRACKET; FLEX HOSE,RR BRK
(D) 		8-98153-296-0 01 1 0912- ● ● ●
25 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 0804- ● ● ●
25 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 0804- ● ● ●
25 CONNECTOR
WHEEL BASE 3300MM(33W) M10 STRAIGHT 		0-92107-005-0 01 1 0804- ●
25 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 0804- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
