◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51146 - NLR/NMR(SOUTHAFRICA) ▶ 3 - Brakes, Brake System ▶ 3-52 - BRAKE PIPING; OIL,FRONT ▶
3-52 — BRAKE PIPING; OIL,FRONT (#75341) — 41 parça

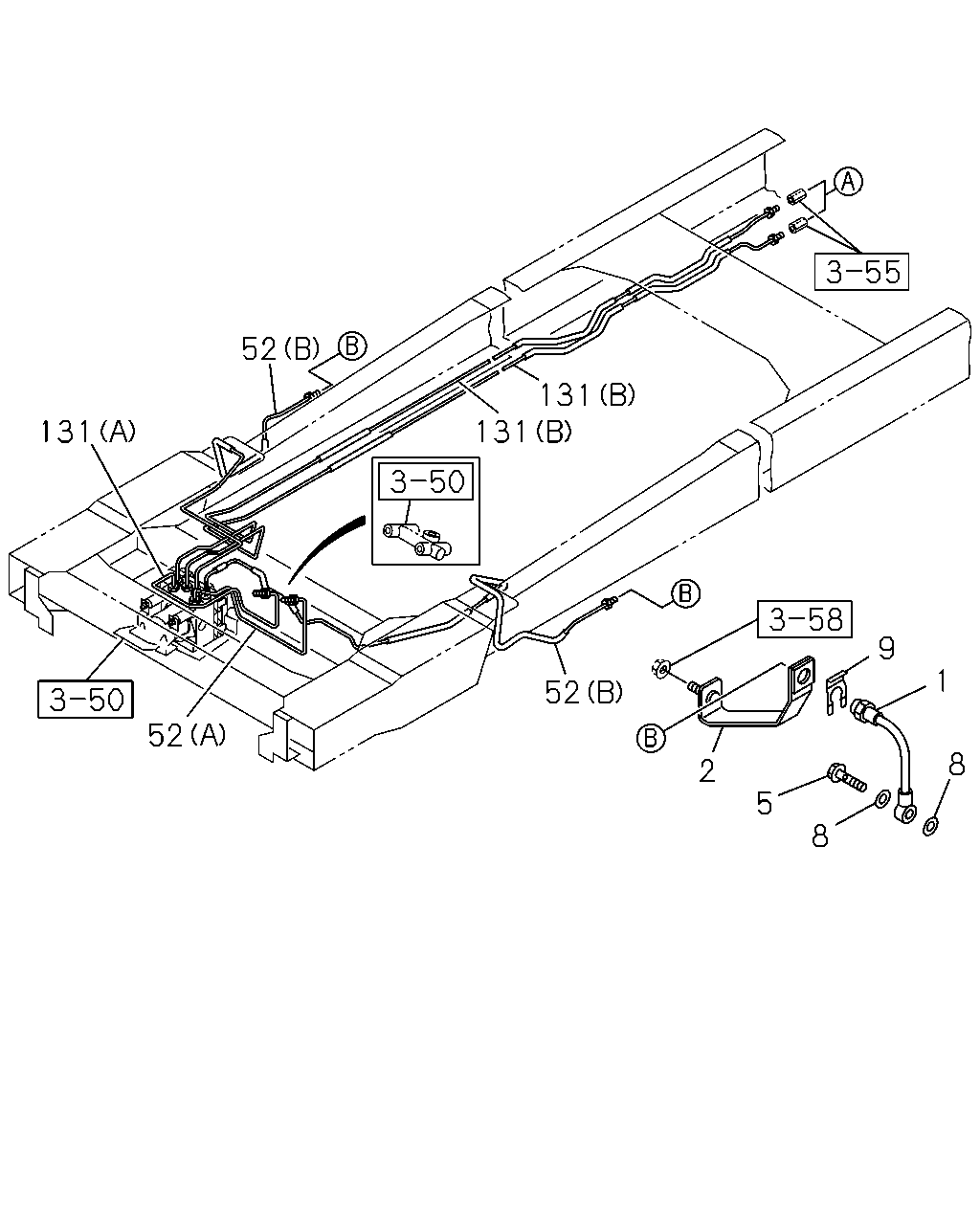

çizim 119763
52 131 131 131 9 1 52 52 8 2 5 8
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HOSE; FLEX,FRT BRK 8-97366-925-1 02 1 0804- ● ● ●
2 BRACKET; FLEX HOSE,FRT BRK 8-97389-691-1 01 1 0804- ● ● ●
2 BRACKET; FLEX HOSE,FRT BRK 8-97389-692-1 01 1 0804- ● ● ●
5 BOLT; EYE,FLEX HOSE,FRT BRK
M10X22 		8-98014-005-0 02 1 0804- ● ● ●
8 GASKET; FLEX HOSE,FRT BRK
ID=10.2 OD=16.0 		9-09571-410-0 04 1 0804- ● ● ●
9 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0804- ● ● ●
52 PIPE; BRK
(A) 4WAY TO HU,FRONT 		8-97389-368-1 01 1 0804- ● ● ●
52 PIPE; BRK
(B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-97389-374-1 01 1 0804- ● ● ●
52 PIPE; BRK
(B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98046-753-0 01 1 0804- ● ● ●
131 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
(A) 4WAY TO HU,REAR 		8-97389-371-0 01 1 0804- ● ● ●
131 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-97389-417-1 01 1 0804-1303 ● ● ●
131 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-97389-417-1 01 1 1304-1309 ● ●
131 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
(B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-97389-417-1 01 1 1304-1309 ●
131 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-97389-417-1 01 1 1310- ● ● ●
131 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
FRAME EQUIPMENT HEAVY DUTY VAR2<F01> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-97389-417-1 01 1 1310- ●
131 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-97389-422-1 01 1 0804-1303 ● ● ●
131 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-97389-422-1 01 1 1304-1309 ● ●
131 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
(B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-97389-422-1 01 1 1304-1309 ●
131 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-97389-422-1 01 1 1310- ● ● ●
131 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
FRAME EQUIPMENT HEAVY DUTY VAR2<F01> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-97389-422-1 01 1 1310- ●
131 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-98064-514-0 01 1 0804-0901 ● ● ●
131 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-98140-423-0 01 1 0902-1303 ● ● ●
131 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-98140-423-0 01 1 1304-1309 ● ●
131 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-98140-423-0 01 1 1310- ● ●
131 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME EQUIPMENT HEAVY DUTY VAR2<F01> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-98140-423-0 01 1 1310- ●
131 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-98064-516-0 01 1 0804-0901 ● ● ●
131 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-98140-424-0 01 1 0902-1012 ● ● ●
131 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-98187-028-0 01 1 1101-1303 ● ● ●
131 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-98187-028-0 01 1 1304-1309 ● ●
131 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-98187-028-0 01 1 1310- ● ●
131 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME EQUIPMENT HEAVY DUTY VAR2<F01> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-98187-028-0 01 1 1310- ●

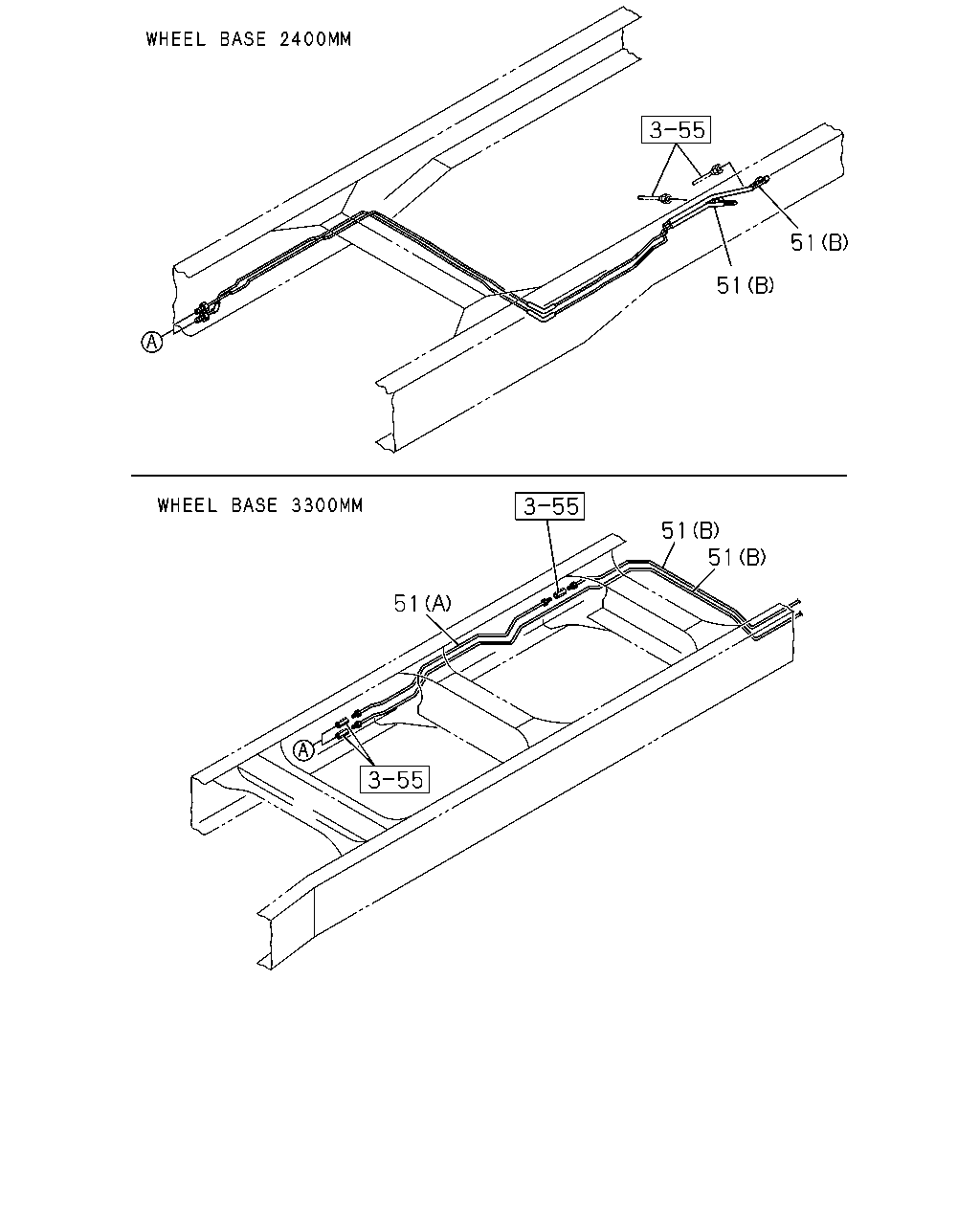

çizim 185504
51 51 51 51 51
BalonParca AdiParca NoAdetTipApplied Date A B C
51 PIPE; BRK
(B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98012-844-1 01 1 0804- ●
51 PIPE; BRK
WHEEL BASE 2400MM(24W) (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98012-844-1 01 1 0804- ●
51 PIPE; BRK
(B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98012-845-1 01 1 0804- ●
51 PIPE; BRK
WHEEL BASE 2400MM(24W) (B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98012-845-1 01 1 0804- ●
51 PIPE; BRK
WHEEL BASE 3300MM(33W) (B) BRAKE SYSTEM,RR RH 2WAY TO 2WAY,REAR 		8-98061-505-0 01 1 0804- ●
51 PIPE; BRK
(B) BRAKE SYSTEM,RR RH 2WAY TO 2WAY,REAR 		8-98061-505-0 01 1 0804- ●
51 PIPE; BRK
WHEEL BASE 3300MM(33W) (B) BRAKE SYSTEM,RR LH 2WAY TO 2WAY,REAR 		8-98061-506-0 01 1 0804- ●
51 PIPE; BRK
(B) BRAKE SYSTEM,RR LH 2WAY TO 2WAY,REAR 		8-98061-506-0 01 1 0804- ●
51 PIPE; BRK
WHEEL BASE 3300MM(33W) (A) 2WAY TO 2WAY 		8-98061-507-0 01 1 0804- ●
51 PIPE; BRK
(A) 2WAY TO 2WAY 		8-98061-507-0 01 1 0804- ●
