◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51146 - NLR/NMR(SOUTHAFRICA) ▶ 3 - Brakes, Brake System ▶ 3-50 - BRAKE PIPING; OIL,MASTER CYLINDER ▶
3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#75340) — 40 parça

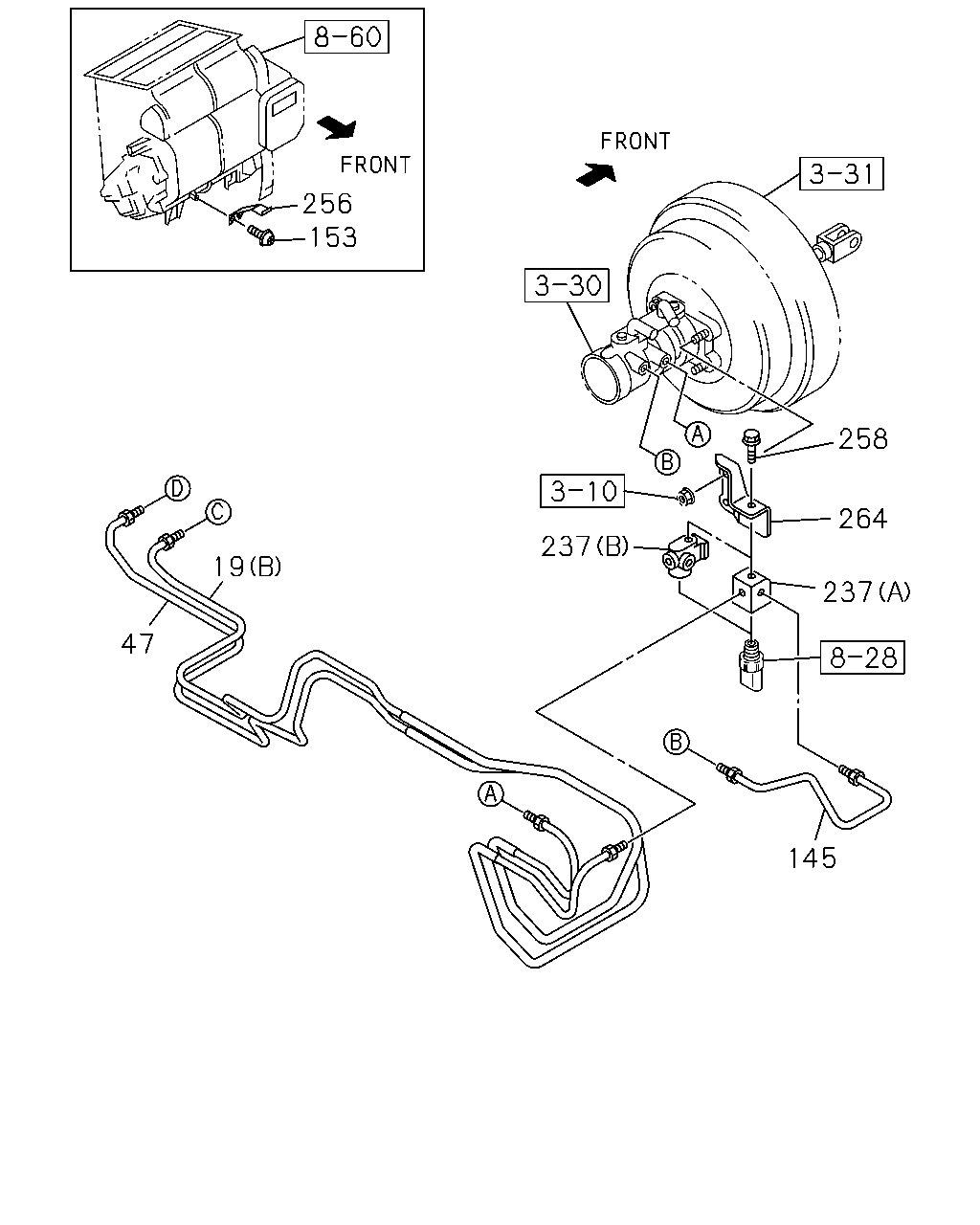

çizim 118427
256 153 258 264 237 19 237 47 145
BalonParca AdiParca NoAdetTipApplied Date A B C
19 PIPE; BRK,M/CYL TO UNION
(B) 		8-97389-337-3 01 1 0804- ● ● ●
19 PIPE; BRK,M/CYL TO UNION
(A) 		8-98012-095-1 02 1 0804- ● ● ●
47 PIPE; OIL,FRT BRK 8-98005-586-3 01 1 0804-0906 ● ● ●
47 PIPE; OIL,FRT BRK
L=1173 		8-98133-413-0 01 1 0907- ● ● ●
145 PIPE; BRK,METERING VLV TO UNION 8-98042-422-0 01 1 0804-0906 ● ● ●
145 PIPE; BRK,METERING VLV TO UNION
L=201 		8-98133-407-0 01 1 0907- ● ● ●
153 SCREW; BRKT FIX
T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 01 1 0804-0808 ● ● ●
153 SCREW; BRKT FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 01 1 0809-1001 ● ● ●
153 SCREW; BRKT FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 01 1 1002- ● ● ●
237 CONNECTOR; MODULATOR
(A) 		8-98007-865-3 01 1 0804-0906 ● ● ●
237 CONNECTOR; MODULATOR
(B) 		8-98111-748-1 01 1 0907- ● ● ●
256 BRACKET; BRK PIPE 8-98034-784-1 01 1 0804-0808 ● ● ●
256 BRACKET; BRK PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98034-784-1 01 1 0809-1001 ● ● ●
256 BRACKET; BRK PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> 		8-98034-784-1 01 1 1002-1005 ● ● ●
256 BRACKET; BRK PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> 		8-98163-521-0 01 1 1006- ● ● ●
258 BOLT; PIPE,BRK
M8X12 FLANGE 		0-28050-812-0 01 1 0804- ● ● ●
264 BRACKET; SENSOR,PRESSURE 8-97387-683-2 01 1 0804- ● ● ●
çizim 119700
130 131
BalonParca AdiParca NoAdetTipApplied Date A B C
130 BRACKET; SPEED SENSOR 8-97080-060-2 02 1 0804- ● ● ●
131 BOLT; BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 0804- ● ● ●

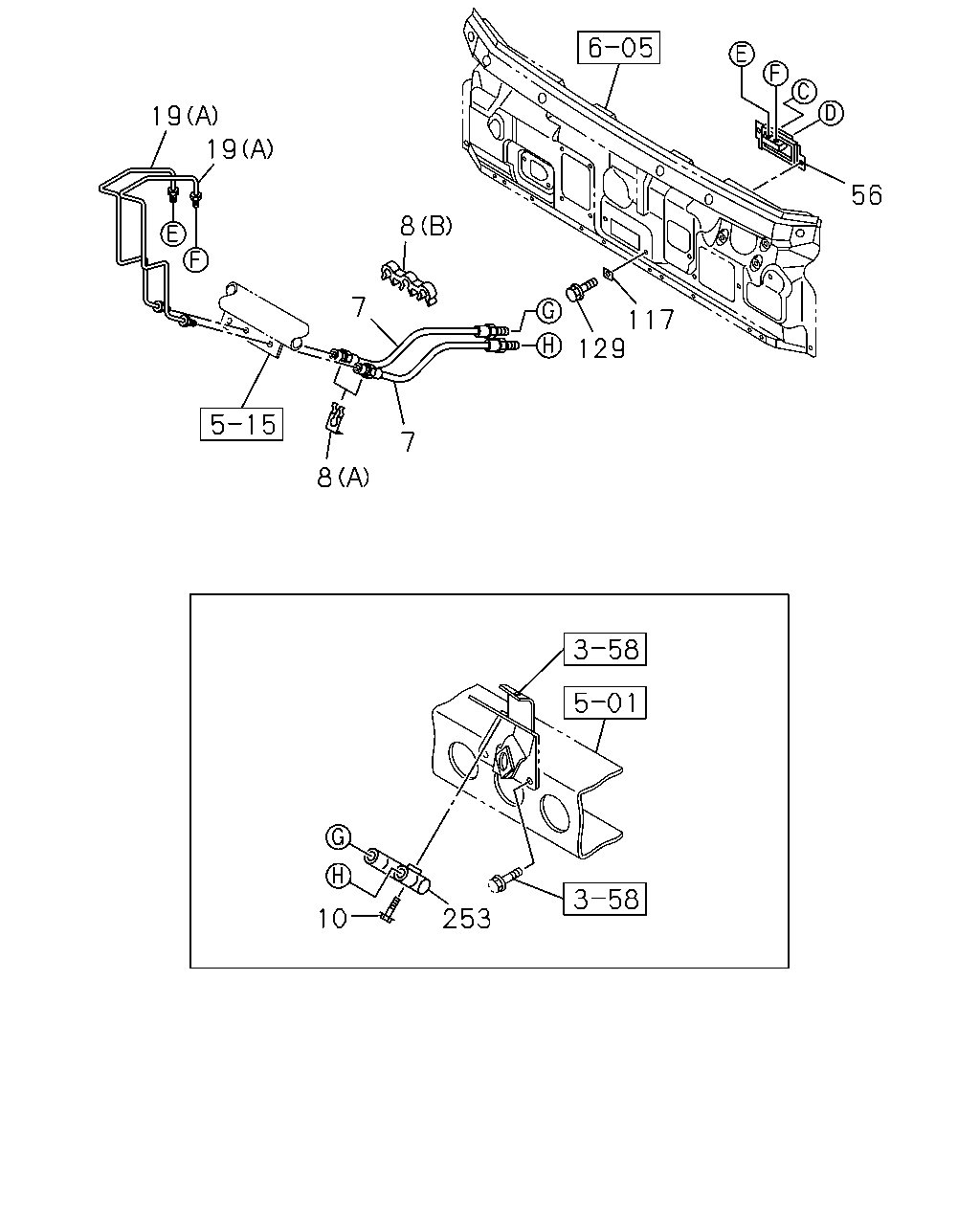

çizim 119742
19 19 56 8 7 117 129 7 8 10 253
BalonParca AdiParca NoAdetTipApplied Date A B C
7 HOSE; FLEX,PIPE TO 5 WAY JOINT 8-98033-732-0 02 1 0804- ● ● ●
8 CLIP; FLEX HOSE,CABLE SIDE
(A) 		8-97365-304-0 02 1 0804- ● ● ●
8 CLIP; FLEX HOSE,CABLE SIDE
(B) 		8-98056-614-0 01 1 0804- ● ● ●
10 BOLT; JOINT
M6X40 FLANGE 		0-28650-640-0 01 1 0804- ● ● ●
19 PIPE; BRK,M/CYL TO UNION
(B) 		8-97389-337-3 01 1 0804- ● ● ●
19 PIPE; BRK,M/CYL TO UNION
(A) 		8-98012-095-1 02 1 0804- ● ● ●
56 BRACKET; UNION,BRK 8-97389-281-1 01 1 0804-1005 ● ● ●
56 BRACKET; UNION,BRK 8-98154-264-1 01 1 1006- ● ● ●
117 SEAL; UNION,BRK PIPE JOINT
SOU 		8-97856-616-0 02 1 0804- ● ● ●
129 BOLT; BRKT
M6X16 FLANGE SOU 		0-28650-616-0 01 1 0804-0809 ● ● ●
129 BOLT; BRKT
M6X20 W/LK&PL WASHER 		8-98081-030-0 02 1 0804- ● ● ●
253 JOINT 8-97038-940-1 01 1 0804- ● ● ●

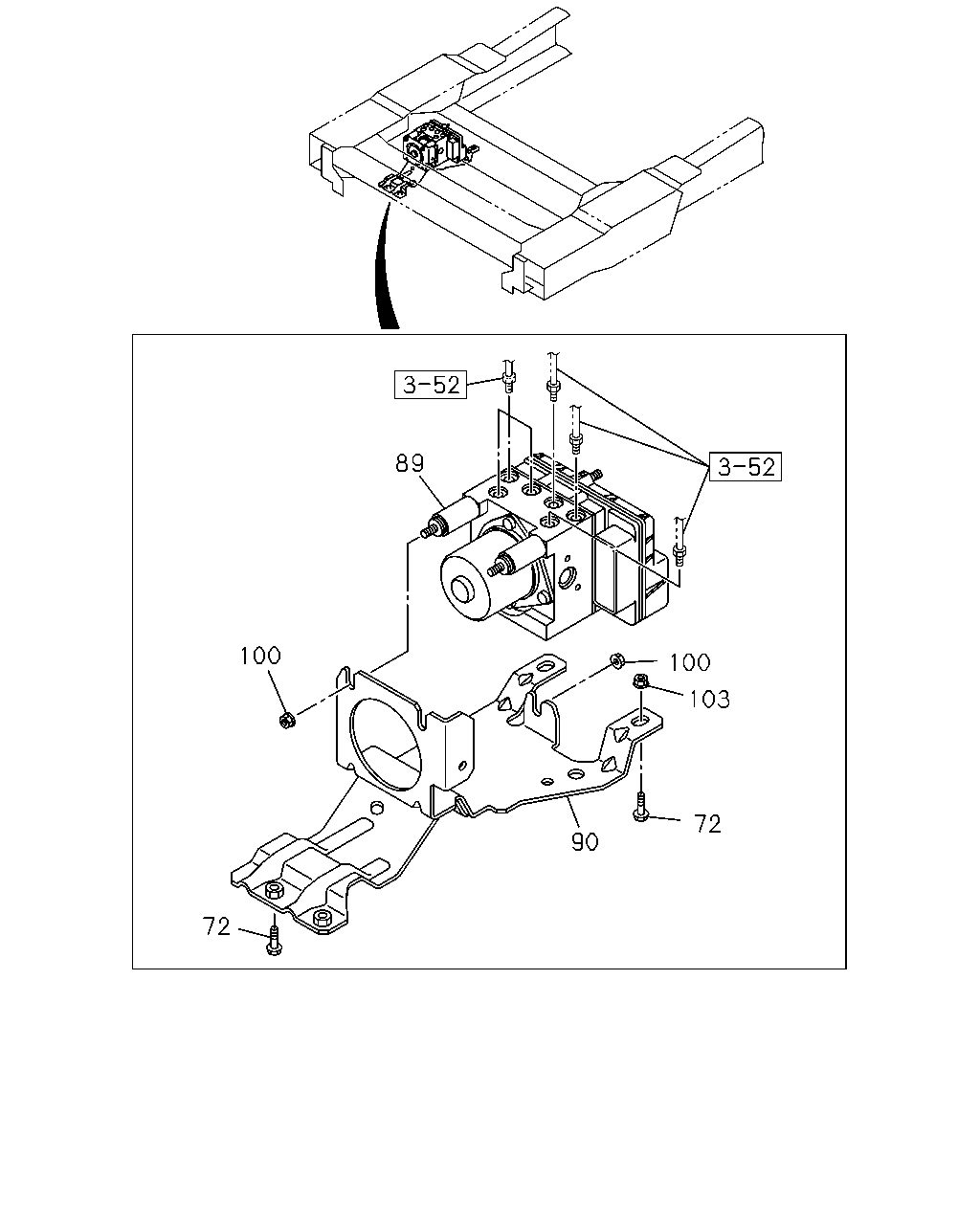

çizim 185505
89 100 100 103 72 90 72
BalonParca AdiParca NoAdetTipApplied Date A B C
72 BOLT; BRKT TO BODY
M8X25 FLANGE SOU 		0-28650-825-0 04 1 0804- ● ● ●
89 HYDRAULIC UNIT; ANTI LOCK BRK 8-98081-562-1 01 1 0804-1006 ● ● ●
89 HYDRAULIC UNIT; ANTI LOCK BRK 8-98158-007-1 01 1 1007- ● ● ●
90 BRACKET; HYDRAULIC UNIT,ABS 8-97386-355-0 01 1 0804- ● ● ●
100 NUT; HYDRAULIC UNIT
M8 FLANGE SOU 		0-91180-108-0 03 1 0804- ● ● ●
103 NUT; HYDRAULIC UNIT BRKT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M8 FLANGE SOU 		0-91180-108-0 02 1 0804-1303 ● ● ●
103 NUT; HYDRAULIC UNIT BRKT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M8 FLANGE SOU 		0-91180-108-0 02 1 1304-1309 ● ●
103 NUT; HYDRAULIC UNIT BRKT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M8 FLANGE SOU 		0-91180-108-0 02 1 1310- ● ●
103 NUT; HYDRAULIC UNIT BRKT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME EQUIPMENT HEAVY DUTY VAR2<F01> M8 FLANGE SOU 		0-91180-108-0 02 1 1310- ●
