0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#7534) — 51 parça

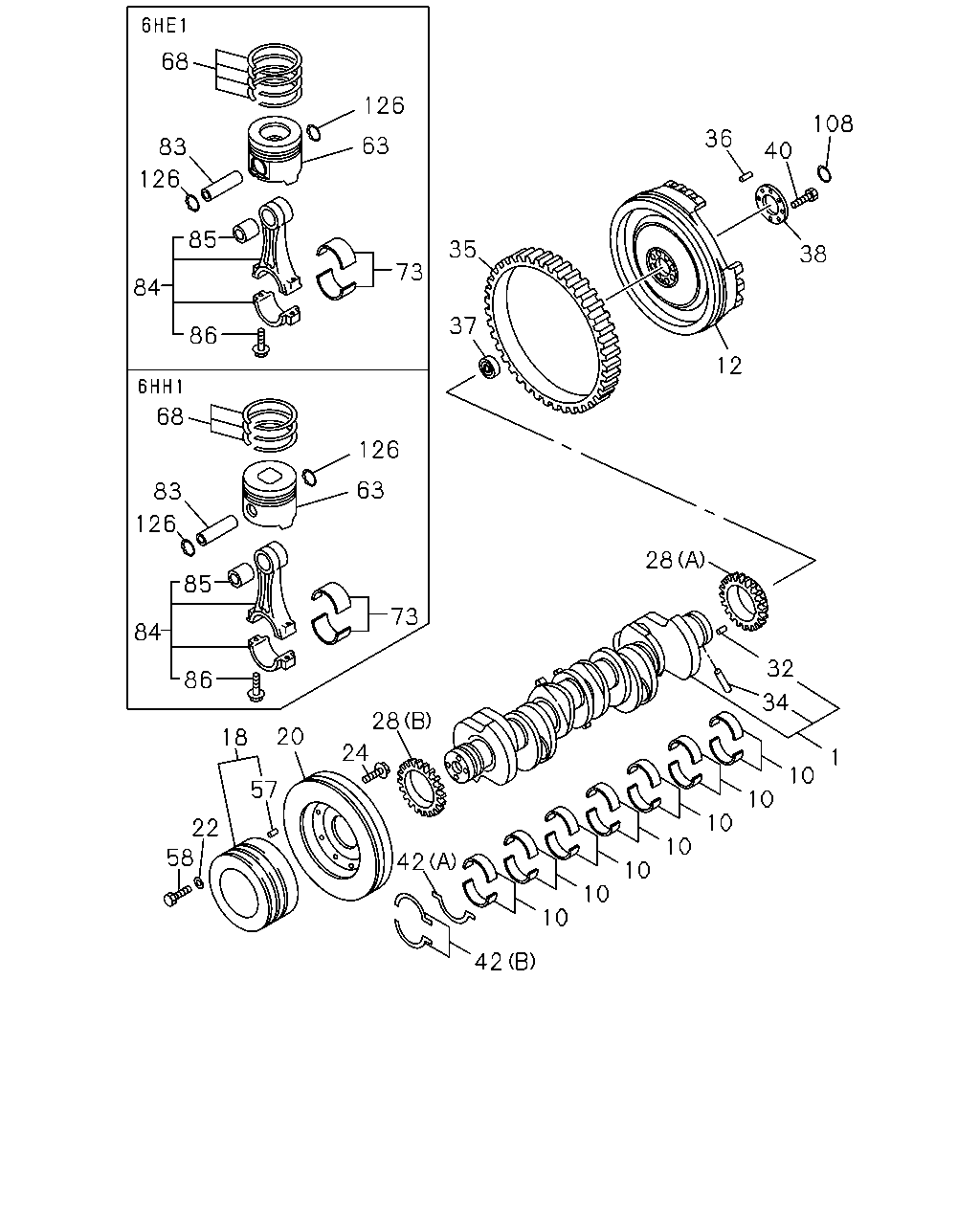

çizim 6019
68 126 108 36 63 83 40 126 85 35 38 73 84 37 86 12 68 126 63 83 126 28 85 73 84 32 86 34 28 20 18 24 1 10 57 10 10 22 10 58 42 10 10 10 42
BalonParca AdiParca NoAdetTipApplied Date A B
1 CRANKSHAFT 8-94396-737-4 01 1 0101-0305 ●
1 CRANKSHAFT 8-97603-004-0 01 1 0306- ●
1 CRANKSHAFT 8-94393-291-4 01 1 0101-0305 ●
1 CRANKSHAFT 8-97603-003-0 01 1 0306- ●
10 METAL SET; CRANKSHAFT,STANDARD
BLUE 		8-97372-076-0 07 1 0306- ● ●
10 METAL SET; CRANKSHAFT,STANDARD
BLACK 		8-97372-077-0 07 1 0306- ● ●
10 METAL SET; CRANKSHAFT,STANDARD
BROWN 		8-97372-078-0 07 1 0306- ● ●
10 METAL SET; CRANKSHAFT,STANDARD
PINK 		8-94391-514-0 07 1 0101-0305 ● ●
10 METAL SET; CRANKSHAFT,STANDARD
GREEN 		8-94391-515-0 07 1 0101-0305 ● ●
10 METAL SET; CRANKSHAFT,STANDARD
YELLOW 		8-94391-516-0 07 1 0101-0305 ● ●
12 FLYWHEEL 8-94395-450-1 01 1 0101- ● ●
18 PULLEY; CR/SHF
3-GROOVE 		8-94390-166-2 01 1 0101- ●
18 PULLEY; CR/SHF
3-GROOVE 		8-94394-296-3 01 1 0101- ●
20 DAMPER; CR/SHF 8-94394-354-5 01 1 0101- ●
20 DAMPER; CR/SHF 8-94396-846-1 01 1 0101- ●
22 PLATE; PULLEY
ID=17 OD=30 		9-09851-935-0 04 1 0101- ● ●
24 BOLT; DAMPER
M10X16 FLANGE 		0-28181-016-0 06 1 0101- ● ●
28 GEAR; CR/SHF
(A) Z=42 		8-94394-342-4 01 1 0101- ● ●
28 GEAR; CR/SHF
(B) Z=41 		8-94396-954-2 01 1 0101- ● ●
32 PIN; FLYWHEEL
OD=8 L=16 		9-08150-816-0 02 1 0101- ● ●
34 PIN; GEAR SETTING
OD=5 L=6 		9-09878-626-0 01 1 0101- ● ●
35 GEAR; RING
Z=140 		8-94396-784-0 01 1 0101- ● ●
36 PIN; FLYWHEEL
OD=10 L=22 		9-08151-022-0 02 1 0101- ● ●
37 BEARING; PILOT,TOP GEAR SHAFT 8-94392-288-0 01 1 0101- ● ●
38 WASHER; FLYWHEEL
ID=55 OD=110 		8-94397-496-1 01 1 0101- ● ●
40 BOLT; FLYWHEEL
M16X62 		8-94393-070-2 08 1 0101- ● ●
42 WASHER; THRUST,CR/SHF
(A) 		8-94399-277-0 01 1 0101- ● ●
42 WASHER; THRUST,CR/SHF
(B) 		8-94399-283-0 02 1 0101- ● ●
57 PIN; PULLEY
OD=8 L=16 		8-94391-156-0 01 1 0101- ● ●
58 BOLT; CR/SHF PULLEY
M16X50 		9-92061-650-0 04 1 0101- ● ●
63 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-94391-596-1 06 1 0101- ●
63 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-97600-242-0 06 1 0101- ●
68 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-94395-061-7 06 1 0101- ●
68 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-94392-128-3 06 1 0101- ●
73 METAL SET; CONN ROD,STANDARD
GREEN 		8-94395-757-1 06 1 0101- ●
73 METAL SET; CONN ROD,STANDARD
YELLOW 		8-97131-186-1 06 1 0101- ●
73 METAL SET; CONN ROD,STANDARD 8-94393-328-0 06 1 0101- ●
83 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94396-731-1 06 1 0101- ●
83 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94396-589-1 06 1 0101- ●
84 ROD ASM; CONN 8-94399-661-1 06 1 0101-0108 ●
84 ROD ASM; CONN 8-94391-791-1 06 1 0109-0305 ●
84 ROD ASM; CONN 8-94399-661-2 06 1 0306- ●
84 ROD ASM; CONN 8-94396-394-3 06 1 0101- ●
85 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		8-94394-613-0 06 1 0101-0108 ●
85 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		8-94391-794-0 06 1 0109-0305 ●
85 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		8-94394-613-0 06 1 0306- ●
85 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		1-12251-036-0 06 1 0101- ●
86 BOLT; CONNROD
M13X57 FLANGE 		1-12235-035-0 12 1 0101- ● ●
108 RING; SNAP,BRG SET
OD=59.2 		9-09180-155-0 01 1 0101- ● ●
126 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. 		1-09587-081-1 12 1 0101- ●
126 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. 		8-94318-798-2 12 1 0101- ●
