◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51146 - NLR/NMR(SOUTHAFRICA) ▶ 3 - Brakes, Brake System ▶ 3-11 - PARKING BRAKE CONTROL ▶
3-11 — PARKING BRAKE CONTROL (#75335) — 34 parça

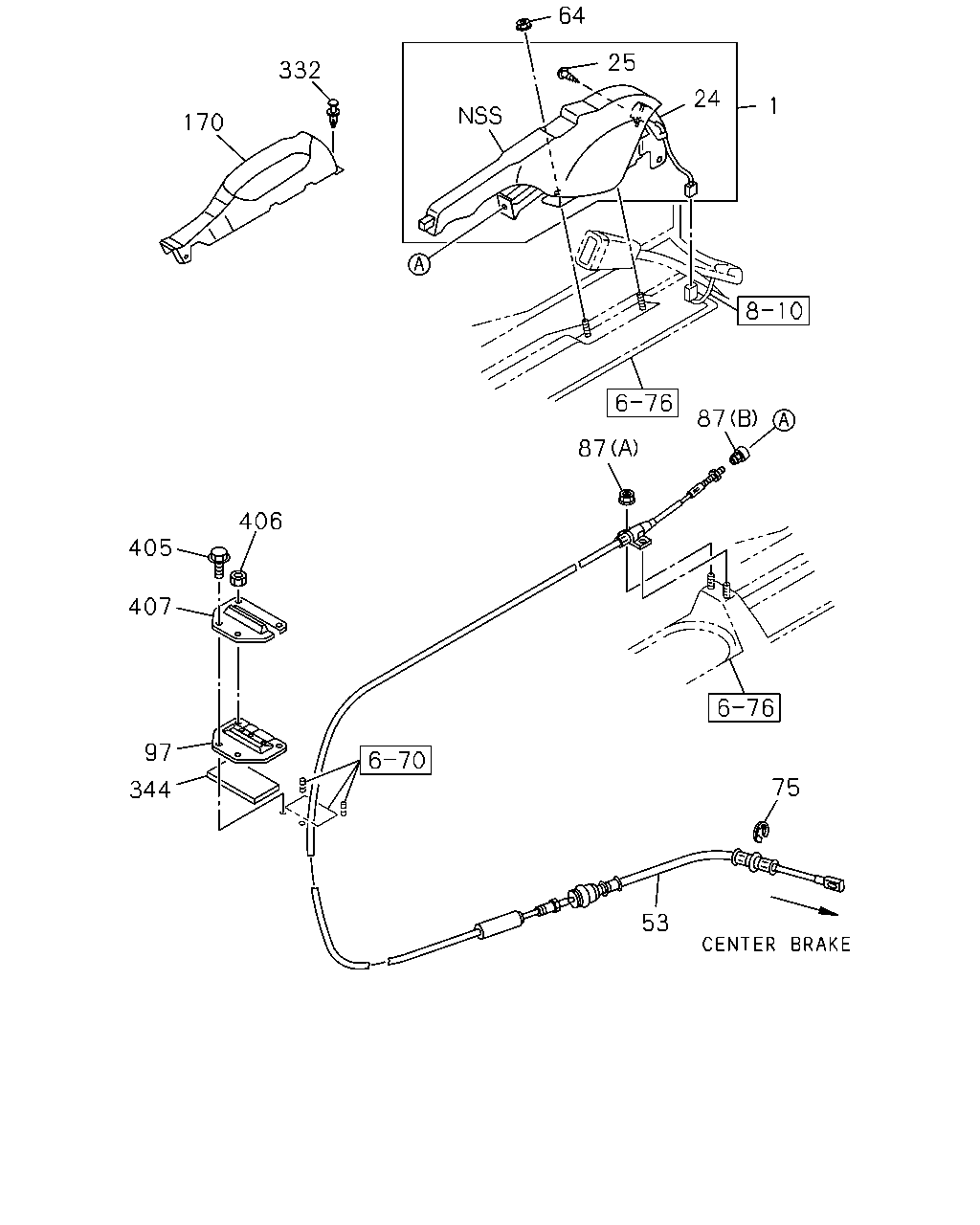

çizim 115388
64 25 332 24 1 170 87 87 406 405 407 97 75 344 53
BalonParca AdiParca NoAdetTipApplied Date A B C
1 STEM ASM; PARKING BRK
GRAY 		8-97405-353-0 01 1 0804-1303 ● ● ●
1 STEM ASM; PARKING BRK
GRAY 		8-97426-513-0 01 1 1304- ● ● ●
24 SWITCH ASM; PARK BRK
SOU 		8-97995-828-1 01 1 0804-1303 ● ● ●
24 SWITCH ASM; PARK BRK 8-98238-611-0 01 1 1304- ● ● ●
25 SCREW; SW,PARKING BRK 8-98152-463-0 01 1 0804- ● ● ●
53 CABLE; PARK BRK,FRT LWR 8-98102-912-0 01 1 0804- ● ● ●
64 NUT; PARKING BRK
M8 LOCK NUT FLANGE 		0-91380-008-0 02 1 0804- ● ● ●
75 RING; SNAP,HAND BRK CABLE
ID=12 		0-91805-512-0 01 1 0804- ● ● ●
87 NUT
(B) M8 FLANGE SOU 		0-91180-108-0 02 1 0804- ● ● ●
87 NUT
(A) M6 		8-98034-313-1 01 1 0804- ● ● ●
97 GROMMET; PARKING BRK CABLE 8-97065-212-1 01 1 0804- ● ● ●
170 COVER; PARKING BRK LEVER
GRAY 		8-97406-170-1 01 1 0804- ● ● ●
332 CLIP; COVER
GRAY 		8-97406-171-0 01 1 0804- ● ● ●
344 GASKET; DASH LWR
MANUAL TILT CAB<RWZ> 		8-97096-753-0 01 1 0804- ● ●
405 BOLT; GROMMET
M6X20 FLANGE 		0-28450-620-0 02 1 0804- ● ● ●
406 NUT; GROMMET
M6 FLANGE SOU 		0-91180-106-0 02 1 0804- ● ● ●
407 RETAINER; GROMMET 1-33657-674-0 01 1 0804- ● ● ●

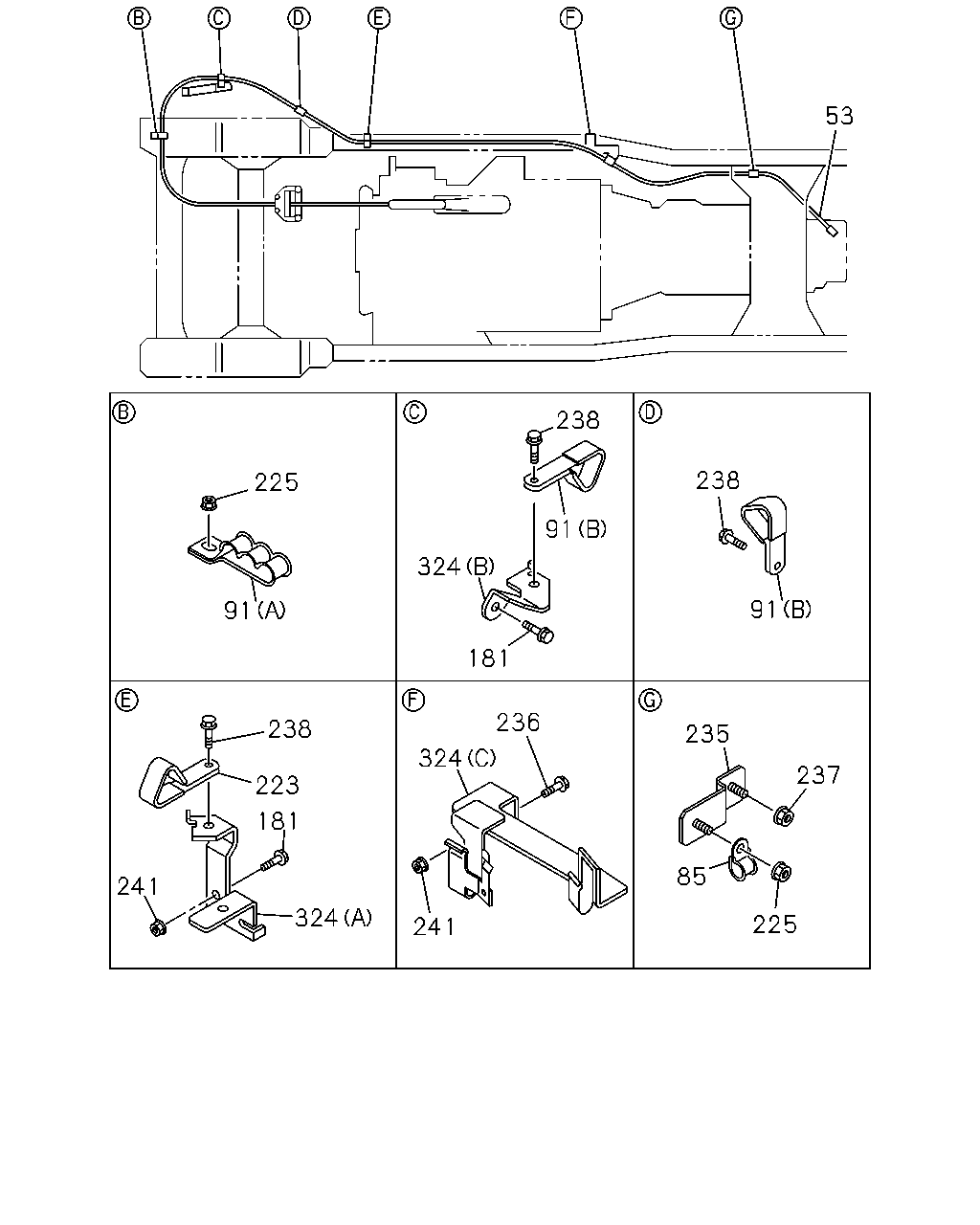

çizim 115719
53 238 238 225 91 324 91 91 181 236 238 235 324 237 223 181 85 241 324 225 241
BalonParca AdiParca NoAdetTipApplied Date A B C
53 CABLE; PARK BRK,FRT LWR 8-98102-912-0 01 1 0804- ● ● ●
85 CLIP; BRKT
ID=14.5 L=20 		1-09701-012-0 01 1 0804- ● ● ●
91 CLIP; PARKING BRK CABLE
(B) 		8-97036-333-1 02 1 0804- ● ● ●
91 CLIP; PARKING BRK CABLE
(A) 		8-98023-622-0 01 1 0804- ● ● ●
181 BOLT; BRKT
M8X16 FLANGE SOU 		0-28050-816-0 01 1 0804- ● ● ●
181 BOLT; BRKT
M8X25 FLANGE SOU 		0-28650-825-0 01 1 0804- ● ● ●
223 CLIP; PARKING BRK CABLE 8-97036-333-1 01 1 0804- ● ● ●
225 NUT; CABLE CLIP
M8 FLANGE SOU 		0-91180-108-0 01 1 0804- ● ● ●
225 NUT; CABLE CLIP
M8 FLANGE SOU 		0-91180-108-0 01 1 0804- ● ● ●
235 BRACKET; CONT CABLE TO FRAME 8-98034-352-0 01 1 0804- ● ● ●
236 BOLT; BRKT TO FRAME
M8X25 FLANGE SOU 		0-28650-825-0 01 1 0804- ● ● ●
237 NUT; BRKT TO FRAME
M8 FLANGE SOU 		0-91180-108-0 01 1 0804- ● ● ●
238 BOLT; CLIP TO BRKT
M8X25 FLANGE SOU 		0-28650-825-0 03 1 0804- ● ● ●
241 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 01 1 0804- ● ● ●
324 BRACKET
(A) 		8-98003-642-1 01 1 0804- ● ● ●
324 BRACKET
(C) 		8-98026-099-2 01 1 0804- ● ● ●
324 BRACKET
(B) 		8-98034-115-0 01 1 0804- ● ● ●
