3-02 — FRONT DISC BRAKE CALIPER (#75331) — 27 parça

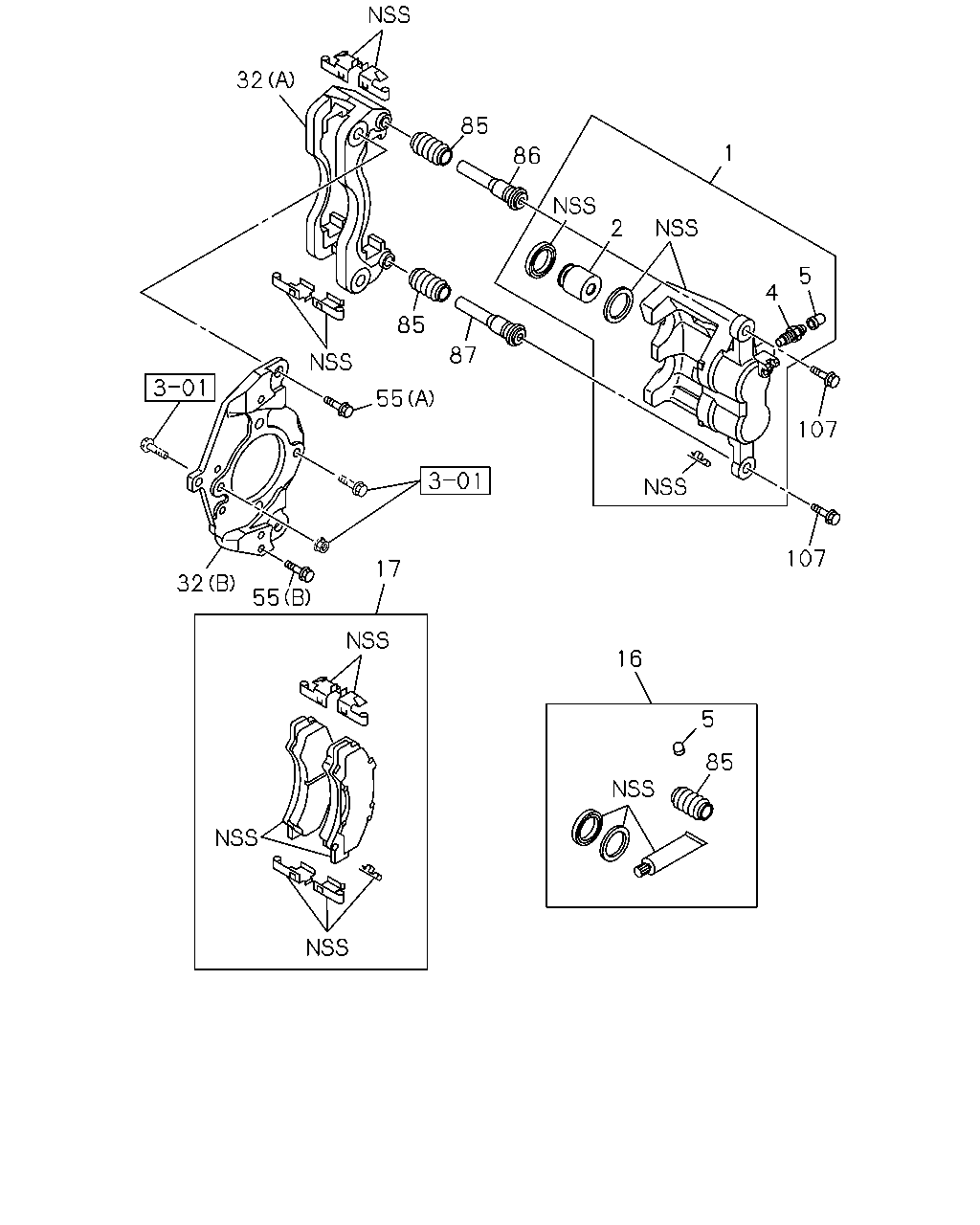

çizim 115266
32 85 1 86 2 5 4 85 87 55 107 107 17 32 55 16 5 85
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CALIPER; FRT DISC BRK 8-97365-908-0 01 1 0804-1310 ● ● ●
1 CALIPER; FRT DISC BRK 8-98247-731-0 01 1 1311-1412 ● ● ●
1 CALIPER; FRT DISC BRK 8-98303-462-0 01 1 1501- ● ● ●
1 CALIPER; FRT DISC BRK 8-97365-907-0 01 1 0804-1310 ● ● ●
1 CALIPER; FRT DISC BRK 8-98247-730-0 01 1 1311-1412 ● ● ●
1 CALIPER; FRT DISC BRK 8-98303-461-0 01 1 1501- ● ● ●
2 PISTON; CALIPER,DISC BRK,FRT 8-97365-269-0 04 1 0804- ● ● ●
4 SCREW; BLEEDER,DISC BRK,FRT 1-47615-027-0 02 1 0804-1310 ● ● ●
4 SCREW; BLEEDER,DISC BRK,FRT
SOU 		8-98050-476-0 02 1 1311- ● ● ●
5 CAP; BLEEDER,DISC BRK,FRT
SOU 		1-47619-009-0 02 1 0804-1310 ● ● ●
5 CAP; BLEEDER,DISC BRK,FRT
SOU 		8-98050-479-0 02 1 1311- ● ● ●
16 REPAIR KIT; CALIPER,DISC BRK,FRT 8-98120-357-0 01 1 0804-1310 ● ● ●
16 REPAIR KIT; CALIPER,DISC BRK,FRT 8-98248-904-0 01 1 1311-1412 ● ● ●
16 REPAIR KIT; CALIPER,DISC BRK,FRT 8-98302-531-0 01 1 1501- ● ● ●
17 PAD KIT; CALIPER,DISC BRK,FRT 8-97329-266-0 01 1 0804-1212 ● ● ●
17 PAD KIT; CALIPER,DISC BRK,FRT 8-98216-922-0 01 1 1301- ● ● ●
32 SUPPORT; FRT DISC BRK
(A) 		8-97365-271-0 02 1 0804- ● ● ●
32 SUPPORT; FRT DISC BRK
(B) 		8-98009-727-0 01 1 0804- ● ● ●
32 SUPPORT; FRT DISC BRK
(B) 		8-98009-726-0 01 1 0804- ● ● ●
55 BOLT; SUPPORT BRKT TO DISC BRK
(B) M10X12 FLANGE 		0-28051-012-0 02 1 0804- ● ● ●
55 BOLT; SUPPORT BRKT TO DISC BRK
(A) M16X31 FLANGE 		8-97359-816-0 04 1 0804- ● ● ●
85 BOOT; PIN 8-97365-265-0 04 1 0804-0901 ● ● ●
85 BOOT; PIN 8-98120-354-0 04 1 0902- ● ● ●
86 PIN; GUIDE 8-98047-529-0 02 1 0804- ● ● ●
87 PIN; LOCK 8-98047-531-0 02 1 0804-1310 ● ● ●
87 PIN; LOCK 8-98248-005-0 02 1 1311- ● ● ●
107 BOLT; PIN 8-97365-264-0 04 1 0804- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
