2-85 — POWER TAKE OFF CONTROL (#75329) — 104 parça

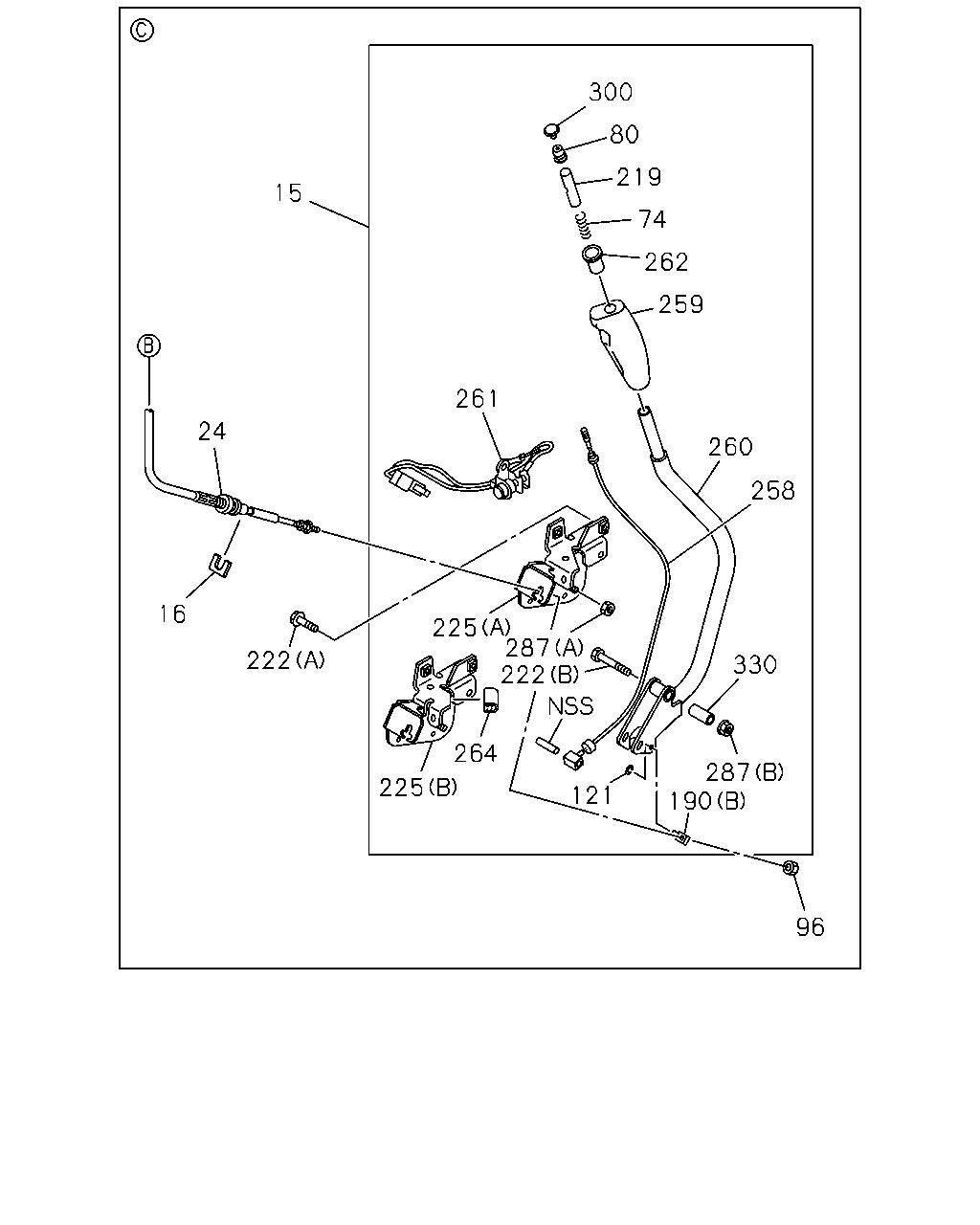

15 300 80 219 74 262 259 260 258 330 287 190 121 96 264 225 222 287 225 222 261 24 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	LEVER ASM; PTO CONT PTO MANUAL CONTROL(6WC)	8-98029-208-7	01	1	0804-1204
15	LEVER ASM; PTO CONT PTO MANUAL CONTROL(6WC)	8-98199-362-0	01	1	1205-
16	CLIP; CABLE,PTO PTO MANUAL CONTROL(6WC)	8-98050-126-0	01	1	0804-
24	CABLE; PTO CONT AIR CONDITIONER MANUAL CONT(C60) PTO MANUAL CONTROL(6WC) L=3377	8-98071-355-2	01	1	0804-0804
24	CABLE; PTO CONT AIR CONDITIONER MANUAL CONT(C60) PTO MANUAL CONTROL(6WC) L=3377	8-98117-143-1	01	1	0804-1207
24	CABLE; PTO CONT AIR CONDITIONER MANUAL CONT(C60) PTO MANUAL CONTROL(6WC) L=3377	8-98223-323-0	01	1	1208-
24	CABLE; PTO CONT PTO MANUAL CONTROL(6WC) EXC. AIR CONDITIONER MANUAL CONT(C60) L=3372	8-98086-185-1	01	1	0804-0804
24	CABLE; PTO CONT PTO MANUAL CONTROL(6WC) EXC. AIR CONDITIONER MANUAL CONT(C60) L=3372	8-98117-145-1	01	1	0804-1207
24	CABLE; PTO CONT PTO MANUAL CONTROL(6WC) EXC. AIR CONDITIONER MANUAL CONT(C60) L=3372	8-98223-325-0	01	1	1208-
74	SPRING; RETURN,CONT LEVER PTO MANUAL CONTROL(6WC)	8-98029-874-0	01	1	0804-
80	COVER; CONT LEVER PTO MANUAL CONTROL(6WC)	8-97122-741-0	01	1	0804-
96	NUT PTO MANUAL CONTROL(6WC) M6 SOU	0-91110-506-0	01	1	0804-
121	RING; SNAP PTO MANUAL CONTROL(6WC) ID=4	0-91805-504-0	01	1	0804-
190	BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (A)	8-94366-842-2	01	1	0804-
190	BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (B)	8-98029-878-0	01	1	0804-
219	KNOB; LEVER PTO MANUAL CONTROL(6WC)	8-97122-736-0	01	1	0804-
222	BOLT; LEVER PTO MANUAL CONTROL(6WC) (B) M8X60	0-10855-860-0	01	1	0804-
222	BOLT; LEVER PTO MANUAL CONTROL(6WC) (A) M8X20 FLANGE	0-28650-820-0	03	1	0804-
225	BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC) (A)	8-98029-873-3	01	1	0804-1204
225	BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC) (B)	8-98152-960-1	01	1	1205-
258	CABLE; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98029-877-1	01	1	0804-
259	GRIP; CONT LEVER PTO MANUAL CONTROL(6WC)	8-97141-653-0	01	1	0804-
260	LEVER; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98030-057-2	01	1	0804-
261	SWITCH; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98081-918-0	01	1	0804-
262	RETAINER; SPRING PTO MANUAL CONTROL(6WC)	8-97129-397-0	01	1	0804-
264	PROTECTOR; EDGE PTO MANUAL CONTROL(6WC)	8-98211-652-0	01	1	1205-
287	NUT; SWITCH,CONT LEVER PTO MANUAL CONTROL(6WC) (A) M6 SOU	0-91110-506-0	01	1	0804-
287	NUT; SWITCH,CONT LEVER PTO MANUAL CONTROL(6WC) (B) M8 FLANGE SOU	0-91180-208-0	01	1	0804-
300	CAP; KNOB PTO MANUAL CONTROL(6WC)	8-97122-740-0	01	1	0804-
330	COLOR; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98049-802-0	01	1	0804-

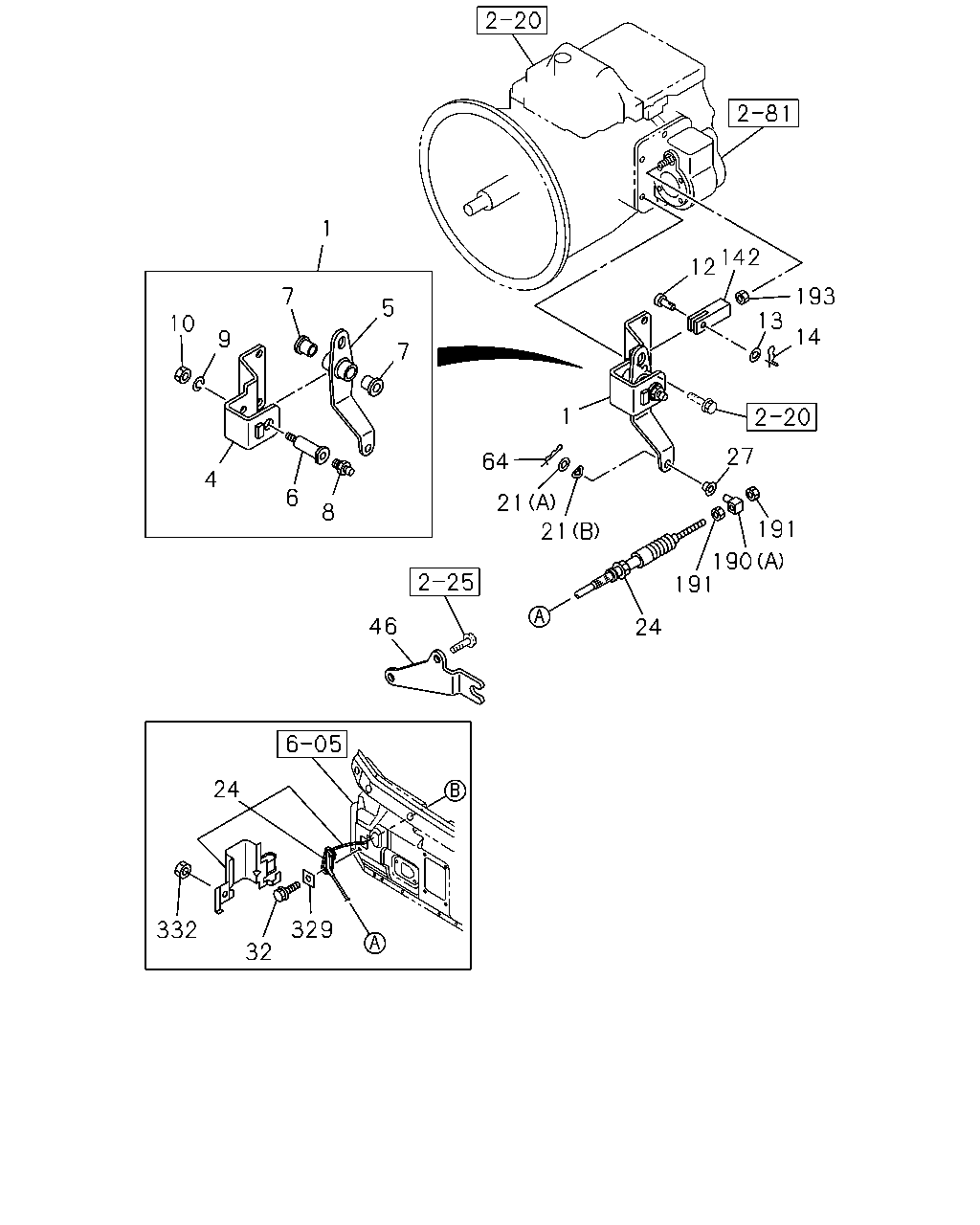

1 142 12 193 7 5 13 10 14 9 7 1 27 64 4 6 21 21 8 191 190 191 46 24 24 329 332 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66)	8-98032-714-0	01	1	0804-1107
1	LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66)	8-98150-089-1	01	1	1108-1308
1	LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98150-089-1	01	1	1309-
4	BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66)	8-98032-717-0	01	1	0804-1107
4	BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66)	8-98150-099-1	01	1	1108-1308
4	BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98150-099-1	01	1	1309-
5	LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66)	8-98032-718-0	01	1	0804-1308
5	LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98032-718-0	01	1	1309-
6	SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66)	8-98032-720-0	01	1	0804-1107
6	SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66)	8-98150-101-0	01	1	1108-1308
6	SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98150-101-0	01	1	1309-
7	BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66)	5-33659-053-0	02	1	0804-1308
7	BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	5-33659-053-0	02	1	1309-
8	NIPPLE; GREASE PTO TRANSMISSION SIDE(V66) M6 STRAIGHT SOU	0-90301-406-0	01	1	0804-1308
8	NIPPLE; GREASE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M6 STRAIGHT SOU	0-90301-406-0	01	1	1309-
9	WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE(V66) ID=8.2 SOU	0-91510-508-0	01	1	0804-1308
9	WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=8.2 SOU	0-91510-508-0	01	1	1309-
10	NUT; SHAFT,PTO PTO TRANSMISSION SIDE(V66) M8 SOU	0-91110-508-0	01	1	0804-1308
10	NUT; SHAFT,PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M8 SOU	0-91110-508-0	01	1	1309-
12	JOINT; PIN,YOKE PTO TRANSMISSION SIDE(V66)	8-98031-692-0	01	1	0804-1308
12	JOINT; PIN,YOKE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98031-692-0	01	1	1309-
13	WASHER; PL,YOKE PTO TRANSMISSION SIDE(V66) ID=12.5 OD=22	0-91610-512-0	01	1	0804-1308
13	WASHER; PL,YOKE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=12.5 OD=22	0-91610-512-0	01	1	1309-
14	PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66)	8-97581-216-0	01	1	0804-1308
14	PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-97581-216-0	01	1	1309-
21	WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) (A) ID=8.4 OD=22	0-91614-708-0	01	1	0804-
21	WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) (B) ID=8.5 T=0.3	5-09509-001-0	01	1	0804-
24	CABLE; PTO CONT AIR CONDITIONER MANUAL CONT(C60) PTO MANUAL CONTROL(6WC) L=3377	8-98071-355-2	01	1	0804-0804
24	CABLE; PTO CONT AIR CONDITIONER MANUAL CONT(C60) PTO MANUAL CONTROL(6WC) L=3377	8-98117-143-1	01	1	0804-1207
24	CABLE; PTO CONT AIR CONDITIONER MANUAL CONT(C60) PTO MANUAL CONTROL(6WC) L=3377	8-98223-323-0	01	1	1208-
24	CABLE; PTO CONT PTO MANUAL CONTROL(6WC) EXC. AIR CONDITIONER MANUAL CONT(C60) L=3372	8-98086-185-1	01	1	0804-0804
24	CABLE; PTO CONT PTO MANUAL CONTROL(6WC) EXC. AIR CONDITIONER MANUAL CONT(C60) L=3372	8-98117-145-1	01	1	0804-1207
24	CABLE; PTO CONT PTO MANUAL CONTROL(6WC) EXC. AIR CONDITIONER MANUAL CONT(C60) L=3372	8-98223-325-0	01	1	1208-
27	BUSHING; LEVER,PTO PTO MANUAL CONTROL(6WC)	8-94367-367-0	01	1	0804-
32	BOLT; CLIP,CABLE PTO MANUAL CONTROL(6WC) M6X16 FLANGE	0-28060-616-0	02	1	0804-
46	BRACKET; PTO,TRANS SIDE PTO MANUAL CONTROL(6WC)	8-98032-829-2	01	1	0804-
64	PIN; SNAP,CONT CABLE JOINT PTO MANUAL CONTROL(6WC) L=27.7 SOU	8-94111-137-0	01	1	0804-
142	CLEVIS; CONT BOX PTO TRANSMISSION SIDE(V66)	8-98031-691-0	01	1	0804-1308
142	CLEVIS; CONT BOX PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98031-691-0	01	1	1309-
190	BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (A)	8-94366-842-2	01	1	0804-
190	BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (B)	8-98029-878-0	01	1	0804-
191	NUT; BOSS PTO MANUAL CONTROL(6WC) M6 SOU	0-91110-506-0	02	1	0804-
193	NUT PTO TRANSMISSION SIDE(V66) M12	0-91111-512-0	01	1	0804-1308
193	NUT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M12	0-91111-512-0	01	1	1309-
329	SEAL PTO MANUAL CONTROL(6WC) SOU	8-97856-616-0	02	1	0804-
332	NUT; PTO CONT CABLE PTO MANUAL CONTROL(6WC) M6 FLANGE SOU	0-91180-106-0	01	1	0804-

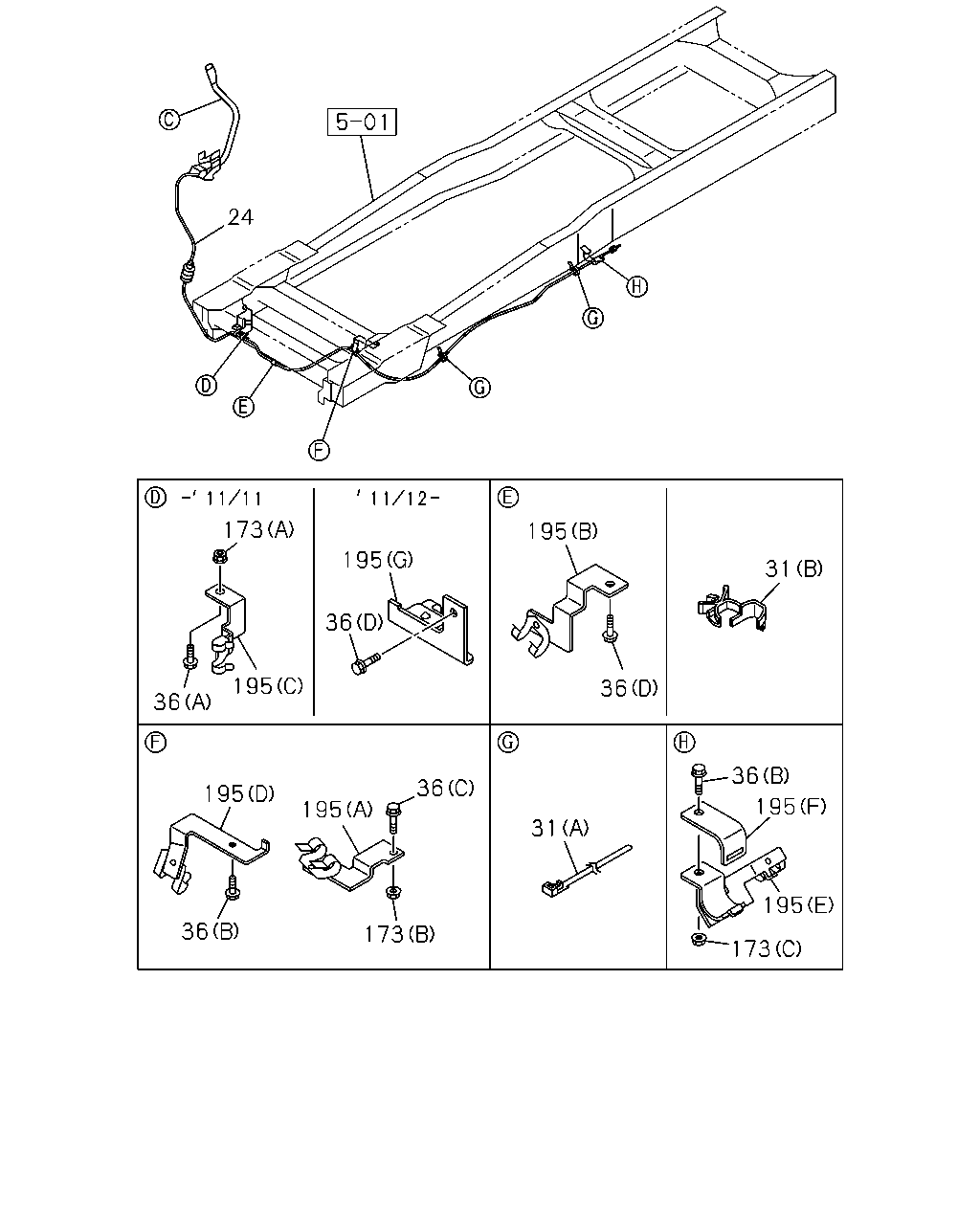

24 173 195 195 31 36 195 36 36 36 36 195 195 195 31 195 36 173 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CABLE; PTO CONT AIR CONDITIONER MANUAL CONT(C60) PTO MANUAL CONTROL(6WC) L=3377	8-98071-355-2	01	1	0804-0804
24	CABLE; PTO CONT AIR CONDITIONER MANUAL CONT(C60) PTO MANUAL CONTROL(6WC) L=3377	8-98117-143-1	01	1	0804-1207
24	CABLE; PTO CONT AIR CONDITIONER MANUAL CONT(C60) PTO MANUAL CONTROL(6WC) L=3377	8-98223-323-0	01	1	1208-
24	CABLE; PTO CONT PTO MANUAL CONTROL(6WC) EXC. AIR CONDITIONER MANUAL CONT(C60) L=3372	8-98086-185-1	01	1	0804-0804
24	CABLE; PTO CONT PTO MANUAL CONTROL(6WC) EXC. AIR CONDITIONER MANUAL CONT(C60) L=3372	8-98117-145-1	01	1	0804-1207
24	CABLE; PTO CONT PTO MANUAL CONTROL(6WC) EXC. AIR CONDITIONER MANUAL CONT(C60) L=3372	8-98223-325-0	01	1	1208-
31	CLIP; BAND,CABLE PTO MANUAL CONTROL(6WC) (A) L=250 SOU	5-09707-030-1	01	1	0811-
31	CLIP; BAND,CABLE PTO MANUAL CONTROL(6WC) (A) L=250 SOU	5-09707-030-1	01	1	0804-0804
31	CLIP; BAND,CABLE PTO MANUAL CONTROL(6WC) (B) ID=16	8-97040-812-0	01	1	0804-
36	BOLT; PTO BRKT AIR CONDITIONER MANUAL CONT(C60) PTO MANUAL CONTROL(6WC) (C) M6X20 FLANGE SOU	0-28650-620-0	01	1	0804-
36	BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) (D) M10X20 FLANGE	0-28651-020-0	01	1	0804-1111
36	BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) (D) M10X20 FLANGE	0-28651-020-0	01	1	1112-1112
36	BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) (D) M10X20 FLANGE	0-28651-020-0	01	1	1112-1112
36	BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) (D) M10X20 FLANGE	0-28651-020-0	02	1	1112-
36	BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) (A) M14X30 FLANGE	0-28651-430-0	01	1	0804-1111
36	BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) EXC. AIR CONDITIONER MANUAL CONT(C60) (B) M8X25 FLANGE SOU	0-28650-825-0	01	1	0804-0804
36	BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) (B) M8X25 FLANGE SOU	0-28650-825-0	01	1	0804-
36	BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) EXC. AIR CONDITIONER MANUAL CONT(C60) (B) M8X25 FLANGE SOU	0-28650-825-0	01	1	0804-
173	NUT; BRKT PTO MANUAL CONTROL(6WC) (C) M8 FLANGE SOU	0-91180-108-0	01	1	0804-
173	NUT; BRKT AIR CONDITIONER MANUAL CONT(C60) PTO MANUAL CONTROL(6WC) (B) M6 FLANGE SOU	0-91180-106-0	01	1	0804-
173	NUT; BRKT PTO MANUAL CONTROL(6WC) (A) M14 FLANGE	0-91180-114-0	01	1	0804-1111
195	BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) (E)	8-98117-131-0	01	1	0804-
195	BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) (F)	8-98117-132-0	01	1	0804-
195	BRACKET; CONT CABLE AIR CONDITIONER MANUAL CONT(C60) PTO MANUAL CONTROL(6WC) (A)	8-98032-856-1	01	1	0804-
195	BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) (C)	8-98086-262-0	01	1	0804-1111
195	BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) (G)	8-98152-321-0	01	1	1112-
195	BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) (B)	8-98101-143-0	01	1	0804-
195	BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) EXC. AIR CONDITIONER MANUAL CONT(C60) (D)	8-98086-264-0	01	1	0804-
