2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#75327) — 25 parça

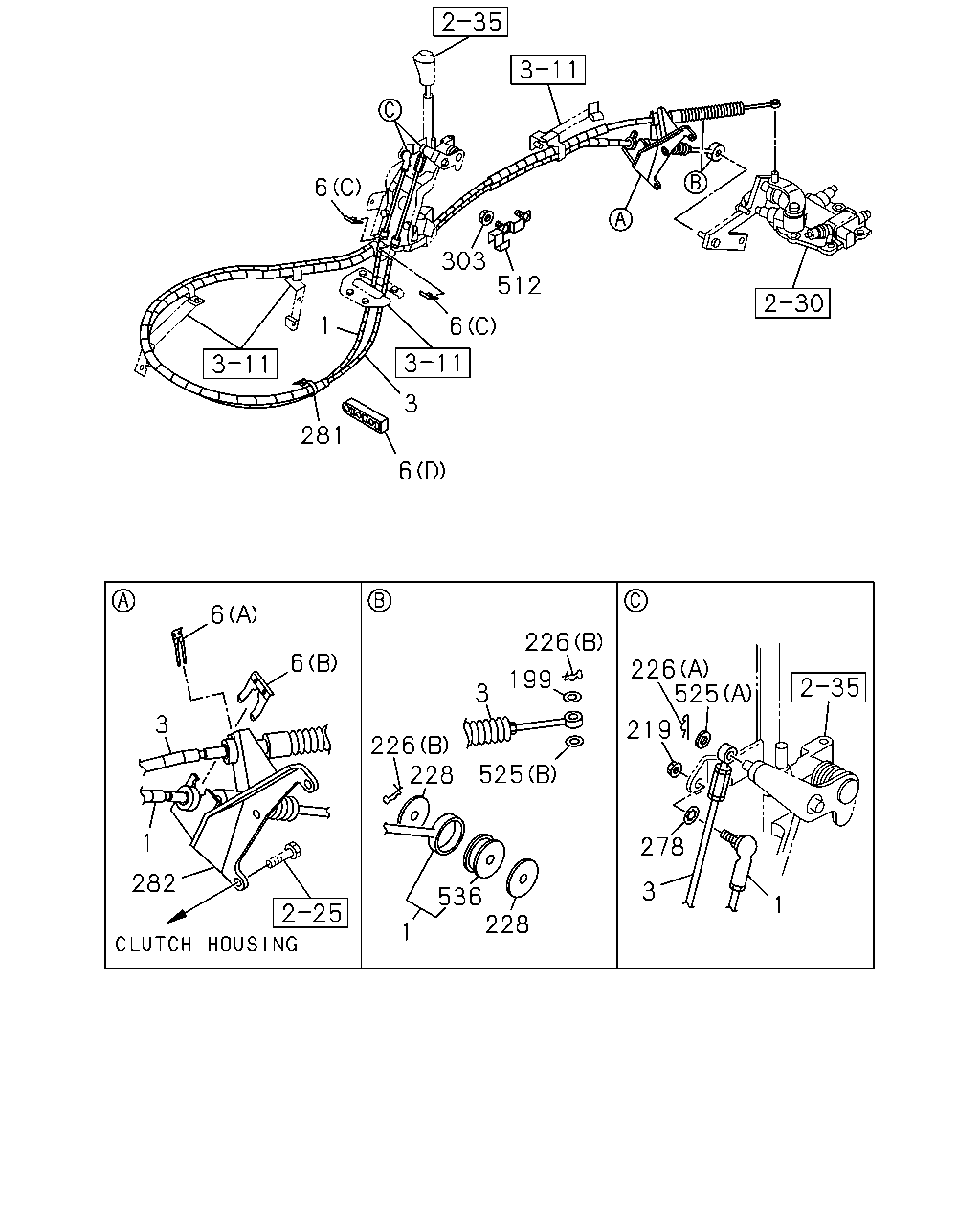

çizim 113950
6 303 512 1 6 3 281 6 6 226 6 226 525 199 3 3 219 226 228 525 1 278 282 3 536 228 1 1
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
L=2955 		8-98001-075-1 01 1 0804-0911
1 CABLE; SHIFT,TRANS CONT
L=2955 		8-98146-815-1 01 1 0912-1106
1 CABLE; SHIFT,TRANS CONT
L=2955 		8-98164-353-1 01 1 1107-1411
1 CABLE; SHIFT,TRANS CONT
L=2955 		8-98292-916-0 01 1 1412-
3 CABLE; SELECT,TRANS CONT
L=3035 		8-98001-087-2 01 1 0804-1106
3 CABLE; SELECT,TRANS CONT
L=3035 		8-98164-362-1 01 1 1107-1411
3 CABLE; SELECT,TRANS CONT
L=3035 		8-98283-986-0 01 1 1412-
6 CLIP; CABLE
(A) ID=22.2 		1-09701-209-1 01 1 0804-
6 CLIP; CABLE
(C) 		8-97011-448-0 02 1 0804-
6 CLIP; CABLE
(B) ID=19.2 		8-97211-011-0 01 1 0804-
6 CLIP; CABLE
EXC. MANUAL TILT CAB<RWZ> (D) 		8-97093-491-1 01 1 0804-
199 WASHER; PL,SELECT
ID=8.4 OD=16 SOU 		0-91610-508-0 01 1 0804-
219 NUT; FLANGE,SHAFT CABLE
M8 T=8.0 SOU 		8-94363-045-0 01 1 0804-
226 PIN; SHIFT CABLE
(A) L=27.7 SOU 		8-94111-137-0 01 1 0804-
226 PIN; SHIFT CABLE
(B) L=23 		8-94170-378-0 02 1 0804-
228 WASHER; PL,SHIFT CABLE
ID=8.2 OD=40 		8-97182-975-0 02 1 0804-
278 WASHER; LK,SHIFT WIRE
ID=8.4 TOOTH LK INT 		0-91541-208-0 01 1 0804-
281 CLIP; BAND
L=140 SOU 		5-09707-031-1 01 1 0804-
282 BRACKET; TRANS SIDE 8-97350-449-0 01 1 0804-
303 NUT; CLIP
M8 FLANGE SOU 		0-91180-108-0 01 1 0804-
512 GUIDE; CABLE,GEAR CONT 8-98027-333-1 01 1 0804-0904
512 GUIDE; CABLE,GEAR CONT 8-98111-916-0 01 1 0905-
525 WASHER; SHIFT CABLE
(A) ID=8.4 OD=16 SOU 		0-91614-508-0 01 1 0804-
525 WASHER; SHIFT CABLE
(B) ID=8.4 OD=14 		5-09550-002-0 01 1 0804-
536 DAMPER; CABLE 8-98097-681-0 01 1 0804-
