◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51146 - NLR/NMR(SOUTHAFRICA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-25 - SPEEDOMETER DRIVEN GEAR ▶
2-25 — SPEEDOMETER DRIVEN GEAR (#75323) — 32 parça

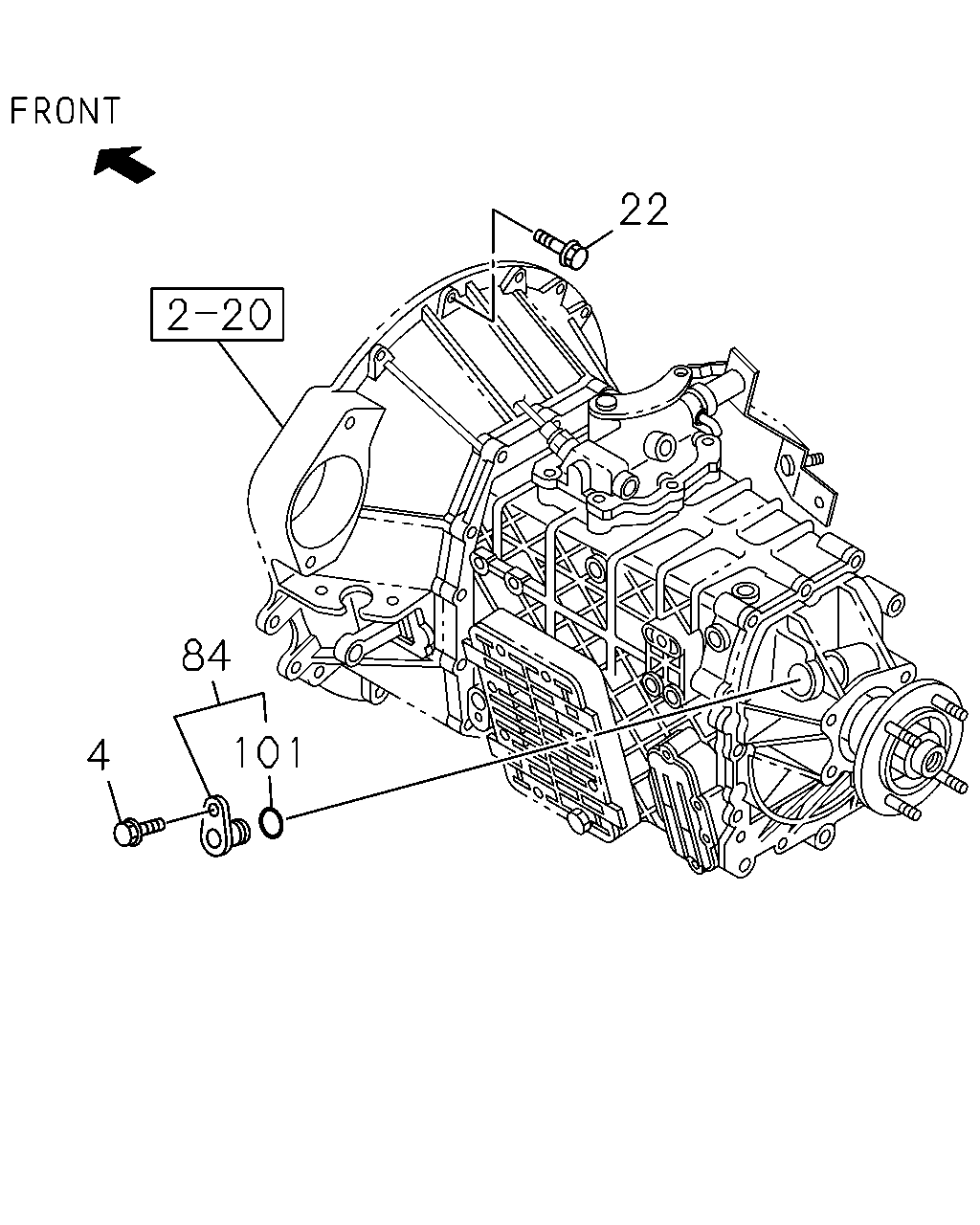

çizim 109844
22 84 101 4
BalonParca AdiParca NoAdetTipApplied Date A B C
4 BOLT; RET,DRIVEN GEAR
M8X20 FLANGE 		0-28650-820-0 01 1 0804- ● ● ●
22 BOLT; TRANS CASE TO ENG
M10X30 FLANGE 		0-28151-030-0 02 1 0804-1301 ● ● ●
22 BOLT; TRANS CASE TO ENG
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M10X30 FLANGE 		0-28151-030-0 02 1 1302-1509 ● ● ●
22 BOLT; TRANS CASE TO ENG
PTO MANUAL CONTROL(6WC) M10X30 FLANGE 		0-28151-030-0 02 1 1510- ● ● ●
22 BOLT; TRANS CASE TO ENG
M10X35 FLANGE 		0-28151-035-0 03 1 0804-1301 ● ● ●
22 BOLT; TRANS CASE TO ENG
EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) M10X35 FLANGE 		0-28151-035-0 03 1 1302- ● ● ●
22 BOLT; TRANS CASE TO ENG
M10X50 FLANGE 		0-28151-050-0 01 1 0804-1301 ● ● ●
22 BOLT; TRANS CASE TO ENG
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M10X50 FLANGE 		0-28151-050-0 01 1 1302-1509 ● ● ●
22 BOLT; TRANS CASE TO ENG
EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) M10X50 FLANGE 		0-28151-050-0 01 1 1302-1509 ● ● ●
22 BOLT; TRANS CASE TO ENG
EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) M10X50 FLANGE 		0-28151-050-0 01 1 1510- ● ● ●
22 BOLT; TRANS CASE TO ENG
PTO MANUAL CONTROL(6WC) M10X50 FLANGE 		0-28151-050-0 01 1 1510- ● ● ●
22 BOLT; TRANS CASE TO ENG
M10X140 FLANGE 		0-28156-014-0 01 1 0804-1301 ● ● ●
22 BOLT; TRANS CASE TO ENG
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M10X140 FLANGE 		0-28156-014-0 01 1 1302-1509 ● ● ●
22 BOLT; TRANS CASE TO ENG
EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) M10X140 FLANGE 		0-28156-014-0 01 1 1302-1509 ● ● ●
22 BOLT; TRANS CASE TO ENG
EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) M10X140 FLANGE 		0-28156-014-0 01 1 1510- ● ● ●
22 BOLT; TRANS CASE TO ENG
PTO MANUAL CONTROL(6WC) M10X140 FLANGE 		0-28156-014-0 01 1 1510- ● ● ●
22 BOLT; TRANS CASE TO ENG
PTO TRANSMISSION SIDE(V66) M10X35 FLANGE 		0-28151-035-0 01 1 0804-0906 ● ● ●
22 BOLT; TRANS CASE TO ENG
PTO MANUAL CONTROL(6WC) M10X35 FLANGE 		0-28151-035-0 01 1 0907-1301 ● ● ●
22 BOLT; TRANS CASE TO ENG
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M10X35 FLANGE 		0-28151-035-0 04 1 1302-1509 ● ● ●
22 BOLT; TRANS CASE TO ENG
PTO MANUAL CONTROL(6WC) M10X35 FLANGE 		0-28151-035-0 04 1 1510- ● ● ●
22 BOLT; TRANS CASE TO ENG
PTO TRANSMISSION SIDE(V66) M10X130 FLANGE 		0-28156-013-0 01 1 0804-0906 ● ● ●
22 BOLT; TRANS CASE TO ENG
PTO MANUAL CONTROL(6WC) M10X130 FLANGE 		0-28156-013-0 01 1 0907-1301 ● ● ●
22 BOLT; TRANS CASE TO ENG
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M10X130 FLANGE 		0-28156-013-0 01 1 1302-1509 ● ● ●
22 BOLT; TRANS CASE TO ENG
PTO MANUAL CONTROL(6WC) M10X130 FLANGE 		0-28156-013-0 01 1 1510- ● ● ●
22 BOLT; TRANS CASE TO ENG
EXC. PTO TRANSMISSION SIDE(V66) M10X30 FLANGE 		0-28151-030-0 01 1 0804-0906 ● ● ●
22 BOLT; TRANS CASE TO ENG
EXC. PTO MANUAL CONTROL(6WC) M10X30 FLANGE 		0-28151-030-0 01 1 0907-1301 ● ● ●
22 BOLT; TRANS CASE TO ENG
EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) M10X30 FLANGE 		0-28151-030-0 03 1 1302- ● ● ●
22 BOLT; TRANS CASE TO ENG
EXC. PTO TRANSMISSION SIDE(V66) M10X120 FLANGE 		0-28156-012-0 01 1 0804-0906 ● ● ●
22 BOLT; TRANS CASE TO ENG
EXC. PTO MANUAL CONTROL(6WC) M10X120 FLANGE 		0-28156-012-0 01 1 0907-1301 ● ● ●
22 BOLT; TRANS CASE TO ENG
EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) M10X120 FLANGE 		0-28156-012-0 01 1 1302- ● ● ●
84 CAP; BUSH,SPEEDOMETER GEAR 8-98035-151-1 01 1 0804- ● ● ●
101 GASKET; CAP 9-09561-324-0 01 1 0804- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
