◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 10780 - FVM(THAI) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-13 - OIL PAN AND LEVEL GAUGE ▶
0-13 — OIL PAN AND LEVEL GAUGE (#7532) — 23 parça

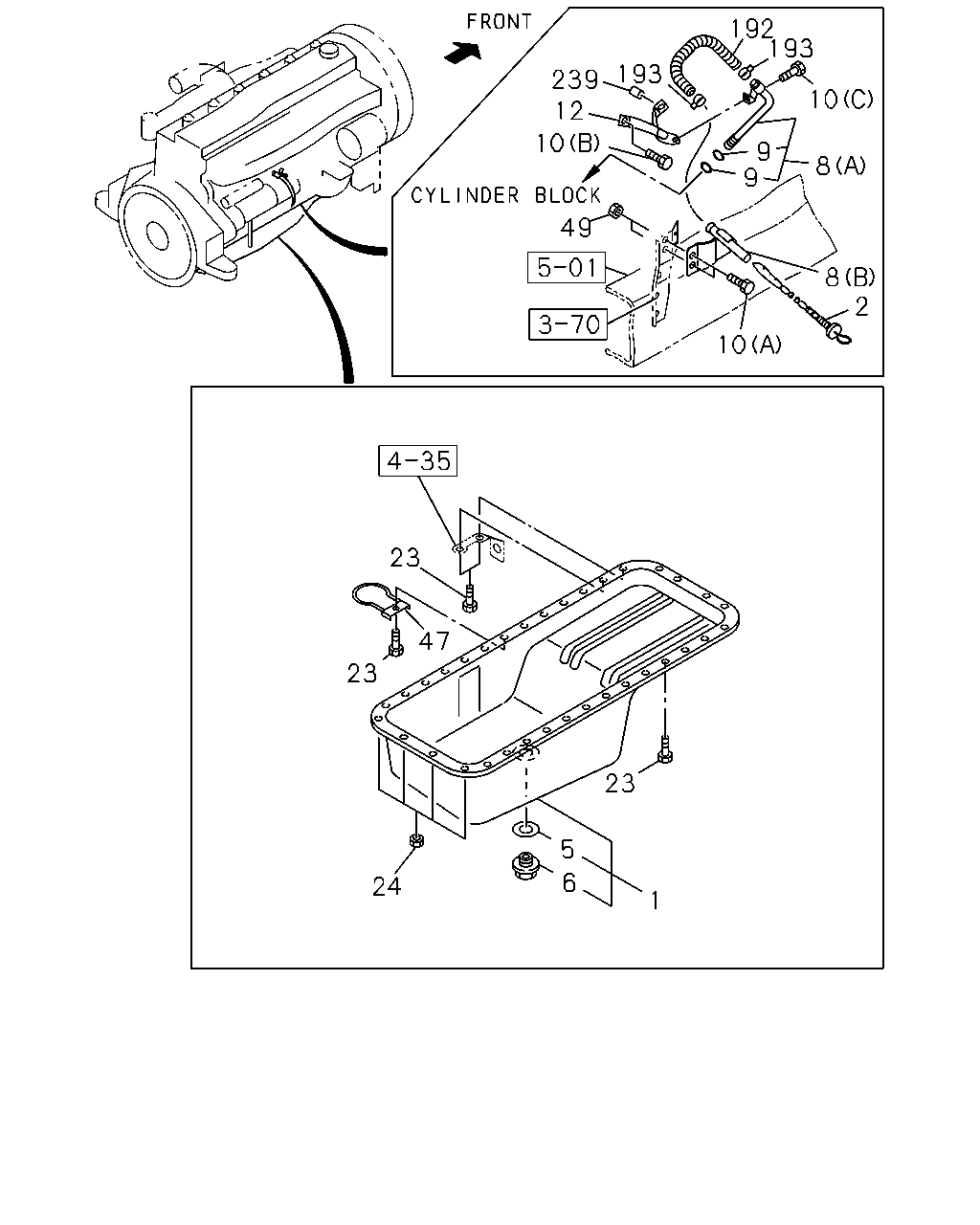

çizim 44291
192 193 193 239 12 10 10 9 9 8 49 8 2 10 23 47 23 23 5 6 24 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAN ASM; OIL 8-94394-711-1 01 1 0101- ●
1 PAN ASM; OIL 8-94395-861-1 01 1 0101- ●
2 GAUGE; OIL LEVEL 1-11760-396-1 01 1 0101- ● ●
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4 		1-09623-057-0 01 1 0101- ● ●
6 PLUG; OIL DRAIN 9-09662-012-0 01 1 0101- ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(B) 		1-11766-453-0 01 1 0101- ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(A) 		8-94395-114-3 01 1 0101- ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 THA 		5-09623-002-0 02 1 0101-0112 ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		1-09623-469-0 02 1 0201- ● ●
10 BOLT; GUIDE TUBE
(B) M8X20 FLANGE 		0-28080-820-0 02 1 0101- ●
10 BOLT; GUIDE TUBE
(C) M8X16 FLANGE 		0-28080-816-0 01 1 0101- ● ●
10 BOLT; GUIDE TUBE
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0101- ● ●
10 BOLT; GUIDE TUBE
(B) M8X12 FLANGE 		0-28080-812-0 01 1 0101- ●
10 BOLT; GUIDE TUBE
(B) M8X35 FLANGE 		0-28680-835-0 01 1 0101- ●
12 BRACKET; TUBE,OIL LEVEL GAUGE 8-94395-843-0 01 1 0101- ●
12 BRACKET; TUBE,OIL LEVEL GAUGE 8-94395-150-0 01 1 0101- ●
23 BOLT; OIL PAN
M8X18 FLANGE 		0-28080-818-0 30 1 0101- ● ●
24 NUT; OIL PAN
M8 FLANGE 		0-91150-108-0 04 1 0101- ● ●
47 CLIP; HOSE,AIR BREATHER 1-11369-115-0 01 1 0101- ● ●
49 NUT; GUIDE TUBE
M8 FLANGE 		0-91150-108-0 02 1 0101- ● ●
192 HOSE; GUIDE TUBE
L=300 		1-09360-978-0 01 1 0101- ● ●
193 CLIP; HOSE,GUIDE TUBE
ID=17 THA 		1-09707-158-0 02 1 0101- ● ●
239 SPACER; BRKT 8-94313-327-0 01 1 0101- ●
