Isuzu WW
▶
TRUCKS
▶
NLR
▶
51146 - NLR/NMR(SOUTHAFRICA)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-05 - CLUTCH PIPING
▶

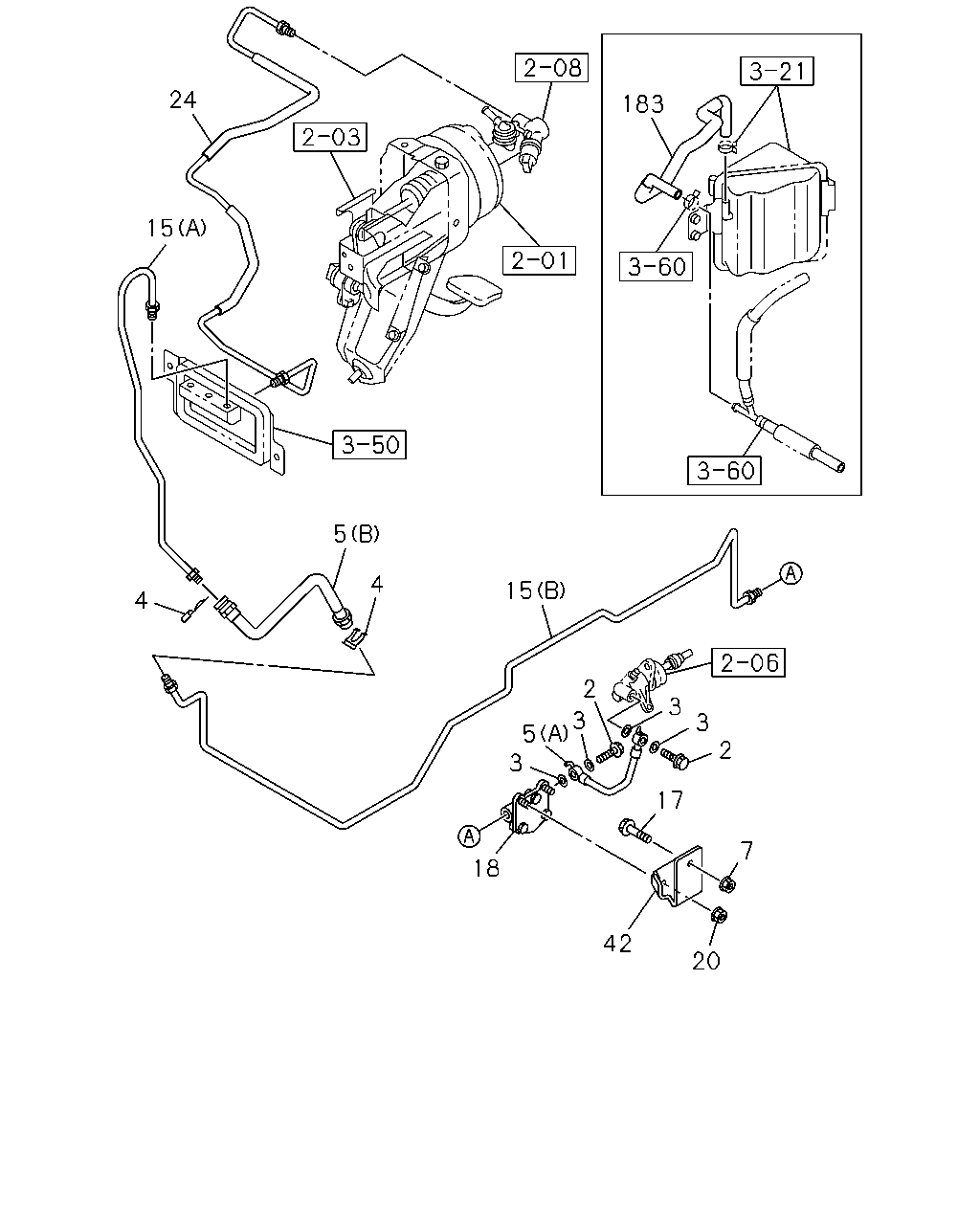

2-05 — CLUTCH PIPING
(#75317) — 17 parça
24
183
15
5
4
15
4
2
3
3
3
2
5
3
17
7
18
42
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
BOLT; EYE,SLAVE CYL
M10X22
8-97381-454-0
02
1
0804-0905
2
BOLT; EYE,SLAVE CYL
M10X22
8-98014-005-0
02
1
0906-
3
GASKET; FLEX HOSE,CLU
ID=10.2 OD=16.0
9-09571-410-0
04
1
0804-
4
CLIP; FLEX HOSE,CLU CONT
8-97365-304-0
02
1
0804-
5
HOSE; FLEX,CLU PIPE
(A)
8-98077-611-2
01
1
0804-
5
HOSE; FLEX,CLU PIPE
(B)
8-98083-907-0
01
1
0804-
7
NUT; FLEX HOSE,CLU CONT
M10 FLANGE SOU
0-91180-110-0
01
1
0804-
15
PIPE; CLU,FLEX HOSE
(A)
8-97389-642-1
01
1
0804-
15
PIPE; CLU,FLEX HOSE
(B)
8-98051-538-0
01
1
0804-
17
BOLT; BRKT
M10X30 FLANGE SOU
0-28651-030-0
01
1
0804-
18
DAMPER ASM; CLU OIL
8-98077-610-1
01
1
0804-
20
NUT; CLU OIL DAMPER
M8 FLANGE SOU
0-91180-108-0
02
1
0804-
24
PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T)
8-97389-356-1
01
1
0804-
24
PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T)
8-98077-617-0
01
1
0804-
42
BRACKET; FLEX HOSE,CLU CONT
8-98041-335-1
01
1
0804-
183
HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T)
8-98017-169-1
01
1
0804-1012
183
HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T)
8-98121-942-0
01
1
1101-
