1-50 — EXHAUST PIPE AND SILENCER (#75312) — 127 parça

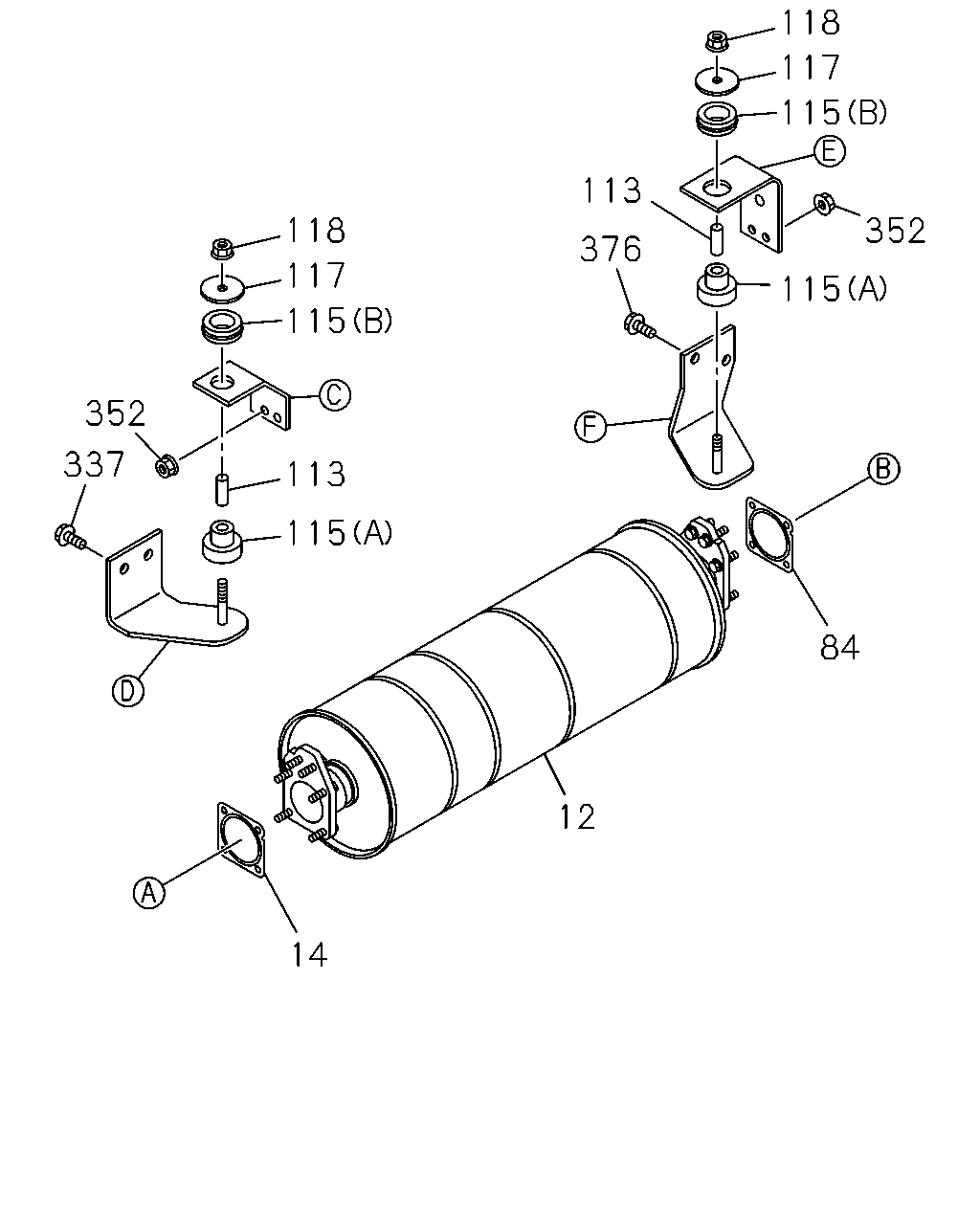

118 117 115 113 118 352 376 117 115 115 352 337 113 115 84 12 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	SILENCER ASM; EXH	8-98027-813-1	01	1	0804-	●	●	●
14	GASKET; SILENCER TO EXH PIPE ID=64	8-97373-108-0	01	1	0804-	●	●	●
84	GASKET; EXH PIPE ID=64	8-97373-108-0	01	1	0804-	●	●	●
113	COLLAR; DIST,MTG BRKT L=37.5 SOU	9-22151-217-0	02	1	0804-	●	●	●
115	RUBBER; MTG,SILENCER (A)	8-94457-277-1	02	1	0804-	●	●	●
115	RUBBER; MTG,SILENCER (B)	8-94457-278-1	02	1	0804-	●	●	●
117	WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	02	1	0804-	●	●	●
118	NUT; SILENCER MTG BRKT M10 FLANGE	5-09440-006-0	02	1	0804-	●	●	●
337	BOLT; RUBBER,SUPPORT M10X30 FLANGE SOU	0-28651-030-0	02	1	0804-	●	●	●
352	NUT; BRKT M10 FLANGE SOU	0-91180-110-0	02	1	0804-	●	●	●
352	NUT; BRKT M10 FLANGE SOU	0-91180-110-0	04	1	0804-	●	●	●
376	BOLT; BRKT M10X30 FLANGE SOU	0-28651-030-0	02	1	0804-	●
376	BOLT; BRKT M10X30 FLANGE SOU	0-28651-030-0	01	1	0804-		●	●

105 357 88 164 124 81 137 70 125 166 94 95 97 104 162 144 143 94 88 165 137 126 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
38	NUT; SILENCER M8 FLANGE SOU	0-91180-108-0	04	1	0804-	●	●	●
70	BOLT; BRKT M10X30 FLANGE SOU	0-28651-030-0	02	1	0804-	●	●	●
81	NUT; BRKT M10 FLANGE SOU	0-91180-110-0	02	1	0804-	●	●	●
81	NUT; BRKT WHEEL BASE 2400MM(24W) EXC. REAR WIDE TREAD(V4T) M10 FLANGE SOU	0-91180-110-0	02	1	0804-		●
81	NUT; BRKT WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) M10 FLANGE SOU	0-91180-110-0	01	1	0804-		●
81	NUT; BRKT WHEEL BASE 3300MM(33W) M10 FLANGE SOU	0-91180-110-0	01	1	0804-		●
81	NUT; BRKT M10 FLANGE SOU	0-91180-110-0	01	1	0804-			●
88	CLAMP; EXH PIPE	8-97373-158-0	01	1	0804-	●	●	●
88	CLAMP; EXH PIPE	8-97373-158-0	01	1	0804-	●	●	●
94	BOLT; CLAMP (B) M10X45 FLANGE SOU	0-28051-045-0	01	1	0804-	●	●	●
94	BOLT; CLAMP (A) M10X50 FLANGE	8-97301-165-0	01	1	0804-	●	●	●
95	BOLT; BRKT M10X30 FLANGE SOU	0-28651-030-0	02	1	0804-	●	●	●
97	WASHER; PL,CLAMP ID=10.5 OD=22	0-91614-610-0	01	1	0804-	●	●	●
104	NUT; BRKT M10 FLANGE SOU	0-91180-110-0	02	1	0804-	●		●
104	NUT; BRKT WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) M10 FLANGE SOU	0-91180-110-0	02	1	0804-		●
104	NUT; BRKT WHEEL BASE 3300MM(33W) M10 FLANGE SOU	0-91180-110-0	02	1	0804-		●
105	NUT; CLAMP M10 SOU	0-91110-510-0	01	1	0804-	●	●	●
124	NUT; SUPPORT RUBBER M10 FLANGE SOU	0-91180-110-0	01	1	0804-	●	●	●
125	NUT; CLAMP M10 SOU	0-91110-510-0	01	1	0804-	●	●	●
126	PIPE; EXH,RR WHEEL BASE 3300MM(33W) (C)	8-98116-727-0	01	1	0804-		●
126	PIPE; EXH,RR (C)	8-98116-727-0	01	1	0804-			●
126	PIPE; EXH,RR (A)	8-98072-136-0	01	1	0804-	●
126	PIPE; EXH,RR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B)	8-98072-138-0	01	1	0804-		●
137	BRACKET; TAIL PIPE (C)	8-98001-896-1	01	1	0804-	●
137	BRACKET; TAIL PIPE (D)	8-98072-153-0	01	1	0804-	●
137	BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98038-762-1	01	1	0804-		●
137	BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B)	8-98075-678-0	01	1	0804-		●
137	BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) (E)	8-98075-674-0	01	1	0804-		●
137	BRACKET; TAIL PIPE (E)	8-98075-674-0	01	1	0804-			●
137	BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) (F)	8-98075-675-1	01	1	0804-		●
137	BRACKET; TAIL PIPE (F)	8-98075-675-1	01	1	0804-			●
143	RUBBER; SUPPORT	8-98034-767-0	01	1	0804-	●	●	●
144	NUT; MTG RUBBER M8 FLANGE SOU	0-91180-108-0	01	1	0804-	●	●	●
162	RUBBER; SUPPORT,TAIL PIPE (A)	8-98032-150-0	01	1	0804-	●
162	RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 2400MM(24W) (A)	8-98032-150-0	01	1	0804-		●
162	RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 3300MM(33W) (B) L=115	8-98034-765-0	01	1	0804-		●
162	RUBBER; SUPPORT,TAIL PIPE (B) L=115	8-98034-765-0	01	1	0804-			●
164	COLLAR; DIST,TAIL PIPE (A) L=23	8-98006-011-0	01	1	0804-	●
164	COLLAR; DIST,TAIL PIPE WHEEL BASE 2400MM(24W) (A) L=23	8-98006-011-0	01	1	0804-		●
164	COLLAR; DIST,TAIL PIPE WHEEL BASE 3300MM(33W) (B) L=37.5 SOU	9-22151-217-0	01	1	0804-		●
164	COLLAR; DIST,TAIL PIPE (B) L=37.5 SOU	9-22151-217-0	01	1	0804-			●
165	BOLT; SUPPORT RUBBER (A) M10X45 FLANGE SOU	0-28051-045-0	01	1	0804-	●
165	BOLT; SUPPORT RUBBER WHEEL BASE 2400MM(24W) (A) M10X45 FLANGE SOU	0-28051-045-0	01	1	0804-		●
165	BOLT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) (B) M10X70 FLANGE SOU	0-28051-070-0	01	1	0804-		●
165	BOLT; SUPPORT RUBBER (B) M10X70 FLANGE SOU	0-28051-070-0	01	1	0804-			●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=10.5 OD=32	0-91614-810-0	01	1	0804-	●	●	●
357	WASHER; PL,CLAMP ID=10.5 OD=22	0-91614-610-0	01	1	0804-	●	●	●

59 59 576 576 345 345 577 577 577

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
59	BRACKET; EXH SILENCER,FRT (B)	8-98072-144-0	01	1	0804-	●
59	BRACKET; EXH SILENCER,FRT (A)	8-98082-156-0	01	1	0804-		●	●
345	BRACKET; EXH SILENCER,RR (B)	8-98072-146-0	01	1	0804-	●
345	BRACKET; EXH SILENCER,RR (A)	8-98027-822-0	01	1	0804-		●	●
576	BRACKET; DPD FRT TO FRAME (B)	8-98072-140-0	01	1	0804-	●
576	BRACKET; DPD FRT TO FRAME (A)	8-98067-992-0	01	1	0804-		●	●
577	BRACKET; DPD RR TO FRAME (A)	8-98072-142-0	01	1	0804-	●
577	BRACKET; DPD RR TO FRAME WHEEL BASE 2400MM(24W) (B)	8-98107-265-0	01	1	0804-		●
577	BRACKET; DPD RR TO FRAME WHEEL BASE 3300MM(33W) (C)	8-98107-266-0	01	1	0804-		●
577	BRACKET; DPD RR TO FRAME (C)	8-98107-266-0	01	1	0804-			●

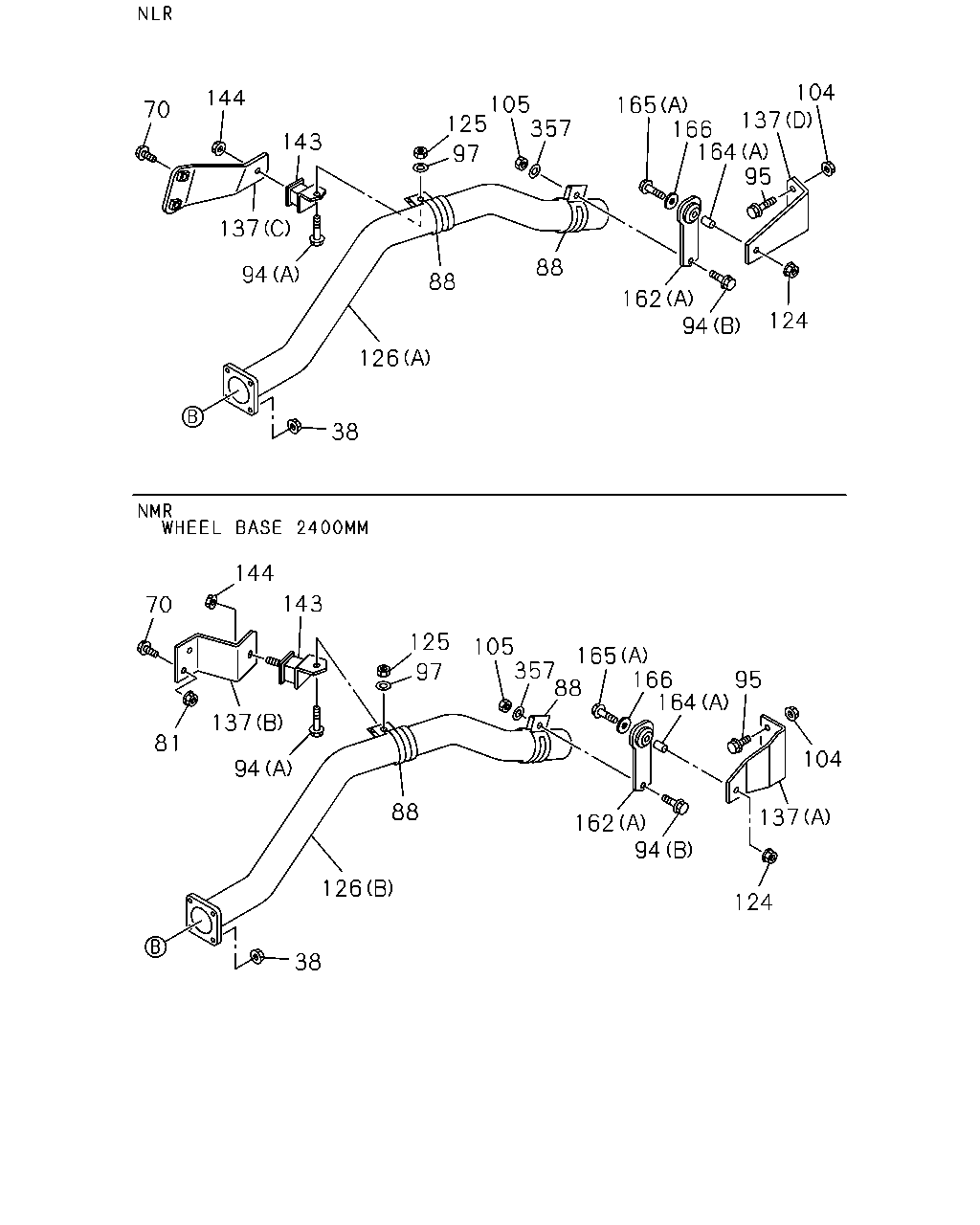

104 137 144 105 125 357 165 166 164 95 70 143 97 137 88 94 88 162 94 124 126 38 144 143 70 125 105 357 88 165 166 164 97 95 137 81 104 94 88 137 162 94 126 124 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
38	NUT; SILENCER M8 FLANGE SOU	0-91180-108-0	04	1	0804-	●	●	●
70	BOLT; BRKT M10X30 FLANGE SOU	0-28651-030-0	02	1	0804-	●	●	●
81	NUT; BRKT M10 FLANGE SOU	0-91180-110-0	02	1	0804-	●	●	●
81	NUT; BRKT WHEEL BASE 2400MM(24W) EXC. REAR WIDE TREAD(V4T) M10 FLANGE SOU	0-91180-110-0	02	1	0804-		●
81	NUT; BRKT WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) M10 FLANGE SOU	0-91180-110-0	01	1	0804-		●
81	NUT; BRKT WHEEL BASE 3300MM(33W) M10 FLANGE SOU	0-91180-110-0	01	1	0804-		●
81	NUT; BRKT M10 FLANGE SOU	0-91180-110-0	01	1	0804-			●
88	CLAMP; EXH PIPE	8-97373-158-0	01	1	0804-	●	●	●
88	CLAMP; EXH PIPE	8-97373-158-0	01	1	0804-	●	●	●
94	BOLT; CLAMP (B) M10X45 FLANGE SOU	0-28051-045-0	01	1	0804-	●	●	●
94	BOLT; CLAMP (A) M10X50 FLANGE	8-97301-165-0	01	1	0804-	●	●	●
95	BOLT; BRKT M10X30 FLANGE SOU	0-28651-030-0	02	1	0804-	●	●	●
97	WASHER; PL,CLAMP ID=10.5 OD=22	0-91614-610-0	01	1	0804-	●	●	●
104	NUT; BRKT M10 FLANGE SOU	0-91180-110-0	02	1	0804-	●		●
104	NUT; BRKT WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) M10 FLANGE SOU	0-91180-110-0	02	1	0804-		●
104	NUT; BRKT WHEEL BASE 3300MM(33W) M10 FLANGE SOU	0-91180-110-0	02	1	0804-		●
105	NUT; CLAMP M10 SOU	0-91110-510-0	01	1	0804-	●	●	●
124	NUT; SUPPORT RUBBER M10 FLANGE SOU	0-91180-110-0	01	1	0804-	●	●	●
125	NUT; CLAMP M10 SOU	0-91110-510-0	01	1	0804-	●	●	●
126	PIPE; EXH,RR WHEEL BASE 3300MM(33W) (C)	8-98116-727-0	01	1	0804-		●
126	PIPE; EXH,RR (C)	8-98116-727-0	01	1	0804-			●
126	PIPE; EXH,RR (A)	8-98072-136-0	01	1	0804-	●
126	PIPE; EXH,RR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B)	8-98072-138-0	01	1	0804-		●
137	BRACKET; TAIL PIPE (C)	8-98001-896-1	01	1	0804-	●
137	BRACKET; TAIL PIPE (D)	8-98072-153-0	01	1	0804-	●
137	BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98038-762-1	01	1	0804-		●
137	BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B)	8-98075-678-0	01	1	0804-		●
137	BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) (E)	8-98075-674-0	01	1	0804-		●
137	BRACKET; TAIL PIPE (E)	8-98075-674-0	01	1	0804-			●
137	BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) (F)	8-98075-675-1	01	1	0804-		●
137	BRACKET; TAIL PIPE (F)	8-98075-675-1	01	1	0804-			●
143	RUBBER; SUPPORT	8-98034-767-0	01	1	0804-	●	●	●
144	NUT; MTG RUBBER M8 FLANGE SOU	0-91180-108-0	01	1	0804-	●	●	●
162	RUBBER; SUPPORT,TAIL PIPE (A)	8-98032-150-0	01	1	0804-	●
162	RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 2400MM(24W) (A)	8-98032-150-0	01	1	0804-		●
162	RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 3300MM(33W) (B) L=115	8-98034-765-0	01	1	0804-		●
162	RUBBER; SUPPORT,TAIL PIPE (B) L=115	8-98034-765-0	01	1	0804-			●
164	COLLAR; DIST,TAIL PIPE (A) L=23	8-98006-011-0	01	1	0804-	●
164	COLLAR; DIST,TAIL PIPE WHEEL BASE 2400MM(24W) (A) L=23	8-98006-011-0	01	1	0804-		●
164	COLLAR; DIST,TAIL PIPE WHEEL BASE 3300MM(33W) (B) L=37.5 SOU	9-22151-217-0	01	1	0804-		●
164	COLLAR; DIST,TAIL PIPE (B) L=37.5 SOU	9-22151-217-0	01	1	0804-			●
165	BOLT; SUPPORT RUBBER (A) M10X45 FLANGE SOU	0-28051-045-0	01	1	0804-	●
165	BOLT; SUPPORT RUBBER WHEEL BASE 2400MM(24W) (A) M10X45 FLANGE SOU	0-28051-045-0	01	1	0804-		●
165	BOLT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) (B) M10X70 FLANGE SOU	0-28051-070-0	01	1	0804-		●
165	BOLT; SUPPORT RUBBER (B) M10X70 FLANGE SOU	0-28051-070-0	01	1	0804-			●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=10.5 OD=32	0-91614-810-0	01	1	0804-	●	●	●
357	WASHER; PL,CLAMP ID=10.5 OD=22	0-91614-610-0	01	1	0804-	●	●	●

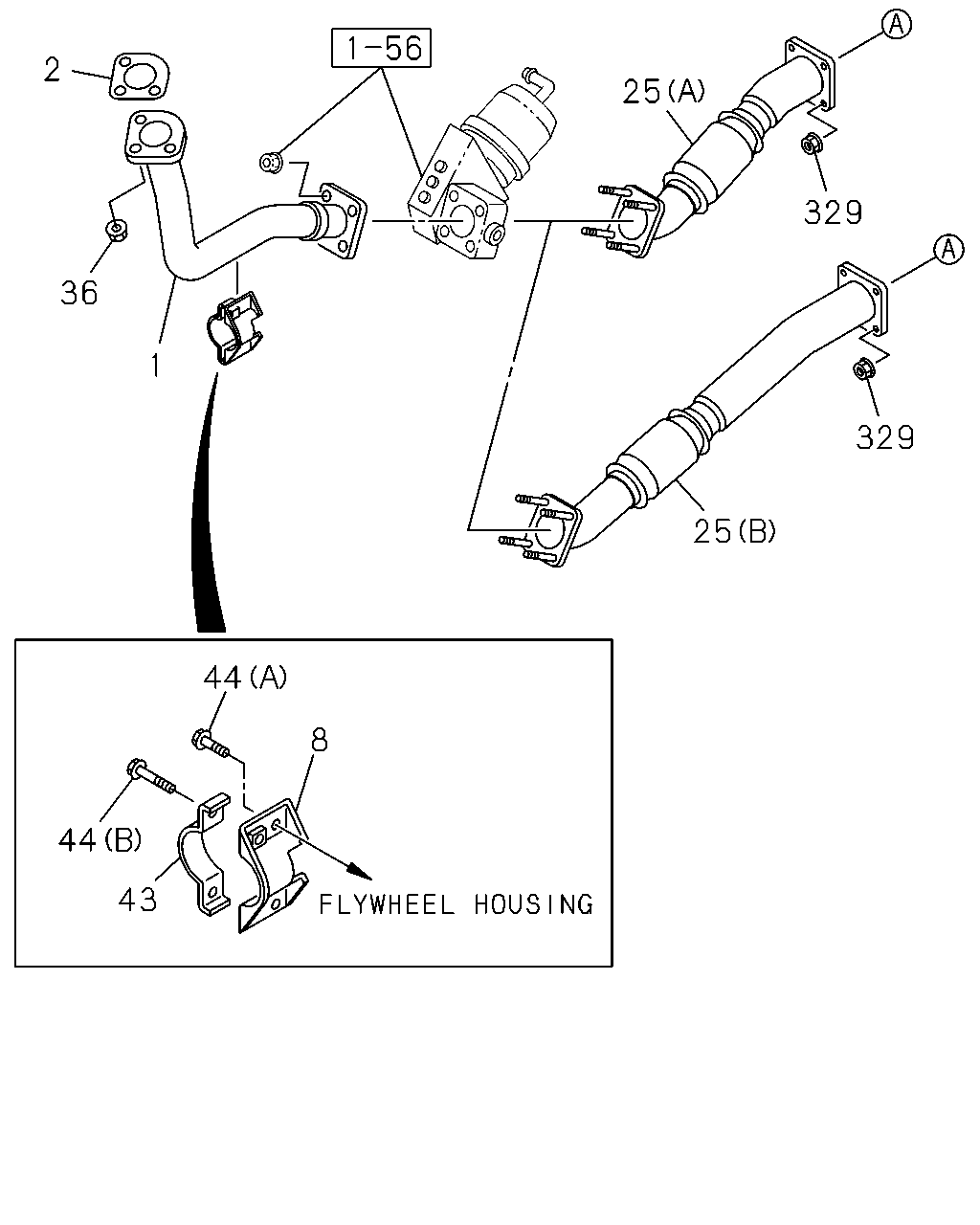

2 25 329 36 1 329 25 44 8 44 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; EXH	8-98075-966-0	01	1	0804-	●	●	●
2	GASKET; PIPE TO MANIF	8-97384-590-0	01	1	0804-	●	●	●
8	BRACKET; EXH PIPE	8-98026-063-0	01	1	0804-	●	●	●
25	PIPE; EXH,BRK VLV TO SILENCER (A)	8-98072-121-1	01	1	0804-	●
25	PIPE; EXH,BRK VLV TO SILENCER (B)	8-98027-805-1	01	1	0804-		●	●
36	NUT; EXH PIPE M10 FLANGE SOU	8-97096-192-1	03	1	0804-	●	●	●
43	CLAMP; EXH PIPE	8-97351-200-1	01	1	0804-	●	●	●
44	BOLT; BRKT (A) M10X25 FLANGE	0-28151-025-0	02	1	0804-	●	●	●
44	BOLT; BRKT (B) M10X30 FLANGE SOU	0-28651-030-0	02	1	0804-	●	●	●
329	NUT; EXH PIPE TO PIPE M8 FLANGE SOU	0-91180-108-0	04	1	0804-	●	●	●
