Sayfa 1-41 - Isuzu EPC

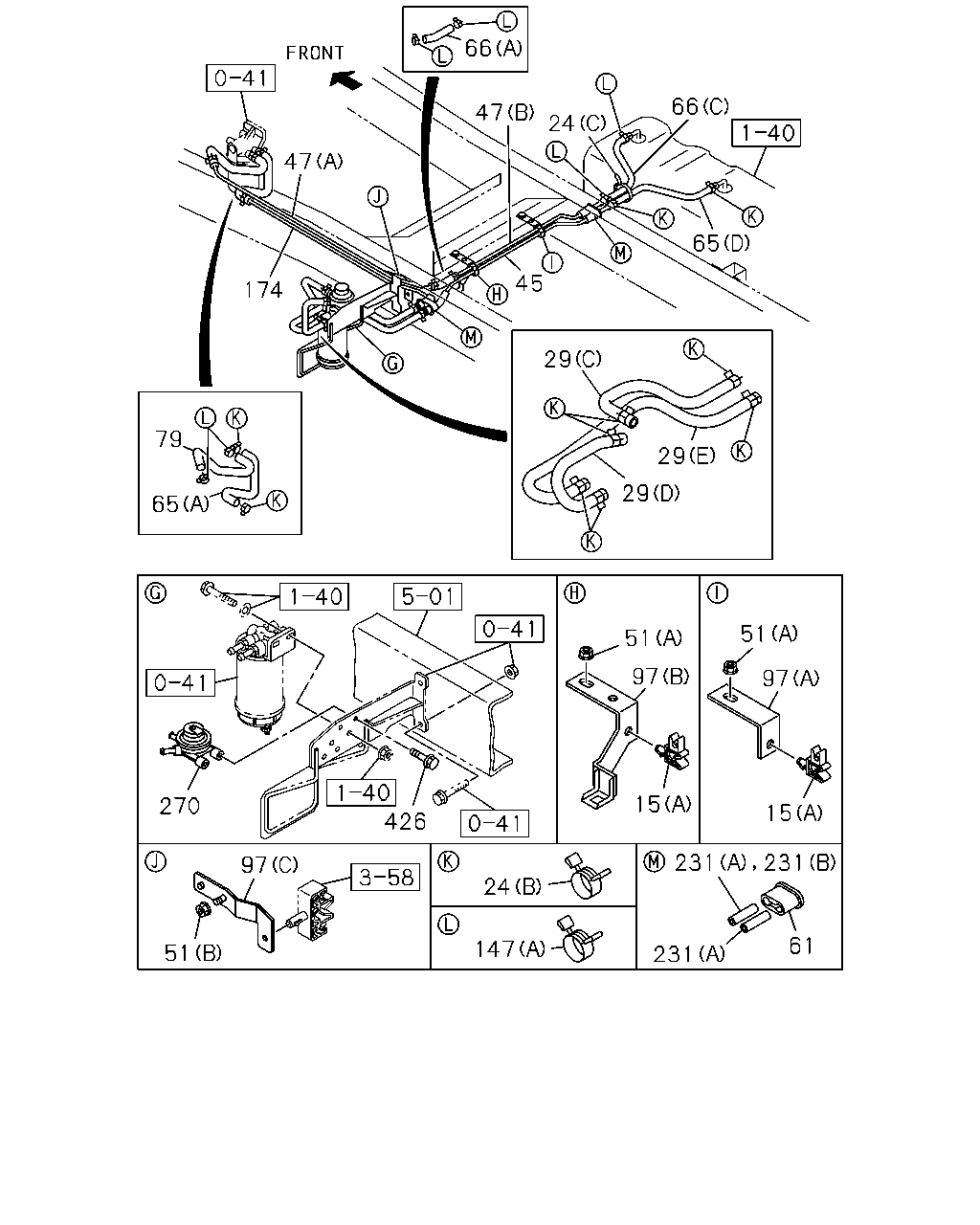

1-41 — FUEL PIPING; CHASSIS (#75311) — 243 parça

66 66 47 24 47 65 45 174 29 79 29 29 65 51 51 97 97 15 270 15 426 231 97 24 61 147 51 231 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
15	CLIP; FUEL PIPE (A) ID=12 & 6.35	8-97215-437-0	02	1	0804-	●	●	●
15	CLIP; FUEL PIPE (B) ID=28 L=60	1-09700-585-1	02	1	0804-			●
24	CLIP; FUEL HOSE WHEEL BASE 2400MM(24W) (A) L=250 SOU	5-09707-030-1	01	1	0804-	●	●
24	CLIP; FUEL HOSE (C) L=140 SOU	5-09707-031-1	01	1	0804-	●	●	●
24	CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) (C) L=140 SOU	5-09707-031-1	01	1	0804-		●
24	CLIP; FUEL HOSE (C) L=140 SOU	5-09707-031-1	01	1	0804-			●
24	CLIP; FUEL HOSE (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911	●	●	●
24	CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	02	1	0912-	●	●	●
24	CLIP; FUEL HOSE (B) ID=16 SOU	8-94238-568-0	08	1	0804-0911	●	●	●
24	CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	08	1	0912-	●	●	●
29	HOSE; FUEL (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0804-	●
29	HOSE; FUEL WHEEL BASE 2400MM(24W) (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0804-		●
29	HOSE; FUEL (B) L=200	8-98081-038-0	01	1	0804-	●
29	HOSE; FUEL WHEEL BASE 2400MM(24W) (B) L=200	8-98081-038-0	01	1	0804-		●
29	HOSE; FUEL WHEEL BASE 3300MM(33W) (C)	8-98099-502-0	01	1	0804-		●	●
29	HOSE; FUEL WHEEL BASE 3300MM(33W) (E)	8-98099-503-0	01	1	0804-		●	●
29	HOSE; FUEL WHEEL BASE 3300MM(33W) (D)	8-98105-710-0	01	1	0804-		●	●
45	PIPE; FUEL,DELIVERY	8-97389-579-3	01	1	0804-	●	●	●
47	PIPE; FUEL,RETURN (B) L=679	8-98020-778-3	01	1	0804-	●	●	●
47	PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-97389-594-3	01	1	0804-1005	●	●	●
47	PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98110-833-0	01	1	1006-1303	●	●	●
47	PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98110-833-0	01	1	1304-1309	●		●
47	PIPE; FUEL,RETURN (A)	8-98110-833-0	01	1	1304-1309		●
47	PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98110-833-0	01	1	1310-	●	●	●
47	PIPE; FUEL,RETURN FRAME EQUIPMENT HEAVY DUTY VAR2<F01> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98110-833-0	01	1	1310-		●
47	PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98064-630-0	01	1	0804-1005	●	●	●
47	PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98163-294-0	01	1	1006-1303	●	●	●
47	PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98163-294-0	01	1	1304-1309	●		●
47	PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98163-294-0	01	1	1310-	●		●
47	PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME EQUIPMENT HEAVY DUTY VAR2<F01> (A)	8-98163-294-0	01	1	1310-		●
51	NUT; CLIP,PIPE (A) M10	0-91111-510-0	02	1	0804-	●	●	●
51	NUT; CLIP,PIPE (B) M10 FLANGE SOU	0-91180-110-0	01	1	0804-	●	●	●
61	GROMMET; PIPE TO FRAME	8-98038-801-0	01	1	0804-	●	●	●
61	GROMMET; PIPE TO FRAME	8-98038-801-0	01	1	0804-	●	●	●
65	HOSE; FUEL,DELIVERY PIPE (B)	8-98098-175-1	01	1	0804-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) (B)	8-98098-175-1	01	1	0804-		●
65	HOSE; FUEL,DELIVERY PIPE (C)	8-98098-176-1	01	1	0804-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) (C)	8-98098-176-1	01	1	0804-		●
65	HOSE; FUEL,DELIVERY PIPE (A)	8-97389-772-0	01	1	0804-	●	●	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) (D)	8-97389-790-0	01	1	0804-		●
65	HOSE; FUEL,DELIVERY PIPE (E)	8-98077-174-4	01	1	0804-			●
66	HOSE; FUEL,RETURN PIPE (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	0804-	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	0804-		●
66	HOSE; FUEL,RETURN PIPE (A) L=120 SERVICED BY L=3000	0-01855-300-0	01	1	0804-	●	●	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) (C) L=500	8-98057-029-0	01	1	0804-		●
66	HOSE; FUEL,RETURN PIPE (D) L=960 SERVICED BY L=3000	0-01855-300-0	01	1	0804-			●
79	HOSE; FUEL,PUMP TO PIPE,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-97389-777-1	01	1	0804-1005	●	●	●
79	HOSE; FUEL,PUMP TO PIPE,RETURN	8-98147-758-0	01	1	1006-	●	●	●
79	HOSE; FUEL,PUMP TO PIPE,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98064-802-0	01	1	0804-1005	●	●	●
97	BRACKET; CLIP (C)	8-98064-442-1	01	1	0804-	●	●	●
97	BRACKET; CLIP (B)	8-98039-929-1	01	1	0804-	●	●	●
97	BRACKET; CLIP (A)	8-98006-480-1	01	1	0804-	●	●	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=16 SOU	8-94238-568-0	04	1	0804-0911	●
147	CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) (B) ID=16 SOU	8-94238-568-0	04	1	0804-0911		●
147	CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) (B) ID=16	8-98008-098-0	04	1	0912-	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=12	8-94238-610-0	02	1	0804-0911	●	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=12	8-98150-358-0	02	1	0912-	●	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=12	8-94238-610-0	04	1	0804-0911	●	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=12	8-98150-358-0	04	1	0912-	●	●	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911			●
147	CLIP; FUEL PIPE TO HOSE (B) ID=16	8-98008-098-0	02	1	0912-			●
174	PIPE; FUEL,FEED,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-97389-589-1	01	1	0804-1303	●	●	●
174	PIPE; FUEL,FEED,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-97389-589-1	01	1	1304-1309	●		●
174	PIPE; FUEL,FEED,FRT	8-97389-589-1	01	1	1304-1309		●
174	PIPE; FUEL,FEED,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-97389-589-1	01	1	1310-	●	●	●
174	PIPE; FUEL,FEED,FRT FRAME EQUIPMENT HEAVY DUTY VAR2<F01> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-97389-589-1	01	1	1310-		●
174	PIPE; FUEL,FEED,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98064-632-1	01	1	0804-1303	●	●	●
174	PIPE; FUEL,FEED,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98064-632-1	01	1	1304-1309	●		●
174	PIPE; FUEL,FEED,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98064-632-1	01	1	1310-	●		●
174	PIPE; FUEL,FEED,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME EQUIPMENT HEAVY DUTY VAR2<F01>	8-98064-632-1	01	1	1310-		●
231	RUBBER; SUPPORT,FUEL PIPE (B) OD=17 L=50 SOU	8-94157-054-1	01	1	0804-	●	●	●
231	RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	01	1	0804-	●	●	●
231	RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	02	1	0804-	●	●	●
270	PUMP ASM; FUEL	8-98018-187-4	01	1	0804-1408	●	●	●
270	PUMP ASM; FUEL	8-97948-892-0	01	1	1409-	●	●	●
426	BOLT; FUEL PUMP M8X20 FLANGE	0-28650-820-0	02	1	0804-	●	●	●

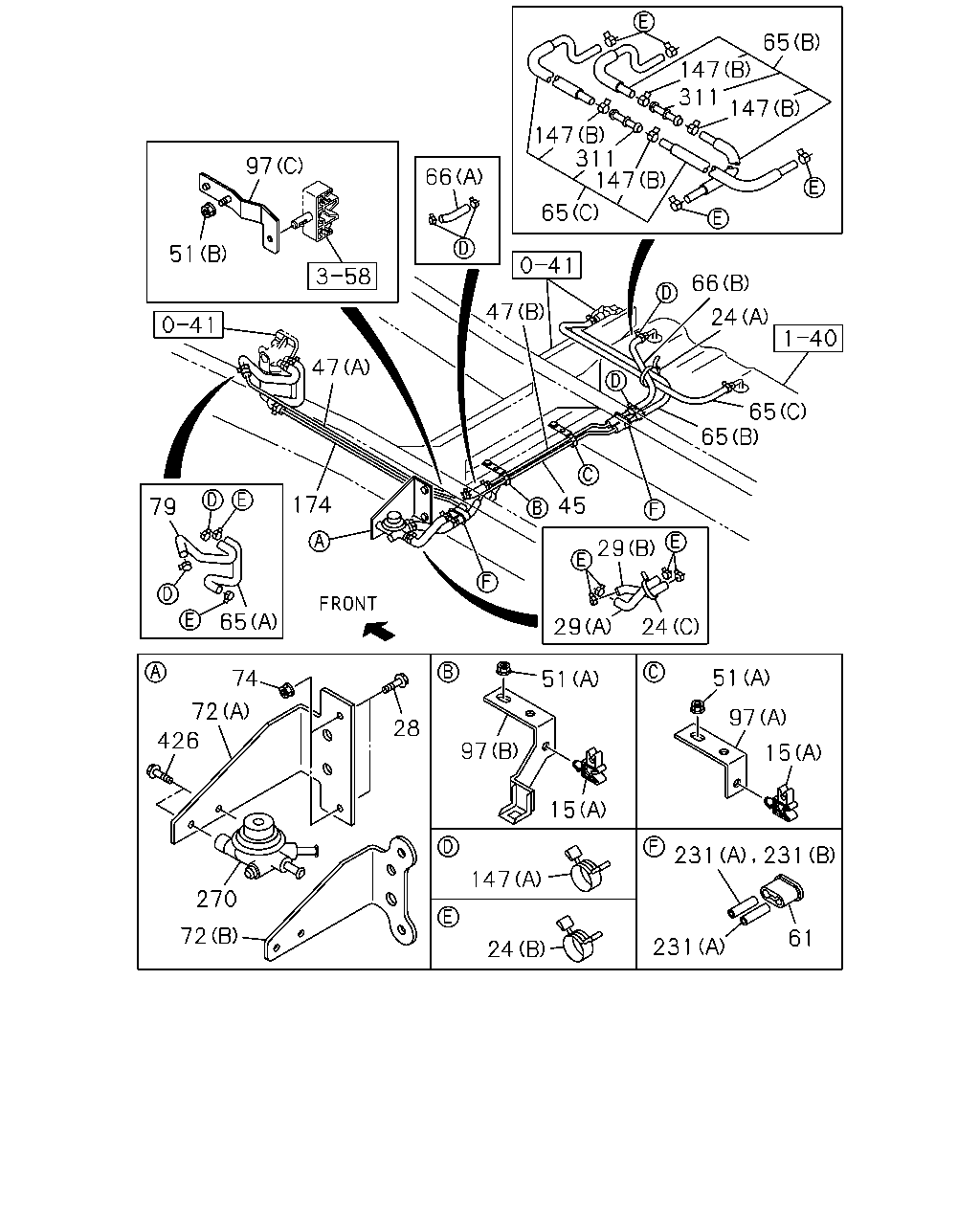

65 147 311 147 147 311 147 97 66 65 51 66 47 24 47 65 65 174 45 79 29 65 24 29 51 74 51 72 97 28 426 97 15 15 231 147 270 72 61 231 24 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
15	CLIP; FUEL PIPE (A) ID=12 & 6.35	8-97215-437-0	02	1	0804-	●	●	●
15	CLIP; FUEL PIPE (B) ID=28 L=60	1-09700-585-1	02	1	0804-			●
24	CLIP; FUEL HOSE WHEEL BASE 2400MM(24W) (A) L=250 SOU	5-09707-030-1	01	1	0804-	●	●
24	CLIP; FUEL HOSE (C) L=140 SOU	5-09707-031-1	01	1	0804-	●	●	●
24	CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) (C) L=140 SOU	5-09707-031-1	01	1	0804-		●
24	CLIP; FUEL HOSE (C) L=140 SOU	5-09707-031-1	01	1	0804-			●
24	CLIP; FUEL HOSE (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911	●	●	●
24	CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	02	1	0912-	●	●	●
24	CLIP; FUEL HOSE (B) ID=16 SOU	8-94238-568-0	08	1	0804-0911	●	●	●
24	CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	08	1	0912-	●	●	●
28	BOLT; BRKT,FUEL PUMP M10X30 FLANGE SOU	0-28651-030-0	02	1	0804-	●
28	BOLT; BRKT,FUEL PUMP WHEEL BASE 2400MM(24W) M10X30 FLANGE SOU	0-28651-030-0	02	1	0804-		●
29	HOSE; FUEL (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0804-	●
29	HOSE; FUEL WHEEL BASE 2400MM(24W) (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0804-		●
29	HOSE; FUEL (B) L=200	8-98081-038-0	01	1	0804-	●
29	HOSE; FUEL WHEEL BASE 2400MM(24W) (B) L=200	8-98081-038-0	01	1	0804-		●
29	HOSE; FUEL WHEEL BASE 3300MM(33W) (C)	8-98099-502-0	01	1	0804-		●	●
29	HOSE; FUEL WHEEL BASE 3300MM(33W) (E)	8-98099-503-0	01	1	0804-		●	●
29	HOSE; FUEL WHEEL BASE 3300MM(33W) (D)	8-98105-710-0	01	1	0804-		●	●
45	PIPE; FUEL,DELIVERY	8-97389-579-3	01	1	0804-	●	●	●
47	PIPE; FUEL,RETURN (B) L=679	8-98020-778-3	01	1	0804-	●	●	●
47	PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-97389-594-3	01	1	0804-1005	●	●	●
47	PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98110-833-0	01	1	1006-1303	●	●	●
47	PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98110-833-0	01	1	1304-1309	●		●
47	PIPE; FUEL,RETURN (A)	8-98110-833-0	01	1	1304-1309		●
47	PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98110-833-0	01	1	1310-	●	●	●
47	PIPE; FUEL,RETURN FRAME EQUIPMENT HEAVY DUTY VAR2<F01> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98110-833-0	01	1	1310-		●
47	PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98064-630-0	01	1	0804-1005	●	●	●
47	PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98163-294-0	01	1	1006-1303	●	●	●
47	PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98163-294-0	01	1	1304-1309	●		●
47	PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98163-294-0	01	1	1310-	●		●
47	PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME EQUIPMENT HEAVY DUTY VAR2<F01> (A)	8-98163-294-0	01	1	1310-		●
51	NUT; CLIP,PIPE (A) M10	0-91111-510-0	02	1	0804-	●	●	●
51	NUT; CLIP,PIPE (B) M10 FLANGE SOU	0-91180-110-0	01	1	0804-	●	●	●
61	GROMMET; PIPE TO FRAME	8-98038-801-0	01	1	0804-	●	●	●
61	GROMMET; PIPE TO FRAME	8-98038-801-0	01	1	0804-	●	●	●
65	HOSE; FUEL,DELIVERY PIPE (B)	8-98098-175-1	01	1	0804-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) (B)	8-98098-175-1	01	1	0804-		●
65	HOSE; FUEL,DELIVERY PIPE (C)	8-98098-176-1	01	1	0804-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) (C)	8-98098-176-1	01	1	0804-		●
65	HOSE; FUEL,DELIVERY PIPE (A)	8-97389-772-0	01	1	0804-	●	●	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) (D)	8-97389-790-0	01	1	0804-		●
65	HOSE; FUEL,DELIVERY PIPE (E)	8-98077-174-4	01	1	0804-			●
66	HOSE; FUEL,RETURN PIPE (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	0804-	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	0804-		●
66	HOSE; FUEL,RETURN PIPE (A) L=120 SERVICED BY L=3000	0-01855-300-0	01	1	0804-	●	●	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) (C) L=500	8-98057-029-0	01	1	0804-		●
66	HOSE; FUEL,RETURN PIPE (D) L=960 SERVICED BY L=3000	0-01855-300-0	01	1	0804-			●
72	BRACKET; FUEL PUMP & FILTER (A)	8-98028-752-2	01	1	0804-0804	●
72	BRACKET; FUEL PUMP & FILTER WHEEL BASE 2400MM(24W) (A)	8-98028-752-2	01	1	0804-0804		●
72	BRACKET; FUEL PUMP & FILTER WHEEL BASE 2400MM(24W) (B)	8-98107-370-0	01	1	0804-	●	●
74	NUT; BRKT,FUEL PUMP M10 FLANGE SOU	0-91180-110-0	02	1	0804-	●
74	NUT; BRKT,FUEL PUMP WHEEL BASE 2400MM(24W) M10 FLANGE SOU	0-91180-110-0	02	1	0804-		●
79	HOSE; FUEL,PUMP TO PIPE,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-97389-777-1	01	1	0804-1005	●	●	●
79	HOSE; FUEL,PUMP TO PIPE,RETURN	8-98147-758-0	01	1	1006-	●	●	●
79	HOSE; FUEL,PUMP TO PIPE,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98064-802-0	01	1	0804-1005	●	●	●
97	BRACKET; CLIP (C)	8-98064-442-1	01	1	0804-	●	●	●
97	BRACKET; CLIP (B)	8-98039-929-1	01	1	0804-	●	●	●
97	BRACKET; CLIP (A)	8-98006-480-1	01	1	0804-	●	●	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=16 SOU	8-94238-568-0	04	1	0804-0911	●
147	CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) (B) ID=16 SOU	8-94238-568-0	04	1	0804-0911		●
147	CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) (B) ID=16	8-98008-098-0	04	1	0912-	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=12	8-94238-610-0	02	1	0804-0911	●	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=12	8-98150-358-0	02	1	0912-	●	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=12	8-94238-610-0	04	1	0804-0911	●	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=12	8-98150-358-0	04	1	0912-	●	●	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911			●
147	CLIP; FUEL PIPE TO HOSE (B) ID=16	8-98008-098-0	02	1	0912-			●
174	PIPE; FUEL,FEED,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-97389-589-1	01	1	0804-1303	●	●	●
174	PIPE; FUEL,FEED,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-97389-589-1	01	1	1304-1309	●		●
174	PIPE; FUEL,FEED,FRT	8-97389-589-1	01	1	1304-1309		●
174	PIPE; FUEL,FEED,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-97389-589-1	01	1	1310-	●	●	●
174	PIPE; FUEL,FEED,FRT FRAME EQUIPMENT HEAVY DUTY VAR2<F01> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-97389-589-1	01	1	1310-		●
174	PIPE; FUEL,FEED,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98064-632-1	01	1	0804-1303	●	●	●
174	PIPE; FUEL,FEED,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98064-632-1	01	1	1304-1309	●		●
174	PIPE; FUEL,FEED,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98064-632-1	01	1	1310-	●		●
174	PIPE; FUEL,FEED,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME EQUIPMENT HEAVY DUTY VAR2<F01>	8-98064-632-1	01	1	1310-		●
231	RUBBER; SUPPORT,FUEL PIPE (B) OD=17 L=50 SOU	8-94157-054-1	01	1	0804-	●	●	●
231	RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	01	1	0804-	●	●	●
231	RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	02	1	0804-	●	●	●
270	PUMP ASM; FUEL	8-98018-187-4	01	1	0804-1408	●	●	●
270	PUMP ASM; FUEL	8-97948-892-0	01	1	1409-	●	●	●
311	JOINT; HOSE	8-97353-668-0	02	1	0804-	●
311	JOINT; HOSE WHEEL BASE 2400MM(24W)	8-97353-668-0	02	1	0804-		●
311	JOINT; HOSE	8-97353-668-0	01	1	0804-			●
426	BOLT; FUEL PUMP M8X20 FLANGE	0-28650-820-0	02	1	0804-	●	●	●

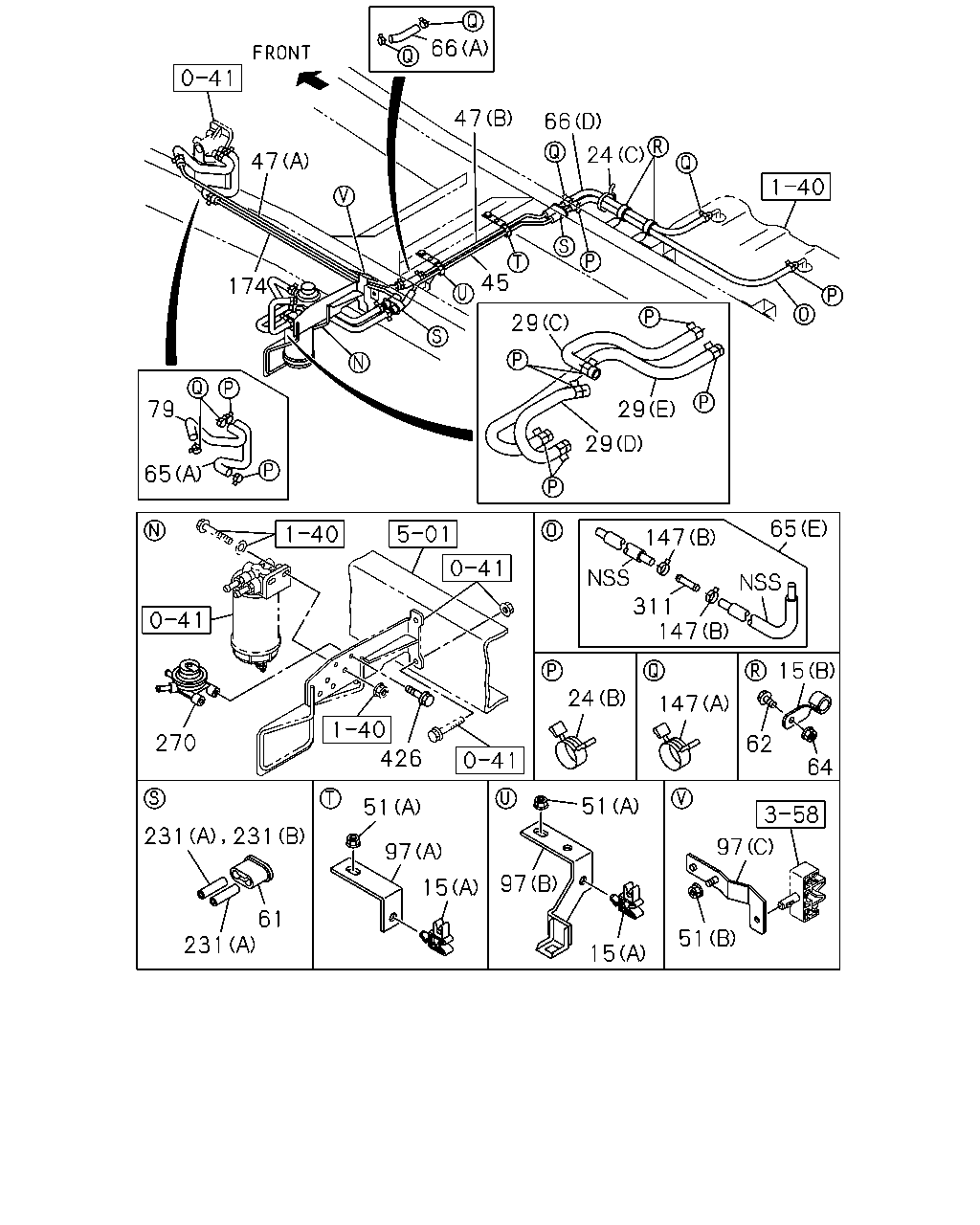

66 47 66 24 47 45 174 29 79 29 29 65 65 147 311 147 15 24 147 270 62 426 64 51 51 231 97 97 97 15 61 51 231 15 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
15	CLIP; FUEL PIPE (A) ID=12 & 6.35	8-97215-437-0	02	1	0804-	●	●	●
15	CLIP; FUEL PIPE (B) ID=28 L=60	1-09700-585-1	02	1	0804-			●
24	CLIP; FUEL HOSE WHEEL BASE 2400MM(24W) (A) L=250 SOU	5-09707-030-1	01	1	0804-	●	●
24	CLIP; FUEL HOSE (C) L=140 SOU	5-09707-031-1	01	1	0804-	●	●	●
24	CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) (C) L=140 SOU	5-09707-031-1	01	1	0804-		●
24	CLIP; FUEL HOSE (C) L=140 SOU	5-09707-031-1	01	1	0804-			●
24	CLIP; FUEL HOSE (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911	●	●	●
24	CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	02	1	0912-	●	●	●
24	CLIP; FUEL HOSE (B) ID=16 SOU	8-94238-568-0	08	1	0804-0911	●	●	●
24	CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	08	1	0912-	●	●	●
29	HOSE; FUEL (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0804-	●
29	HOSE; FUEL WHEEL BASE 2400MM(24W) (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0804-		●
29	HOSE; FUEL (B) L=200	8-98081-038-0	01	1	0804-	●
29	HOSE; FUEL WHEEL BASE 2400MM(24W) (B) L=200	8-98081-038-0	01	1	0804-		●
29	HOSE; FUEL WHEEL BASE 3300MM(33W) (C)	8-98099-502-0	01	1	0804-		●	●
29	HOSE; FUEL WHEEL BASE 3300MM(33W) (E)	8-98099-503-0	01	1	0804-		●	●
29	HOSE; FUEL WHEEL BASE 3300MM(33W) (D)	8-98105-710-0	01	1	0804-		●	●
45	PIPE; FUEL,DELIVERY	8-97389-579-3	01	1	0804-	●	●	●
47	PIPE; FUEL,RETURN (B) L=679	8-98020-778-3	01	1	0804-	●	●	●
47	PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-97389-594-3	01	1	0804-1005	●	●	●
47	PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98110-833-0	01	1	1006-1303	●	●	●
47	PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98110-833-0	01	1	1304-1309	●		●
47	PIPE; FUEL,RETURN (A)	8-98110-833-0	01	1	1304-1309		●
47	PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98110-833-0	01	1	1310-	●	●	●
47	PIPE; FUEL,RETURN FRAME EQUIPMENT HEAVY DUTY VAR2<F01> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98110-833-0	01	1	1310-		●
47	PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98064-630-0	01	1	0804-1005	●	●	●
47	PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98163-294-0	01	1	1006-1303	●	●	●
47	PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98163-294-0	01	1	1304-1309	●		●
47	PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98163-294-0	01	1	1310-	●		●
47	PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME EQUIPMENT HEAVY DUTY VAR2<F01> (A)	8-98163-294-0	01	1	1310-		●
51	NUT; CLIP,PIPE (A) M10	0-91111-510-0	02	1	0804-	●	●	●
51	NUT; CLIP,PIPE (B) M10 FLANGE SOU	0-91180-110-0	01	1	0804-	●	●	●
61	GROMMET; PIPE TO FRAME	8-98038-801-0	01	1	0804-	●	●	●
61	GROMMET; PIPE TO FRAME	8-98038-801-0	01	1	0804-	●	●	●
62	BOLT; CLIP FIX M8X25 FLANGE SOU	0-28650-825-0	02	1	0804-			●
64	NUT; CLIP M8 FLANGE SOU	0-91180-108-0	02	1	0804-			●
65	HOSE; FUEL,DELIVERY PIPE (B)	8-98098-175-1	01	1	0804-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) (B)	8-98098-175-1	01	1	0804-		●
65	HOSE; FUEL,DELIVERY PIPE (C)	8-98098-176-1	01	1	0804-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) (C)	8-98098-176-1	01	1	0804-		●
65	HOSE; FUEL,DELIVERY PIPE (A)	8-97389-772-0	01	1	0804-	●	●	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) (D)	8-97389-790-0	01	1	0804-		●
65	HOSE; FUEL,DELIVERY PIPE (E)	8-98077-174-4	01	1	0804-			●
66	HOSE; FUEL,RETURN PIPE (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	0804-	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	0804-		●
66	HOSE; FUEL,RETURN PIPE (A) L=120 SERVICED BY L=3000	0-01855-300-0	01	1	0804-	●	●	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) (C) L=500	8-98057-029-0	01	1	0804-		●
66	HOSE; FUEL,RETURN PIPE (D) L=960 SERVICED BY L=3000	0-01855-300-0	01	1	0804-			●
79	HOSE; FUEL,PUMP TO PIPE,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-97389-777-1	01	1	0804-1005	●	●	●
79	HOSE; FUEL,PUMP TO PIPE,RETURN	8-98147-758-0	01	1	1006-	●	●	●
79	HOSE; FUEL,PUMP TO PIPE,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98064-802-0	01	1	0804-1005	●	●	●
97	BRACKET; CLIP (C)	8-98064-442-1	01	1	0804-	●	●	●
97	BRACKET; CLIP (B)	8-98039-929-1	01	1	0804-	●	●	●
97	BRACKET; CLIP (A)	8-98006-480-1	01	1	0804-	●	●	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=16 SOU	8-94238-568-0	04	1	0804-0911	●
147	CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) (B) ID=16 SOU	8-94238-568-0	04	1	0804-0911		●
147	CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) (B) ID=16	8-98008-098-0	04	1	0912-	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=12	8-94238-610-0	02	1	0804-0911	●	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=12	8-98150-358-0	02	1	0912-	●	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=12	8-94238-610-0	04	1	0804-0911	●	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=12	8-98150-358-0	04	1	0912-	●	●	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=16 SOU	8-94238-568-0	02	1	0804-0911			●
147	CLIP; FUEL PIPE TO HOSE (B) ID=16	8-98008-098-0	02	1	0912-			●
174	PIPE; FUEL,FEED,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-97389-589-1	01	1	0804-1303	●	●	●
174	PIPE; FUEL,FEED,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-97389-589-1	01	1	1304-1309	●		●
174	PIPE; FUEL,FEED,FRT	8-97389-589-1	01	1	1304-1309		●
174	PIPE; FUEL,FEED,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-97389-589-1	01	1	1310-	●	●	●
174	PIPE; FUEL,FEED,FRT FRAME EQUIPMENT HEAVY DUTY VAR2<F01> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-97389-589-1	01	1	1310-		●
174	PIPE; FUEL,FEED,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98064-632-1	01	1	0804-1303	●	●	●
174	PIPE; FUEL,FEED,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98064-632-1	01	1	1304-1309	●		●
174	PIPE; FUEL,FEED,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98064-632-1	01	1	1310-	●		●
174	PIPE; FUEL,FEED,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME EQUIPMENT HEAVY DUTY VAR2<F01>	8-98064-632-1	01	1	1310-		●
231	RUBBER; SUPPORT,FUEL PIPE (B) OD=17 L=50 SOU	8-94157-054-1	01	1	0804-	●	●	●
231	RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	01	1	0804-	●	●	●
231	RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	02	1	0804-	●	●	●
270	PUMP ASM; FUEL	8-98018-187-4	01	1	0804-1408	●	●	●
270	PUMP ASM; FUEL	8-97948-892-0	01	1	1409-	●	●	●
311	JOINT; HOSE	8-97353-668-0	02	1	0804-	●
311	JOINT; HOSE WHEEL BASE 2400MM(24W)	8-97353-668-0	02	1	0804-		●
311	JOINT; HOSE	8-97353-668-0	01	1	0804-			●
426	BOLT; FUEL PUMP M8X20 FLANGE	0-28650-820-0	02	1	0804-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
