Isuzu WW
▶
TRUCKS
▶
NLR
▶
51146 - NLR/NMR(SOUTHAFRICA)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-40 - FUEL TANK
▶
1-40 — FUEL TANK
(#75310) — 59 parça
Tümü
A - NMR5SE
B - NMR5SN
C - NMR5WN
◀

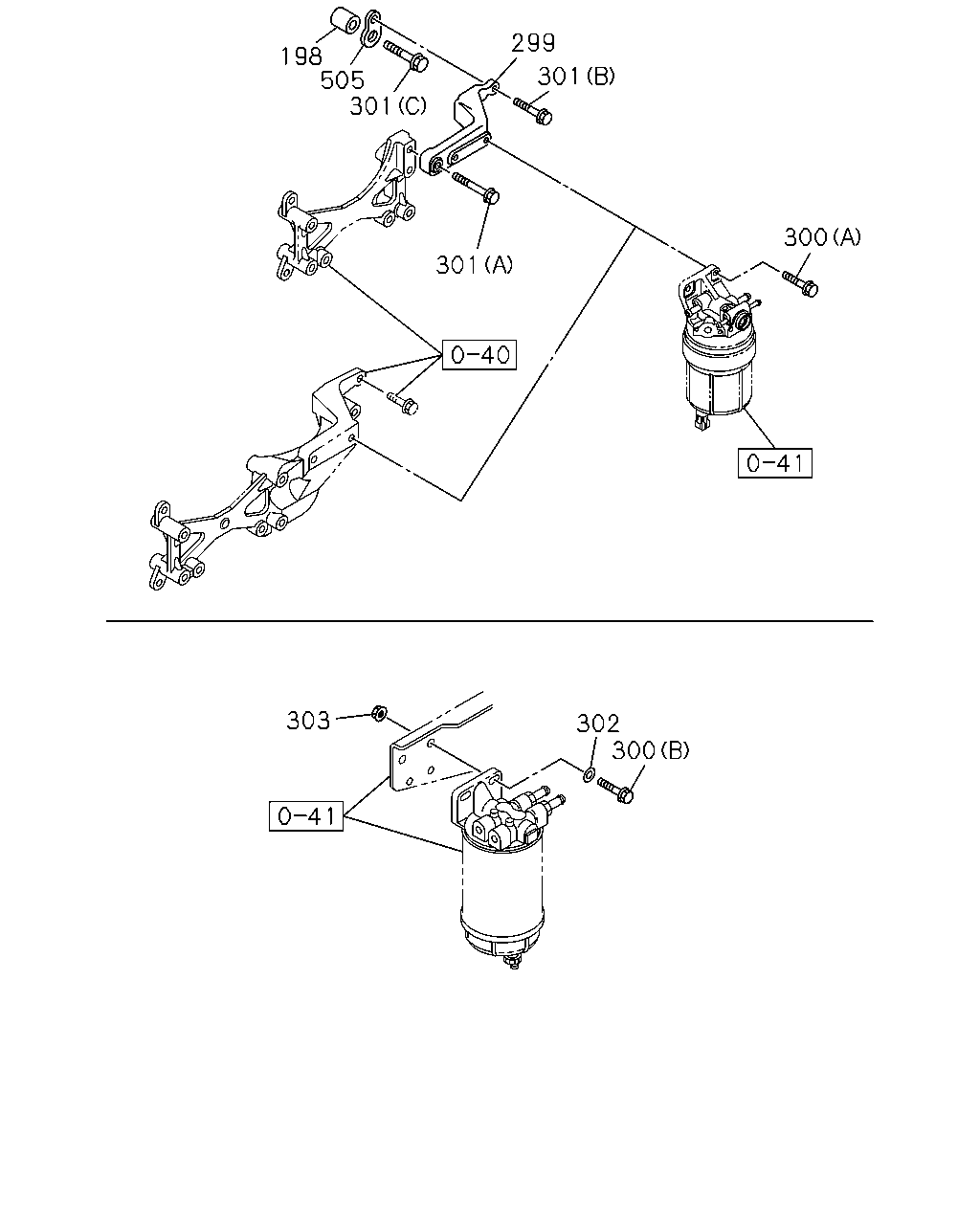

[140A] NO.2 (21 parça)

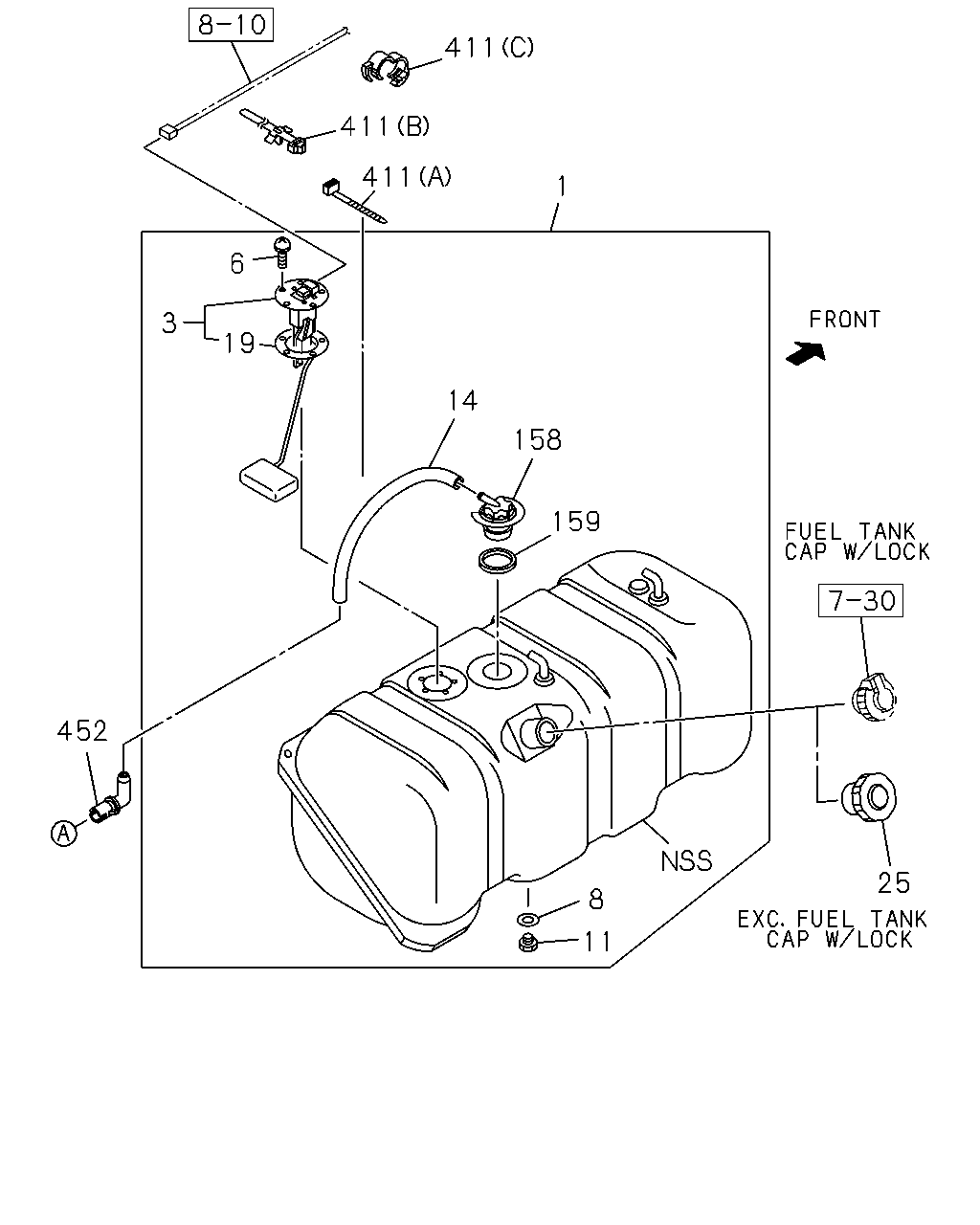

[140A] NO.3 (10 parça)

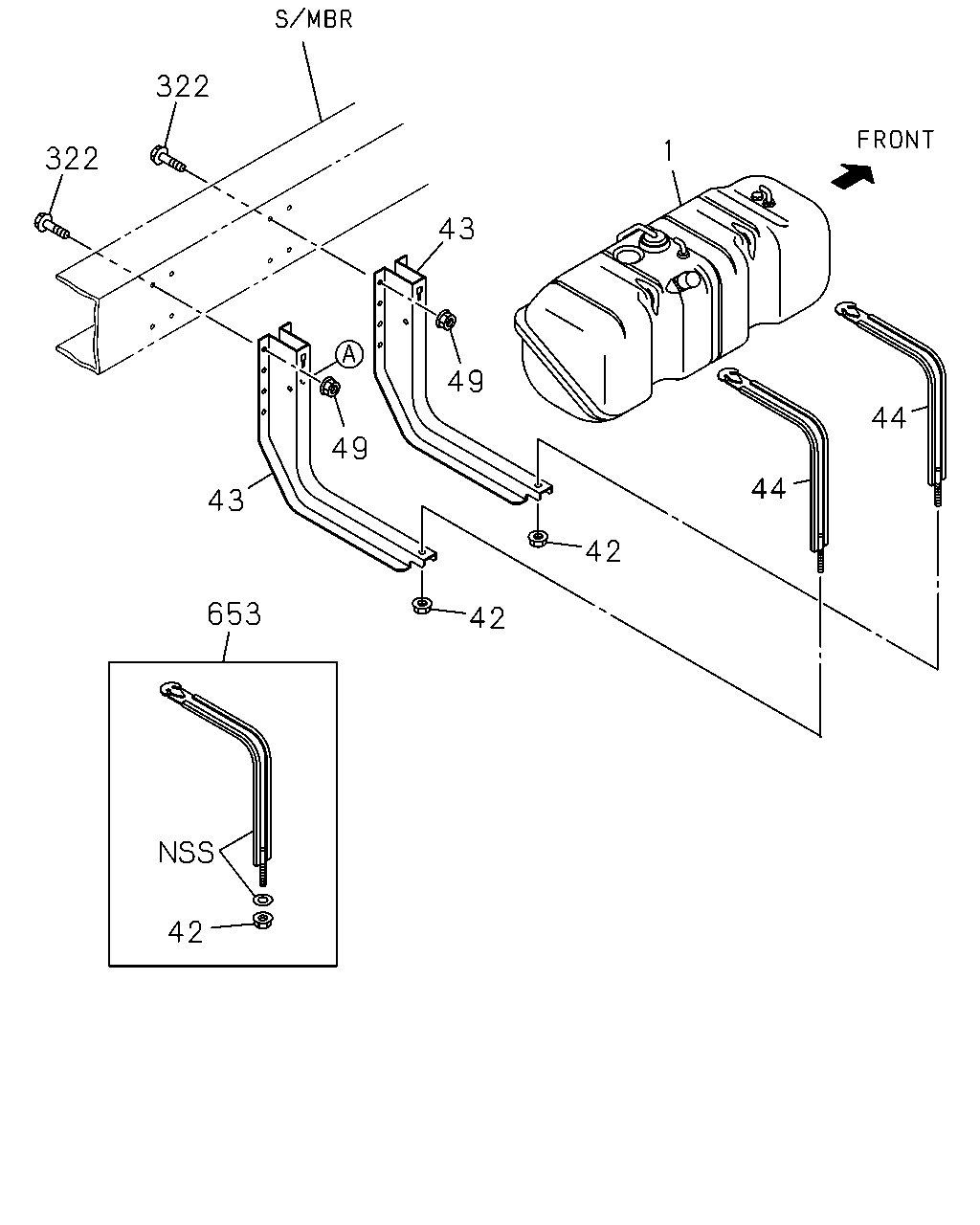

[140A] NO.1 (28 parça)
▶
43
1
44
44
42
42
653
43
49
49
42
322
322
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
TANK; FUEL
756X375X323 63L
8-98021-293-4
01
1
0804-1205
●
1
TANK; FUEL
756X375X323 63L
8-98218-966-1
01
1
1206-
●
1
TANK; FUEL
FUEL TANK 100L<N02> 1003X375X380 100L
8-98021-295-6
01
1
0804-
●
1
TANK; FUEL
FUEL TANK 75L<7GX> 756X375X375 75L
8-98021-294-5
01
1
0804-
●
1
TANK; FUEL
756X375X375 75L
8-98021-294-5
01
1
0804-
●
42
NUT; SUPPORT BELT
M8 FLANGE
9-09130-408-0
02
1
0804-
●
●
●
43
BRACKET; FUEL TANK
FRONT
8-97384-055-1
01
1
0804-
●
43
BRACKET; FUEL TANK
REAR
8-97384-061-2
01
1
0804-
●
43
BRACKET; FUEL TANK
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> FRONT
8-97384-056-1
01
1
0804-
●
43
BRACKET; FUEL TANK
FUEL TANK 75L<7GX> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRONT
8-97384-056-1
01
1
0804-
●
43
BRACKET; FUEL TANK
FRONT
8-97384-056-1
01
1
0804-
●
43
BRACKET; FUEL TANK
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FUEL TANK 100L<N02>,FUEL TANK 75L<7GX> REAR
8-97384-081-1
01
1
0804-
●
43
BRACKET; FUEL TANK
FUEL TANK 75L<7GX> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR
8-97384-081-1
01
1
0804-
●
43
BRACKET; FUEL TANK
REAR
8-97384-081-1
01
1
0804-
●
43
BRACKET; FUEL TANK
FUEL TANK 100L<N02> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRONT
8-98061-738-1
01
1
0804-
●
43
BRACKET; FUEL TANK
FUEL TANK 100L<N02> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR
8-98061-739-1
01
1
0804-
●
44
BAND; FUEL TANK
L=613
8-97169-230-2
02
1
0804-1312
●
44
BAND; FUEL TANK
L=613
8-98245-202-0
02
1
1401-
●
49
NUT; BRKT
M10 FLANGE SOU
0-91180-210-0
08
1
0804-
●
●
●
322
BOLT; BRKT FIX
M10X30 FLANGE SOU
0-28661-030-0
08
1
0804-
●
●
●
653
BAND KIT; FUEL TANK
5-87411-970-0
02
1
0804-
●
●
299
198
505
301
301
300
301
303
302
300
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
198
SPACER
8-98081-509-0
01
1
0804-1001
●
●
●
299
BRACKET; FUEL FILTER
8-98009-087-4
01
1
0804-1001
●
●
●
300
BOLT; BRKT TO BODY
(A) M8X25 FLANGE SOU
0-28650-825-0
02
1
0804-
●
●
●
300
BOLT; BRKT TO BODY
(B) M10X40 FLANGE SOU
0-28651-040-0
02
1
0804-
●
●
●
301
BOLT; BRKT TO SEDIMENTER
(B) M8X40 FLANGE
0-28060-840-0
01
1
0804-1001
●
●
●
301
BOLT; BRKT TO SEDIMENTER
(A) M8X66 FLANGE
8-98081-507-0
01
1
0804-1001
●
●
●
301
BOLT; BRKT TO SEDIMENTER
(C) M14X58 FLANGE
8-98081-508-0
01
1
0804-1001
●
●
●
302
WASHER; PL,SEDIMENTER
ID=10.5 OD=26
0-91614-710-0
02
1
0804-
●
●
●
303
NUT; SEDIMENTER BRKT
M10 FLANGE SOU
0-91180-110-0
02
1
0804-
●
●
●
505
BRACKET
8-98081-486-0
01
1
0804-1001
●
●
●
411
411
411
1
6
3
19
14
158
159
452
25
8
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
TANK; FUEL
756X375X323 63L
8-98021-293-4
01
1
0804-1205
●
1
TANK; FUEL
756X375X323 63L
8-98218-966-1
01
1
1206-
●
1
TANK; FUEL
FUEL TANK 100L<N02> 1003X375X380 100L
8-98021-295-6
01
1
0804-
●
1
TANK; FUEL
FUEL TANK 75L<7GX> 756X375X375 75L
8-98021-294-5
01
1
0804-
●
1
TANK; FUEL
756X375X375 75L
8-98021-294-5
01
1
0804-
●
3
UNIT; FUEL TANK,SUB
8-98056-702-0
01
1
0804-1205
●
3
UNIT; FUEL TANK,SUB
8-98213-753-0
01
1
1206-
●
3
UNIT; FUEL TANK,SUB
FUEL TANK 100L<N02>
8-98056-704-0
01
1
0804-
●
3
UNIT; FUEL TANK,SUB
FUEL TANK 75L<7GX>
8-98056-703-0
01
1
0804-
●
3
UNIT; FUEL TANK,SUB
8-98056-703-0
01
1
0804-
●
6
SCREW; TANK UNIT TO SUB FUEL TANK
M5X12 W/LK WASHER
0-36220-512-0
05
1
0804-
●
●
●
8
GASKET; DRAIN PLUG,FUEL TANK
ID=8.2 OD=17
9-09572-008-0
01
1
0804-
●
●
●
11
PLUG; DRAIN,FUEL TANK
M8X12 FLANGE
0-28050-812-0
01
1
0804-
●
●
●
14
HOSE; BREATHER,OUTLET
L=320
8-98157-805-0
01
1
0804-
●
●
14
HOSE; BREATHER,OUTLET
FUEL TANK 75L<7GX> L=320
8-98157-805-0
01
1
0804-
●
14
HOSE; BREATHER,OUTLET
FUEL TANK 100L<N02> L=420
8-98157-809-0
01
1
0804-
●
19
GASKET; FUEL TANK UNIT
8-98051-797-0
01
1
0804-
●
●
●
25
CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP W/LOCK<N05>
8-97387-179-0
01
1
0804-
●
●
158
VALVE; ROLL OVER & FLOAT
8-97179-645-0
01
1
0804-
●
●
●
159
SEAL; ROLL OVER & FLOAT VALVE
8-97326-488-0
01
1
0804-
●
●
●
411
CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W) (A) L=140 SOU
5-09707-031-1
01
1
0804-0804
●
411
CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W) (C) ID=20
8-94241-972-0
01
1
0804-0804
●
411
CLIP; FUEL TANK UNIT HARNESS
(C) ID=20
8-94241-972-0
02
1
0804-0804
●
411
CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2400MM(24W) (C) ID=20
8-94241-972-0
02
1
0804-0804
●
411
CLIP; FUEL TANK UNIT HARNESS
(C) ID=20
8-94241-972-0
02
1
0804-
●
●
411
CLIP; FUEL TANK UNIT HARNESS
(A) L=140 SOU
5-09707-031-1
02
1
0804-
●
●
●
411
CLIP; FUEL TANK UNIT HARNESS
(B) L=170.3
1-09987-182-0
01
1
0804-
●
●
●
452
BREATHER; FUEL TANK
8-97357-261-0
01
1
0804-
●
●
●
