0-12 — CYLINDER BLOCK (#7531) — 146 parça

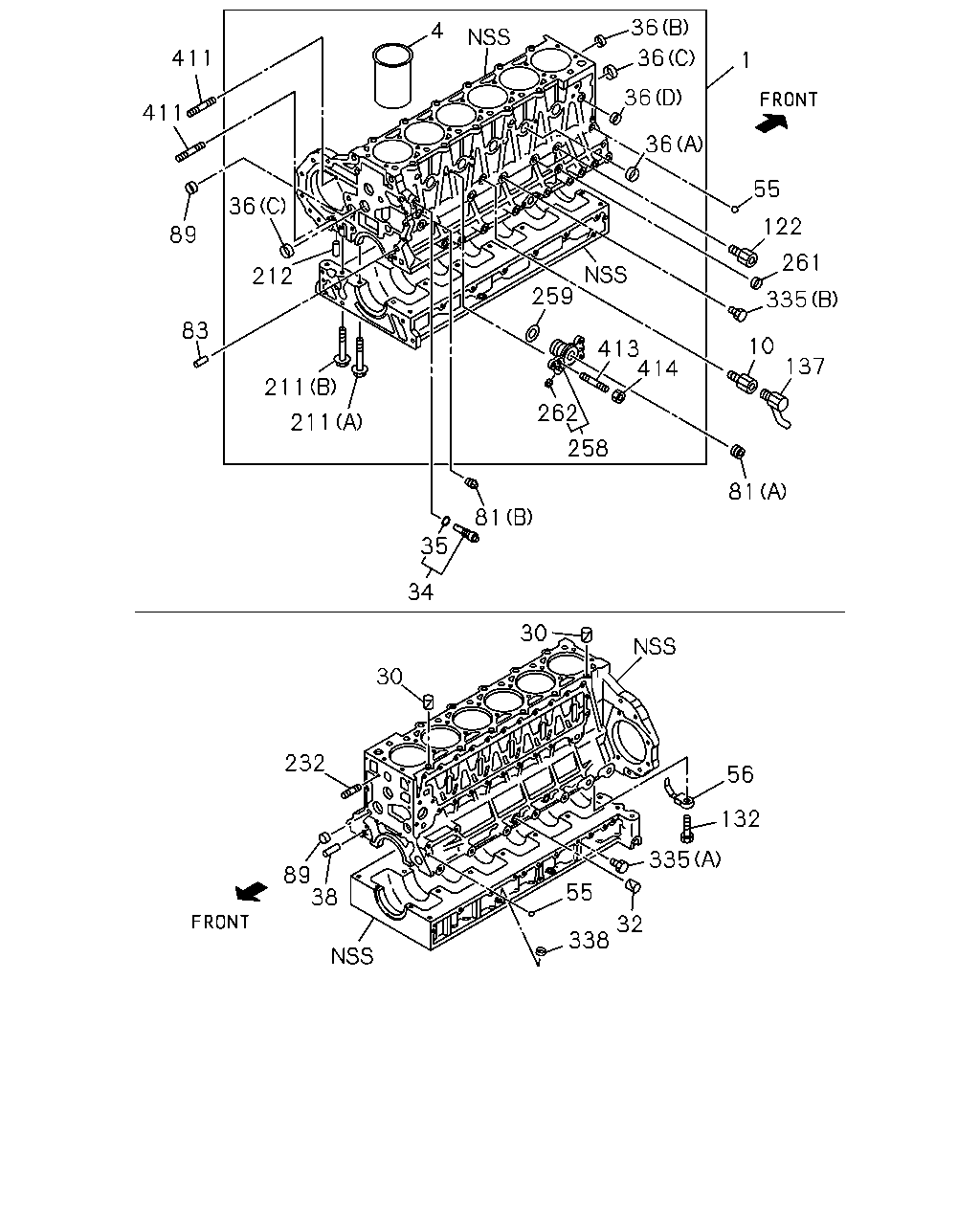

36 36 4 36 36 212 411 1 411 36 55 122 89 261 259 335 83 413 414 262 10 137 211 211 258 81 81 35 34 30 30 232 56 132 335 89 38 55 32 338

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOCK ASM; CYL	8-97601-299-2	01	1	0104-	●
1	BLOCK ASM; CYL	8-97602-023-2	01	1	0104-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-600-1	06	1	0101-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-601-1	06	1	0101-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-0	06	1	0101-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-0	06	1	0101-		●
10	CONNECTOR; WATER DRAIN	8-94396-378-0	01	1	0101-	●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	0101-	●	●
32	PIN; INJ PUMP BRKT	8-94453-344-0	02	1	0101-	●	●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	0101-	●	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	0101-	●	●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	05	1	0101-		●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	04	1	0101-	●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	0101-0103	●	●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	0104-	●	●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	0101-0103	●	●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	0104-	●	●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	0101-0103	●	●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	0104-0406	●	●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-97096-824-0	04	1	0407-	●	●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	0101-	●	●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	02	1	0101-	●	●
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	0101-	●	●
81	PLUG; WATER JACKET (A) NPTF1-11 1/2	1-09605-065-1	01	1	0101-	●
81	PLUG; WATER JACKET (B) PT3/8	8-94397-338-0	01	1	0101-	●
81	PLUG; WATER JACKET M14	8-94399-225-0	01	1	0101-		●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0101-0306	●	●
83	PIN; FLYWHEEL HSG OD=10 L=20	8-97135-423-0	02	1	0307-0307	●	●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0308-	●	●
89	CUP; SEALING,OIL GALLERY OD=20	9-11219-192-0	03	1	0101-	●	●
122	ADAPTER; OIL PRESSURE SWITCH	8-94399-858-2	01	1	0101-	●	●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	0101-	●
132	VALVE; CHECK,OIL M10X18.5	1-13161-012-0	06	1	0101-		●
137	COCK; DRAIN,WATER	8-94393-716-1	01	1	0101-	●
137	COCK; DRAIN,WATER	1-09680-024-0	01	1	0101-		●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	0101-0103	●	●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	0104-	●	●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	0101-0103	●	●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	0104-	●	●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	0105-	●	●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	0101-0103	●	●
212	PIN; CRANKCASE L=22	8-94483-674-0	04	1	0104-0306	●	●
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	04	1	0307-	●	●
232	STUD; WATER PUMP M8X55 L=67	9-04110-855-0	03	1	0101-	●	●
258	ADAPTER; BLOCK HTR	8-94395-868-0	01	1	0101-	●
259	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7	1-09623-184-0	01	1	0104-	●
259	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7	1-09623-184-0	01	1	0101-0103	●
261	PLUG; OIL PRESS UNIT OD=12.3	5-09600-013-0	01	1	0101-0307	●	●
262	PLUG; ADAPTER	1-13163-002-0	01	1	0101-	●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	02	1	0101-	●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	0101-	●
335	PLUG; C/BL,SIDE M14	8-94399-225-0	05	1	0101-		●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	01	1	0101-	●	●
411	STUD; BRG CASE M10X36.5 L=48.5	8-94396-145-0	02	1	0101-0301	●
411	STUD; BRG CASE M10X25 L=40	0-49841-025-0	02	1	0302-	●
413	STUD; ADAPTER M8X30 L=41	9-04110-830-0	02	1	0101-	●
414	NUT; ADAPTER M8 FLANGE	0-91150-208-0	02	1	0101-0103	●
414	NUT; ADAPTER M8 FLANGE	0-91150-208-0	04	1	0104-	●

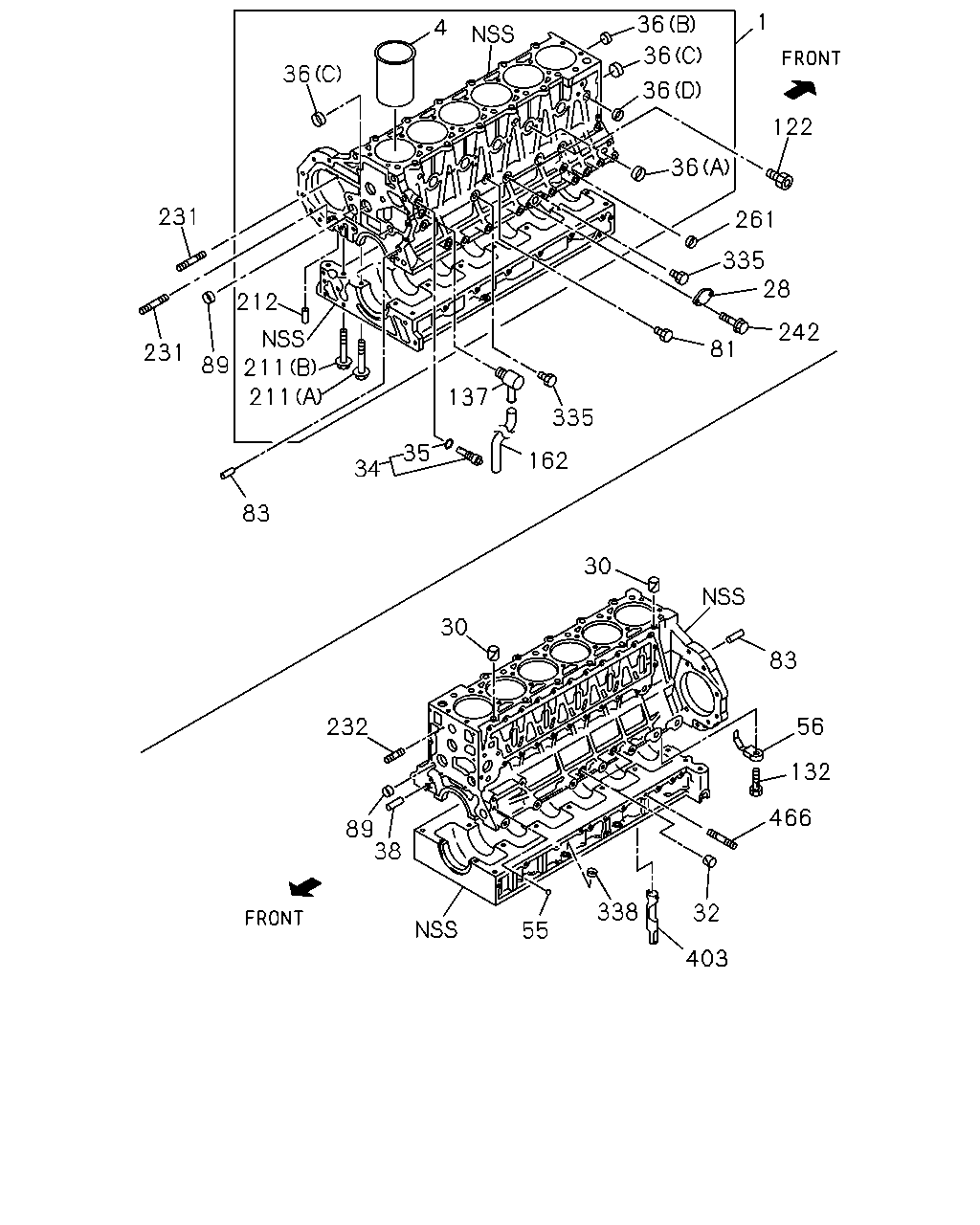

1 36 36 36 4 36 122 36 231 212 261 335 28 242 89 211 211 81 231 137 335 35 162 34 83 30 338 30 83 56 232 132 466 89 38 32 55 403

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOCK ASM; CYL	8-97601-299-2	01	1	0104-	●
1	BLOCK ASM; CYL	8-97602-023-2	01	1	0104-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-600-1	06	1	0101-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-601-1	06	1	0101-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-0	06	1	0101-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-0	06	1	0101-		●
28	COVER; OIL PORT	1-11219-163-0	01	1	0101-		●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	0101-	●	●
32	PIN; INJ PUMP BRKT	8-94453-344-0	02	1	0101-	●	●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	0101-	●	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	0101-	●	●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	05	1	0101-		●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	04	1	0101-	●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	0101-0103	●	●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	0104-	●	●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	0101-0103	●	●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	0104-	●	●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	0101-0103	●	●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	0104-0406	●	●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-97096-824-0	04	1	0407-	●	●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	0101-	●	●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	02	1	0101-	●	●
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	0101-	●	●
81	PLUG; WATER JACKET (A) NPTF1-11 1/2	1-09605-065-1	01	1	0101-	●
81	PLUG; WATER JACKET (B) PT3/8	8-94397-338-0	01	1	0101-	●
81	PLUG; WATER JACKET M14	8-94399-225-0	01	1	0101-		●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0101-0306	●	●
83	PIN; FLYWHEEL HSG OD=10 L=20	8-97135-423-0	02	1	0307-0307	●	●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0308-	●	●
89	CUP; SEALING,OIL GALLERY OD=20	9-11219-192-0	03	1	0101-	●	●
122	ADAPTER; OIL PRESSURE SWITCH	8-94399-858-2	01	1	0101-	●	●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	0101-	●
132	VALVE; CHECK,OIL M10X18.5	1-13161-012-0	06	1	0101-		●
137	COCK; DRAIN,WATER	8-94393-716-1	01	1	0101-	●
137	COCK; DRAIN,WATER	1-09680-024-0	01	1	0101-		●
162	HOSE; WATER DRAIN,C/BL L=310 SERVICED BY L=3000	0-03259-300-0	01	1	0101-0206		●
162	HOSE; WATER DRAIN,C/BL L=310 SERVICED BY L=3000	0-03559-300-0	01	1	0207-		●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	0101-0103	●	●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	0104-	●	●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	0101-0103	●	●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	0104-	●	●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	0105-	●	●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	0101-0103	●	●
212	PIN; CRANKCASE L=22	8-94483-674-0	04	1	0104-0306	●	●
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	04	1	0307-	●	●
231	STUD; AIR CMPR M10X46.5 L=58.5	8-97066-386-1	02	1	0101-0301		●
231	STUD; AIR CMPR M10X46.5 L=58.5	8-97363-237-0	02	1	0302-		●
232	STUD; WATER PUMP M8X55 L=67	9-04110-855-0	03	1	0101-	●	●
242	BOLT; COVER,OIL PORT M8X16 FLANGE	0-28080-816-0	02	1	0101-		●
261	PLUG; OIL PRESS UNIT OD=12.3	5-09600-013-0	01	1	0101-0307	●	●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	02	1	0101-	●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	0101-	●
335	PLUG; C/BL,SIDE M14	8-94399-225-0	05	1	0101-		●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	01	1	0101-	●	●
403	GUIDE; GALLERY	8-94395-351-1	01	1	0101-		●
466	STUD; FUEL FILTER BRKT M8X20 L=32	1-09305-005-0	01	1	0101-		●

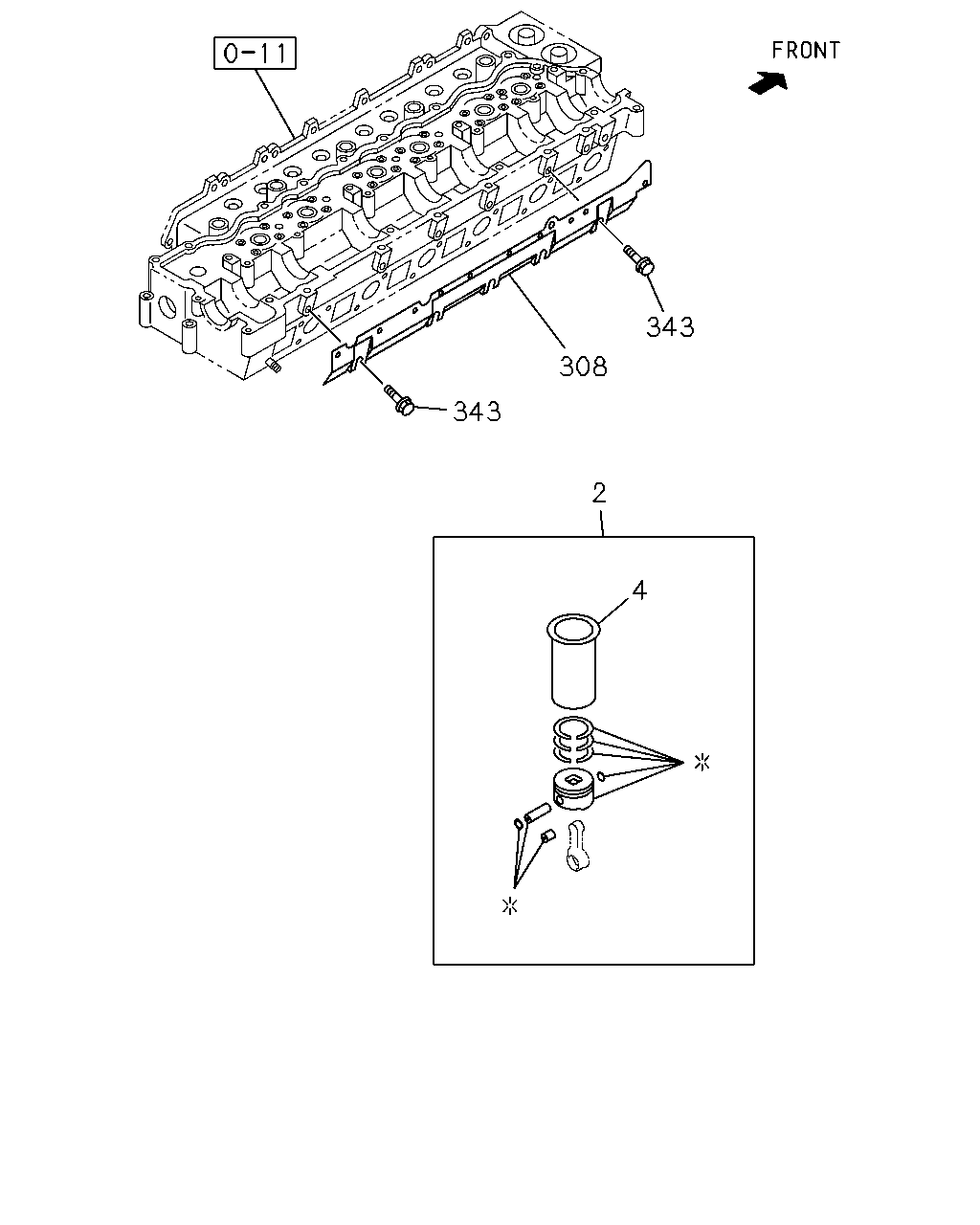

343 308 343 2 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	LINER SET; ENG CYL GRADE=1X	1-87811-701-2	06	1	0101-0108	●
2	LINER SET; ENG CYL GRADE=1X	1-87812-203-3	06	1	0109-0305	●
2	LINER SET; ENG CYL GRADE=1X	1-87811-701-4	06	1	0306-	●
2	LINER SET; ENG CYL GRADE=3X	1-87811-702-2	06	1	0101-0108	●
2	LINER SET; ENG CYL GRADE=3X	1-87812-204-3	06	1	0109-0305	●
2	LINER SET; ENG CYL GRADE=3X	1-87811-702-4	06	1	0306-	●
2	LINER SET; ENG CYL GRADE=1X	1-87811-917-4	06	1	0101-		●
2	LINER SET; ENG CYL GRADE=3X	1-87811-918-4	06	1	0101-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-600-1	06	1	0101-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-601-1	06	1	0101-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-0	06	1	0101-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-0	06	1	0101-		●
308	PROTECTOR; HEAT,HD COVER	8-94395-748-0	01	1	0101-	●
308	PROTECTOR; HEAT,HD COVER	8-94391-759-2	01	1	0101-		●
343	BOLT; HEAT PROTECTOR M8X12 FLANGE	0-28080-812-0	04	1	0101-	●
343	BOLT; HEAT PROTECTOR M8X12 FLANGE	0-28080-812-0	05	1	0101-		●

343 308 2 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	LINER SET; ENG CYL GRADE=1X	1-87811-701-2	06	1	0101-0108	●
2	LINER SET; ENG CYL GRADE=1X	1-87812-203-3	06	1	0109-0305	●
2	LINER SET; ENG CYL GRADE=1X	1-87811-701-4	06	1	0306-	●
2	LINER SET; ENG CYL GRADE=3X	1-87811-702-2	06	1	0101-0108	●
2	LINER SET; ENG CYL GRADE=3X	1-87812-204-3	06	1	0109-0305	●
2	LINER SET; ENG CYL GRADE=3X	1-87811-702-4	06	1	0306-	●
2	LINER SET; ENG CYL GRADE=1X	1-87811-917-4	06	1	0101-		●
2	LINER SET; ENG CYL GRADE=3X	1-87811-918-4	06	1	0101-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-600-1	06	1	0101-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-601-1	06	1	0101-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-0	06	1	0101-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-0	06	1	0101-		●
308	PROTECTOR; HEAT,HD COVER	8-94395-748-0	01	1	0101-	●
308	PROTECTOR; HEAT,HD COVER	8-94391-759-2	01	1	0101-		●
343	BOLT; HEAT PROTECTOR M8X12 FLANGE	0-28080-812-0	04	1	0101-	●
343	BOLT; HEAT PROTECTOR M8X12 FLANGE	0-28080-812-0	05	1	0101-		●
