◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51146 - NLR/NMR(SOUTHAFRICA) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31 - AIR DUCT ▶
1-31 — AIR DUCT (#75308) — 256 parça

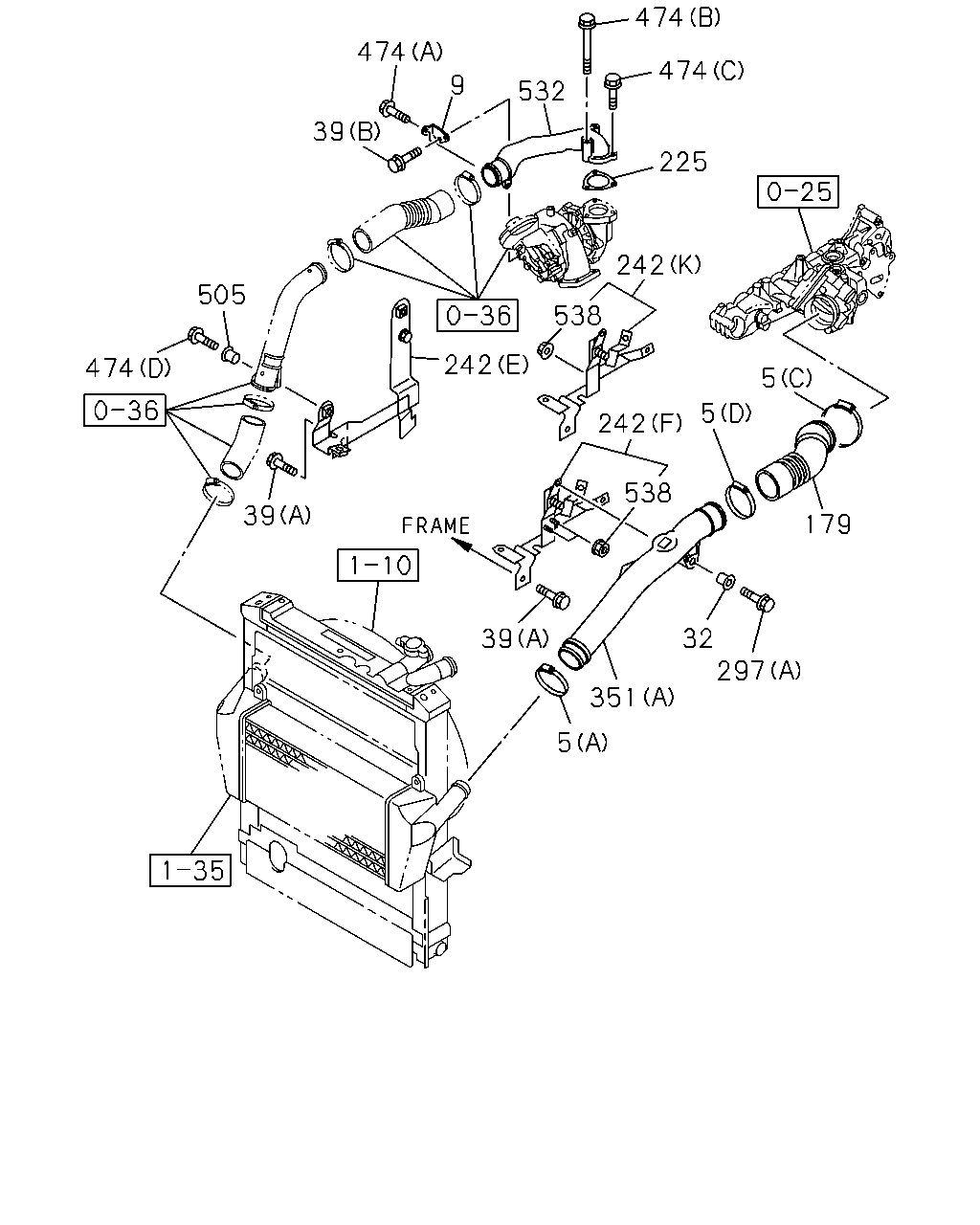

çizim 91812
474 9 532 474 474 225 242 538 242 242 5 5 39 505 474 39 39 5 351 32 297 179 538
BalonParca AdiParca NoAdetTipApplied Date A B C
5 CLIP; AIR DUCT
(B) ID=127 		1-14239-263-0 01 1 0804- ● ● ●
5 CLIP; AIR DUCT
(C) ID=68-85 SOU 		1-09707-202-0 01 1 0804-0810 ● ● ●
5 CLIP; AIR DUCT
(C) ID=65-85 		8-98133-350-0 01 1 0811- ● ● ●
5 CLIP; AIR DUCT
(D) ID=58-76 SOU 		1-09707-203-0 01 1 0804-0811 ● ● ●
5 CLIP; AIR DUCT
(D) ID=55-75 		8-98133-349-0 01 1 0812- ● ● ●
5 CLIP; AIR DUCT
(A) ID=50-65 SOU 		1-09707-204-0 01 1 0804-0810 ● ● ●
5 CLIP; AIR DUCT
(A) ID=45-65 		8-98133-348-0 01 1 0811- ● ● ●
5 CLIP; AIR DUCT
(C) ID=68-85 SOU 		1-09707-202-0 03 1 0804-0810 ●
5 CLIP; AIR DUCT
(C) ID=65-85 		8-98133-350-0 03 1 0811- ●
5 CLIP; AIR DUCT
(F) ID=117 		9-09915-075-1 01 1 0804- ●
5 CLIP; AIR DUCT
(E) D=101.6 SOU 		9-09915-502-1 01 1 0804-0812 ●
5 CLIP; AIR DUCT
EXC. HEAVY DUTY AIR CLEANER<K46> (E) D=101.6 SOU 		9-09915-502-1 01 1 0901-0901 ●
5 CLIP; AIR DUCT
(E) D=101.6 SOU 		9-09915-502-1 01 1 0902- ●
9 BRACKET; INT PIPE 8-98009-086-0 01 1 0804- ● ● ●
32 RUBBER; AIR DUCT MTG
OD=23 		8-97105-689-6 01 1 0804- ● ● ●
39 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0804- ● ● ●
39 BOLT; BRKT
(B) M8X14 FLANGE 		8-97378-075-0 01 1 0804- ● ● ●
179 HOSE; AIR INT 8-98050-920-2 01 1 0804- ● ● ●
225 GASKET; AIR PIPE
ID=47 		8-97202-328-1 01 1 0804- ● ● ●
242 BRACKET; AIR DUCT
(B) 		8-98067-764-1 01 1 0804- ● ●
242 BRACKET; AIR DUCT
(A) 		8-98067-767-4 01 1 0804- ● ●
242 BRACKET; AIR DUCT
(D) 		8-98067-766-1 01 1 0804- ● ●
242 BRACKET; AIR DUCT
(C) 		8-98067-765-1 01 1 0804- ● ●
242 BRACKET; AIR DUCT
(E) 		8-97384-140-3 01 1 0804- ● ● ●
242 BRACKET; AIR DUCT
(F) 		8-98100-224-2 01 1 0804-1411 ● ● ●
242 BRACKET; AIR DUCT
(K) 		8-98108-313-1 01 1 1412- ● ● ●
242 BRACKET; AIR DUCT
(H) 		8-98055-247-1 01 1 0804- ●
242 BRACKET; AIR DUCT
(J) 		8-98066-918-1 01 1 0804- ●
242 BRACKET; AIR DUCT
(G) 		8-98055-246-2 01 1 0804- ●
242 BRACKET; AIR DUCT
(I) 		8-98055-243-1 01 1 0804- ●
297 BOLT; DUCT
(A) M8X35 FLANGE SOU 		0-28650-835-0 01 1 0804- ● ● ●
297 BOLT; DUCT
(B) M10X35 FLANGE SOU 		0-28651-035-0 01 1 0804- ●
351 DUCT; AIR
(B) 		8-98115-594-0 01 1 0804- ● ●
351 DUCT; AIR
(A) 		8-98067-267-0 01 1 0804- ● ● ●
351 DUCT; AIR
(D) 		8-98023-343-1 01 1 0804-0810 ●
351 DUCT; AIR
(D) 		8-98136-042-0 01 1 0811- ●
351 DUCT; AIR
(C) 		8-98072-163-1 01 1 0804- ●
474 BOLT; PIPE
(B) M6X70 FLANGE 		0-28050-670-0 02 1 0804- ● ● ●
474 BOLT; PIPE
(A) M8X16 FLANGE SOU 		0-28050-816-0 01 1 0804- ● ● ●
474 BOLT; PIPE
(C) M6X30 FLANGE 		0-28650-630-0 01 1 0804- ● ● ●
474 BOLT; PIPE
(D) M8X35 FLANGE SOU 		0-28650-835-0 01 1 0804- ● ● ●
505 RUBBER; MTG
OD=23 		8-97105-689-6 01 1 0804- ● ● ●
532 PIPE; INTAKE 8-97385-203-1 01 1 0804-1303 ● ● ●
532 PIPE; INTAKE 8-98237-771-1 01 1 1304- ● ● ●
538 NUT; PLATE,AIR DUCT
M6 FLANGE SOU 		0-91180-106-0 02 1 0804- ● ● ●

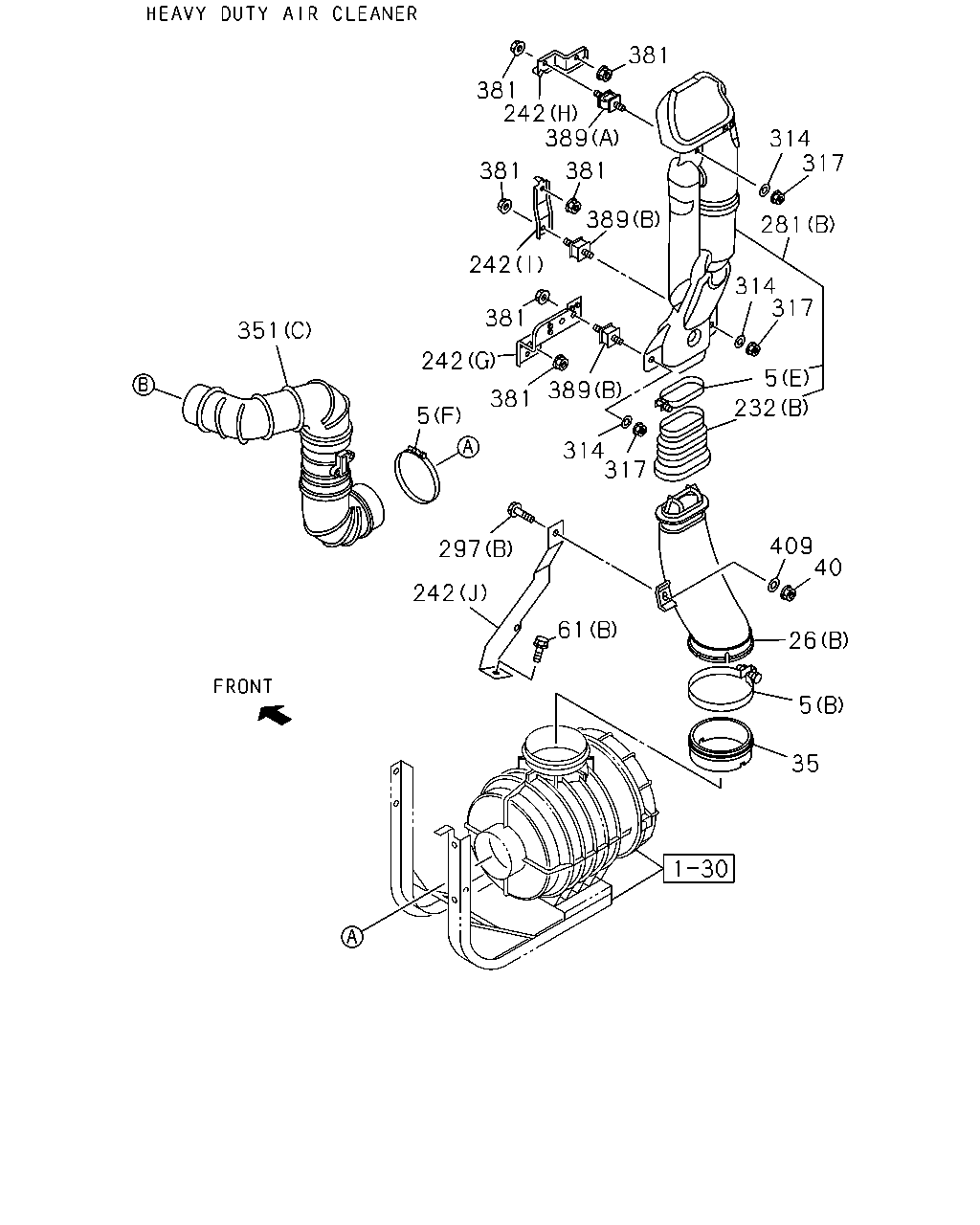

çizim 92165
381 381 242 389 314 317 381 381 389 281 242 314 317 381 351 242 5 389 381 232 5 314 317 409 40 297 242 61 26 5 35
BalonParca AdiParca NoAdetTipApplied Date A B C
5 CLIP; AIR DUCT
(B) ID=127 		1-14239-263-0 01 1 0804- ● ● ●
5 CLIP; AIR DUCT
(C) ID=68-85 SOU 		1-09707-202-0 01 1 0804-0810 ● ● ●
5 CLIP; AIR DUCT
(C) ID=65-85 		8-98133-350-0 01 1 0811- ● ● ●
5 CLIP; AIR DUCT
(D) ID=58-76 SOU 		1-09707-203-0 01 1 0804-0811 ● ● ●
5 CLIP; AIR DUCT
(D) ID=55-75 		8-98133-349-0 01 1 0812- ● ● ●
5 CLIP; AIR DUCT
(A) ID=50-65 SOU 		1-09707-204-0 01 1 0804-0810 ● ● ●
5 CLIP; AIR DUCT
(A) ID=45-65 		8-98133-348-0 01 1 0811- ● ● ●
5 CLIP; AIR DUCT
(C) ID=68-85 SOU 		1-09707-202-0 03 1 0804-0810 ●
5 CLIP; AIR DUCT
(C) ID=65-85 		8-98133-350-0 03 1 0811- ●
5 CLIP; AIR DUCT
(F) ID=117 		9-09915-075-1 01 1 0804- ●
5 CLIP; AIR DUCT
(E) D=101.6 SOU 		9-09915-502-1 01 1 0804-0812 ●
5 CLIP; AIR DUCT
EXC. HEAVY DUTY AIR CLEANER<K46> (E) D=101.6 SOU 		9-09915-502-1 01 1 0901-0901 ●
5 CLIP; AIR DUCT
(E) D=101.6 SOU 		9-09915-502-1 01 1 0902- ●
26 DUCT; AIR INT
(A) 		8-98023-339-0 01 1 0804- ● ●
26 DUCT; AIR INT
(B) 		8-98023-340-0 01 1 0804- ●
35 SEAL; DUCT,INT 8-98029-332-0 01 1 0804- ● ● ●
40 NUT; AIR INT DUCT
M10 FLANGE SOU 		0-91180-110-0 01 1 0804- ● ● ●
61 BOLT; BRKT,AIR DUCT
(A) M8X25 FLANGE SOU 		0-28650-825-0 01 1 0804- ● ●
61 BOLT; BRKT,AIR DUCT
(B) M10X35 FLANGE SOU 		0-28651-035-0 01 1 0804- ●
232 HOSE; CONN
(A) 		8-98048-540-0 01 1 0804-1409 ● ●
232 HOSE; CONN
(A) 		8-98269-834-0 01 1 1410- ● ●
232 HOSE; CONN
(B) 		8-98082-535-0 01 1 0804-0812 ●
232 HOSE; CONN
EXC. HEAVY DUTY AIR CLEANER<K46> (B) 		8-98082-535-0 01 1 0901-0901 ●
232 HOSE; CONN
(B) 		8-98082-535-0 01 1 0902-1309 ●
232 HOSE; CONN
(B) 		8-98231-785-0 01 1 1310- ●
232 HOSE; CONN
(C) 		8-98108-234-0 01 1 0804- ●
242 BRACKET; AIR DUCT
(B) 		8-98067-764-1 01 1 0804- ● ●
242 BRACKET; AIR DUCT
(A) 		8-98067-767-4 01 1 0804- ● ●
242 BRACKET; AIR DUCT
(D) 		8-98067-766-1 01 1 0804- ● ●
242 BRACKET; AIR DUCT
(C) 		8-98067-765-1 01 1 0804- ● ●
242 BRACKET; AIR DUCT
(E) 		8-97384-140-3 01 1 0804- ● ● ●
242 BRACKET; AIR DUCT
(F) 		8-98100-224-2 01 1 0804-1411 ● ● ●
242 BRACKET; AIR DUCT
(K) 		8-98108-313-1 01 1 1412- ● ● ●
242 BRACKET; AIR DUCT
(H) 		8-98055-247-1 01 1 0804- ●
242 BRACKET; AIR DUCT
(J) 		8-98066-918-1 01 1 0804- ●
242 BRACKET; AIR DUCT
(G) 		8-98055-246-2 01 1 0804- ●
242 BRACKET; AIR DUCT
(I) 		8-98055-243-1 01 1 0804- ●
281 DUCT; AIR,VERTICAL INT
HEAVY DUTY AIR CLEANER<K46> (A) 		8-98101-994-2 01 1 0804- ● ●
281 DUCT; AIR,VERTICAL INT
EXC. HEAVY DUTY AIR CLEANER<K46> (A) 		8-97369-706-0 01 1 0804- ● ●
281 DUCT; AIR,VERTICAL INT
HEAVY DUTY AIR CLEANER<K46> (B) 		8-98101-995-5 01 1 0804- ●
281 DUCT; AIR,VERTICAL INT
EXC. HEAVY DUTY AIR CLEANER<K46> (C) 		8-98061-757-2 01 1 0804- ●
297 BOLT; DUCT
(A) M8X35 FLANGE SOU 		0-28650-835-0 01 1 0804- ● ● ●
297 BOLT; DUCT
(B) M10X35 FLANGE SOU 		0-28651-035-0 01 1 0804- ●
314 WASHER; PL,AIR INT DUCT
ID=10.5 OD=32 		0-91614-810-0 03 1 0804- ● ● ●
317 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 0804- ● ● ●
351 DUCT; AIR
(B) 		8-98115-594-0 01 1 0804- ● ●
351 DUCT; AIR
(A) 		8-98067-267-0 01 1 0804- ● ● ●
351 DUCT; AIR
(D) 		8-98023-343-1 01 1 0804-0810 ●
351 DUCT; AIR
(D) 		8-98136-042-0 01 1 0811- ●
351 DUCT; AIR
(C) 		8-98072-163-1 01 1 0804- ●
381 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 02 1 0804- ● ●
381 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 03 1 0804- ● ● ●
381 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 03 1 0804- ●
389 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 0804- ● ● ●
389 RUBBER; SUPPORT,AIR INT UPR
(B) 		8-98036-826-0 02 1 0804- ● ● ●
409 WASHER; PL,BRKT
ID=10.5 OD=32 		0-91614-810-0 01 1 0804- ● ● ●

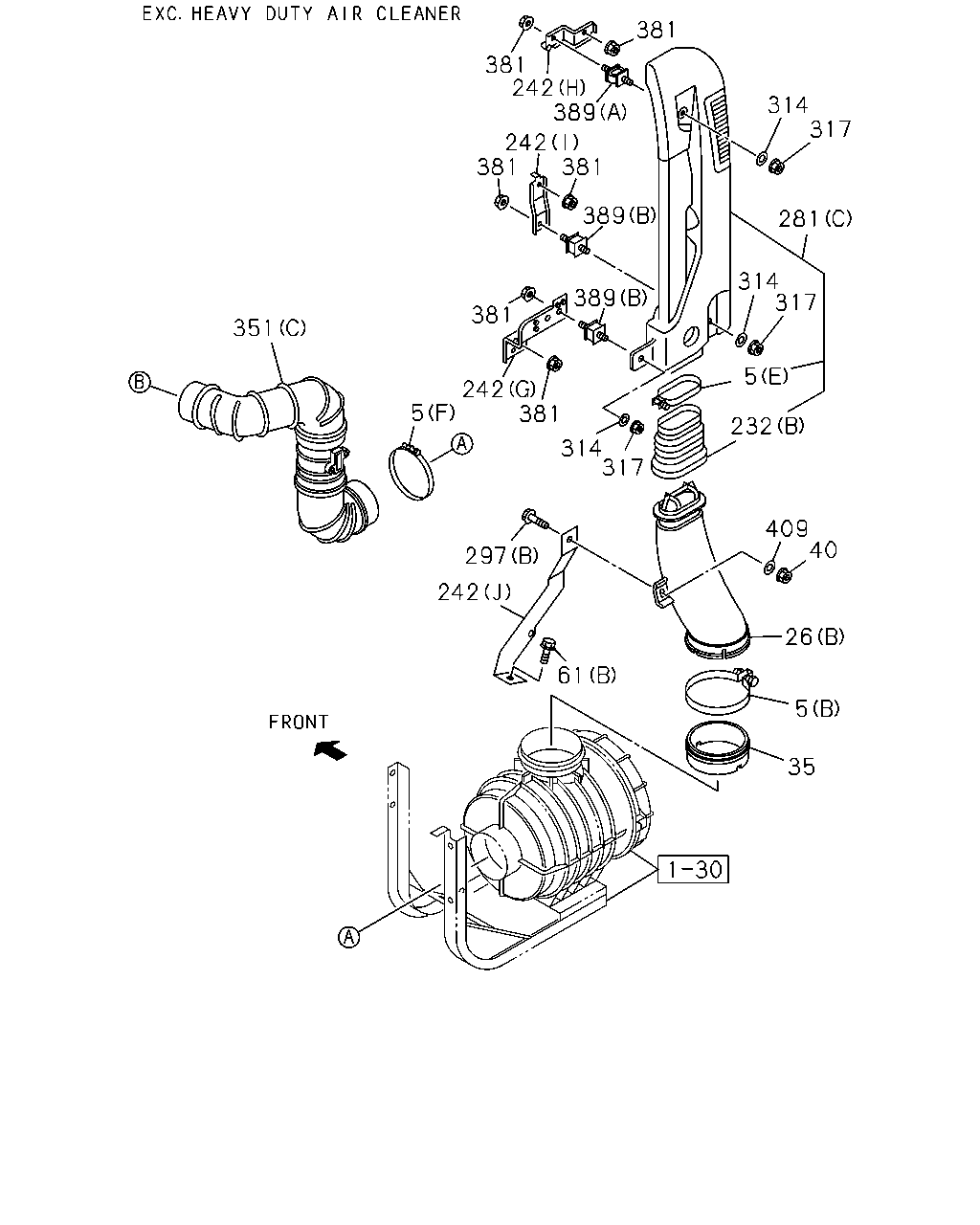

çizim 92484
381 381 242 389 314 317 242 381 381 389 281 314 317 389 381 351 5 242 5 381 232 314 317 409 40 297 242 26 61 5 35
BalonParca AdiParca NoAdetTipApplied Date A B C
5 CLIP; AIR DUCT
(B) ID=127 		1-14239-263-0 01 1 0804- ● ● ●
5 CLIP; AIR DUCT
(C) ID=68-85 SOU 		1-09707-202-0 01 1 0804-0810 ● ● ●
5 CLIP; AIR DUCT
(C) ID=65-85 		8-98133-350-0 01 1 0811- ● ● ●
5 CLIP; AIR DUCT
(D) ID=58-76 SOU 		1-09707-203-0 01 1 0804-0811 ● ● ●
5 CLIP; AIR DUCT
(D) ID=55-75 		8-98133-349-0 01 1 0812- ● ● ●
5 CLIP; AIR DUCT
(A) ID=50-65 SOU 		1-09707-204-0 01 1 0804-0810 ● ● ●
5 CLIP; AIR DUCT
(A) ID=45-65 		8-98133-348-0 01 1 0811- ● ● ●
5 CLIP; AIR DUCT
(C) ID=68-85 SOU 		1-09707-202-0 03 1 0804-0810 ●
5 CLIP; AIR DUCT
(C) ID=65-85 		8-98133-350-0 03 1 0811- ●
5 CLIP; AIR DUCT
(F) ID=117 		9-09915-075-1 01 1 0804- ●
5 CLIP; AIR DUCT
(E) D=101.6 SOU 		9-09915-502-1 01 1 0804-0812 ●
5 CLIP; AIR DUCT
EXC. HEAVY DUTY AIR CLEANER<K46> (E) D=101.6 SOU 		9-09915-502-1 01 1 0901-0901 ●
5 CLIP; AIR DUCT
(E) D=101.6 SOU 		9-09915-502-1 01 1 0902- ●
26 DUCT; AIR INT
(A) 		8-98023-339-0 01 1 0804- ● ●
26 DUCT; AIR INT
(B) 		8-98023-340-0 01 1 0804- ●
35 SEAL; DUCT,INT 8-98029-332-0 01 1 0804- ● ● ●
40 NUT; AIR INT DUCT
M10 FLANGE SOU 		0-91180-110-0 01 1 0804- ● ● ●
61 BOLT; BRKT,AIR DUCT
(A) M8X25 FLANGE SOU 		0-28650-825-0 01 1 0804- ● ●
61 BOLT; BRKT,AIR DUCT
(B) M10X35 FLANGE SOU 		0-28651-035-0 01 1 0804- ●
232 HOSE; CONN
(A) 		8-98048-540-0 01 1 0804-1409 ● ●
232 HOSE; CONN
(A) 		8-98269-834-0 01 1 1410- ● ●
232 HOSE; CONN
(B) 		8-98082-535-0 01 1 0804-0812 ●
232 HOSE; CONN
EXC. HEAVY DUTY AIR CLEANER<K46> (B) 		8-98082-535-0 01 1 0901-0901 ●
232 HOSE; CONN
(B) 		8-98082-535-0 01 1 0902-1309 ●
232 HOSE; CONN
(B) 		8-98231-785-0 01 1 1310- ●
232 HOSE; CONN
(C) 		8-98108-234-0 01 1 0804- ●
242 BRACKET; AIR DUCT
(B) 		8-98067-764-1 01 1 0804- ● ●
242 BRACKET; AIR DUCT
(A) 		8-98067-767-4 01 1 0804- ● ●
242 BRACKET; AIR DUCT
(D) 		8-98067-766-1 01 1 0804- ● ●
242 BRACKET; AIR DUCT
(C) 		8-98067-765-1 01 1 0804- ● ●
242 BRACKET; AIR DUCT
(E) 		8-97384-140-3 01 1 0804- ● ● ●
242 BRACKET; AIR DUCT
(F) 		8-98100-224-2 01 1 0804-1411 ● ● ●
242 BRACKET; AIR DUCT
(K) 		8-98108-313-1 01 1 1412- ● ● ●
242 BRACKET; AIR DUCT
(H) 		8-98055-247-1 01 1 0804- ●
242 BRACKET; AIR DUCT
(J) 		8-98066-918-1 01 1 0804- ●
242 BRACKET; AIR DUCT
(G) 		8-98055-246-2 01 1 0804- ●
242 BRACKET; AIR DUCT
(I) 		8-98055-243-1 01 1 0804- ●
281 DUCT; AIR,VERTICAL INT
HEAVY DUTY AIR CLEANER<K46> (A) 		8-98101-994-2 01 1 0804- ● ●
281 DUCT; AIR,VERTICAL INT
EXC. HEAVY DUTY AIR CLEANER<K46> (A) 		8-97369-706-0 01 1 0804- ● ●
281 DUCT; AIR,VERTICAL INT
HEAVY DUTY AIR CLEANER<K46> (B) 		8-98101-995-5 01 1 0804- ●
281 DUCT; AIR,VERTICAL INT
EXC. HEAVY DUTY AIR CLEANER<K46> (C) 		8-98061-757-2 01 1 0804- ●
297 BOLT; DUCT
(A) M8X35 FLANGE SOU 		0-28650-835-0 01 1 0804- ● ● ●
297 BOLT; DUCT
(B) M10X35 FLANGE SOU 		0-28651-035-0 01 1 0804- ●
314 WASHER; PL,AIR INT DUCT
ID=10.5 OD=32 		0-91614-810-0 03 1 0804- ● ● ●
317 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 0804- ● ● ●
351 DUCT; AIR
(B) 		8-98115-594-0 01 1 0804- ● ●
351 DUCT; AIR
(A) 		8-98067-267-0 01 1 0804- ● ● ●
351 DUCT; AIR
(D) 		8-98023-343-1 01 1 0804-0810 ●
351 DUCT; AIR
(D) 		8-98136-042-0 01 1 0811- ●
351 DUCT; AIR
(C) 		8-98072-163-1 01 1 0804- ●
381 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 02 1 0804- ● ●
381 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 03 1 0804- ● ● ●
381 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 03 1 0804- ●
389 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 0804- ● ● ●
389 RUBBER; SUPPORT,AIR INT UPR
(B) 		8-98036-826-0 02 1 0804- ● ● ●
409 WASHER; PL,BRKT
ID=10.5 OD=32 		0-91614-810-0 01 1 0804- ● ● ●

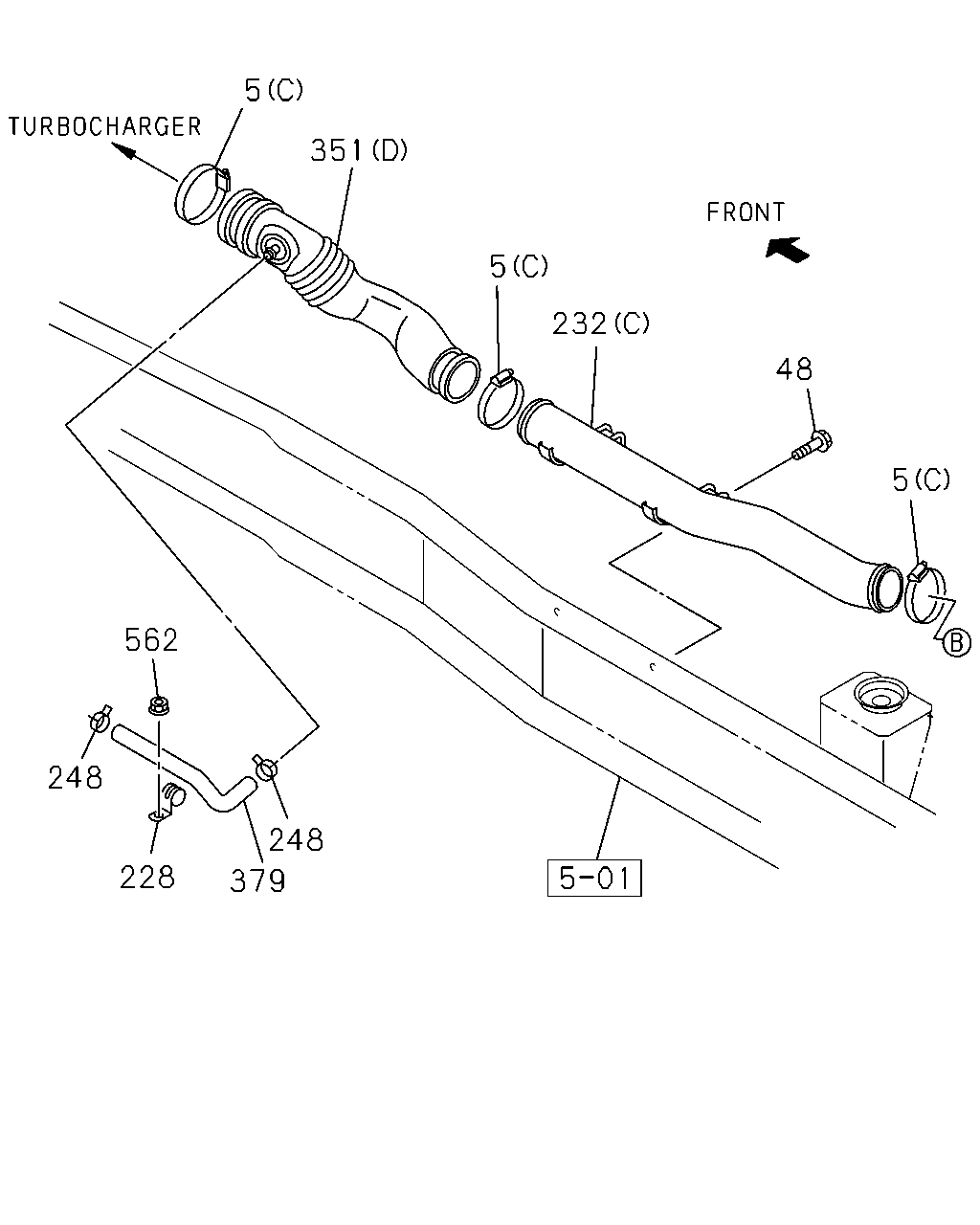

çizim 92786
5 351 5 232 48 5 562 248 248 228 379
BalonParca AdiParca NoAdetTipApplied Date A B C
5 CLIP; AIR DUCT
(B) ID=127 		1-14239-263-0 01 1 0804- ● ● ●
5 CLIP; AIR DUCT
(C) ID=68-85 SOU 		1-09707-202-0 01 1 0804-0810 ● ● ●
5 CLIP; AIR DUCT
(C) ID=65-85 		8-98133-350-0 01 1 0811- ● ● ●
5 CLIP; AIR DUCT
(D) ID=58-76 SOU 		1-09707-203-0 01 1 0804-0811 ● ● ●
5 CLIP; AIR DUCT
(D) ID=55-75 		8-98133-349-0 01 1 0812- ● ● ●
5 CLIP; AIR DUCT
(A) ID=50-65 SOU 		1-09707-204-0 01 1 0804-0810 ● ● ●
5 CLIP; AIR DUCT
(A) ID=45-65 		8-98133-348-0 01 1 0811- ● ● ●
5 CLIP; AIR DUCT
(C) ID=68-85 SOU 		1-09707-202-0 03 1 0804-0810 ●
5 CLIP; AIR DUCT
(C) ID=65-85 		8-98133-350-0 03 1 0811- ●
5 CLIP; AIR DUCT
(F) ID=117 		9-09915-075-1 01 1 0804- ●
5 CLIP; AIR DUCT
(E) D=101.6 SOU 		9-09915-502-1 01 1 0804-0812 ●
5 CLIP; AIR DUCT
EXC. HEAVY DUTY AIR CLEANER<K46> (E) D=101.6 SOU 		9-09915-502-1 01 1 0901-0901 ●
5 CLIP; AIR DUCT
(E) D=101.6 SOU 		9-09915-502-1 01 1 0902- ●
48 BOLT; AIR DUCT
M10X30 FLANGE SOU 		0-28651-030-0 02 1 0804- ●
228 CLIP; PCV HOSE
ID=25 H=40 L=50 		8-98073-275-0 01 1 0804- ● ● ●
232 HOSE; CONN
(A) 		8-98048-540-0 01 1 0804-1409 ● ●
232 HOSE; CONN
(A) 		8-98269-834-0 01 1 1410- ● ●
232 HOSE; CONN
(B) 		8-98082-535-0 01 1 0804-0812 ●
232 HOSE; CONN
EXC. HEAVY DUTY AIR CLEANER<K46> (B) 		8-98082-535-0 01 1 0901-0901 ●
232 HOSE; CONN
(B) 		8-98082-535-0 01 1 0902-1309 ●
232 HOSE; CONN
(B) 		8-98231-785-0 01 1 1310- ●
232 HOSE; CONN
(C) 		8-98108-234-0 01 1 0804- ●
248 CLIP; RUBBER HOSE
ID=21.7 		8-97203-074-0 02 1 0804- ● ● ●
351 DUCT; AIR
(B) 		8-98115-594-0 01 1 0804- ● ●
351 DUCT; AIR
(A) 		8-98067-267-0 01 1 0804- ● ● ●
351 DUCT; AIR
(D) 		8-98023-343-1 01 1 0804-0810 ●
351 DUCT; AIR
(D) 		8-98136-042-0 01 1 0811- ●
351 DUCT; AIR
(C) 		8-98072-163-1 01 1 0804- ●
379 HOSE; RUBBER 8-98088-700-2 01 1 0804-0810 ● ● ●
379 HOSE; RUBBER 8-98135-511-0 01 1 0811- ● ● ●
562 NUT; HOSE CLIP
M6 FLANGE SOU 		0-91180-106-0 01 1 0804-0809 ● ● ●
562 NUT; HOSE CLIP
M8 FLANGE SOU 		0-91180-108-0 01 1 0810- ● ● ●

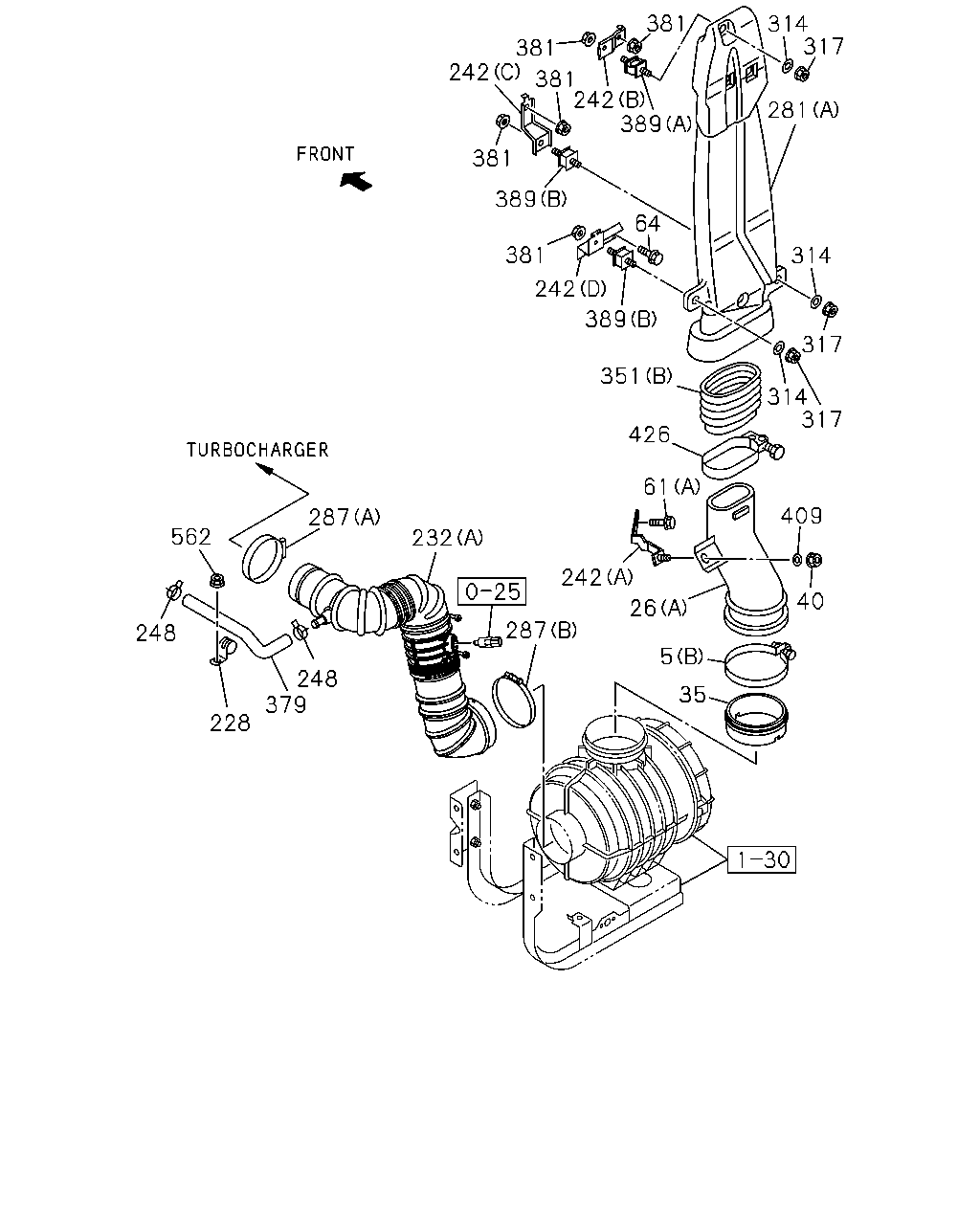

çizim 185489
35 5 26 242 61 426 351 40 409 317 314 317 314 281 317 314 381 389 242 381 381 242 381 389 381 64 242 389 232 287 248 379 228 248 562 287
BalonParca AdiParca NoAdetTipApplied Date A B C
5 CLIP; AIR DUCT
(B) ID=127 		1-14239-263-0 01 1 0804- ● ● ●
5 CLIP; AIR DUCT
(C) ID=68-85 SOU 		1-09707-202-0 01 1 0804-0810 ● ● ●
5 CLIP; AIR DUCT
(C) ID=65-85 		8-98133-350-0 01 1 0811- ● ● ●
5 CLIP; AIR DUCT
(D) ID=58-76 SOU 		1-09707-203-0 01 1 0804-0811 ● ● ●
5 CLIP; AIR DUCT
(D) ID=55-75 		8-98133-349-0 01 1 0812- ● ● ●
5 CLIP; AIR DUCT
(A) ID=50-65 SOU 		1-09707-204-0 01 1 0804-0810 ● ● ●
5 CLIP; AIR DUCT
(A) ID=45-65 		8-98133-348-0 01 1 0811- ● ● ●
5 CLIP; AIR DUCT
(C) ID=68-85 SOU 		1-09707-202-0 03 1 0804-0810 ●
5 CLIP; AIR DUCT
(C) ID=65-85 		8-98133-350-0 03 1 0811- ●
5 CLIP; AIR DUCT
(F) ID=117 		9-09915-075-1 01 1 0804- ●
5 CLIP; AIR DUCT
(E) D=101.6 SOU 		9-09915-502-1 01 1 0804-0812 ●
5 CLIP; AIR DUCT
EXC. HEAVY DUTY AIR CLEANER<K46> (E) D=101.6 SOU 		9-09915-502-1 01 1 0901-0901 ●
5 CLIP; AIR DUCT
(E) D=101.6 SOU 		9-09915-502-1 01 1 0902- ●
26 DUCT; AIR INT
(A) 		8-98023-339-0 01 1 0804- ● ●
26 DUCT; AIR INT
(B) 		8-98023-340-0 01 1 0804- ●
35 SEAL; DUCT,INT 8-98029-332-0 01 1 0804- ● ● ●
40 NUT; AIR INT DUCT
M10 FLANGE SOU 		0-91180-110-0 01 1 0804- ● ● ●
61 BOLT; BRKT,AIR DUCT
(A) M8X25 FLANGE SOU 		0-28650-825-0 01 1 0804- ● ●
61 BOLT; BRKT,AIR DUCT
(B) M10X35 FLANGE SOU 		0-28651-035-0 01 1 0804- ●
64 BOLT; BRKT,AIR DUCT
M8X16 		0-52000-816-0 01 1 0804- ● ●
228 CLIP; PCV HOSE
ID=25 H=40 L=50 		8-98073-275-0 01 1 0804- ● ● ●
232 HOSE; CONN
(A) 		8-98048-540-0 01 1 0804-1409 ● ●
232 HOSE; CONN
(A) 		8-98269-834-0 01 1 1410- ● ●
232 HOSE; CONN
(B) 		8-98082-535-0 01 1 0804-0812 ●
232 HOSE; CONN
EXC. HEAVY DUTY AIR CLEANER<K46> (B) 		8-98082-535-0 01 1 0901-0901 ●
232 HOSE; CONN
(B) 		8-98082-535-0 01 1 0902-1309 ●
232 HOSE; CONN
(B) 		8-98231-785-0 01 1 1310- ●
232 HOSE; CONN
(C) 		8-98108-234-0 01 1 0804- ●
242 BRACKET; AIR DUCT
(B) 		8-98067-764-1 01 1 0804- ● ●
242 BRACKET; AIR DUCT
(A) 		8-98067-767-4 01 1 0804- ● ●
242 BRACKET; AIR DUCT
(D) 		8-98067-766-1 01 1 0804- ● ●
242 BRACKET; AIR DUCT
(C) 		8-98067-765-1 01 1 0804- ● ●
242 BRACKET; AIR DUCT
(E) 		8-97384-140-3 01 1 0804- ● ● ●
242 BRACKET; AIR DUCT
(F) 		8-98100-224-2 01 1 0804-1411 ● ● ●
242 BRACKET; AIR DUCT
(K) 		8-98108-313-1 01 1 1412- ● ● ●
242 BRACKET; AIR DUCT
(H) 		8-98055-247-1 01 1 0804- ●
242 BRACKET; AIR DUCT
(J) 		8-98066-918-1 01 1 0804- ●
242 BRACKET; AIR DUCT
(G) 		8-98055-246-2 01 1 0804- ●
242 BRACKET; AIR DUCT
(I) 		8-98055-243-1 01 1 0804- ●
248 CLIP; RUBBER HOSE
ID=21.7 		8-97203-074-0 02 1 0804- ● ● ●
281 DUCT; AIR,VERTICAL INT
HEAVY DUTY AIR CLEANER<K46> (A) 		8-98101-994-2 01 1 0804- ● ●
281 DUCT; AIR,VERTICAL INT
EXC. HEAVY DUTY AIR CLEANER<K46> (A) 		8-97369-706-0 01 1 0804- ● ●
281 DUCT; AIR,VERTICAL INT
HEAVY DUTY AIR CLEANER<K46> (B) 		8-98101-995-5 01 1 0804- ●
281 DUCT; AIR,VERTICAL INT
EXC. HEAVY DUTY AIR CLEANER<K46> (C) 		8-98061-757-2 01 1 0804- ●
287 CLIP; AIR DUCT
(A) ID=68-85 SOU 		1-09707-202-0 01 1 0804-0810 ● ●
287 CLIP; AIR DUCT
(A) ID=65-85 		8-98133-350-0 01 1 0811-0812 ● ●
287 CLIP; AIR DUCT
MANUAL TILT CAB<RWZ> (A) ID=65-85 		8-98133-350-0 01 1 0901-1001 ● ●
287 CLIP; AIR DUCT
(A) ID=65-85 		8-98133-350-0 01 1 1002- ● ●
287 CLIP; AIR DUCT
(B) ID=117 		9-09915-075-1 01 1 0804- ● ●
314 WASHER; PL,AIR INT DUCT
ID=10.5 OD=32 		0-91614-810-0 03 1 0804- ● ● ●
317 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 0804- ● ● ●
351 DUCT; AIR
(B) 		8-98115-594-0 01 1 0804- ● ●
351 DUCT; AIR
(A) 		8-98067-267-0 01 1 0804- ● ● ●
351 DUCT; AIR
(D) 		8-98023-343-1 01 1 0804-0810 ●
351 DUCT; AIR
(D) 		8-98136-042-0 01 1 0811- ●
351 DUCT; AIR
(C) 		8-98072-163-1 01 1 0804- ●
379 HOSE; RUBBER 8-98088-700-2 01 1 0804-0810 ● ● ●
379 HOSE; RUBBER 8-98135-511-0 01 1 0811- ● ● ●
381 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 02 1 0804- ● ●
381 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 03 1 0804- ● ● ●
381 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 03 1 0804- ●
389 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 0804- ● ● ●
389 RUBBER; SUPPORT,AIR INT UPR
(B) 		8-98036-826-0 02 1 0804- ● ● ●
409 WASHER; PL,BRKT
ID=10.5 OD=32 		0-91614-810-0 01 1 0804- ● ● ●
426 CLIP; DUCT
D=101.6 SOU 		9-09915-502-1 01 1 0804- ● ●
562 NUT; HOSE CLIP
M6 FLANGE SOU 		0-91180-106-0 01 1 0804-0809 ● ● ●
562 NUT; HOSE CLIP
M8 FLANGE SOU 		0-91180-108-0 01 1 0810- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
