◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51146 - NLR/NMR(SOUTHAFRICA) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-11 - RADIATOR HOSE AND SUB TANK ▶
1-11 — RADIATOR HOSE AND SUB TANK (#75306) — 43 parça

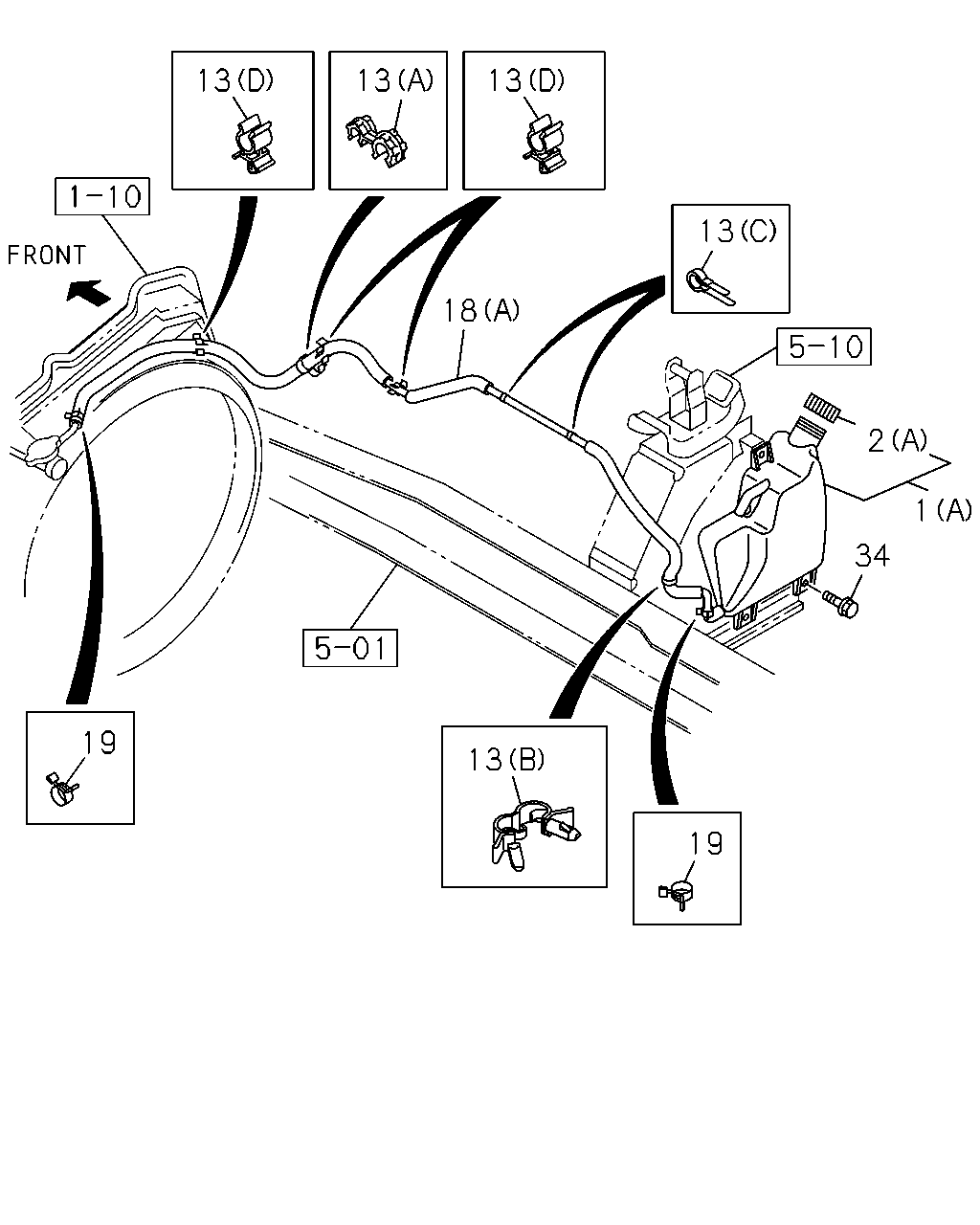

çizim 89291
13 13 13 13 18 2 1 34 19 13 19
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TANK; SURGE,RAD
(A) 		8-97387-632-1 01 1 0804-1010 ● ●
1 TANK; SURGE,RAD
(A) 		8-98178-179-0 01 1 1011- ● ●
1 TANK; SURGE,RAD
(B) 		8-98001-240-1 01 1 0804- ●
2 CAP; SURGE TANK
(A) 		8-97217-796-0 01 1 0804-1010 ● ●
2 CAP; SURGE TANK
(A) 		8-98178-074-0 01 1 1011- ● ●
2 CAP; SURGE TANK
(B) SOU 		8-97130-964-0 01 1 0804- ●
13 CLIP; HOSE,SURGE TANK
(B) ID=13-18 L=14.5 		1-09709-290-0 01 1 0804- ● ●
13 CLIP; HOSE,SURGE TANK
(C) ID=14 L=47 SOU 		5-09700-319-0 02 1 0804- ● ● ●
13 CLIP; HOSE,SURGE TANK
(A) ID=10 & 12 		8-94416-613-0 01 1 0804- ● ● ●
13 CLIP; HOSE,SURGE TANK
(D) ID=12 		8-98029-256-0 03 1 0804- ● ● ●
18 HOSE; RAD TO SURGE TANK
(A) 		8-98065-255-0 01 1 0804- ● ●
18 HOSE; RAD TO SURGE TANK
(B) 		8-98037-221-4 01 1 0804- ●
19 CLIP; HOSE,SURGE TANK
ID=12 		8-94238-610-0 02 1 0804-0911 ● ● ●
19 CLIP; HOSE,SURGE TANK
ID=12 		8-98150-358-0 02 1 0912- ● ● ●
34 BOLT; RESERVE TANK
M8X22 W/LK&PL WASHER 		1-09030-042-0 03 1 0804- ● ● ●
çizim 89551
13 13 18 13 19 1 33 23 33 18 2 23 19 34
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TANK; SURGE,RAD
(A) 		8-97387-632-1 01 1 0804-1010 ● ●
1 TANK; SURGE,RAD
(A) 		8-98178-179-0 01 1 1011- ● ●
1 TANK; SURGE,RAD
(B) 		8-98001-240-1 01 1 0804- ●
2 CAP; SURGE TANK
(A) 		8-97217-796-0 01 1 0804-1010 ● ●
2 CAP; SURGE TANK
(A) 		8-98178-074-0 01 1 1011- ● ●
2 CAP; SURGE TANK
(B) SOU 		8-97130-964-0 01 1 0804- ●
13 CLIP; HOSE,SURGE TANK
(B) ID=13-18 L=14.5 		1-09709-290-0 01 1 0804- ● ●
13 CLIP; HOSE,SURGE TANK
(C) ID=14 L=47 SOU 		5-09700-319-0 02 1 0804- ● ● ●
13 CLIP; HOSE,SURGE TANK
(A) ID=10 & 12 		8-94416-613-0 01 1 0804- ● ● ●
13 CLIP; HOSE,SURGE TANK
(D) ID=12 		8-98029-256-0 03 1 0804- ● ● ●
18 HOSE; RAD TO SURGE TANK
(A) 		8-98065-255-0 01 1 0804- ● ●
18 HOSE; RAD TO SURGE TANK
(B) 		8-98037-221-4 01 1 0804- ●
19 CLIP; HOSE,SURGE TANK
ID=12 		8-94238-610-0 02 1 0804-0911 ● ● ●
19 CLIP; HOSE,SURGE TANK
ID=12 		8-98150-358-0 02 1 0912- ● ● ●
23 BRACKET; RESERVE TANK
(A) 		8-98001-742-1 01 1 0804- ●
23 BRACKET; RESERVE TANK
(B) 		8-98010-501-2 01 1 0804- ●
33 BOLT; BRKT
(A) M8X16 FLANGE SOU 		0-28050-816-0 03 1 0804- ●
33 BOLT; BRKT
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0804- ●
34 BOLT; RESERVE TANK
M8X22 W/LK&PL WASHER 		1-09030-042-0 03 1 0804- ● ● ●
çizim 185488
56 55 56 56 128 56
BalonParca AdiParca NoAdetTipApplied Date A B C
55 HOSE; WATER,RAD OUTLET 8-97383-814-1 01 1 0804- ● ● ●
56 CLIP; WATER HOSE,RAD
ID=48 		8-98036-282-0 01 1 0804-0901 ● ● ●
56 CLIP; WATER HOSE,RAD
ID=48 		8-98133-956-0 01 1 0902-0906 ● ● ●
56 CLIP; WATER HOSE,RAD
ID=48 		8-98133-956-0 02 1 0907- ● ● ●
56 CLIP; WATER HOSE,RAD
ID=48 		8-98036-282-0 03 1 0804-0901 ● ● ●
56 CLIP; WATER HOSE,RAD
ID=48 		8-98133-956-0 03 1 0902-0906 ● ● ●
56 CLIP; WATER HOSE,RAD
ID=48 		8-98133-956-0 01 1 0907- ● ● ●
56 CLIP; WATER HOSE,RAD
ID=48 		8-98133-956-0 01 1 0907- ● ● ●
128 HOSE; WATER,RAD INL 8-97383-812-1 01 1 0804- ● ● ●
