Isuzu WW
▶
TRUCKS
▶
NLR
▶
51146 - NLR/NMR(SOUTHAFRICA)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-10 - RADIATOR
▶
1-10 — RADIATOR
(#75305) — 46 parça
Tümü
A - NMR5SE
B - NMR5SN
C - NMR5WN
◀

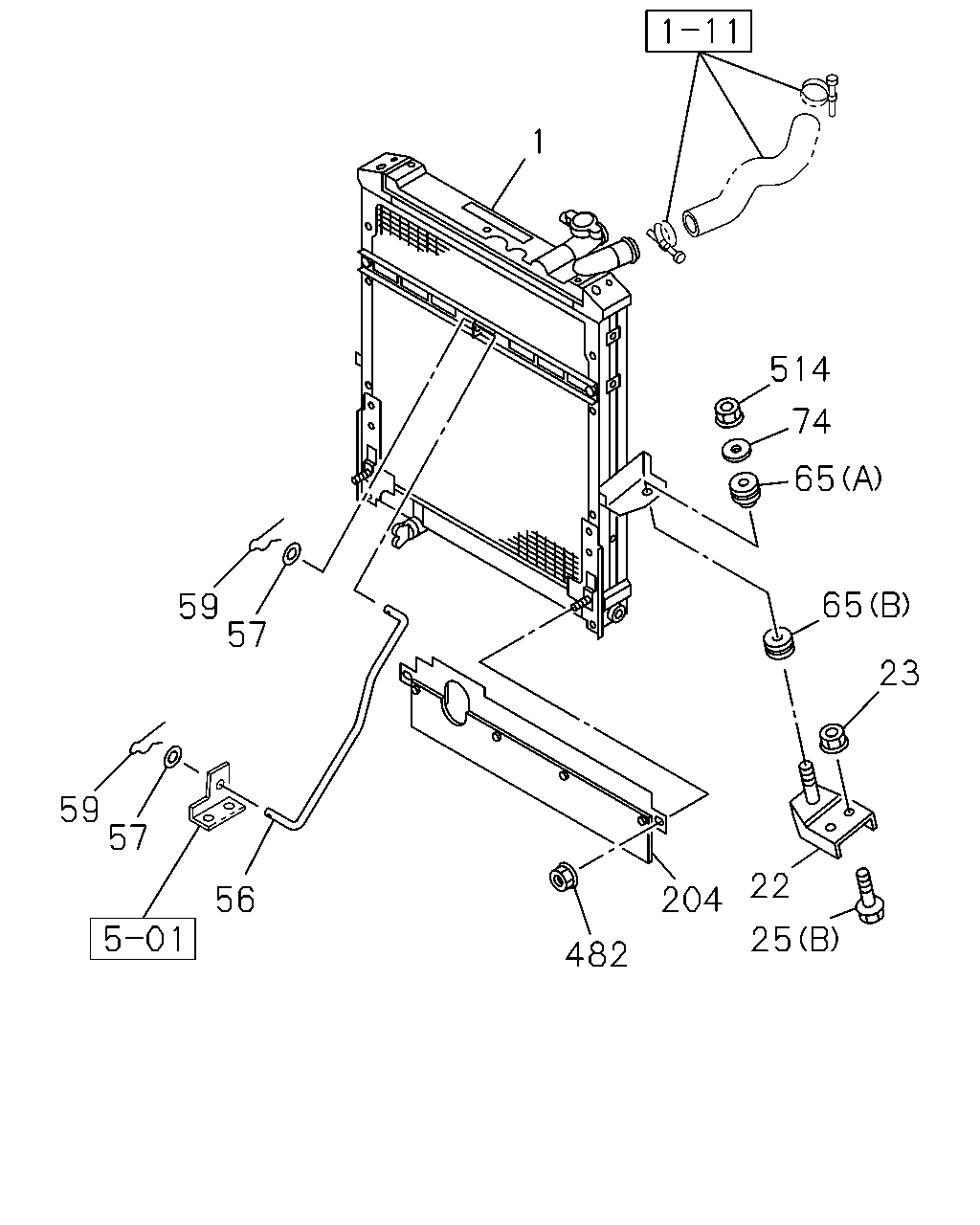

[110A] NO.1 (17 parça)

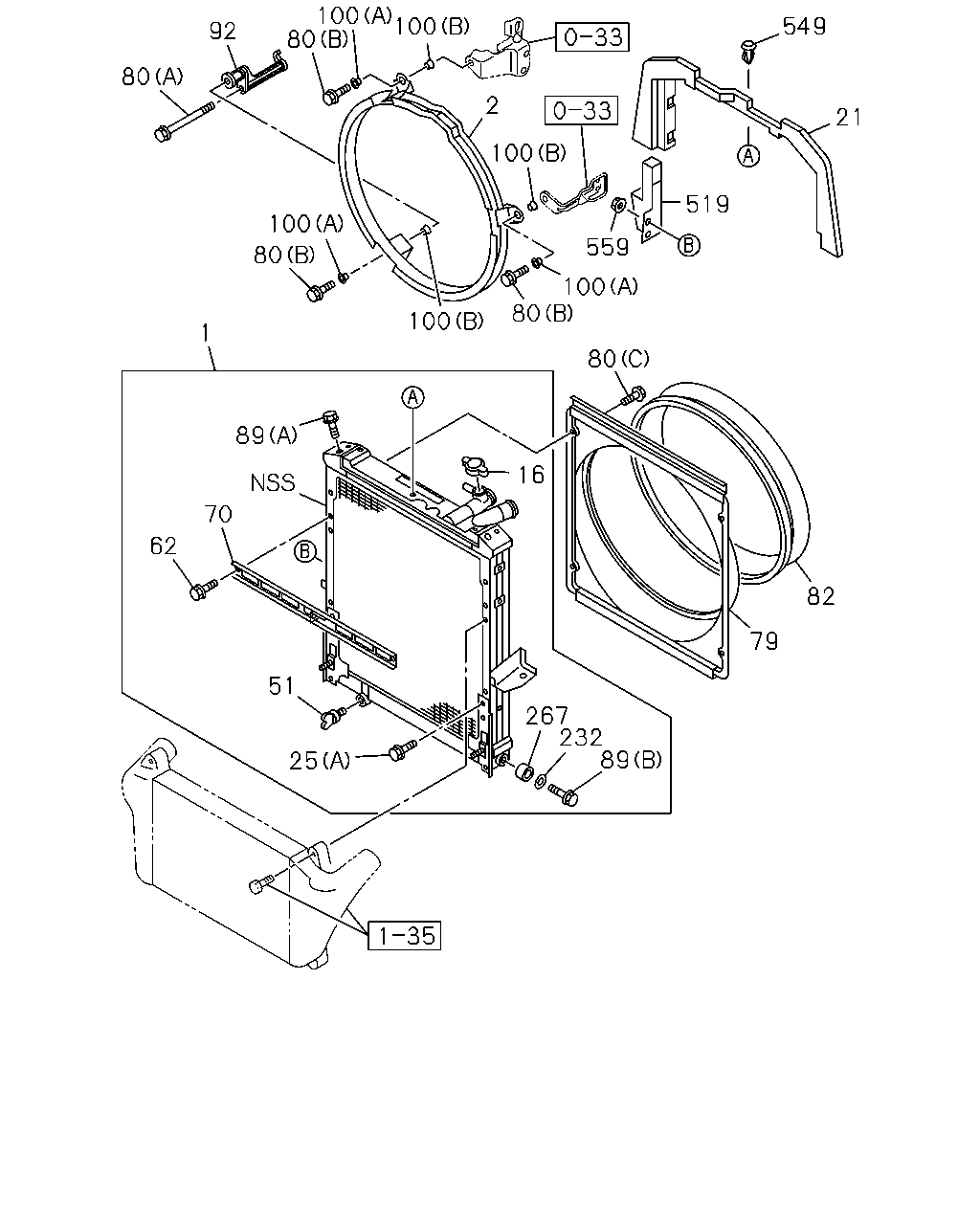

[110A] NO.2 (29 parça)
▶
1
514
65
74
65
23
22
25
204
482
56
57
59
57
59
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
RADIATOR ASM
8-97387-468-1
01
1
0804-1312
●
●
●
1
RADIATOR ASM
8-98253-684-0
02
1
1401-
●
●
●
22
BRACKET; RAD MTG
8-97383-952-0
01
1
0804-
●
●
●
22
BRACKET; RAD MTG
8-97383-951-0
01
1
0804-
●
●
●
23
NUT; RAD MTG
M10 FLANGE SOU
0-91180-210-0
04
1
0804-0909
●
●
●
23
NUT; RAD MTG
M10 FLANGE SOU
0-91180-110-0
04
1
0910-
●
●
●
25
BOLT; BRKT
(A) M6X12 FLANGE SOU
0-28050-612-0
04
1
0804-
●
●
●
25
BOLT; BRKT
(B) M10X30 FLANGE SOU
0-28651-030-0
04
1
0804-
●
●
●
56
STAY; RAD
8-97383-947-1
01
1
0804-
●
●
●
57
WASHER; PL,STAY
ID=10.5 SOU
0-91610-510-0
02
1
0804-
●
●
●
59
PIN; SNAP,STAY
L=32.6
8-97359-052-0
02
1
0804-
●
●
●
65
INSULATOR; RAD
(A)
8-94249-346-0
02
1
0804-
●
●
●
65
INSULATOR; RAD
(B)
8-94249-347-0
02
1
0804-
●
●
●
74
WASHER; PL,CUSHION RUBBER
ID=8.5 OD=36
8-97359-049-1
02
1
0804-
●
●
●
204
GUIDE ASM; AIR
8-97383-928-1
01
1
0804-
●
●
●
482
NUT; AIR GUIDE
M8 FLANGE SOU
0-91180-108-0
02
1
0804-
●
●
●
514
NUT; RAD
M8 FLANGE SOU
0-91180-108-0
02
1
0804-
●
●
●
100
80
100
549
92
80
2
21
100
519
100
559
80
100
80
100
1
80
89
16
70
62
82
79
51
267
232
89
25
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
RADIATOR ASM
8-97387-468-1
01
1
0804-1312
●
●
●
1
RADIATOR ASM
8-98253-684-0
02
1
1401-
●
●
●
2
GUIDE; FAN
8-98054-659-0
01
1
0804-
●
●
●
16
CAP; RAD
SOU
8-97239-187-0
01
1
0804-
●
●
●
21
SEAL; RAD
8-98000-816-0
01
1
0804-
●
●
●
25
BOLT; BRKT
(A) M6X12 FLANGE SOU
0-28050-612-0
04
1
0804-
●
●
●
25
BOLT; BRKT
(B) M10X30 FLANGE SOU
0-28651-030-0
04
1
0804-
●
●
●
51
PLUG; DRAIN
W/GASKET SOU
8-97171-437-0
01
1
0804-
●
●
●
62
BOLT; STAY
M8X12 FLANGE
0-28050-812-0
02
1
0804-
●
●
●
70
STAY; RAD
8-98018-940-0
01
1
0804-
●
●
●
79
GUIDE; FAN,RAD
8-97387-081-1
01
1
0804-1312
●
●
●
79
GUIDE; FAN,RAD
8-98234-712-0
01
1
1401-
●
●
●
80
BOLT; FAN GUIDE
(A) M8X130 FLANGE
0-28055-813-0
01
1
0804-
●
●
●
80
BOLT; FAN GUIDE
(B) M8X30 FLANGE
0-28650-830-0
03
1
0804-
●
●
●
80
BOLT; FAN GUIDE
(C) M6X12
8-98039-672-0
02
1
0804-1312
●
●
●
80
BOLT; FAN GUIDE
(C) M6X12
8-98039-672-0
04
1
1401-
●
●
●
82
COVER; FAN,RAD
8-97387-085-1
01
1
0804-
●
●
●
89
BOLT
(A) M8X12 FLANGE
0-28050-812-0
02
1
0804-
●
●
●
89
BOLT
(B) M8X25 W/PL WASHER
1-21469-153-0
02
1
0804-
●
●
●
92
BRACKET; FAN GUIDE
8-97381-550-1
01
1
0804-1303
●
●
●
92
BRACKET; FAN GUIDE
8-98237-770-0
01
1
1304-
●
●
●
100
RUBBER; MTG
(B) OD=32
8-94395-766-0
03
1
0804-
●
●
●
100
RUBBER; MTG
(A) OD=32
8-98058-502-1
03
1
0804-
●
●
●
232
COLLAR; DIST,CUSHION RUBBER
1-87410-723-0
02
1
0804-1312
●
●
●
232
COLLAR; DIST,CUSHION RUBBER
8-98141-232-0
02
1
1401-
●
●
●
267
RUBBER; CUSHION
1-21467-023-0
02
1
0804-
●
●
●
519
SEAL; RAD SIDE
8-98038-591-0
01
1
0804-
●
●
●
549
CLIP; SEAL,RAD
8-97228-568-0
05
1
0804-
●
●
●
559
NUT; RAD SIDE
M6 FLANGE SOU
0-91180-106-0
02
1
0804-
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
