0-11 — CYLINDER HEAD (#7530) — 113 parça

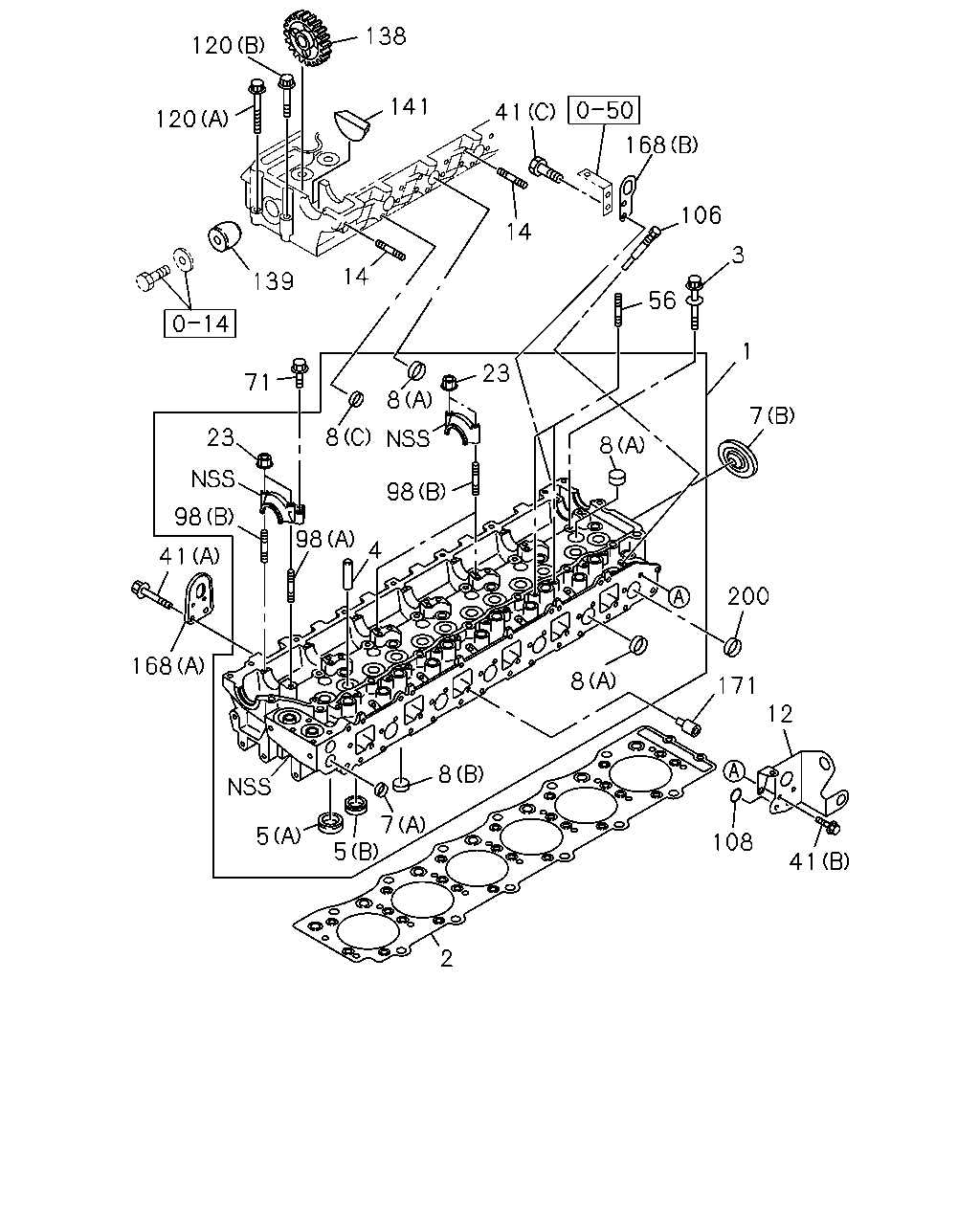

138 120 141 168 41 120 106 14 3 14 139 56 1 23 71 8 7 23 8 7 5 98 98 98 4 41 200 168 8 171 12 8 5 108 41 2 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HEAD ASM; CYL	8-94391-162-4	01	1	0101-	●
1	HEAD ASM; CYL	8-94392-455-9	01	1	0101-0207		●
1	HEAD ASM; CYL	8-97602-584-2	01	1	0208-0406		●
1	HEAD ASM; CYL	8-97605-007-1	01	1	0407-		●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94395-447-2	01	1	0101-	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-787-4	01	1	0101-0407		●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97605-228-0	01	1	0408-		●
3	BOLT; CYL HD TO BLOCK M14X115 W/FLANGE	8-94396-207-3	26	1	0101-	●	●
4	GUIDE; VLV	8-94396-598-0	12	1	0101-	●
4	GUIDE; VLV	8-94390-780-0	24	1	0101-		●
5	SEAT; VLV INSERT (A) INLET OD=48	8-94394-462-0	06	1	0101-	●
5	SEAT; VLV INSERT (B) EXHAUST OD=43	8-94396-172-0	06	1	0101-	●
5	SEAT; VLV INSERT (A) INLET OD=40	8-94395-624-0	12	1	0101-0106		●
5	SEAT; VLV INSERT (A) INLET OD=40	8-97216-510-0	12	1	0107-		●
5	SEAT; VLV INSERT (B) EXHAUST OD=38	8-94395-625-0	12	1	0101-0106		●
5	SEAT; VLV INSERT (B) EXHAUST OD=38	8-97216-511-0	12	1	0107-		●
7	CUP; SEALING,CYL HEAD (A) OD=30	8-94393-509-0	01	1	0101-	●	●
7	CUP; SEALING,CYL HEAD (B) OD=51	8-94396-229-0	01	1	0101-0303	●	●
7	CUP; SEALING,CYL HEAD (B) OD=51	8-97096-826-0	01	1	0304-	●	●
8	CUP; SEALING,WATER JACKET OD=32	1-09600-012-1	06	1	0407-		●
8	CUP; SEALING,WATER JACKET (A) OD=32	1-09600-012-2	17	1	0101-	●
8	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	03	1	0101-	●
8	CUP; SEALING,WATER JACKET (C) OD=12.3	5-09600-013-0	06	1	0101-	●
8	CUP; SEALING,WATER JACKET (A) OD=32	1-09600-012-1	06	1	0101-0310		●
8	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	06	1	0101-		●
8	CUP; SEALING,WATER JACKET (C) OD=16	5-11129-006-0	07	1	0101-		●
8	CUP; SEALING,WATER JACKET (D) OD=20	9-11129-128-0	11	1	0101-		●
12	HANGER; ENG,RR	8-94394-337-1	01	1	0101-	●
12	HANGER; ENG,RR	8-94392-080-0	01	1	0101-		●
14	STUD; EXH MANIF M10X60 L=75	8-94397-286-0	12	1	0101-	●	●
23	NUT; CAM BRKT M8 FLANGE	0-91150-208-0	08	1	0101-	●	●
41	BOLT; ENG HANGER (A) M10X20 FLANGE	0-28181-020-0	03	1	0101-	●
41	BOLT; ENG HANGER (C) M10X30 FLANGE	0-28181-030-0	02	1	0101-	●
41	BOLT; ENG HANGER (B) M12X22 FLANGE	0-28181-222-0	03	1	0101-	●	●
41	BOLT; ENG HANGER (A) M10X20 FLANGE	0-28181-020-0	02	1	0101-		●
56	STUD; NOZZLE HOLDER M8X66 L=90	1-09300-014-0	12	1	0101-	●
71	BOLT; CAM BRKT M8X35 FLANGE	0-28080-835-0	02	1	0101-	●	●
98	STUD; CAM BRKT (A) M8X54 L=79	8-94322-512-2	02	1	0101-	●	●
98	STUD; CAM BRKT (B) M8X41 L=66	8-94322-513-2	06	1	0101-	●	●
106	PLUG; GLOW PLUG HOLE	5-11119-007-1	06	1	0101-	●
106	PLUG; GLOW PLUG HOLE	8-94392-236-0	06	1	0101-		●
108	GASKET; HANGER,RR ID=35.2	1-09623-375-0	01	1	0101-	●	●
120	BOLT; CYL HD TO HSG (A) M10X73	8-94399-554-0	01	1	0101-	●	●
120	BOLT; CYL HD TO HSG (B) M10X43	8-94399-555-0	01	1	0101-	●	●
138	GEAR; IDLE Z=41	8-97112-607-0	01	1	0101-	●	●
139	SHAFT; IDLE GEAR	8-97186-398-1	01	1	0101-	●	●
141	PLUG; RUBBER,CYL HD	8-94399-605-0	02	1	0101-	●	●
168	HANGER; ENG,FRT (A)	8-94391-505-0	01	1	0101-	●
168	HANGER; ENG,FRT (B)	8-94393-810-0	01	1	0101-	●
168	HANGER; ENG,FRT	8-94399-403-1	01	1	0101-		●
171	SEAT; VLV	8-94394-678-1	06	1	0101-	●
200	CUP; SEALING,INLET MANIFOLD OD=32	1-09600-012-1	01	1	0101-	●

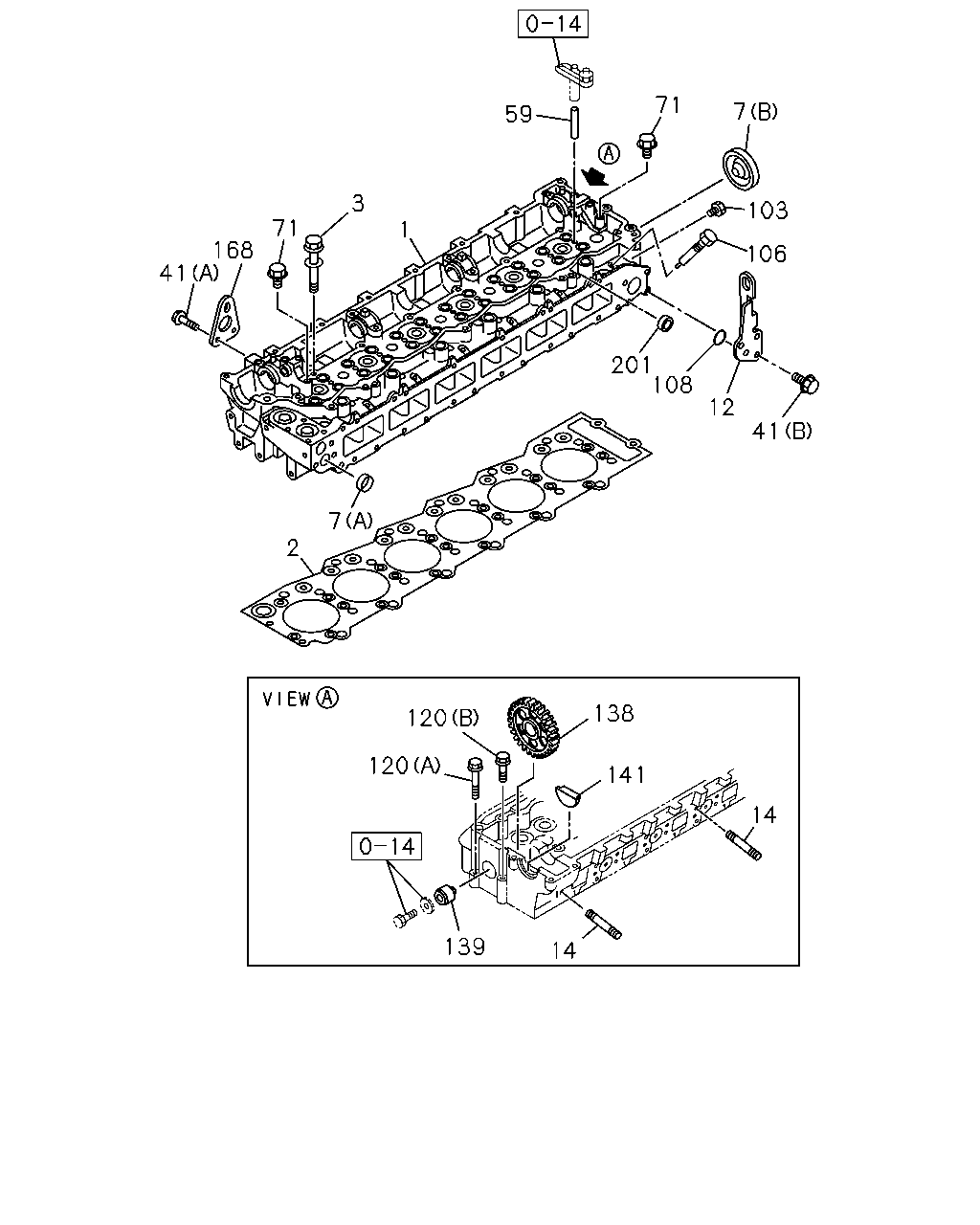

71 7 59 3 103 71 1 168 41 106 201 108 12 7 41 2 138 120 120 141 14 139 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HEAD ASM; CYL	8-94391-162-4	01	1	0101-	●
1	HEAD ASM; CYL	8-94392-455-9	01	1	0101-0207		●
1	HEAD ASM; CYL	8-97602-584-2	01	1	0208-0406		●
1	HEAD ASM; CYL	8-97605-007-1	01	1	0407-		●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94395-447-2	01	1	0101-	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-787-4	01	1	0101-0407		●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97605-228-0	01	1	0408-		●
3	BOLT; CYL HD TO BLOCK M14X115 W/FLANGE	8-94396-207-3	26	1	0101-	●	●
7	CUP; SEALING,CYL HEAD (A) OD=30	8-94393-509-0	01	1	0101-	●	●
7	CUP; SEALING,CYL HEAD (B) OD=51	8-94396-229-0	01	1	0101-0303	●	●
7	CUP; SEALING,CYL HEAD (B) OD=51	8-97096-826-0	01	1	0304-	●	●
12	HANGER; ENG,RR	8-94394-337-1	01	1	0101-	●
12	HANGER; ENG,RR	8-94392-080-0	01	1	0101-		●
14	STUD; EXH MANIF M10X60 L=75	8-94397-286-0	12	1	0101-	●	●
41	BOLT; ENG HANGER (A) M10X20 FLANGE	0-28181-020-0	03	1	0101-	●
41	BOLT; ENG HANGER (C) M10X30 FLANGE	0-28181-030-0	02	1	0101-	●
41	BOLT; ENG HANGER (B) M12X22 FLANGE	0-28181-222-0	03	1	0101-	●	●
41	BOLT; ENG HANGER (A) M10X20 FLANGE	0-28181-020-0	02	1	0101-		●
59	GUIDE; BRIDGE	8-94395-889-1	12	1	0101-0409		●
59	GUIDE; BRIDGE	8-97381-603-0	12	1	0410-		●
71	BOLT; CAM BRKT M8X35 FLANGE	0-28080-835-0	02	1	0101-	●	●
103	PLUG; HD M8X6	8-94399-421-0	01	1	0101-		●
106	PLUG; GLOW PLUG HOLE	5-11119-007-1	06	1	0101-	●
106	PLUG; GLOW PLUG HOLE	8-94392-236-0	06	1	0101-		●
108	GASKET; HANGER,RR ID=35.2	1-09623-375-0	01	1	0101-	●	●
120	BOLT; CYL HD TO HSG (A) M10X73	8-94399-554-0	01	1	0101-	●	●
120	BOLT; CYL HD TO HSG (B) M10X43	8-94399-555-0	01	1	0101-	●	●
138	GEAR; IDLE Z=41	8-97112-607-0	01	1	0101-	●	●
139	SHAFT; IDLE GEAR	8-97186-398-1	01	1	0101-	●	●
141	PLUG; RUBBER,CYL HD	8-94399-605-0	02	1	0101-	●	●
168	HANGER; ENG,FRT (A)	8-94391-505-0	01	1	0101-	●
168	HANGER; ENG,FRT (B)	8-94393-810-0	01	1	0101-	●
168	HANGER; ENG,FRT	8-94399-403-1	01	1	0101-		●
201	GASKET; SLEEVE,INJ PUMP ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-09639-034-0	06	1	0101-		●

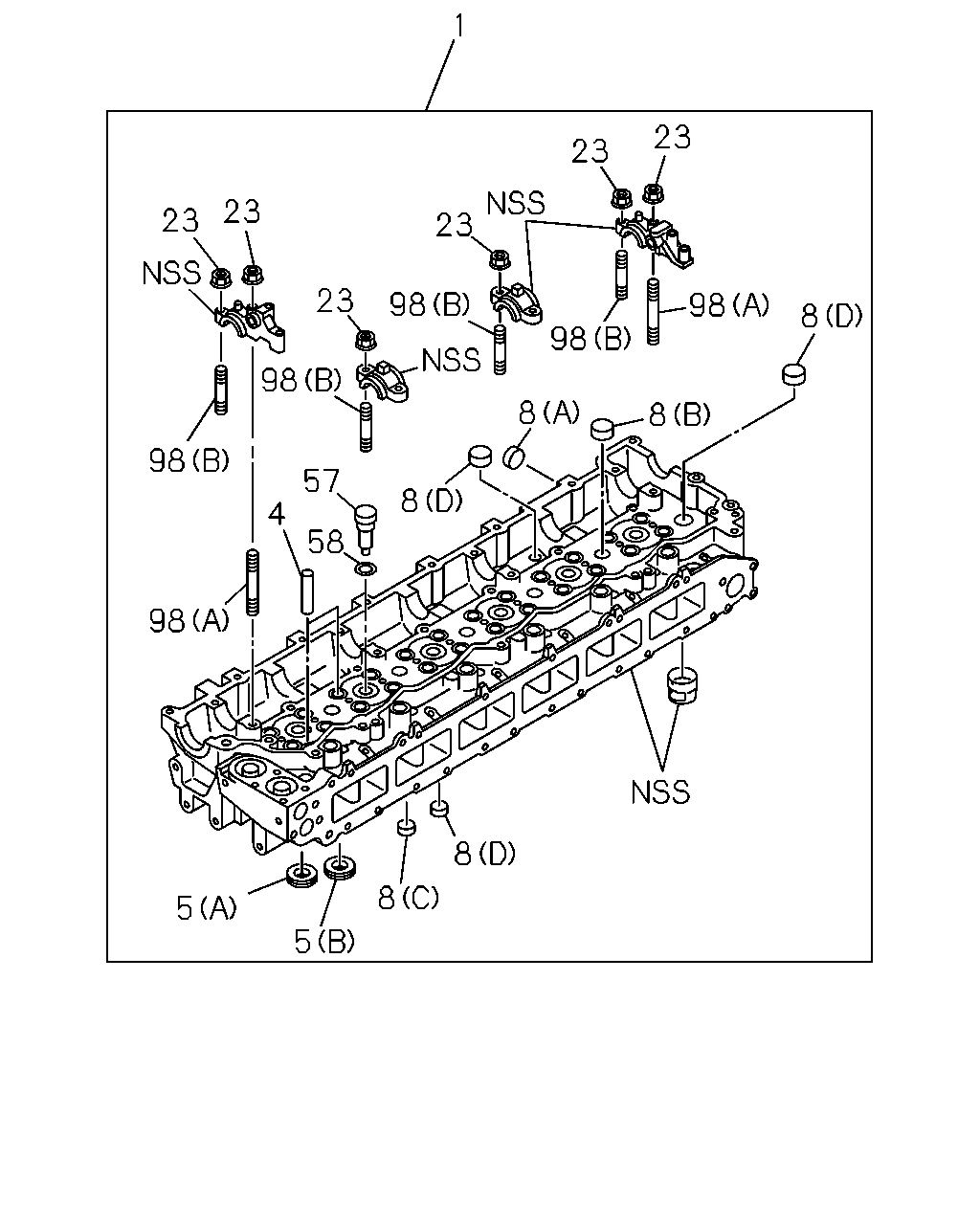

1 23 23 23 23 23 98 23 98 98 8 98 8 8 8 8 5 98 57 4 58 8 98 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HEAD ASM; CYL	8-94391-162-4	01	1	0101-	●
1	HEAD ASM; CYL	8-94392-455-9	01	1	0101-0207		●
1	HEAD ASM; CYL	8-97602-584-2	01	1	0208-0406		●
1	HEAD ASM; CYL	8-97605-007-1	01	1	0407-		●
4	GUIDE; VLV	8-94396-598-0	12	1	0101-	●
4	GUIDE; VLV	8-94390-780-0	24	1	0101-		●
5	SEAT; VLV INSERT (A) INLET OD=48	8-94394-462-0	06	1	0101-	●
5	SEAT; VLV INSERT (B) EXHAUST OD=43	8-94396-172-0	06	1	0101-	●
5	SEAT; VLV INSERT (A) INLET OD=40	8-94395-624-0	12	1	0101-0106		●
5	SEAT; VLV INSERT (A) INLET OD=40	8-97216-510-0	12	1	0107-		●
5	SEAT; VLV INSERT (B) EXHAUST OD=38	8-94395-625-0	12	1	0101-0106		●
5	SEAT; VLV INSERT (B) EXHAUST OD=38	8-97216-511-0	12	1	0107-		●
8	CUP; SEALING,WATER JACKET OD=32	1-09600-012-1	06	1	0407-		●
8	CUP; SEALING,WATER JACKET (A) OD=32	1-09600-012-2	17	1	0101-	●
8	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	03	1	0101-	●
8	CUP; SEALING,WATER JACKET (C) OD=12.3	5-09600-013-0	06	1	0101-	●
8	CUP; SEALING,WATER JACKET (A) OD=32	1-09600-012-1	06	1	0101-0310		●
8	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	06	1	0101-		●
8	CUP; SEALING,WATER JACKET (C) OD=16	5-11129-006-0	07	1	0101-		●
8	CUP; SEALING,WATER JACKET (D) OD=20	9-11129-128-0	11	1	0101-		●
23	NUT; CAM BRKT M8 FLANGE	0-91150-208-0	08	1	0101-	●	●
57	SLEEVE; NOZZLE HOLDER	8-97600-972-0	06	1	0101-0109		●
57	SLEEVE; NOZZLE HOLDER	8-97602-301-1	06	1	0110-		●
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=27	1-09623-355-0	06	1	0101-0406		●
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=26.4	8-97604-916-0	06	1	0407-		●
98	STUD; CAM BRKT (A) M8X54 L=79	8-94322-512-2	02	1	0101-	●	●
98	STUD; CAM BRKT (B) M8X41 L=66	8-94322-513-2	06	1	0101-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
