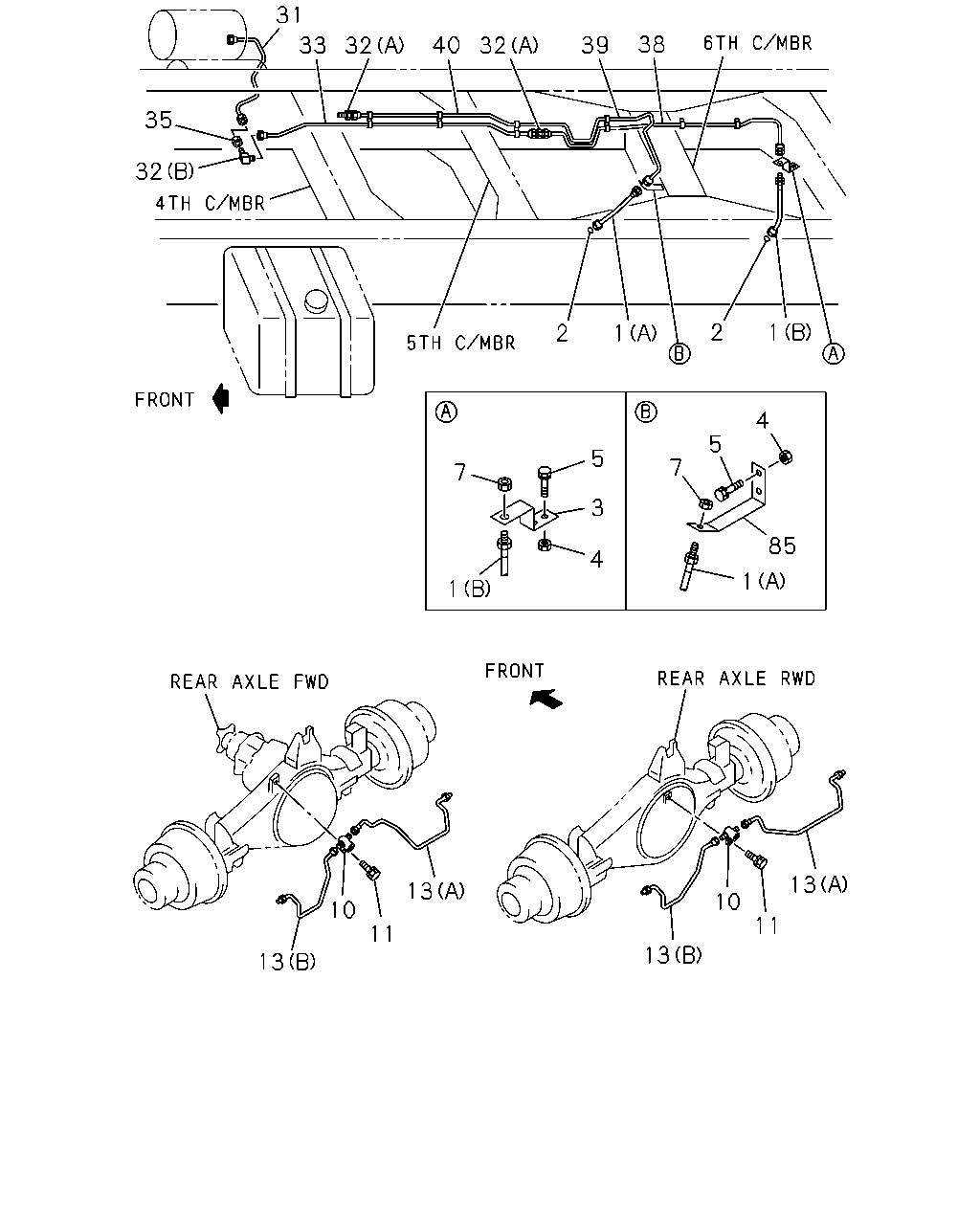

3-55 — BRAKE PIPING; OIL,REAR (#753) — 22 parça

31 38 39 40 33 32 32 35 32 2 1 2 1 4 5 5 7 7 3 85 4 1 1 13 13 10 10 11 11 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=450	1-09364-188-0	01	1	9505-
1	HOSE; FLEX,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=675	1-09364-201-0	01	1	9505-
2	GASKET; FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=9 OD=17	9-09920-472-0	02	1	9505-
3	BRACKET; FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47465-608-0	01	1	9505-
4	NUT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	04	1	9505-
5	BOLT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28080-825-0	04	1	9505-
7	NUT; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12	9-09840-280-0	02	1	9505-
10	NIPPLE; RR AXLE CASE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09903-668-3	02	1	9505-
11	BOLT; NIPPLE,RR AXLE CASE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X25 W/LK WASHER	0-50041-025-0	02	1	9505-
13	PIPE; BRK,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) FORWARD	1-47427-896-0	01	1	9505-
13	PIPE; BRK,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) REARWAED	1-47427-898-0	01	1	9505-
13	PIPE; BRK,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) FORWARD	1-47427-895-0	01	1	9505-
13	PIPE; BRK,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) REARWARD	1-47427-897-0	01	1	9505-
31	PIPE; OIL,AIR MASTER TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47425-316-0	01	1	9505-
32	UNION; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M12 L=40	9-09223-006-1	02	1	9505-
32	UNION; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M12 ELBOW	9-09225-206-1	01	1	9505-
33	PIPE; OIL,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1569 SERVICED BY L=1620	1-47426-356-0	01	1	9505-
35	NUT; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12	9-09840-280-0	01	1	9505-
38	PIPE; OIL,UNION TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47427-925-0	01	1	9505-
39	PIPE; OIL,UNION TO RR FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2772 SERVICED BY L=2900	1-47426-364-0	01	1	9505-
40	PIPE; BRK,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47427-924-0	01	1	9505-
85	BRACKET; FLEX HOSE,FWD RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47475-357-2	01	1	9505-
