◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51146 - NLR/NMR(SOUTHAFRICA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-41 - FUEL FILTER AND BRACKET ▶
0-41 — FUEL FILTER AND BRACKET (#75296) — 30 parça

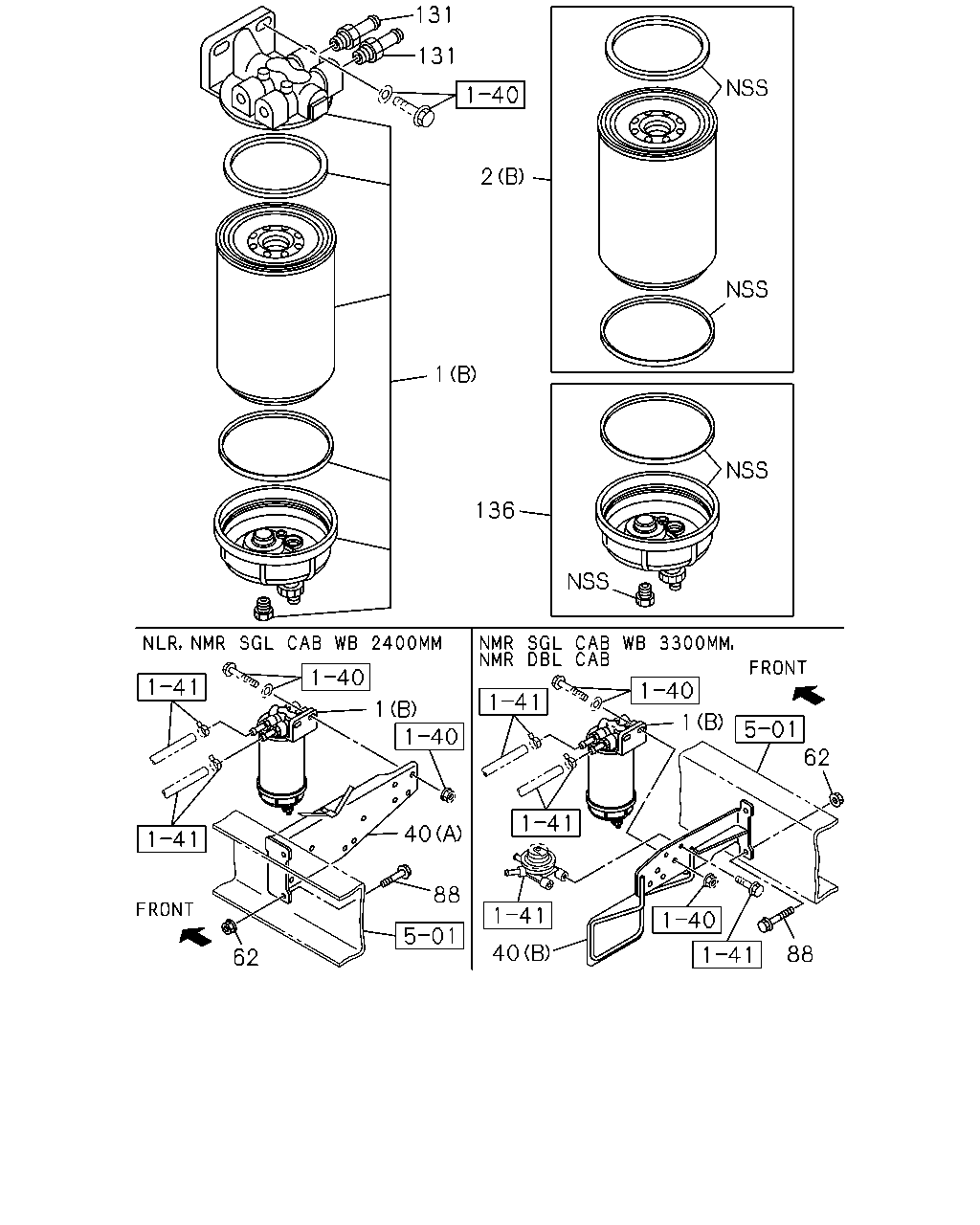

çizim 63657
131 131 2 1 136 1 1 62 40 88 40 88 62
BalonParca AdiParca NoAdetTipApplied Date
1 FILTER ASM; FUEL
(A) 		8-98060-050-1 01 1 0804-1002
1 FILTER ASM; FUEL
(A) 		8-98162-903-3 01 1 1003-
1 FILTER ASM; FUEL
(B) 		8-98095-980-1 01 1 0804-
2 ELEMENT KIT; FUEL FILTER
(A) BEST VALUE PARTS 		1-87610-093-0 01 1 1201-
2 ELEMENT KIT; FUEL FILTER
(A) 		8-98037-011-0 01 1 0804-1002
2 ELEMENT KIT; FUEL FILTER
(A) 		8-98162-897-0 01 1 1003-1112
2 ELEMENT KIT; FUEL FILTER
(A) 		8-98203-599-0 01 1 1201-
2 ELEMENT KIT; FUEL FILTER
(B) 		8-98095-983-0 01 1 0804-
40 BRACKET; FUEL FILTER
WHEEL BASE 2400MM(24W) (A) 		8-98107-351-2 01 1 0804-
40 BRACKET; FUEL FILTER
WHEEL BASE 3300MM(33W) (B) 		8-98107-354-3 01 1 0804-
62 NUT; FUEL FILTER
WHEEL BASE 3300MM(33W) M10 FLANGE SOU 		0-91180-110-0 02 1 0804-
88 BOLT; BRKT,FUEL FILTER
M10X30 FLANGE SOU 		0-28651-030-0 02 1 0804-
131 PIPE; FILTER 8-97358-699-0 02 1 0804-0908
131 PIPE; FILTER
NPTF3/8-18 OD=10 		8-98122-953-0 02 1 0909-
136 CAP KIT; FUEL FILTER 8-98096-004-0 01 1 0804-1408
136 CAP KIT; FUEL FILTER 8-98279-324-0 01 1 1409-

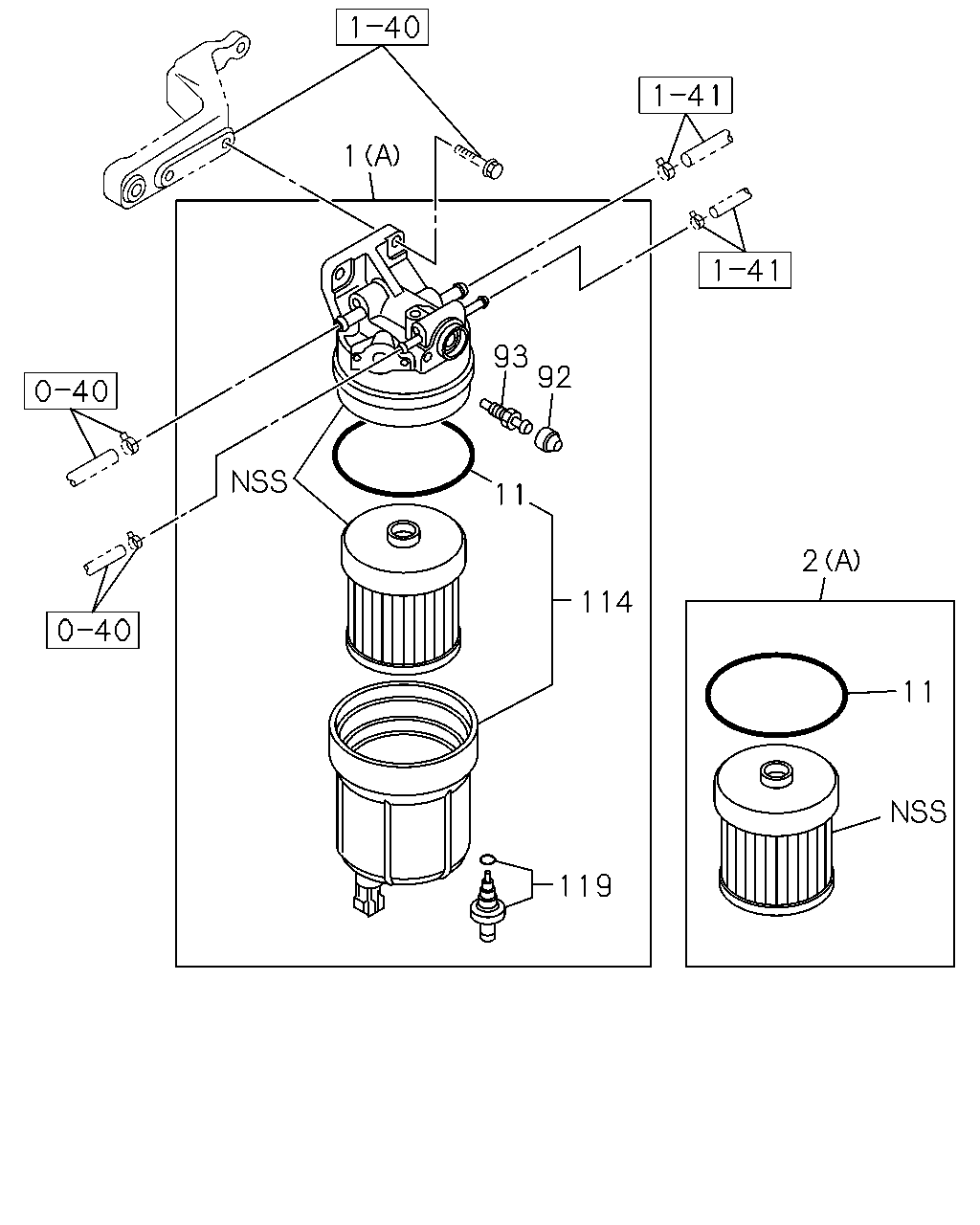

çizim 63691
1 93 92 11 2 114 11 119
BalonParca AdiParca NoAdetTipApplied Date
1 FILTER ASM; FUEL
(A) 		8-98060-050-1 01 1 0804-1002
1 FILTER ASM; FUEL
(A) 		8-98162-903-3 01 1 1003-
1 FILTER ASM; FUEL
(B) 		8-98095-980-1 01 1 0804-
2 ELEMENT KIT; FUEL FILTER
(A) BEST VALUE PARTS 		1-87610-093-0 01 1 1201-
2 ELEMENT KIT; FUEL FILTER
(A) 		8-98037-011-0 01 1 0804-1002
2 ELEMENT KIT; FUEL FILTER
(A) 		8-98162-897-0 01 1 1003-1112
2 ELEMENT KIT; FUEL FILTER
(A) 		8-98203-599-0 01 1 1201-
2 ELEMENT KIT; FUEL FILTER
(B) 		8-98095-983-0 01 1 0804-
11 GASKET; CASE TO BODY,FUEL FILTER 8-98037-015-0 01 1 0804-1112
11 GASKET; CASE TO BODY,FUEL FILTER 8-98203-600-0 01 1 1201-
92 CAP; FUEL FILTER 8-98034-314-0 01 1 0804-
93 CONNECTOR; FUEL FILTER
M8X10 		8-98034-312-0 01 1 0804-
114 CASE ASM; FUEL FILTER 8-98039-987-1 01 1 0804-
119 PLUG; DRAIN,FUEL FILTER 8-98037-095-0 01 1 0804-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
