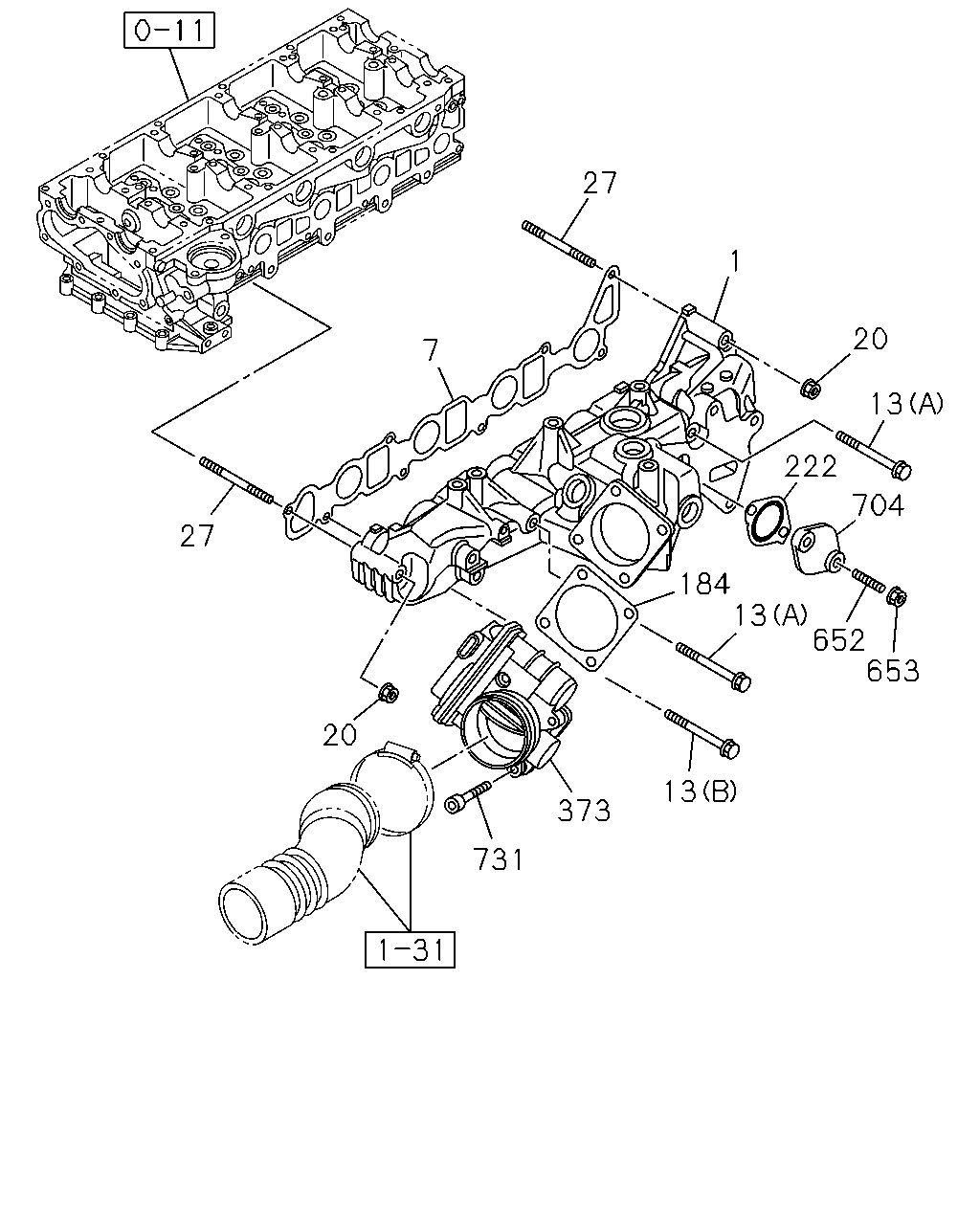

0-25 — INLET MANIFOLD (#75287) — 17 parça

27 1 20 7 13 222 704 27 184 13 652 653 20 13 373 731

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	MANIFOLD; INL	8-98024-411-1	01	1	0804-
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97312-067-1	01	1	0804-0902
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) SOU	8-98063-396-0	01	1	0903-1211
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98212-999-0	01	1	1212-
13	BOLT; INL MANIF (A) M8X110 FLANGE	0-28055-811-0	02	1	0804-
13	BOLT; INL MANIF (B) M8X70 12-POINT HEAD	8-97101-065-0	04	1	0804-
20	NUT; INL MANIF M8 FLANGE SOU	0-91180-208-0	02	1	0804-
27	STUD; INL MANIF M8X71 L=83	8-98017-063-0	02	1	0804-
184	GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97366-784-1	01	1	0804-0902
184	GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD) SOU	8-98096-968-0	01	1	0903-
222	GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97357-684-3	01	1	0804-
373	THROTTLE ASM; INT	8-98040-003-4	01	1	0804-
652	STUD; DUCT,AIR INLET M8X25 L=41	0-40210-825-0	02	1	0804-
653	NUT; DUCT,AIR INLET M8 FLANGE SOU	0-91180-208-0	02	1	0804-
704	COVER	8-98056-986-0	01	1	0804-
731	BOLT; THROTTLE ASM M6X50 HEX SOCKET	0-58330-650-0	04	1	0804-

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

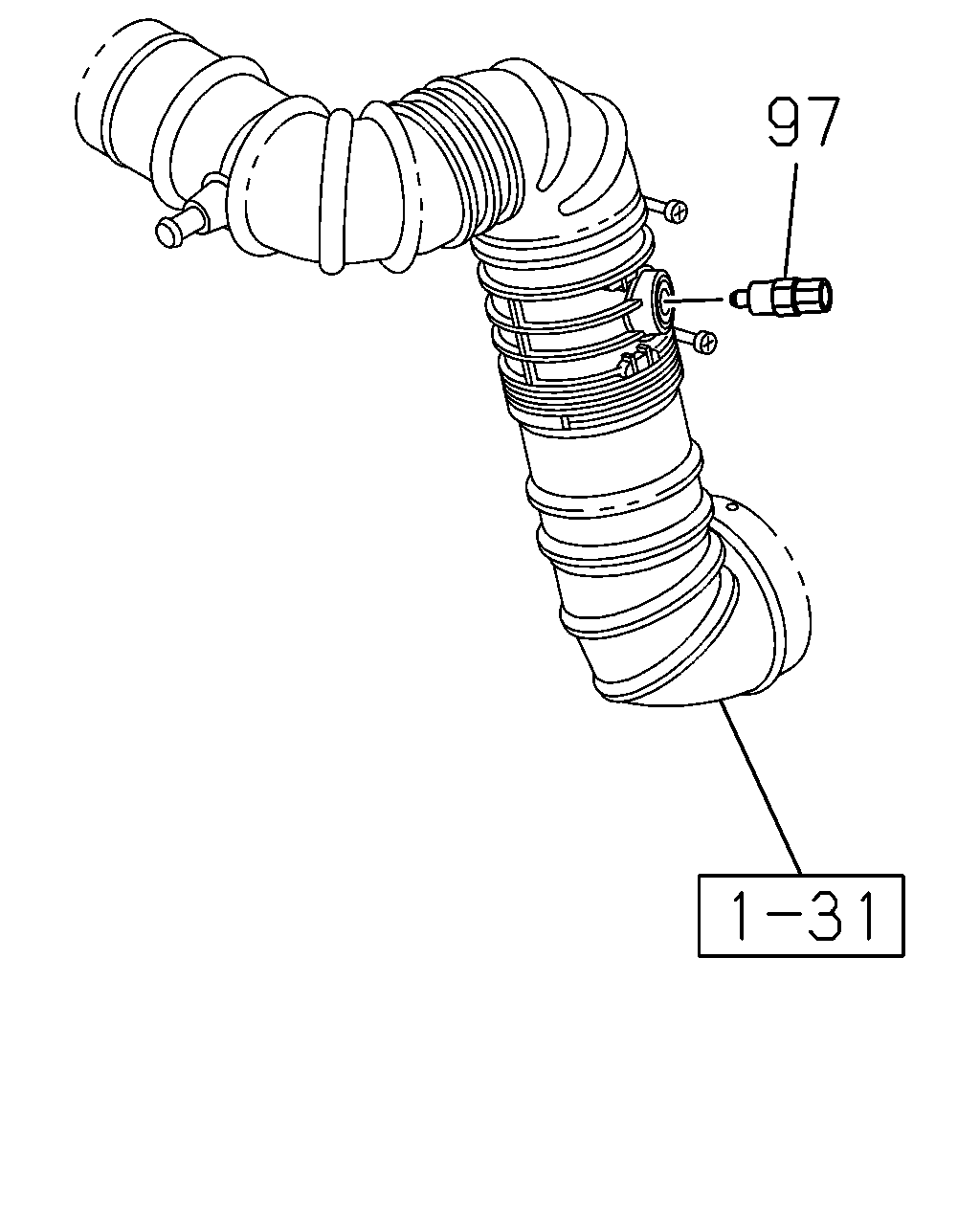

	97	SENSOR; INTAKE,AIR TEMPERATURE	8-12146-830-0	01	1	0804-
