9-32 — REAR BODY; GUARD FRAME (#75275) — 83 parça

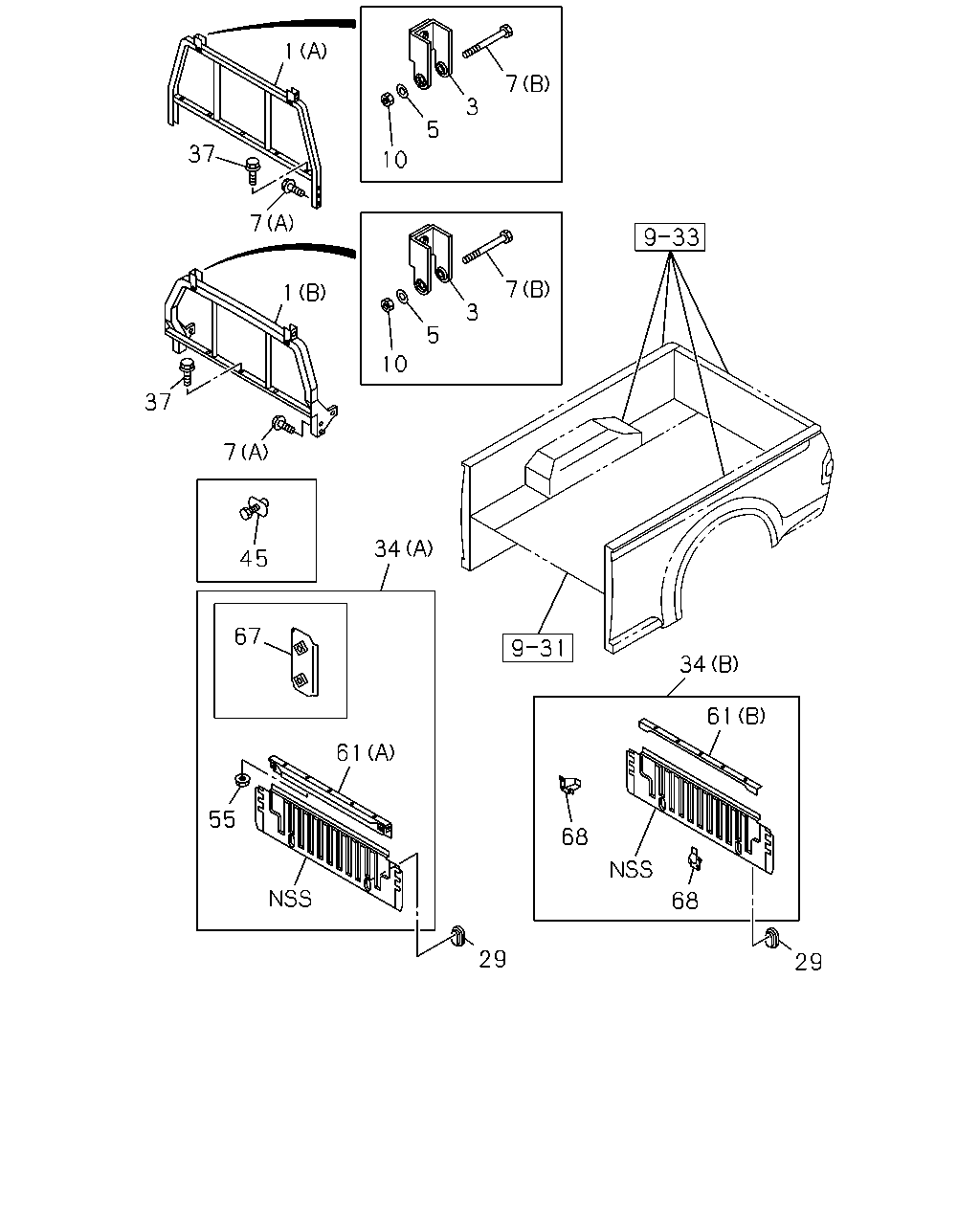

çizim 144439
1 7 3 5 37 10 7 7 1 3 5 10 37 7 34 45 67 34 61 61 55 68 68 29 29
BalonParca AdiParca NoAdetTipApplied Date A B C
1 17.455 FRAME; GUARD,RR BODY
(A) 		8-97236-678-5 01 1 0610-0610 ●
1 17.455 FRAME; GUARD,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-97236-678-5 01 1 0611- ●
1 17.455 FRAME; GUARD,RR BODY
GUARD FRAME BAR CARGO TIE DOWN<V89> (B) 		8-97310-075-2 01 1 0610-0809 ● ●
1 17.455 FRAME; GUARD,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B) 		8-97310-075-2 01 1 0810- ●
1 17.455 FRAME; GUARD,RR BODY
GUARD FRAME BAR CARGO TIE DOWN<V89> (B) 		8-97310-075-2 01 1 0810- ●
3 17.447 STOPPER; GUARD FRAME,RR BODY 8-97352-624-0 02 1 0610-0610 ●
3 17.447 STOPPER; GUARD FRAME,RR BODY
GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-97352-624-0 02 1 0610-0610 ● ●
3 17.447 STOPPER; GUARD FRAME,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-97352-624-0 02 1 0611-0809 ●
3 17.447 STOPPER; GUARD FRAME,RR BODY
GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-97352-624-0 02 1 0611-0809 ● ●
3 17.447 STOPPER; GUARD FRAME,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-97352-624-0 02 1 0810- ● ●
3 17.447 STOPPER; GUARD FRAME,RR BODY
GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-97352-624-0 02 1 0810- ●
5 17.447 WASHER; PL,GUARD FRAME STOPPER 8-94481-019-0 02 1 0610-0610 ●
5 17.447 WASHER; PL,GUARD FRAME STOPPER
GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-94481-019-0 02 1 0610-0610 ● ●
5 17.447 WASHER; PL,GUARD FRAME STOPPER
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-94481-019-0 02 1 0611-0612 ●
5 17.447 WASHER; PL,GUARD FRAME STOPPER
GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-94481-019-0 02 1 0611-0612 ● ●
5 17.447 WASHER; PL,GUARD FRAME STOPPER
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98056-308-0 02 1 0701-0809 ●
5 17.447 WASHER; PL,GUARD FRAME STOPPER
GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98056-308-0 02 1 0701-0809 ● ●
5 17.447 WASHER; PL,GUARD FRAME STOPPER
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98056-308-0 02 1 0810- ● ●
5 17.447 WASHER; PL,GUARD FRAME STOPPER
GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98056-308-0 02 1 0810- ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
(B) M6X45 		8-94481-022-0 02 1 0610-0610 ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
GUARD FRAME BAR CARGO TIE DOWN<V89> (B) M6X45 		8-94481-022-0 02 1 0610-0610 ● ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B) M6X45 		8-94481-022-0 02 1 0611-0611 ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
GUARD FRAME BAR CARGO TIE DOWN<V89> (B) M6X45 		8-94481-022-0 02 1 0611-0611 ● ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B) M6X45 		8-98056-129-0 02 1 0612-0809 ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
GUARD FRAME BAR CARGO TIE DOWN<V89> (B) M6X45 		8-98056-129-0 02 1 0612-0809 ● ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B) M6X45 		8-98056-129-0 02 1 0810- ● ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
GUARD FRAME BAR CARGO TIE DOWN<V89> (B) M6X45 		8-98056-129-0 02 1 0810- ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
01.269 (A) M8X16.5 		1-09104-027-1 06 1 0610-0610 ● ● ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 01.269 (A) M8X16.5 		1-09104-027-1 06 1 0611-0611 ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
01.269 (A) M8X16.5 		1-09104-027-1 06 1 0611-0611 ● ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 17.400 (A) M8X16.5 		8-98058-001-0 06 1 0612-0809 ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
17.400 (A) M8X16.5 		8-98058-001-0 06 1 0612-0809 ● ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 17.400 (A) M8X16.5 		8-98058-001-0 06 1 0810- ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
REAR BODY DBL WALL CTR PULL(E63) 17.400 (A) M8X16.5 		8-98058-001-0 06 1 0810- ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
17.400 (A) M8X16.5 		8-98058-001-0 06 1 0810- ●
10 17.447 NUT; GUARD FRAME STOPPER
M6 FLANGE 		8-94481-428-0 02 1 0610-0610 ●
10 17.447 NUT; GUARD FRAME STOPPER
GUARD FRAME BAR CARGO TIE DOWN<V89> M6 FLANGE 		8-94481-428-0 02 1 0610-0610 ● ●
10 17.447 NUT; GUARD FRAME STOPPER
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> M6 FLANGE 		8-94481-428-0 02 1 0611-0611 ●
10 17.447 NUT; GUARD FRAME STOPPER
GUARD FRAME BAR CARGO TIE DOWN<V89> M6 FLANGE 		8-94481-428-0 02 1 0611-0611 ● ●
10 17.447 NUT; GUARD FRAME STOPPER
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> M6 		8-98056-127-0 02 1 0612-0809 ●
10 17.447 NUT; GUARD FRAME STOPPER
GUARD FRAME BAR CARGO TIE DOWN<V89> M6 		8-98056-127-0 02 1 0612-0809 ● ●
10 17.447 NUT; GUARD FRAME STOPPER
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> M6 		8-98056-127-0 02 1 0810- ● ●
10 17.447 NUT; GUARD FRAME STOPPER
GUARD FRAME BAR CARGO TIE DOWN<V89> M6 		8-98056-127-0 02 1 0810- ●
29 17.455 COVER; GUARD FRAME 8-97918-416-0 02 1 0610-0610 ● ● ●
29 17.455 COVER; GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) 		8-97918-416-0 02 1 0611-0809 ●
29 17.455 COVER; GUARD FRAME 8-97918-416-0 02 1 0611-0809 ● ●
29 17.455 COVER; GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) 		8-97918-416-0 02 1 0810- ● ●
29 17.455 COVER; GUARD FRAME 8-97918-416-0 02 1 0810- ●
34 17.455 PANEL; FRT,RR BODY
(B) 		8-97369-723-1 01 1 0610-0610 ●
34 17.455 PANEL; FRT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B) 		8-97369-723-1 01 1 0611- ●
34 17.455 PANEL; FRT,RR BODY
GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-97373-644-1 01 1 0610-0809 ● ●
34 17.455 PANEL; FRT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-97373-644-1 01 1 0810- ●
34 17.455 PANEL; FRT,RR BODY
GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-97373-644-1 01 1 0810- ●
34 17.455 PANEL; FRT,RR BODY
EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-97369-727-1 01 1 0610-0809 ● ●
34 17.455 PANEL; FRT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-97369-727-1 01 1 0810- ●
34 17.455 PANEL; FRT,RR BODY
EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-97369-727-1 01 1 0810- ●
37 17.455 BOLT; GUARD FRAME
03.162 M6X12 FLANGE 		0-28050-612-0 07 1 0610-0610 ●
37 17.455 BOLT; GUARD FRAME
GUARD FRAME BAR CARGO TIE DOWN<V89> 03.162 M6X12 FLANGE 		0-28050-612-0 07 1 0610-0610 ● ●
37 17.455 BOLT; GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 03.162 M6X12 FLANGE 		0-28050-612-0 07 1 0611-0809 ●
37 17.455 BOLT; GUARD FRAME
GUARD FRAME BAR CARGO TIE DOWN<V89> 03.162 M6X12 FLANGE 		0-28050-612-0 07 1 0611-0809 ● ●
37 17.455 BOLT; GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 03.162 M6X12 FLANGE 		0-28050-612-0 07 1 0810- ● ●
37 17.455 BOLT; GUARD FRAME
GUARD FRAME BAR CARGO TIE DOWN<V89> 03.162 M6X12 FLANGE 		0-28050-612-0 07 1 0810- ●
45 08.131 RIVET; DUST SHIELD COVER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 08.154 		8-94221-150-0 14 1 1008- ●
45 08.131 RIVET; DUST SHIELD COVER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 08.154 		8-94221-150-0 10 1 1008- ●
45 08.131 RIVET; DUST SHIELD COVER,RR BODY
08.154 		8-94221-150-0 10 1 1008- ●
55 17.070 NUT; MEMBER
GUARD FRAME BAR CARGO TIE DOWN<V89> 16.545 M6 		9-09114-086-0 05 1 0610-0809 ● ●
55 17.070 NUT; MEMBER
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 16.545 M6 		9-09114-086-0 05 1 0810- ●
55 17.070 NUT; MEMBER
GUARD FRAME BAR CARGO TIE DOWN<V89> 16.545 M6 		9-09114-086-0 05 1 0810- ●
61 17.447 BAR ASM
(B) 		8-97252-308-2 01 1 0610-0610 ●
61 17.447 BAR ASM
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B) 		8-97252-308-2 01 1 0611- ●
61 17.447 BAR ASM
GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-97326-371-0 01 1 0610-0809 ● ●
61 17.447 BAR ASM
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-97326-371-0 01 1 0810- ●
61 17.447 BAR ASM
GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-97326-371-0 01 1 0810- ●
61 17.447 BAR ASM
EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-97236-715-0 01 1 0610-0809 ● ●
61 17.447 BAR ASM
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-97236-715-0 01 1 0810- ●
61 17.447 BAR ASM
EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-97236-715-0 01 1 0810- ●
67 17.455 PLATE; RR BODY FRONT 8-93326-173-1 02 1 0610-0809 ● ●
67 17.455 PLATE; RR BODY FRONT
REAR BODY DBL WALL CTR PULL(E63) 		8-93326-173-1 02 1 0810- ●
67 17.455 PLATE; RR BODY FRONT 8-93326-173-1 02 1 0810- ●
68 17.455 EXTENSION; FRONT,RR BODY 8-97287-179-1 01 1 0610-0610 ●
68 17.455 EXTENSION; FRONT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-97287-179-1 01 1 0611- ●
68 17.455 EXTENSION; FRONT,RR BODY 8-97287-178-1 01 1 0610-0610 ●
68 17.455 EXTENSION; FRONT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-97287-178-1 01 1 0611- ●
