9-01 — TOOLS (#7527) — 150 parça

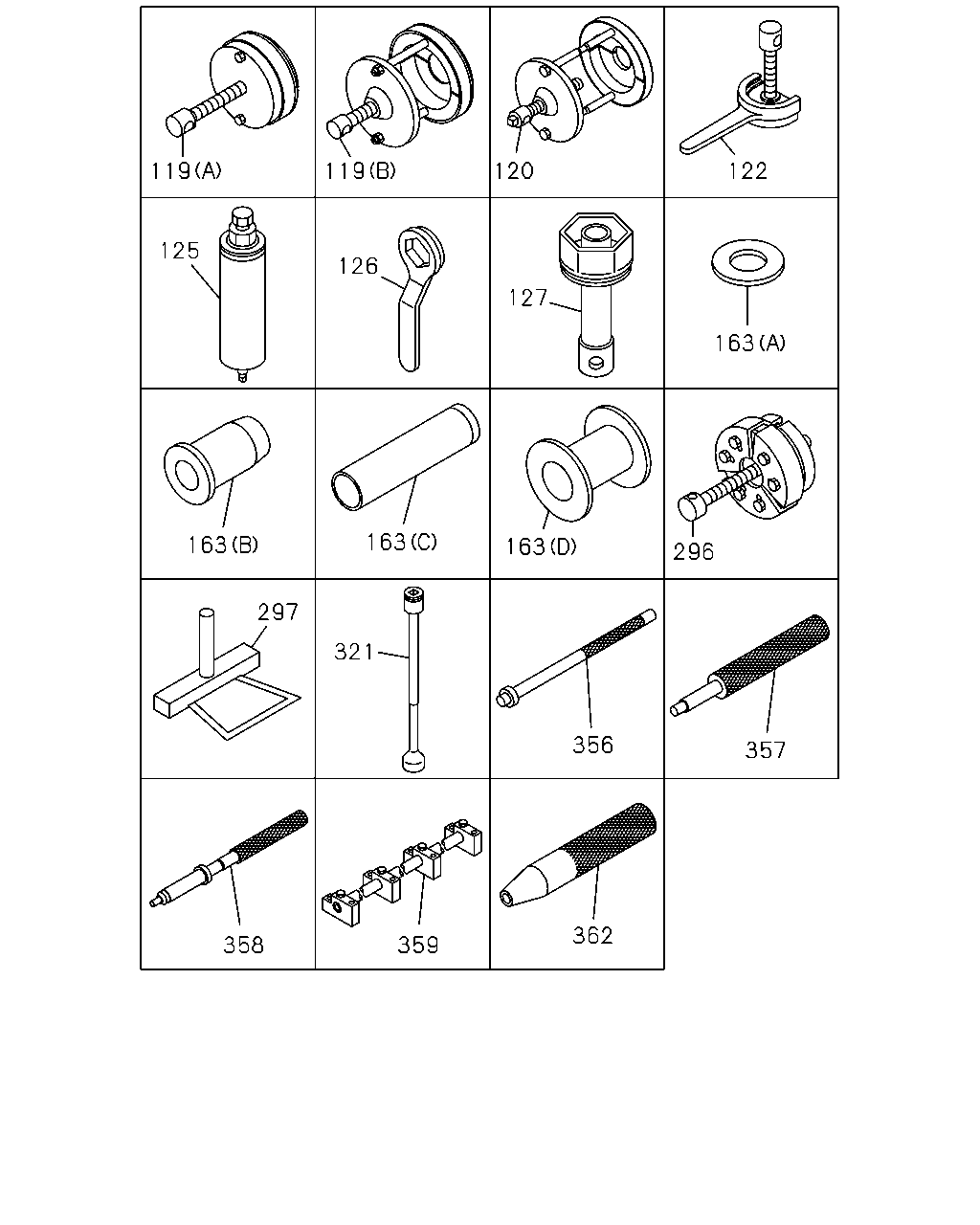

çizim 26011
119 119 120 122 125 126 127 163 163 163 163 296 297 321 356 357 362 358 359
BalonParca AdiParca NoAdetTipApplied Date A B
119 PULLER ASM; TOP GEAR BRG
(B) 		9-85210-185-0 01 1 9811-0610 ● ●
119 PULLER ASM; TOP GEAR BRG
(A) 		9-85210-186-0 01 1 9811-0610 ● ●
120 PULLER ASM; MAIN REAR BRG 9-85210-192-0 01 1 9811-0610 ● ●
122 PULLER ASM; COUNTER FRT 9-85210-129-1 01 1 9811-0610 ● ●
125 PULLER ASM; KING PIN
L=360 		9-85210-151-0 01 1 9811-0610 ●
125 PULLER ASM; KING PIN
L=450 		1-85210-009-0 01 1 9811- ●
126 WRENCH; FRT HUB BRG NUT
L=257 B=63 		9-85111-373-0 01 1 9811-0610 ●
126 WRENCH; FRT HUB BRG NUT
L=350 B=75 		1-85110-002-0 01 1 9811- ●
127 WRENCH ASM; HUB BRG NUT
L=260 B=90 		9-85113-534-0 01 1 9811-0610 ●
127 WRENCH ASM; HUB BRG NUT
L=400 B=116 		9-85113-524-0 01 1 9811- ●
163 TOOL; SETTING
(B) L=195 		1-85221-162-1 01 1 9811-0610 ● ●
163 TOOL; SETTING
(D) L=150 		1-85221-163-0 01 1 9811-0610 ● ●
163 TOOL; SETTING
(A) OD=120 		1-85221-164-0 01 1 9811-0610 ● ●
163 TOOL; SETTING
(B) L=150 		9-85221-248-0 01 1 9811-0610 ● ●
163 TOOL; SETTING
(C) L=350 		9-85221-310-0 01 1 9811-0610 ● ●
296 REPLACER; SLINGER 8-94396-858-0 01 1 9811-0610 ● ●
297 CUTTER; SEAL,OIL PAN 8-94393-112-0 01 1 9811-0610 ● ●
321 SOCKET; PROP SHAFT
L=300 		1-85115-024-0 01 1 9811-0610 ●
356 TOOL; SETTING,OIL SEAL,CYL HEAD 8-94391-527-0 01 1 9907-0610 ● ●
357 REPLACER; NOZZLE SLEEVE 8-94391-555-0 01 1 9907-0610 ● ●
358 PLACER; NOZZLE SLEEVE 8-94391-556-0 01 1 9907-0610 ● ●
359 PIVOT 8-94396-862-0 01 1 9907-0610 ● ●
362 PLACER; GUIDE BRIDGE 8-94392-014-0 01 1 9907-0610 ● ●
çizim 26046
141 141 153 141 143 149 144 166 160 161 162 162 157 17 154 158 159 167 169 170 171 172 174
BalonParca AdiParca NoAdetTipApplied Date A B
17 HAMMER
TAI 		9-85121-406-0 01 1 9811-0610 ● ●
17 HAMMER
TOOL B KIT<SL1> TAI 		9-85121-406-0 01 1 0611- ● ●
141 HANDLE; WRENCH
(C) OD=25 L=480 TAI 		1-85116-011-0 01 1 9811- ● ●
141 HANDLE; WRENCH
(B) OD=19 L=400 		9-85114-306-0 01 1 9811-0610 ● ●
141 HANDLE; WRENCH
(A) OD=16 L=300 		9-85114-307-0 01 1 9811-0610 ● ●
143 GUIDE; BOOT,TIE ROD END 1-85229-011-0 01 1 9811- ●
143 GUIDE; BOOT,TIE ROD END 1-85229-013-0 01 1 9811- ●
144 BASE; BOOT GUIDE,TIE ROD END 1-85229-012-0 01 1 9811- ●
144 BASE; BOOT GUIDE,TIE ROD END 1-85229-009-0 01 1 9811- ●
149 PLATE; PILOT BRG PULLER 1-85219-009-0 01 1 9811-9906 ●
153 DRIVER; WASHER,THRUST WASHER 1-85238-002-0 01 1 9811- ● ●
154 SLEEPER; KING PIN 1-85238-003-0 01 1 9811- ● ●
157 REPLACER KIT; RETURN SPR
(B) 		9-85231-554-0 01 1 9811-9906 ● ●
157 REPLACER KIT; RETURN SPR
(B) 		9-85231-554-0 01 1 0611- ●
157 REPLACER KIT; RETURN SPR
(A) 		1-85237-002-0 01 1 9907- ●
158 SETTING TOOL; RETURN SPR 9-85221-231-0 01 1 0611- ●
158 SETTING TOOL; RETURN SPR 9-85221-231-0 01 1 9811-9906 ● ●
159 REMOVER; RETURN SPR 9-85231-555-0 01 1 0611- ●
159 REMOVER; RETURN SPR 9-85231-555-0 01 1 9811-9906 ● ●
160 REMOVER; NEEDLE BRG
L=215 		1-85238-007-0 01 1 9811-0610 ●
160 REMOVER; NEEDLE BRG
L=220 		1-85238-001-0 01 1 9811- ●
161 REMOVER; TIE ROD ARM 1-85176-001-0 01 1 9811- ● ●
162 SETTING TOOL; NEEDLE BRG
(A) L=200 		1-85238-005-0 01 1 9811-0610 ●
162 SETTING TOOL; NEEDLE BRG
(B) L=175 		1-85238-006-0 01 1 9811-0610 ●
162 SETTING TOOL; NEEDLE BRG
(B) L=181 		1-85238-008-0 01 1 9811- ●
162 SETTING TOOL; NEEDLE BRG
(A) L=213 		1-85238-009-0 01 1 9811- ●
166 ALIGNER; CLU RELEASE LEVER
L=480 		1-85253-024-0 01 1 0611- ●
166 ALIGNER; CLU RELEASE LEVER
L=480 		1-85253-011-0 01 1 9811-0610 ● ●
167 ALIGNER; CLU PILOT
L=185 		1-85253-012-0 01 1 9811-0610 ● ●
169 BRACKET; SPLINE YOKE 9-85221-243-1 01 1 9811-0610 ● ●
170 HANDLE; TURNING,FINAL 9-85251-121-0 01 1 9811-0610 ● ●
171 PULLER ASM; PINION BRG 9-85210-172-0 01 1 9811-0610 ● ●
172 PULLER ASM; BRG DIFF PILOT 9-85210-173-0 01 1 9811-0610 ● ●
174 PULLER ASM; MAIN CLU SHAFT 9-85210-148-0 01 1 9811-0610 ● ●
174 PULLER ASM; MAIN CLU SHAFT 9-85210-148-0 01 1 0611- ●
çizim 26047
177 178 179 180 180 193 182 186 208 230 237 274 271 209 268
BalonParca AdiParca NoAdetTipApplied Date A B
177 SETTING TOOL KIT 9-85220-040-0 01 1 9811-0610 ● ●
178 BAR; TRANS GUIDE 9-85291-203-0 01 1 9811-0610 ● ●
178 BAR; TRANS GUIDE 9-85291-203-0 01 1 0611- ●
179 PULLER; SPD METER GEAR 9-85210-181-0 01 1 9811-0610 ● ●
180 PULLER; FRT & RR HUB
(B) 		1-85210-002-0 01 1 9811- ● ●
180 PULLER; FRT & RR HUB
(A) M24 		1-85210-057-0 01 1 9811-0610 ● ●
180 PULLER; FRT & RR HUB
(A) M20 		9-85210-187-0 01 1 9811-0610 ● ●
182 REMOVER ASM 9-85210-095-0 01 1 9811-0610 ● ●
186 ADJUSTER; BRAKE
TAI 		1-85269-008-0 01 1 9811-0610 ●
186 ADJUSTER; BRAKE
TOOL B KIT<SL1> TAI 		1-85269-008-0 01 1 0611- ●
193 JACK ASM
TOOL B KIT<SL1> 7TON TAI 		1-85510-005-2 01 1 0611- ●
193 JACK ASM
TAI 		8-97530-396-0 01 1 9811-0610 ●
193 JACK ASM
TOOL A KIT<SK9> 7TON TAI 		1-85510-017-0 01 1 0611- ●
193 JACK ASM
10TON TAI 		1-85510-013-1 01 1 9811-0504 ●
193 JACK ASM
10TON 		8-97607-599-0 01 1 0505- ●
208 HANDLE; JACK
L=600 TAI 		8-97530-154-0 01 1 9811-0610 ●
208 HANDLE; JACK
L=580 TAI 		1-85515-005-1 01 1 0611- ●
208 HANDLE; JACK
TOOL A KIT<SK9> L=580 TAI 		1-85515-005-1 01 1 0611- ●
208 HANDLE; JACK
L=580 TAI 		8-97530-453-0 01 1 9811-0610 ●
208 HANDLE; JACK
L=600 TAI 		8-97530-452-0 01 1 9811-0610 ●
208 HANDLE; JACK
L=600 TAI 		1-85515-009-0 01 1 0611- ●
209 CLIP; JACK HANDLE
TAI 		1-73638-011-1 02 1 0611-0702 ●
209 CLIP; JACK HANDLE
TAI 		1-73638-011-1 02 1 9811-9811 ● ●
230 PUMP; GREASE
TAI 		1-85556-007-3 01 1 9811-0610 ● ●
230 PUMP; GREASE
TOOL B KIT<SL1> 		1-85556-007-4 01 1 0611- ● ●
237 BAG; TOOL
TOOL B KIT<SL1> 		8-97130-902-1 01 1 0611- ●
237 BAG; TOOL
TOOL A KIT<SK9>,TOOL B KIT<SL1> 		8-97130-902-1 01 1 0611- ●
237 BAG; TOOL
TAI 		8-97530-395-0 01 1 9811-0610 ● ●
237 BAG; TOOL
TOOL A KIT<SK9> TAI 		8-97312-893-0 01 1 0611- ●
268 SCREW; CLIP
M6X12 W/LK WASHER 		9-03910-612-0 02 1 9811-0604 ● ●
268 SCREW; CLIP
M6X12 W/LK WASHER 		0-36220-612-0 02 1 0605- ● ●
271 CLIP; TIRE HANGER
TAI 		1-73638-012-1 02 1 0611-0702 ●
271 CLIP; TIRE HANGER
TAI 		1-73638-012-1 02 1 9811-9811 ● ●
274 SCREW; CLIP
M6X12 W/LK WASHER 		9-03910-612-0 02 1 9811-0604 ● ●
274 SCREW; CLIP
M6X12 W/LK WASHER 		0-36220-612-0 02 1 0605- ● ●
çizim 26176
9 17 13 12 1 1 57 23 22 21 20 29 29 29 61 70 82 61 77
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANDLE; SPARE TIRE CARRIER
(A) L=280 TAI 		1-85515-007-0 01 1 9811-0610 ●
1 HANDLE; SPARE TIRE CARRIER
TOOL A KIT<SK9>,TOOL B KIT<SL1> (A) L=280 TAI 		1-85515-007-0 01 1 0611- ●
1 HANDLE; SPARE TIRE CARRIER
(B) TAI 		8-97530-404-0 01 1 9811-0610 ●
1 HANDLE; SPARE TIRE CARRIER
(B) TAI 		9-23110-018-0 01 1 0611- ●
9 WRENCH; WHEEL PIN
41X21 L=440 TAI 		1-85113-015-1 01 1 9811-0610 ● ●
9 WRENCH; WHEEL PIN
TOOL B KIT<SL1> 41X21 L=440 TAI 		1-85113-015-1 01 1 0611- ●
9 WRENCH; WHEEL PIN
TOOL A KIT<SK9>,TOOL B KIT<SL1> 41X21 L=440 TAI 		1-85113-015-1 01 1 0611- ●
9 WRENCH; WHEEL PIN
TOOL A KIT<SK9> 41X21 L=330 TAI 		8-94340-033-2 01 1 0611- ●
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 TAI 		1-85116-011-0 01 1 9811- ●
13 WRENCH; MONKEY
L=255 TAI 		1-85117-002-1 01 1 9811-0610 ● ●
13 WRENCH; MONKEY
TOOL B KIT<SL1> L=247 TAI 		1-85117-006-0 01 1 0611- ● ●
17 HAMMER
TAI 		9-85121-406-0 01 1 9811-0610 ● ●
17 HAMMER
TOOL B KIT<SL1> TAI 		9-85121-406-0 01 1 0611- ● ●
20 WRENCH; 10X12
TAI 		8-97530-397-0 01 1 9811-0610 ● ●
20 WRENCH; 10X12
TOOL B KIT<SL1> 10X12 		0-95902-510-0 01 1 0611- ● ●
21 WRENCH; 14X17
TAI 		8-97530-398-0 01 1 9811-0610 ● ●
21 WRENCH; 14X17
TOOL B KIT<SL1> 14X17 		0-95902-514-0 01 1 0611- ● ●
22 WRENCH; 19X22
TAI 		8-97530-399-0 01 1 9811-0610 ● ●
22 WRENCH; 19X22
TOOL B KIT<SL1> 19X22 		0-95902-519-0 01 1 0611- ● ●
23 WRENCH; 24X27
TAI 		8-97530-400-0 01 1 9811-0610 ● ●
23 WRENCH; 24X27
TOOL B KIT<SL1> 24X27 		0-95902-524-0 01 1 0611- ● ●
29 DRIVER; SCREW
(C) <+>,<-> L=160 		8-94242-798-1 01 1 9811-0610 ● ●
29 DRIVER; SCREW
TOOL A KIT<SK9>,TOOL B KIT<SL1> (C) <+>,<-> L=160 		8-94242-798-1 01 1 0611- ● ●
29 DRIVER; SCREW
(B) TAI 		8-97530-401-0 01 1 9811-0610 ● ●
29 DRIVER; SCREW
TOOL B KIT<SL1> (B) <-> L=285 TAI 		1-85151-004-0 01 1 0611-0611 ● ●
29 DRIVER; SCREW
TOOL B KIT<SL1> (B) <-> L=275 TAI 		8-98061-105-0 01 1 0612- ● ●
29 DRIVER; SCREW
(A) TAI 		8-97530-402-0 01 1 9811-0610 ● ●
29 DRIVER; SCREW
TOOL B KIT<SL1> (A) <+> L=190 		9-09595-522-0 01 1 0611- ● ●
57 TOOL; SETTING CRANK GEAR
ID=134.5 		8-94396-819-0 01 1 9811-0610 ● ●
61 PULLER ASM; PILOT BRG
(A) 		1-85210-050-0 01 1 9811- ● ●
61 PULLER ASM; PILOT BRG
(B) 		9-85210-157-0 01 1 9811-0610 ● ●
70 TOOL; SETTING,OIL SEAL 8-94396-856-0 01 1 9811-0610 ● ●
77 TOOL; SETTING,CYL LINER 8-94396-816-0 01 1 9811-9906 ● ●
82 PULLER ASM; CR/SHF GEAR 8-94396-818-0 01 1 9811-0610 ● ●

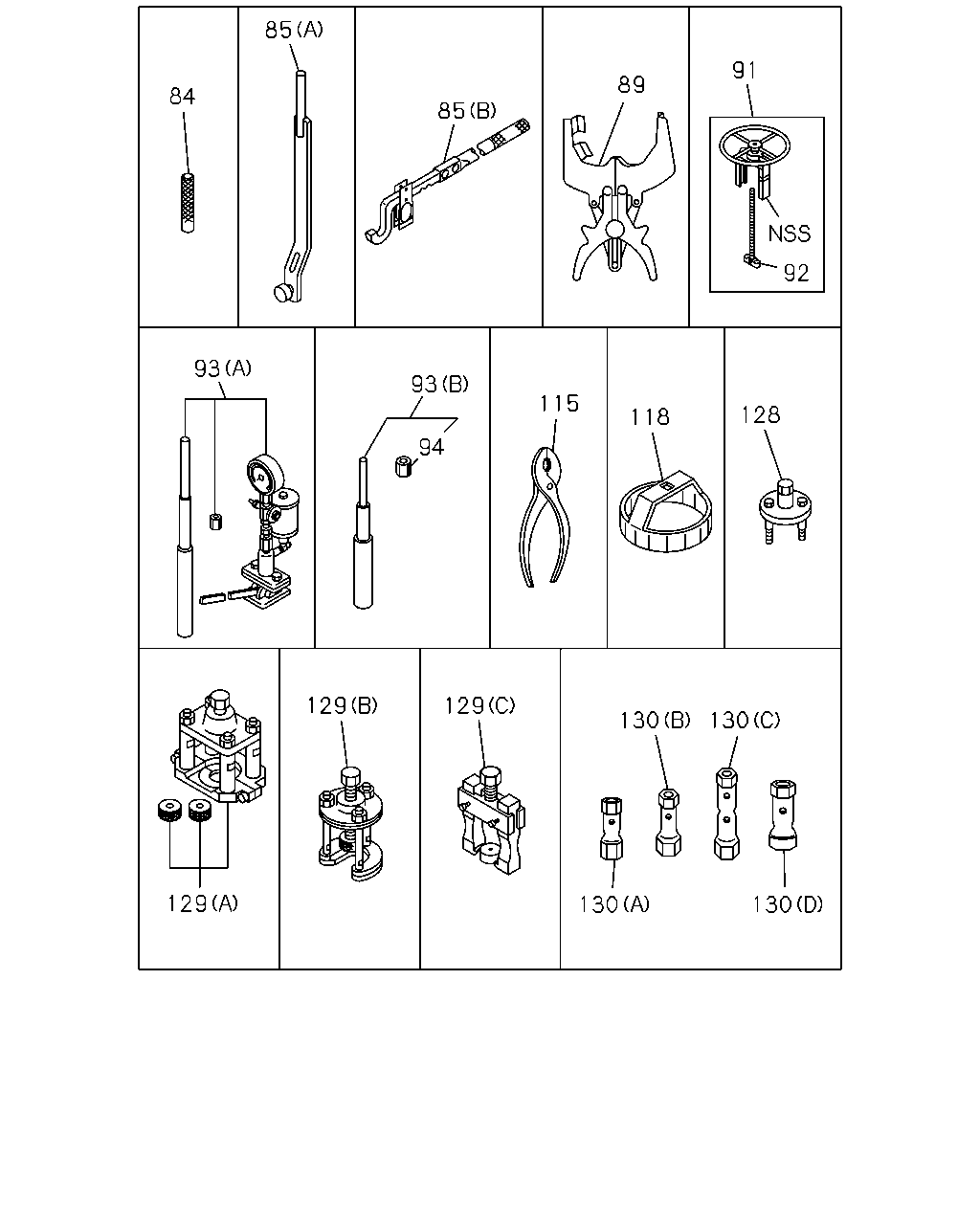

çizim 26523
85 91 89 84 85 92 93 93 115 128 118 94 129 129 130 130 129 130 130
BalonParca AdiParca NoAdetTipApplied Date A B
84 REPLACER; VALVE SEAL 8-94396-815-0 01 1 9811-9906 ● ●
84 REPLACER; VALVE SEAL 8-94391-525-0 01 1 9907-0610 ● ●
85 REPLACER ASM; VALVE SPR
(A) 		8-94396-861-0 01 1 9811-9906 ● ●
85 REPLACER ASM; VALVE SPR
(B) 		8-94391-528-0 01 1 9907-0610 ● ●
89 TOOL; PISTON RING 1-85221-029-0 01 1 9811-0610 ● ●
91 REPLACER ASM; CYL LINER 8-94396-849-0 01 1 9811-9906 ● ●
91 REPLACER ASM; CYL LINER 8-94391-526-0 01 1 9907-0610 ● ●
92 ANKLE; REPLACER,CYL LINER 8-94396-821-0 01 1 9811-9906 ● ●
92 ANKLE; REPLACER,CYL LINER 8-94391-554-0 01 1 9907-0610 ● ●
93 SETTING KIT; VALVE GUIDE
(A) 		1-85220-001-0 01 1 9811-9909 ● ●
93 SETTING KIT; VALVE GUIDE
(B) 		8-97600-910-0 01 1 9910-0610 ● ●
94 RING; VALVE GUIDE SET 8-97600-912-0 01 1 9910-0610 ● ●
115 PLIER 5-85171-002-0 01 1 9811-0610 ● ●
115 PLIER
TOOL B KIT<SL1> 		5-85171-002-0 01 1 0611- ● ●
118 WRENCH; OIL FILTER 1-85221-097-0 01 1 9811-0610 ● ●
128 PULLER ASM; STRG WHEEL 9-85210-099-0 01 1 9811- ● ●
129 PULLER ASM; PITMAN ARM
(A) 		9-85210-147-0 01 1 9811-0610 ●
129 PULLER ASM; PITMAN ARM
(B) 		9-85210-170-0 01 1 9811- ●
129 PULLER ASM; PITMAN ARM
(C) 		1-85210-011-0 01 1 9811- ●
130 WRENCH; BOX
(D) B=46 & 54 L=165 		9-85112-320-0 01 1 9811-0610 ● ●
130 WRENCH; BOX
(A) B=32 & 41 L=150 		9-85112-322-0 01 1 9811-0610 ● ●
130 WRENCH; BOX
(B) B=36 & 41 L=200 		9-85112-330-0 01 1 9811-0610 ● ●
130 WRENCH; BOX
(C) B=41 & 46 L=165 		9-85113-401-0 01 1 9811-0610 ● ●
