Isuzu WW
▶
PICKUP
▶
TFR
▶
51100 - TFR/S GM MIDDLE EAST
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-42 - ASH TRAY
▶

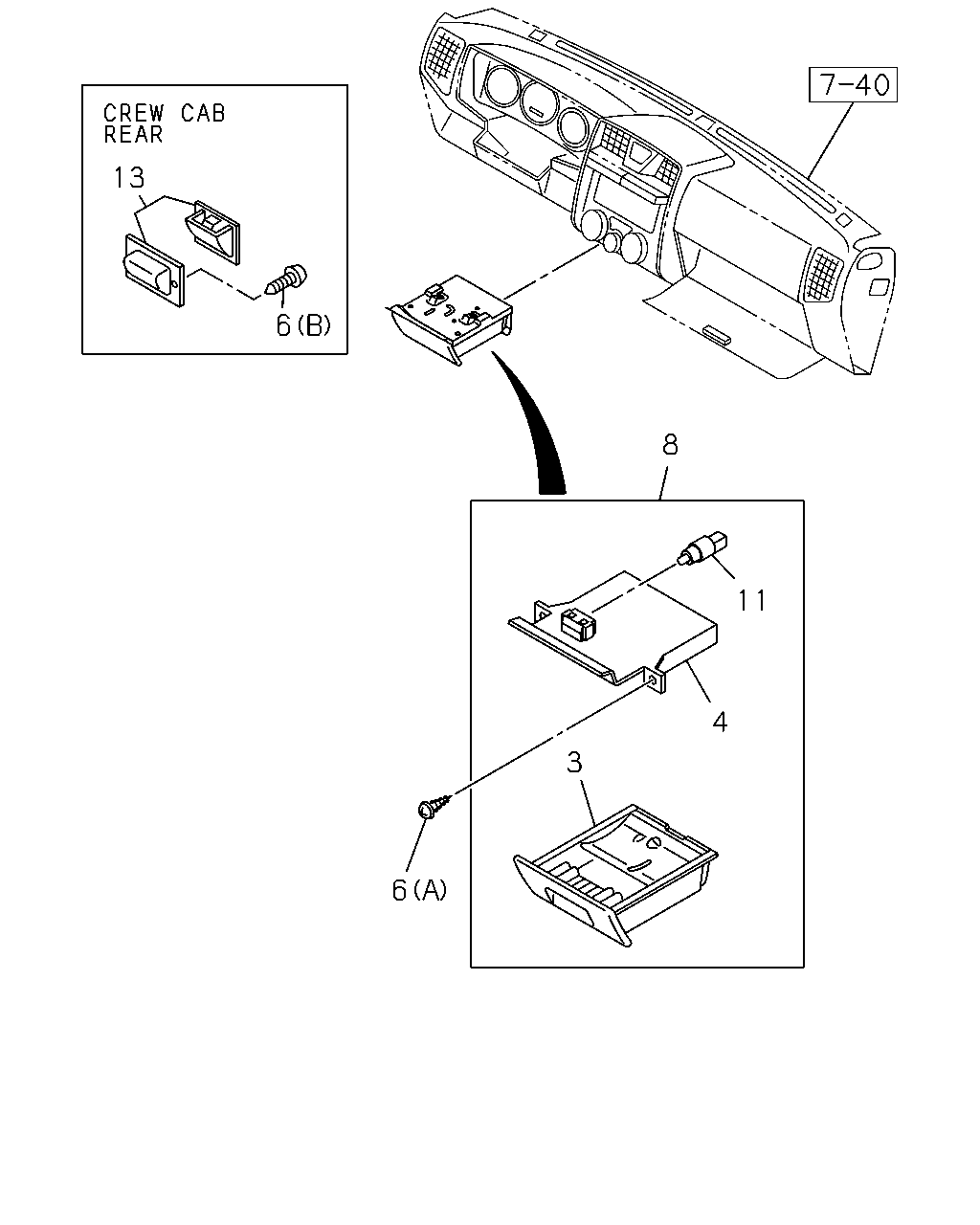

7-42 — ASH TRAY
(#75243) — 23 parça
Tümü
A - TFB6SF
B - TFB6WF
C - TFS6WF
13
6
8
11
4
3
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
3
16.120 CASE ASM; ASH TRAY INNER
GRADE LT(RBD) INTERIOR SILVER BEZEL<BY9> GRAY
8-97407-839-0
01
1
0810-
●
●
●
3
16.120 CASE ASM; ASH TRAY INNER
DARK GRAY
8-97407-836-0
01
1
0610-0710
●
●
●
3
16.120 CASE ASM; ASH TRAY INNER
GRADE DX(RBA) DARK GRAY
8-97407-836-0
01
1
0711-0809
●
●
●
3
16.120 CASE ASM; ASH TRAY INNER
EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY
8-97407-836-0
01
1
0810-
●
●
●
4
16.120 CASE ASM; ASH TRAY OUTER
8-98044-027-0
01
1
0610-0710
●
●
●
4
16.120 CASE ASM; ASH TRAY OUTER
GRADE DX(RBA)
8-98044-027-0
01
1
0711-0809
●
●
●
4
16.120 CASE ASM; ASH TRAY OUTER
GRADE LT(RBD) INTERIOR SILVER BEZEL<BY9>
8-98044-027-0
01
1
0810-
●
●
●
4
16.120 CASE ASM; ASH TRAY OUTER
EXC. INTERIOR SILVER BEZEL<BY9>
8-98044-027-0
01
1
0810-
●
●
●
6
16.120 SCREW; ASH TRAY
16.085 (A) M5X16 TAPPING
9-09829-323-1
02
1
0610-0612
●
●
●
6
16.120 SCREW; ASH TRAY
08.083 (A) M5X16 TAPPING
8-98061-685-0
02
1
0701-1003
●
●
●
6
16.120 SCREW; ASH TRAY
08.083 (A) M5X16 TAPPING
8-98167-449-0
02
1
1004-
●
●
●
6
16.120 SCREW; ASH TRAY
16.742 (B) M4X16 TAPPING OVAL-HEAD
0-70540-416-0
04
1
0610-0809
●
●
6
16.120 SCREW; ASH TRAY
CLOTH TRIM SUPER DELUXE, VAR 2<8LN> POWER WINDOW FRT&REAR DOOR<A31> 16.742 (B) M4X16 TAPPING OVAL-HEAD
0-70540-416-0
04
1
0810-
●
●
6
16.120 SCREW; ASH TRAY
CLOTH TRIM STANDARD, VAR 2<8LL> 16.742 (B) M4X16 TAPPING OVAL-HEAD
0-70540-416-0
04
1
0810-
●
●
8
16.120 TRAY ASM; ASH
GRADE LT(RBD) INTERIOR SILVER BEZEL<BY9> GRAY
8-97405-211-0
01
1
0810-
●
●
●
8
16.120 TRAY ASM; ASH
GRADE LT(RBD) EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY
8-97403-297-0
01
1
0810-
●
●
●
8
16.120 TRAY ASM; ASH
DARK GRAY
8-97403-296-0
01
1
0610-0710
●
●
●
8
16.120 TRAY ASM; ASH
GRADE DX(RBA) DARK GRAY
8-97403-296-0
01
1
0711-0809
●
●
●
8
16.120 TRAY ASM; ASH
GRADE DX(RBA) EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY
8-97403-296-0
01
1
0810-
●
●
●
11
08.991 BULB; ASH TRAY
GRADE LT(RBD)
8-97308-651-0
01
1
0810-
●
●
●
13
16.120 TRAY ASM; ASH,RR
BEIGE
8-97409-356-0
02
1
0610-0809
●
●
13
16.120 TRAY ASM; ASH,RR
CLOTH TRIM SUPER DELUXE, VAR 2<8LN> POWER WINDOW FRT&REAR DOOR<A31> BEIGE
8-97409-356-0
02
1
0810-
●
●
13
16.120 TRAY ASM; ASH,RR
CLOTH TRIM STANDARD, VAR 2<8LL> BEIGE
8-97409-356-0
02
1
0810-
●
●
